Introduction to Fault Mechanics
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're discussing fault mechanics. Faults behave under the influence of stress, which leads to slip or failure. Can anyone explain what stress in this context refers to?
Is it the pressure exerted on the fault plane?
Exactly, Stress is a force applied over an area. Now let’s talk about the two types of stress: normal and shear. Can someone tell me how they differ?
Normal stress is perpendicular to the fault, while shear stress is parallel.
Correct! Remember this as 'Normal = Perpendicular' and 'Shear = Parallel.' This distinction sets the stage for the Mohr-Coulomb failure criterion.
Mohr-Coulomb Failure Criterion
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
"The Mohr-Coulomb failure criterion is what we use to analyze fault behavior under stress. Could anyone summarize the formula?
Impact of Elastic Deformation and Energy Release
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, stress doesn't accumulate forever. What happens when it exceeds the strength of the rocks?
It leads to a fault rupture, releasing seismic energy!
Exactly! This process of elastic deformation followed by sudden release is fundamental in earthquakes. Can anyone think of a mnemonic to remember this process?
How about 'Stress builds, stresses snap, energy bursts!'?
Great mnemonic! Just like a coiled spring, stress builds until it's too much, and then it releases energy - causing earthquakes.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the behavior of faults when subjected to stress is analyzed using the Mohr-Coulomb failure criterion, representing the relationship between shear stress, normal stress, cohesion, and friction angle. Understanding these mechanics is essential for predicting and mitigating seismic events caused by fault rupture.
Detailed
Fault Mechanics and Stress Analysis
The mechanics of faults under stress directly influence the occurrences of earthquakes. This section employs the Mohr-Coulomb failure criterion to analyze these mechanics, represented mathematically as:
τ = c + σn × tan(ϕ)
Where:
- τ (shear stress): The stress parallel to the fault plane.
- c (cohesion): The inherent strength of the rock material.
- σn (normal stress): The perpendicular stress acting on the fault surface.
- ϕ (angle of internal friction): The frictional resistance against sliding along the fault plane.
The failure criterion indicates that when shear stress exceeds the material strength, faulting occurs. Over time, stress accumulates, leading to elastic deformation, which is released as seismic energy during a fault rupture. This understanding is vital for assessing seismic hazards, as it aids in predicting when and where an earthquake may occur.

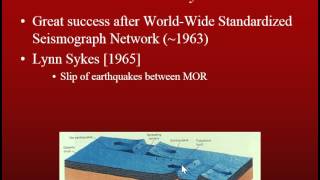

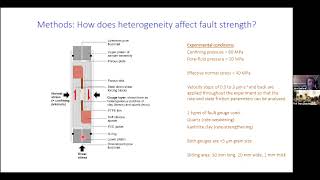

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Mohr-Coulomb Failure Criterion
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The behavior of faults under stress is analyzed using the Mohr-Coulomb failure criterion:
$$\tau = c + \sigma_n \times \tan(\phi)$$
Where:
- $\tau$ = shear stress
- $c$ = cohesion
- $\sigma_n$ = normal stress
- $\phi$ = angle of internal friction
Detailed Explanation
The Mohr-Coulomb failure criterion is used to analyze how faults behave when they are subjected to stress. In this equation, shear stress ($\tau$) refers to the force that causes the layers of rock to slide against each other. Cohesion ($c$) is the intrinsic strength of the rocks that helps hold them together. Normal stress ($\sigma_n$) is the force acting perpendicular to the fault plane, and the angle of internal friction ($\phi$) reflects how the rocks resist sliding against each other. Together, these elements help determine when the shear stress on a fault will exceed the strength of the rock, resulting in fault movement and potentially causing an earthquake.
Examples & Analogies
Imagine pushing two stacked books on a table. The force you apply is similar to shear stress, trying to slide them against each other. The friction between the books is akin to cohesion. As you push harder (adding shear stress), at some point, the force will overcome the friction, causing the books to slide suddenly. This is similar to how faulting occurs in the Earth; once the stress exceeds frictional resistance, rocks will rupture or slip, releasing stored energy.
Shear Stress and Faulting
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When shear stress exceeds the rock strength, faulting occurs. Stress accumulation over time results in elastic deformation, eventually released as seismic energy during fault rupture.
Detailed Explanation
Shear stress builds up in rocks near faults due to tectonic forces. When the stress becomes too great, it exceeds the strength of the rock, causing it to fail and rupture. This sudden release of accumulated stress results in seismic energy that we feel as an earthquake. Before the fault movement, the rocks may experience elastic deformation, meaning they bend or stretch without breaking until the stress threshold is reached.
Examples & Analogies
Think of a rubber band. If you stretch it slowly, it can deform without breaking—this is similar to the elastic deformation in rocks. However, if you stretch it too far, it snaps, releasing all that stored tension instantly. This snapping is analogous to faulting: when rock deformities become excessive due to build-up of stress, the sudden release leads to an earthquake.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Mohr-Coulomb failure criterion: A critical equation for understanding when faulting occurs under stress.
-
Shear and Normal Stress: Two types of stress influencing fault behavior.
-
Elastic Deformation: The temporary change in shape of rocks before seismic release.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A slip on a fault, where normal stress is high, can lead to an earthquake if shear stress exceeds rock strength.
-
The Mohr-Coulomb failure criterion can be applied to assess risk levels in buildings located near an active fault line.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When pressure mounts and rocks do sway, faults may slip or snap someday.
📖 Fascinating Stories
-
Imagine a belt being pulled tighter and tighter. Just as it snaps, that is how stress on Earth's faults builds up.
🧠 Other Memory Gems
-
SNEC: Stress, Normal stress, Elastic deformation, Cohesion - remember these are key to understanding faults.
🎯 Super Acronyms
CNSF
- Cohesion
- Normal stress
- Shear stress
- Failure - components that lead to faulting.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Shear Stress
Definition:
Stress that acts parallel to the surface of a material.
-
Term: Normal Stress
Definition:
Stress that acts perpendicular to the surface of a material.
-
Term: Cohesion
Definition:
The internal strength of a rock material resisting shear.
-
Term: Angle of Internal Friction (ϕ)
Definition:
The angle that characterizes the friction of a material.
τ = c + σn × tan(ϕ)?"
- Student_3: "It shows the relationship between shear stress, normal stress, cohesion, and the angle of internal friction!"
- Teacher: "Well done! The key is understanding that when shear stress exceeds the rock strength, faulting occurs. Why do you think this relationship is important for engineers?"
- Student_4: "It helps us predict when an earthquake might happen, right?"
- Teacher: "Exactly! By analyzing these stresses, engineers can assess seismic hazards effectively."
