40.20 - Base Isolation and Energy Dissipation Devices
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Base Isolation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will explore base isolation. Can anyone tell me what the purpose of base isolation is during an earthquake?
Isn't it to keep the building from shaking too much?
Exactly right! Base isolation helps reduce seismic forces by introducing flexibility at the foundation. It allows the structure to move independently from the ground motion.
What are some types of base isolation systems?
Great question! Two common types are lead rubber bearings and friction pendulum systems. The lead rubber bearing combines rubber and lead to give it both strength and flexibility.
How does a friction pendulum system work?
A friction pendulum system uses a curved surface that allows lateral movement. It decouples the building from ground motion similar to a pendulum, allowing it to sway safely.
In summary, base isolation reduces seismic impact significantly, making it a vital aspect of modern structural engineering.
Understanding Damping Devices
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we understand base isolation, let’s discuss damping devices. What is the purpose of these devices?
Are they used to absorb energy from earthquakes?
Exactly! They help absorb earthquake energy to minimize damage. Can anyone name a type of damping device?
I think I've heard of viscous dampers!
Correct! Viscous dampers use a fluid to absorb energy. There are also tuned mass dampers and metallic yield dampers. Each has unique mechanisms for energy absorption.
Are these devices required by code?
Not yet, but they are becoming essential in performance-based designs. They enhance a building's ability to withstand seismic forces.
In summary, damping devices complement base isolation by absorbing energy and enhancing structural resilience.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Base isolation involves flexible foundation systems that reduce seismic forces, while damping devices absorb earthquake energy. Different types, such as lead rubber bearings and viscous dampers, are introduced, highlighting their importance in performance-based design despite not being mandatory.
Detailed
Base Isolation and Energy Dissipation Devices
Base isolation is a critical seismic design strategy that involves implementing flexible systems at the foundation level, thereby decoupling the building from ground motion during an earthquake. The primary goal is to reduce the seismic forces that affect the structure, allowing buildings to sway without sustaining significant damage.

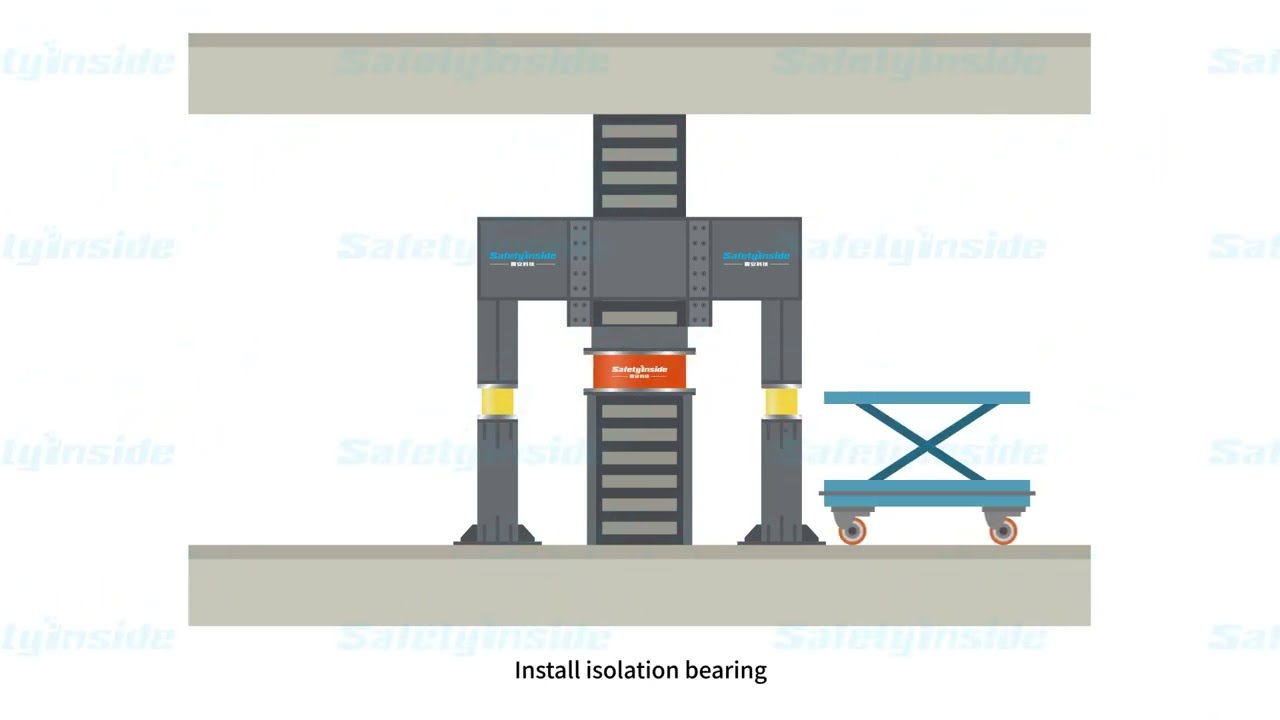

40.20.1 Base Isolation
Various types of base isolation systems exist:
- Lead Rubber Bearings (LRB): These combine rubber with lead to allow lateral movement while resisting vertical loads.
- Friction Pendulum Systems: These devices utilize a spherical surface to allow lateral movements, reducing seismic impact significantly.
40.20.2 Damping Devices
Energy dissipation devices play an essential role in absorbing seismic energy. Key types include:
- Viscous Dampers: These use a viscous fluid to absorb energy during oscillations.
- Tuned Mass Dampers: These are large masses that counteract the oscillation of the building structure to reduce movement.
- Metallic Yield Dampers: These devices absorb energy through plastic deformation.
Although not mandatory according to current codes, the use of these devices is increasingly important in performance-based design approaches. Incorporating base isolation and damping devices enhances the resilience of structures, ensuring they remain safe and functional during and after seismic events.

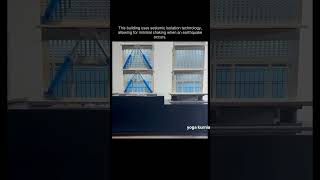

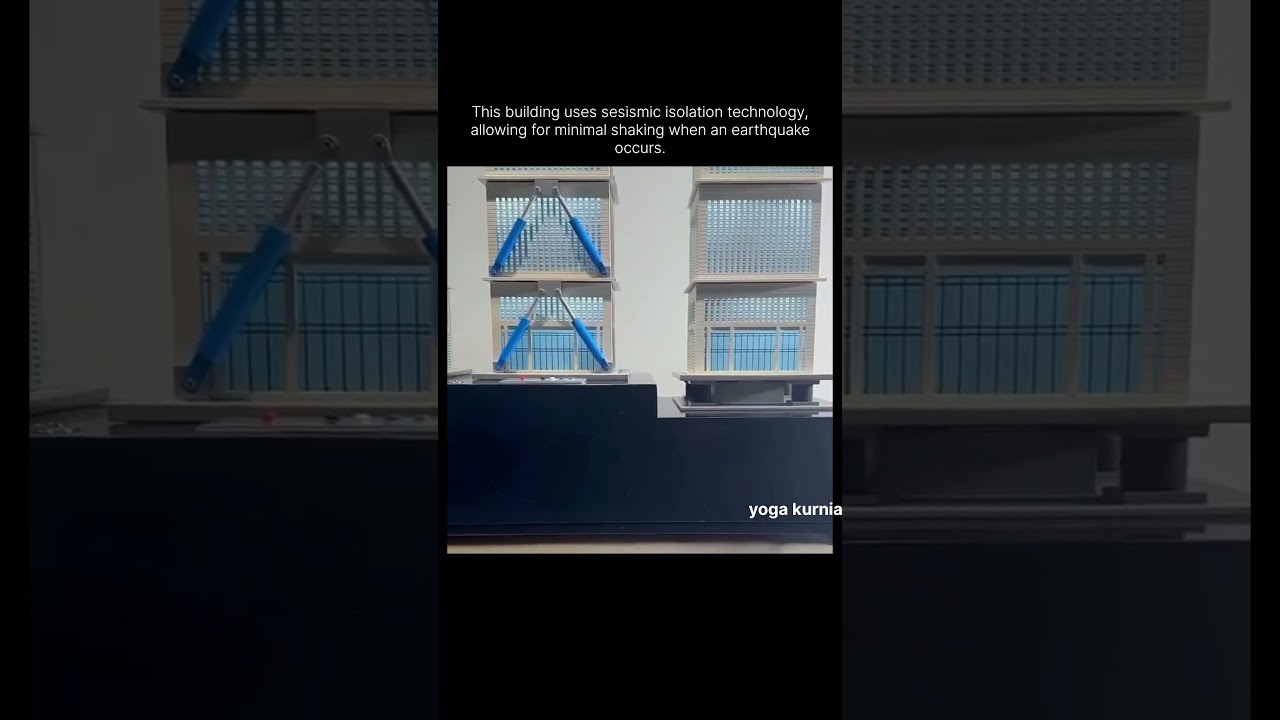

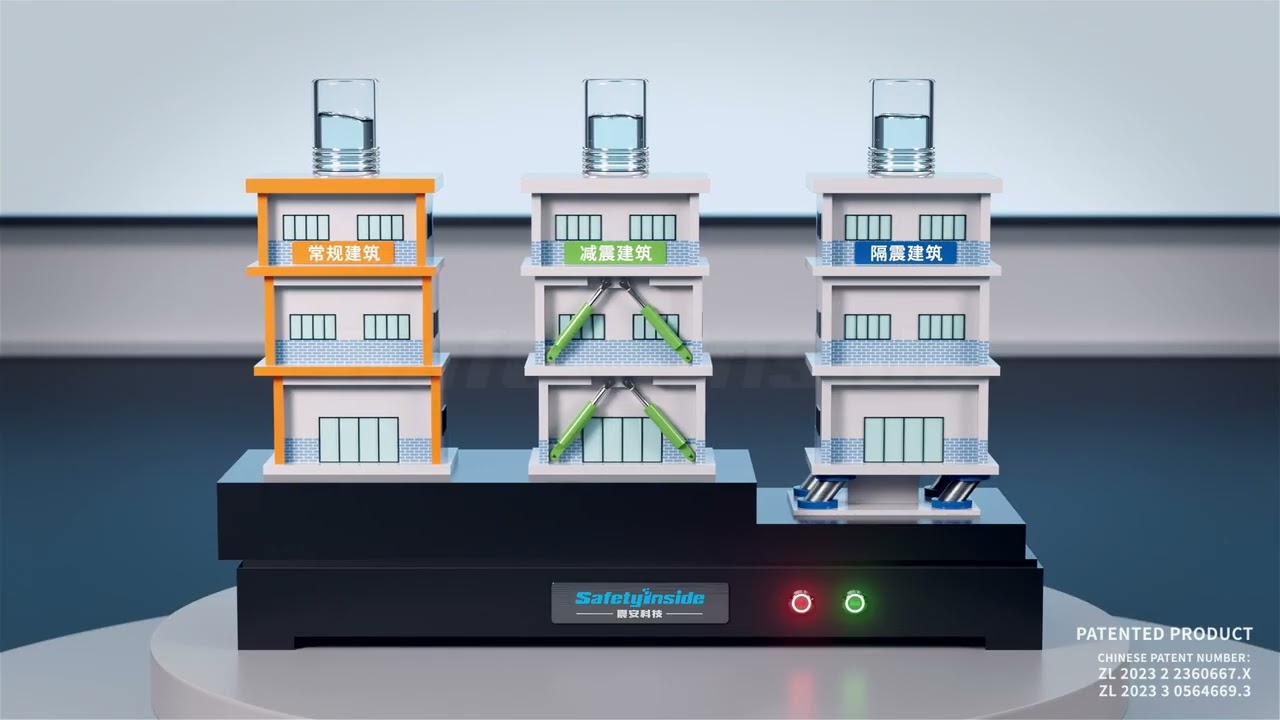

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Base Isolation
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Base Isolation
- Reduces seismic forces by introducing flexibility at foundation level.
- Types:
- Lead rubber bearings (LRB)
- Friction pendulum systems
Detailed Explanation
Base isolation is a technique used in earthquake engineering to reduce the seismic forces that a building experiences during an earthquake. It works by adding flexible materials at the foundation level of the structure. This flexibility allows the building to move independently of ground motion, thereby minimizing the forces transmitted from the ground to the structure.
Two common types of base isolation systems include Lead Rubber Bearings (LRB) and Friction Pendulum Systems. LRBs are designed with rubber layers and a lead core that can deform and absorb energy. Friction pendulum systems allow the structure to slide over a curved surface during an earthquake, which also helps to absorb energy and reduce motion.
Examples & Analogies
Think of a base isolation system like a pair of shock absorbers on a car. When you drive over a bumpy road, the shock absorbers help smooth out the ride by absorbing the bumps. Similarly, base isolation devices absorb the shaking caused by earthquakes, allowing the structure above to remain stable and safe.
Damping Devices
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Damping Devices
- Absorb earthquake energy:
- Viscous dampers
- Tuned mass dampers
- Metallic yield dampers
Not yet mandatory by code but considered in performance-based design.
Detailed Explanation
Damping devices play a crucial role in minimizing the energy transmitted to a structure during an earthquake. They function by converting kinetic energy from motion into thermal energy, which dissipates and reduces the amount of energy that goes into damaging the structure.
There are several types of damping devices:
1. Viscous Dampers: These use a fluid that resists motion, helping to absorb energy. They are often used in various structures to reduce vibration.
2. Tuned Mass Dampers: These are large masses placed in a structure that move in opposition to the structure’s movements, thus helping to balance the forces.
3. Metallic Yield Dampers: These devices are designed to deform permanently under stress, absorbing energy as they yield.
Although these devices are recognized for their effectiveness in managing seismic loads, they are not yet mandatory by code, which means that their use is considered more in performance-based design rather than in standard building requirements.
Examples & Analogies
Imagine a basketball player who anticipates a sudden move from an opponent and leans into their motion to absorb the push instead of falling over. Damping devices act like this player; when the building shakes, these devices absorb and manage the energy to prevent the structure from collapsing or suffering damage, allowing it to stay upright and stable.
Key Concepts
-
Base Isolation: Decouples buildings from ground motion.
-
Lead Rubber Bearings: Flexible bearings used in base isolation.
-
Friction Pendulum Systems: Allows lateral movement through a pendulum effect.
-
Damping Devices: Absorption systems for seismic energy.
Examples & Applications
The Transamerica Pyramid in San Francisco uses base isolation to protect against seismic events.
Tokyo Skytree utilizes tuned mass dampers to minimize oscillation during earthquakes.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When the ground shakes like a wild dance, base isolation gives structures a chance.
Stories
Once in a town prone to quakes, a wise architect built foundations that swayed with grace, protecting homes with rubbery bearings and pendulums that let them glide.
Memory Tools
Remember 'BRD' for Base isolation: B for Bearings (Lead Rubber), R for Resistance, and D for Damping devices.
Acronyms
D.I.S.E.A.S.E
Damping and Isolation Systems Enhance Architecture's Seismic Endurance.
Flash Cards
Glossary
- Base Isolation
A method of reducing seismic forces on a structure by using flexible bearings at the foundation level.
- Lead Rubber Bearings (LRB)
Seismic isolation devices that combine rubber and lead to provide flexibility and resistance.
- Friction Pendulum Systems
Base isolation systems that allow lateral movements by using a curved sliding surface.
- Damping Devices
Devices used to absorb and dissipate seismic energy to reduce building motion.
- Viscous Dampers
Devices that use viscous fluid to absorb energy during seismic events.
- Tuned Mass Dampers
Large masses that counteract building oscillations to reduce movement.
- Metallic Yield Dampers
Devices that absorb seismic energy through controlled plastic deformation.
