Understanding Storey Drift
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we are going to delve into storey drift limits, which is a critical aspect of our seismic design codes. Can anyone define what storey drift is?
Is it the movement or displacement between different floors of a building during an earthquake?
Exactly! It's the relative lateral displacement of one floor relative to another. According to IS 1893, the maximum drift allowable is 0.004 times the storey height. Why do you think this limit is crucial in designing buildings?
To prevent structural failure and ensure safety for the occupants?
Right! Keeping drift within limits prevents excessive shaking which might cause discomfort or damage. Remember, when designing, we use the mnemonic 'Safe Sturdy Structures' to recall that safety and strength are paramount.
So, if a building has a height of 10 meters, the maximum drift would be 0.04 meters, or 4 centimeters?
Correct! Now, let's move on to how these drifts relate to P-Delta effects.
P-Delta Effects
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
P-Delta effects are critical in design, especially when drifts are considerable. Who can explain what these effects are?
Don’t they refer to the additional moments caused by lateral displacements in a structure?
Exactly! When a building drifts, there are secondary moments that develop, which can lead to additional stress. How do you think engineers account for these in their analysis?
They must consider these additional moments in their structural calculations to ensure safety?
Right! This understanding allows for a more robust design. Remember our acronym "P-Delta Danger" - P for P-Delta, indicating it's a danger we must account for!
So, if drift exceeds the allowed limits, how does that change our approach?
Good question! It might require increased material strength or altered geometries to keep drift within limits.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section outlines the drift limit defined as the relative lateral displacement between floors, emphasizing the maximum allowable drift percentage based on storey height. It also discusses the P-Delta effects that modify moments in structures under significant drift conditions, highlighting the importance of controlling lateral displacement in earthquake-prone regions.
Detailed
Drift and Deflection Limits
In earthquake-resistant design, controlling drift and deflection is essential to maintaining structural integrity and occupant safety. Drift is defined as the relative lateral displacement between two adjacent floors of a structure, expressed as a fraction of the storey height ( 04 times the storey height). This limit ensures that buildings do not experience excessive movement that could lead to structural failure or discomfort for occupants.
The importance of monitoring drift extends to understanding P-Delta effects, which refers to the additional moments generated in a structure when lateral displacements are significant. This can lead to amplified loads that the structure must be designed to resist. Designers and engineers must meticulously evaluate these factors when applying seismic design codes to ensure buildings can withstand potential earthquake forces.

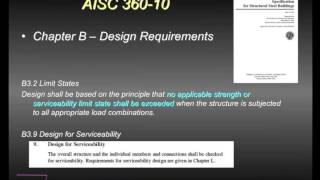

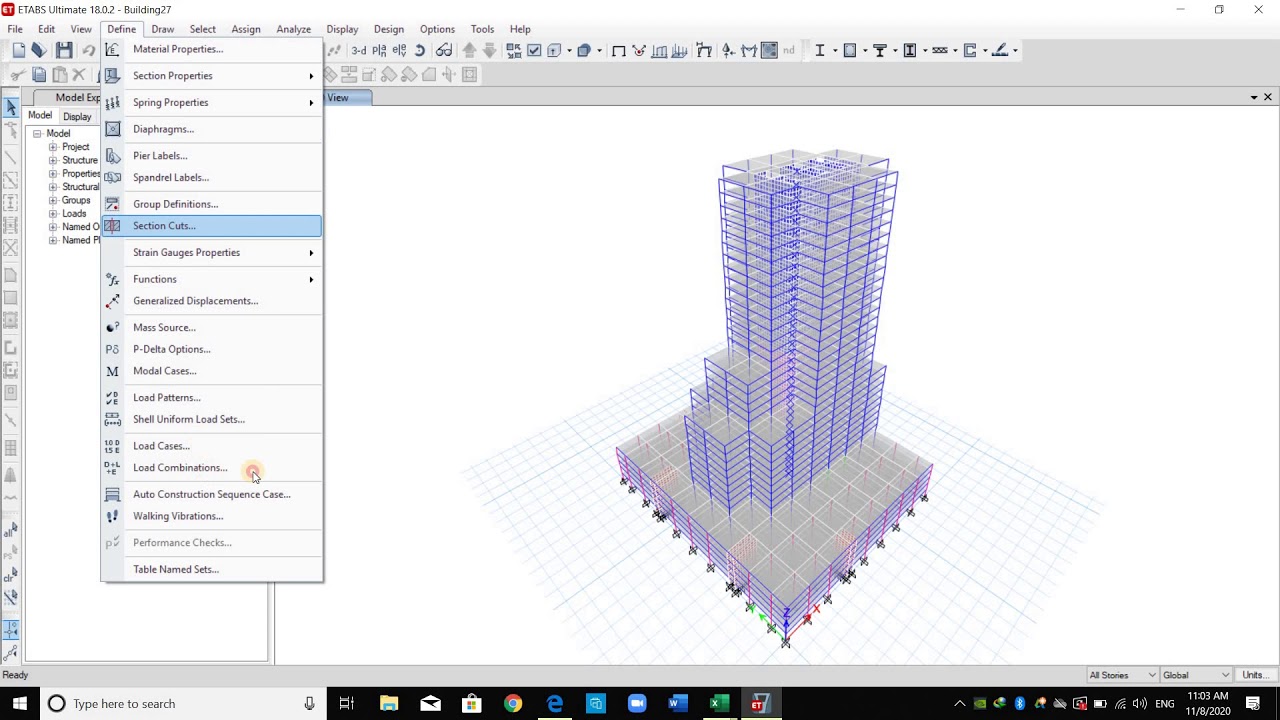

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Storey Drift Limit
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
40.14.1 Storey Drift Limit
• Defined as the relative lateral displacement between floors divided by storey height.
• As per IS 1893:
\[
\text{Drift} \leq 0.004 \times h
\]
where h is the storey height.
Detailed Explanation
The storey drift limit is a critical aspect of building design that deals with how much a building can sway during an earthquake. It is calculated by taking the lateral movement of one floor in relation to its height above ground. According to IS 1893, the limit for this drift is not to exceed 0.004 times the height of the storey (h). For instance, if a storey is 3 meters tall, the maximum allowable drift would be 0.012 meters or 12 millimeters. This limit ensures that buildings remain structurally safe and comfortable for occupants during seismic events.
Examples & Analogies
Imagine a tall tree swaying in the wind. If the tree sways too much, it may uproot or break. Similarly, buildings can 'sway' during an earthquake. The rule of limiting storey drift is like a guideline for the tree; it ensures the movements are within safe limits to prevent the building from falling or becoming dangerously deformed.
P-Delta Effects
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
40.14.2 P-Delta Effects
• Considered when drift is large.
• Amplifies moments due to secondary effects.
Detailed Explanation
P-Delta effects refer to additional forces that can occur in a structure due to the interaction between lateral drift (movement during an earthquake) and the weight of the structure. When a building sways significantly, the weight it carries can create extra forces that further amplify the bending moments in its columns and beams. This makes the structure more vulnerable during an earthquake. Therefore, engineers must consider these effects in their designs, especially when anticipating larger drifts to ensure safe performance.
Examples & Analogies
Think of a person holding an umbrella during a storm. If the wind causes the person to lean to one side (drift), the weight of the umbrella creates a tipping moment, possibly leading it to flip over. Similar to how the umbrella becomes unstable due to the wind and the weight of the held umbrella, buildings can experience instability due to P-Delta effects during a strong earthquake.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Storey Drift: The lateral displacement between floors is critical for maintaining building stability during earthquakes.
-
P-Delta Effects: Secondary moments that increase loading on structures due to lateral displacements.
-
Drift Limits: Standards defined to control how much a structure can sway during seismic events.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A 5-storey building with each storey measuring 3 meters high would have a maximum permissible drift of 12 mm, which engineers must verify during design assessments.
-
A structure exceeding the drift limit might use additional bracing to mitigate excessive movements that could lead to failure or occupant discomfort.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Drift's in a rift, keeps buildings strong, up to four in a height won't steer you wrong.
📖 Fascinating Stories
-
Imagine a tall tree swaying in the wind. If it bends too much, it might break. Just like trees, buildings must not sway too far, ensuring they stay upright during storms.
🧠 Other Memory Gems
-
Remember 'DRS' for Drift, Regulation, and Safety. This helps you recall that drift matters for regulations ensuring safety.
🎯 Super Acronyms
P-Delta
- P: for 'proportional' and D for 'disturbance'—together relating to secondary effects during lateral shifts.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Storey Drift
Definition:
The relative lateral displacement between two floors in a structure, expressed as a fraction of the storey height.
-
Term: PDelta Effects
Definition:
Secondary moments in structures that arise due to lateral displacement when a structure is subjected to horizontal loads.
-
Term: Seismic Design Codes
Definition:
Regulatory guidelines that outline the necessary criteria for designing earthquake-resistant structures.
