40.4. Seismic Weight and Base Shear
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today, we'll discuss seismic weight, denoted as W. This encompasses both the dead load and a portion of the live load. Can anyone tell me what the typical percentage of live load we consider for seismic weight calculations?
Is it 25% of the live load?
Correct! That's the standard value, except for storage conditions. In storage cases, we might consider up to 50%. This is crucial for ensuring the structure can withstand seismic activities. Remember the acronym 'W = DL + 0.25LL' to recall the components of seismic weight. W refers to weight, DL to dead load, and LL to live load!
What happens if the live load is more significant during an earthquake?
Good question! If the live load is substantial, we need to ensure that our calculations reflect the maximum loads in specific scenarios, like storage.
This sounds important for preventing structural failures during an earthquake.
Exactly! Properly accounting for seismic weight ensures that a structure is designed to handle the forces arising from potential seismic events.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Now that we understand seismic weight, let's discuss base shear, denoted as V. Does anyone know how to calculate it?
I think it’s related to seismic weight and horizontal seismic acceleration, right?
Yes! The formula is V = A × W_h, where A is the design horizontal seismic acceleration coefficient. Can anyone volunteer what factors might influence 'A'?
It depends on the seismic zone and the importance factor of the structure.
Exactly! It's crucial to consider these factors when designing structures, as they dictate how much lateral force we expect at the base during an earthquake. Can anyone think of a real-world implication of miscalculating base shear?
It could lead to catastrophic structural failures.
Right! That's why accurate calculations of both seismic weight and base shear are fundamental in earthquake-resistant design.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
In our final session, let's reflect on why understanding W and V is crucial for structural engineers. Why do you think these calculations are so vital?
They ensure the structure can withstand seismic forces!
Exactly! Proper seismic design can save lives and reduce property damage during earthquakes. What strategies can engineers employ if the base shear exceeds expected forces?
They might need to increase the structural resistance or use materials that absorb shock better.
Spot on! Engineers can adjust designs to improve stability, such as using shear walls or a strong foundation. Can anyone recall an example of this?
Like using base isolation systems in critical buildings!
Absolutely! This integrated approach to understanding W and V helps create safer structures. Always remember, W and V aren't just numbers; they represent safety!
Overview
Short Summary
This section discusses how to calculate seismic weight and base shear, which are critical for designing structures to withstand seismic forces.
Medium Summary
In this section, seismic weight (W) is defined as the combination of dead load and a portion of live load, while base shear (V) represents the total lateral force at the base of a structure caused by earthquake effects. The section provides formulas for calculating these values, emphasizing their significance in seismic analysis and design.
Detailed Summary
Seismic Weight and Base Shear
Seismic Weight (W)
Seismic weight is a crucial factor in earthquake-resistant design, comprising both the dead load and a portion of the live load applied to a structure. According to codal provisions, designers typically consider 25% of live load for seismic weight calculations, except in storage scenarios where 50% is used.
Base Shear (V)
Base shear is defined as the total lateral force acting at the base of a structure due to seismic effects. This force can be calculated using the formula:
Where:
- V = Base shear
- A = Design horizontal seismic acceleration coefficient
- W = Seismic weight
This understanding of seismic weight and base shear is essential for ensuring a structure's stability and safety during seismic events, highlighting their critical roles in the overall design process.

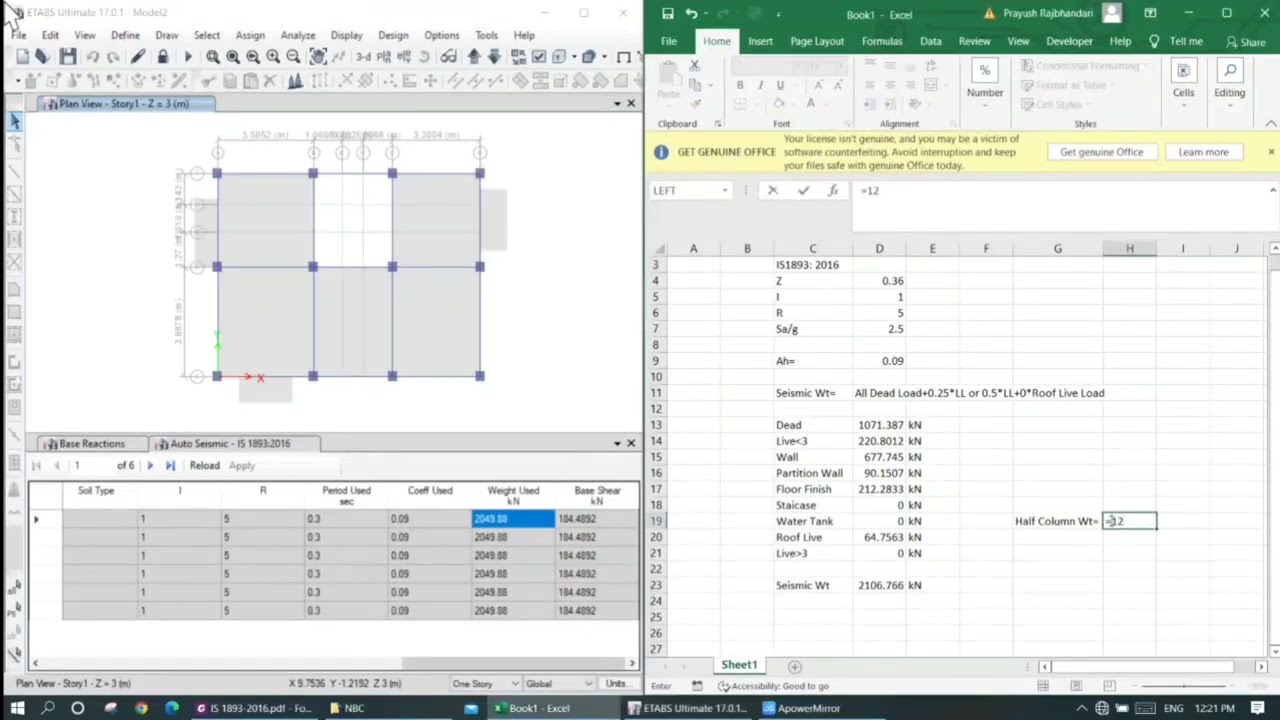

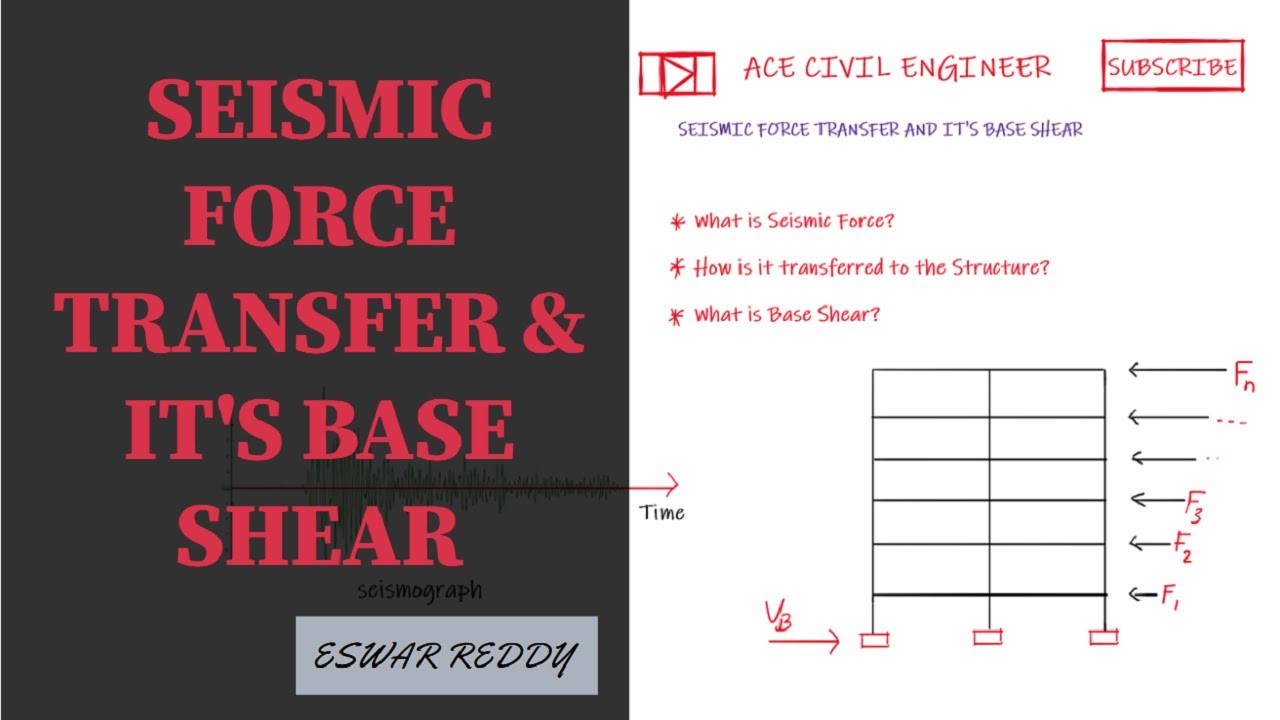

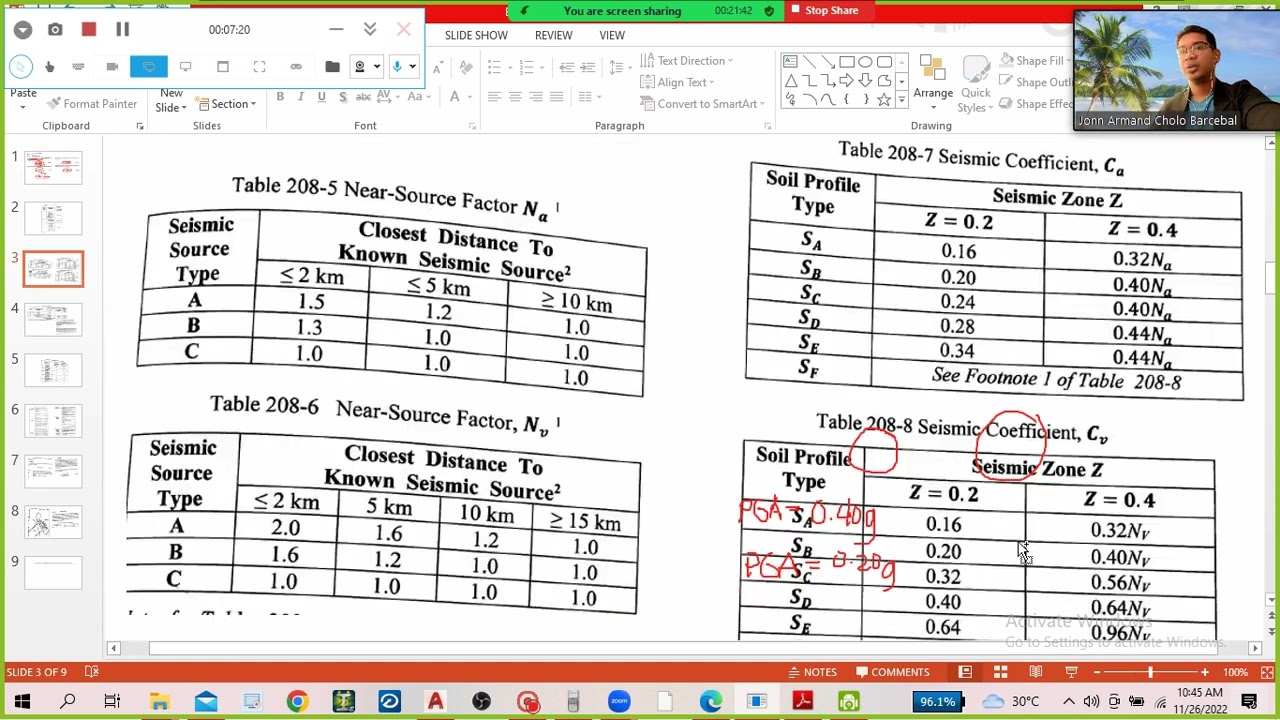

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Includes dead load and a portion of live load. • 25% of live load is considered for design, except for storage where 50% may be considered.
Detailed Explanation
The seismic weight (W) of a building is a critical concept in designing structures for earthquakes. It consists of two primary components: the dead load and a portion of the live load.
- Dead Load: This is the weight of the structure itself, including all its fixed components such as walls, floors, and roofs. It is constant and does not change over time.
- Live Load: This is the weight of the occupants and movable items within the building, such as furniture and equipment. However, when calculating the seismic weight, only a portion of the live load is considered:
- For most structures, 25% of the live load is accounted for.
- In storage areas, where items are expected to be placed, a higher consideration of 50% of the live load is used because these areas may experience more dynamic load shifts during an earthquake.
Examples & Analogies
Imagine a bookcase (the dead load) filled with a few books and some items temporarily placed on top (the live load). When calculating how strong the shelving needs to be during an earthquake, you'd consider the weight of the bookcase plus just a few of the books, instead of all the books on it. This helps assess how much the bookcase can sway or shake without collapsing.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountV = A · W • Total lateral force at base due to earthquake effects.
Detailed Explanation
Base shear (V) refers to the total horizontal force that acts on the structure at its base during an earthquake. It is a crucial factor in earthquake engineering because it helps engineers determine how much force the building needs to withstand to prevent structural failure. The equation for base shear is given by:
V = A · W Where:
- V is the base shear (the lateral force at the base).
- A is the design horizontal acceleration coefficient (a measure of the expected ground shaking).
- W is the seismic weight of the structure (the total weight considered for seismic analysis). This calculation helps in designing the structure robustly against seismic forces that could lead to unstable behavior during an earthquake.
Examples & Analogies
Consider a tall tower of building blocks. If you push the tower from the side (an earthquake), the force you apply at the bottom (base shear) determines whether the tower will topple over or stay standing. The heavier the tower (more blocks), the stronger the force needs to be to knock it down, which is similar to how engineers design buildings to handle earthquake forces.
--
Key concepts
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
Example of Seismic Weight: A building with a dead load of 100,000 kg and a live load of 20,000 kg would have a seismic weight W = 100,000 + (0.25 * 20,000) = 105,000 kg.
Example of Base Shear: If the design horizontal seismic acceleration coefficient A = 0.2 and the seismic weight W = 105,000 kg, then the base shear V = 0.2 * 105,000 = 21,000 N.
Memory aids
Imagine a tall building swaying during an earthquake; its seismic weight must be just right, with a portion of its live load helping it stay upright against the forces.
