Introduction to Liquefaction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're discussing the phenomenon of liquefaction. Can anyone tell me what liquefaction is?
It’s when soil behaves like a liquid during an earthquake, right?
Exactly! Liquefaction typically occurs when saturated loose soils lose their strength. Can anyone guess why saturation is important?
Because the water pressure builds up and can cause the soil to lose strength?
Great observation! This is why we'll explore the role of specific soil properties in depth. Remember this—'saturation' and 'strength' are key concepts when discussing liquefaction.
Soil Properties
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's talk about soil properties. What aspect do you think affects liquefaction the most?
I think it’s the grain size! Like if it’s mostly sand or clay?
Correct! Grain size also dictates how well it holds together. Well-graded soils tend to withstand liquefaction better than those with uniform grain sizes. Can anyone explain why?
Because well-graded soils have different sizes that fit together better, creating denser packing?
Exactly! Tighter packing means more resistance. Remember: 'grain size and packing can be remembered as G for Good resistance!'
Stress-Strain Behavior and Damping
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's talk about how soils behave under stress and cyclic loading. What happens to soil when it's repeatedly shaken?
It can degrade and lose strength, right?
I heard about hysteresis loops also. What are those?
Great questions! Hysteresis loops represent energy dissipation during this loading. The area inside the loop illustrates damping capacity. Here’s a memory aid: 'H for Hysteresis means H for Heat dissipated in cyclic loading!'
So, loose soils will show larger hysteresis loops?
Exactly! They dissipate more energy but are less stable, so it's a trade-off to be aware of.
Evaluating Liquefaction Potential
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's dive into how we evaluate liquefaction potential. Can anyone name one method for doing this?
I think the Standard Penetration Test is one method I've read about.
You're right! The SPT is commonly used. Another method is the Cone Penetration Test, which measures soil resistance directly. Why do you think different methods are necessary?
Because soils vary in properties, and one method might not work well for all types?
Exactly! Each method provides valuable insights into different soil characteristics. Let’s remember: 'Diversity in tests means diversity in knowledge!'
Mitigation Strategies
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, how do we prevent or mitigate liquefaction hazards? Any thoughts?
I believe ground improvement techniques can be used, like densification?
What about using deep foundations?
Correct again! Densification and proper foundation design are crucial for mitigation. Always think about 'prevention is better than cure'. So let's finish with a summary: Understanding soil properties and implementing these strategies can greatly reduce risks!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section provides an overview of the factors that affect soil behavior during seismic activity, particularly focusing on liquefaction. It explores intrinsic soil properties such as grain size, density, permeability, and the role of damping characteristics, illustrating how these elements contribute to the susceptibility of soil to liquefaction under dynamic loading conditions.
Detailed
Effect of Soil Properties and Damping – Liquefaction of Soils
During seismic events, the conditions of soils play a pivotal role in assessing structural stability. Liquefaction can arise in saturated loose soils, wherein they behave akin to a liquid, losing shear strength and stiffness. The section elaborates on various intrinsic properties of soil that determine liquefaction susceptibility:
1. Soil Properties Influencing Behavior
1.1 Grain Size Distribution
- Uniform sands and silts display heightened susceptibility to liquefaction.
- Well-graded soils tend to resist this phenomenon due to denser packing.
1.2 Relative Density
- Loose sands with low density are more prone to liquefaction.
- Higher density achieved through compaction enhances resistance.
1.3 Permeability
- Permeability affects the speed of pore water pressure dissipation.
- Low-permeability soils increase liquefaction risks by retaining pore pressures.
1.4 Void Ratio
- A high void ratio reveals loose particle packing, increasing volume changes under cyclic loading.
1.5 Plasticity Index
- Clays with a higher PI show better resistance to liquefaction, whereas soils with a low PI are more vulnerable.
1.6 Saturation
- Total saturation is a prerequisite for liquefaction. Partial saturation reduces pore pressure increases.
1.7 Soil Fabric and Structure
- Natural cementation supports some resistance to liquefaction, yet once bonds vanish, the soil may collapse.
2. Damping Mechanics
Damping refers to soil's energy dissipation ability during cyclic loading, categorized into material, radiation, and viscous damping. The damping ratio varies with soil type and loading conditions, influencing the overall response during seismic activities.
3. Liquefaction Phenomenon
Liquefaction is characterized by soil losing shear strength due to elevated pore water pressures during dynamic loading events. Various conditions favor liquefaction:
- Loose, cohesionless soils are required alongside a near-surface water table and rapid loading.
Through studying these parameters, engineers can better assess and mitigate liquefaction hazards, ensuring infrastructure stability during earthquakes.

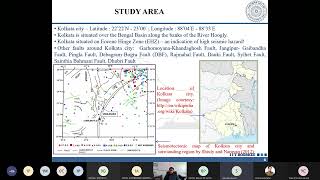

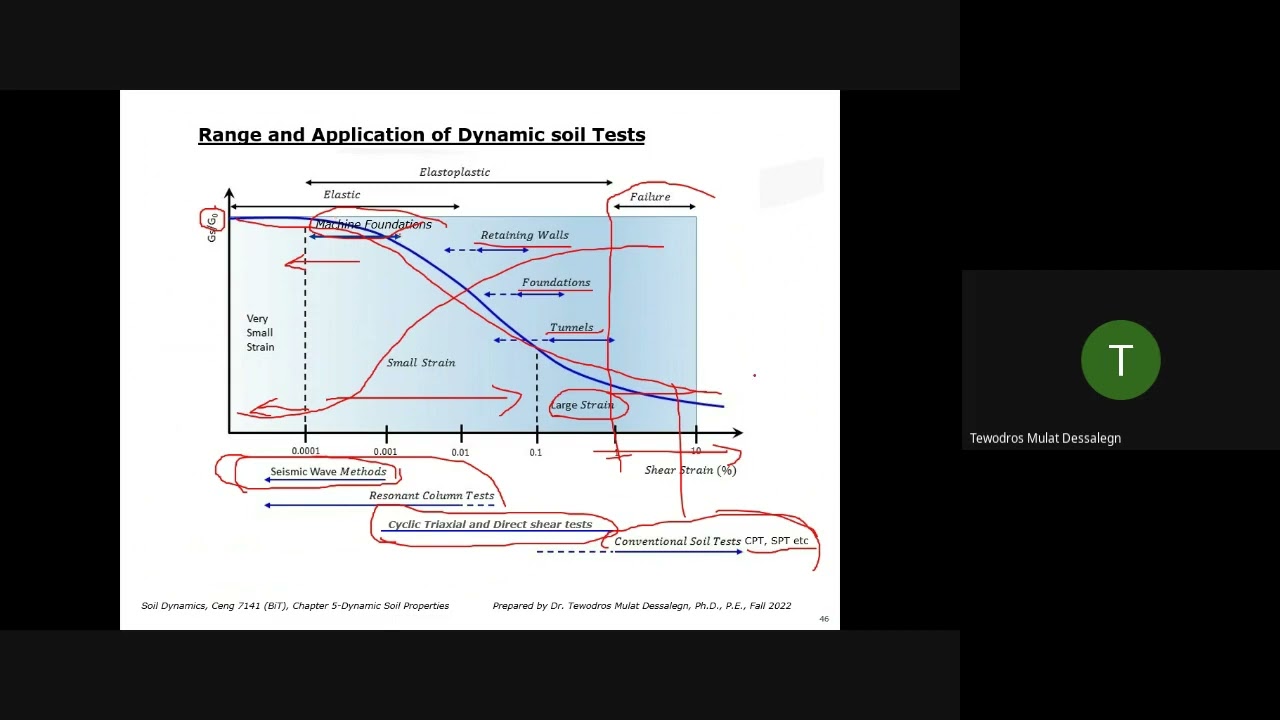

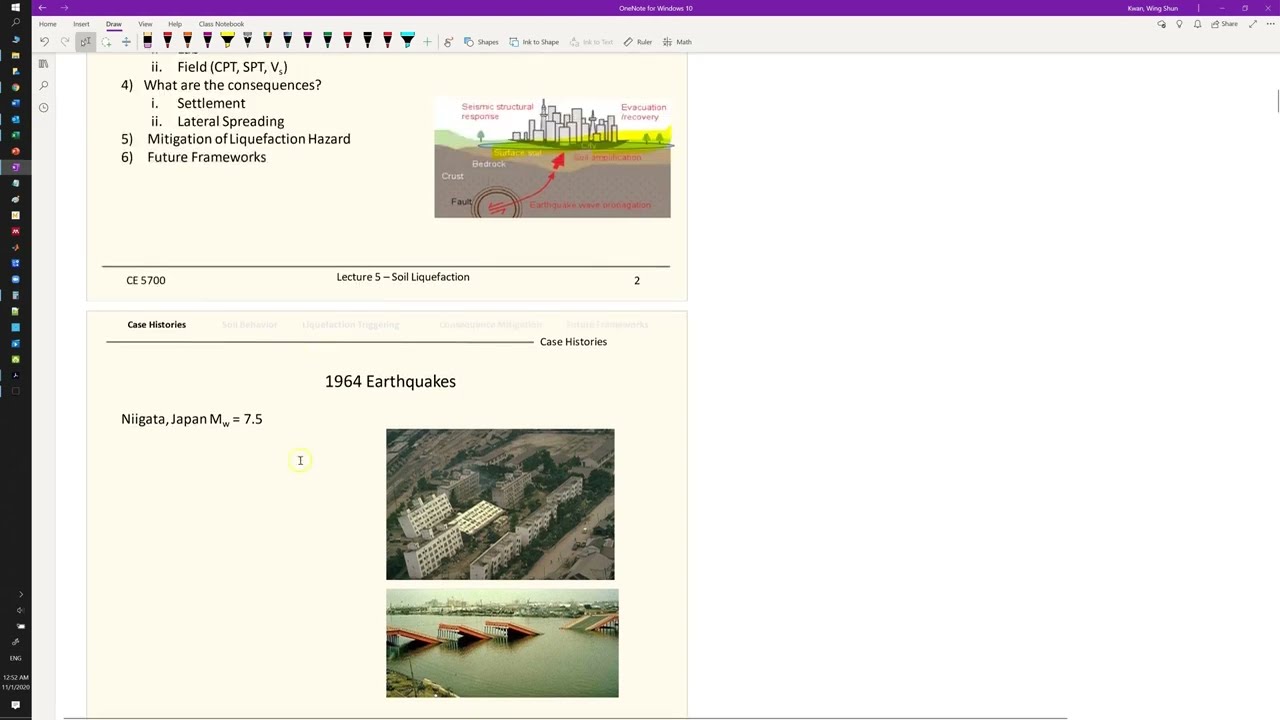

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Liquefaction
Chapter 1 of 9
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
During an earthquake, the behavior of soil plays a critical role in determining the performance and stability of structures. Among the most alarming consequences of seismic activity in loose, saturated soils is liquefaction — a phenomenon wherein the soil temporarily behaves like a fluid, losing its shear strength and stiffness.
Detailed Explanation
Liquefaction can occur when an earthquake strikes, primarily in loose and saturated soils. During this event, the soil loses its strength and acts like a liquid rather than a solid, which can have serious implications for buildings and other structures. Understanding liquefaction is crucial for engineers and architects to mitigate risks during earthquake events.
Examples & Analogies
Think of liquefaction like a bottle of ketchup. When you shake it up (the earthquake), the ketchup becomes more fluid and can come out easily (like the soil acting like a liquid). However, when it's left to settle (after the shaking stops), it regains its thickness but doesn't return to its original state immediately.
Soil Properties Affecting Dynamic Behavior
Chapter 2 of 9
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Soil behavior under seismic loading depends greatly on its physical and mechanical properties. Key parameters include:
- Grain Size Distribution: Sands and silts with a uniform grain size are more susceptible to liquefaction; well-graded soils offer more resistance due to tighter packing.
- Relative Density: Loose sands are highly prone to liquefaction, while densification through compaction significantly increases resistance.
- Permeability: Influences the rate of pore water pressure dissipation. Low permeability can trap pressure, increasing liquefaction potential.
Detailed Explanation
Several physical characteristics of soil influence whether it will liquefy during an earthquake. For instance, uniform grain size in soil can lead to more significant problems, as these grains can move around easily under stress. In contrast, well-graded soils that have a mix of grain sizes tend to fit together better, which helps hold them in place and resist liquefaction. Moreover, the degree of soil compactness (relative density) and how quickly water can move through soil (permeability) also play vital roles in determining soil stability during seismic activity.
Examples & Analogies
Imagine a bag of marbles versus a bag of flour. The marbles (uniform grain sizes) can roll around easily, just like loose sands can move in an earthquake. But the flour (well-graded soil) acts cohesively when pressure is applied, making it more resistant to flowing away like a liquid.
Stress-Strain Behavior of Soils under Cyclic Loading
Chapter 3 of 9
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
When subjected to repeated seismic shaking, soils experience:
- Hysteresis Loops: Cyclic stress-strain curves show energy dissipation.
- Degradation of Shear Modulus: The shear modulus decreases with increased cyclic strain.
- Build-up of Excess Pore Water Pressure: Occurs due to cyclic loading in undrained conditions, leading to reduced effective stress.
Detailed Explanation
Soils respond to the repeated forces from earthquakes in specific ways. The hysteresis loop illustrates how energy is absorbed and released, indicating the soil’s damping capacity and strength. As the strain from shaking increases, the soil's ability to resist shear forces diminishes. The excess pore water pressure can also build up during these cycles, significantly reducing the effective stress that holds the soil together, making liquefaction more likely.
Examples & Analogies
Consider a sponge. When you squeeze it (stress), it takes time to recover (strain), and if you keep squeezing repeatedly (cyclic loading), it may eventually become softer and lose its ability to hold water (liquefy).
Damping in Soils
Chapter 4 of 9
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Damping refers to the ability of the soil to dissipate energy during dynamic or cyclic loading, influenced by factors such as strain level, soil type, and loading frequency.
Detailed Explanation
Damping is essential because it determines how much energy from seismic waves gets absorbed by the soil rather than transmitted to structures. Different types of damping—material, radiation, and viscous—affect how soil behaves under stress. The damping ratio quantifies this behavior, and higher damping ratios typically indicate soils that can better absorb seismic energy, reducing the risk of liquefaction.
Examples & Analogies
Think of damping like the shock absorbers in a car. They help manage and dissipate the energy from bumps and dips in the road, keeping the ride smooth and minimizing jolts to the passengers (just like how well-damped soil protects structures by absorbing seismic shock).
Conditions Necessary for Liquefaction
Chapter 5 of 9
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Liquefaction requires specific conditions:
- Loose, cohesionless soil (e.g., silty sand).
- Saturation (water table near surface).
- Cyclic or dynamic loading (e.g., earthquake).
- Rapid loading preventing drainage.
Detailed Explanation
For liquefaction to occur, certain factors must align perfectly. Loose soils that do not have cohesion (like sandy soils) are prone to losing strength when shaken. Full saturation means there needs to be enough water present so that when the shaking occurs, the pore water pressure builds up too fast for the water to escape, leading to the soil behaving like a liquid. Rapid loading from an earthquake exacerbates this because it does not give the soil time to drain and regain its stability.
Examples & Analogies
Imagine a glass of water filled to the brim (saturation). If you shake the glass (dynamic loading), the water (pore pressure) may push everything inside to the surface, causing it to overflow (liquefaction). Without enough water or if it were thick mud (not cohesionless), shaking wouldn’t cause a similar reaction.

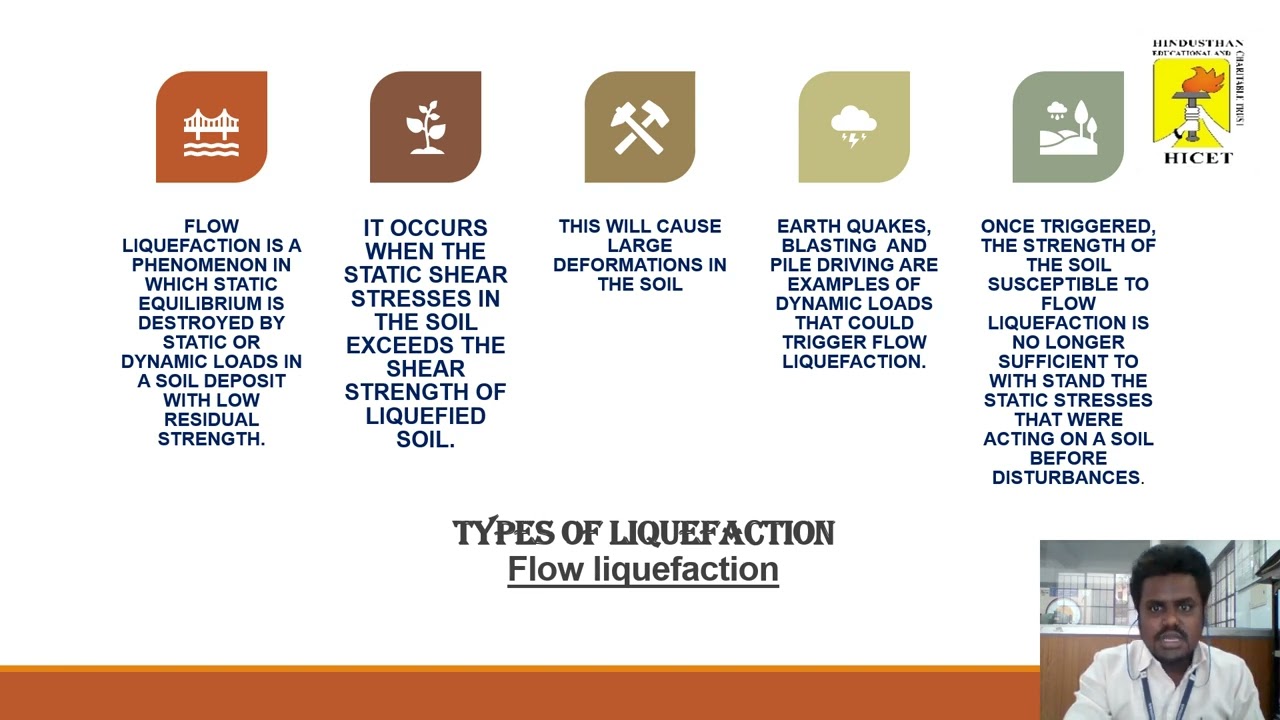

Types of Liquefaction
Chapter 6 of 9
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Types include:
- Flow Liquefaction: Occurs when shear stress exceeds static shear strength.
- Cyclic Liquefaction: Repeated cycles cause progressive build-up of pore pressure.
- Ground Oscillation: Surface oscillations due to upper layers losing strength.
- Lateral Spreading: Ground movement due to loss of shear strength.
Detailed Explanation
Liquefaction can manifest in different ways based on the conditions present. Flow liquefaction happens suddenly when stresses exceed the soil's ability to hold together. Cyclic liquefaction, on the other hand, builds up gradually with repeated stress. Ground oscillation and lateral spreading represent different surface responses, with the latter potentially causing significant structural damage as the ground shifts laterally.
Examples & Analogies
Picture a rubber band (ground) being stretched repeatedly (cyclic stress). If you stretch it too much and it snaps (flow liquefaction), it suddenly loses its shape. If you pull it back and forth gently (cyclic loading), it might get stretched wider over time but not snap immediately; this can lead to gradual stretching at the same time (lateral spreading) as it moves.
Factors Influencing Liquefaction Potential
Chapter 7 of 9
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Influential factors include:
- Seismic Factors: Earthquake magnitude and duration, peak ground acceleration, number of strong motion cycles.
- Soil Factors: Grain characteristics, relative density, initial effective stress, confining pressure.
- Groundwater Table: Depth to water table; shallow groundwater increases liquefaction potential.
Detailed Explanation
The potential for liquefaction is strongly affected by the nature of the earthquake itself (its strength, how long it lasts, and how many times it shakes the ground). The characteristics of the soil, including its density and how it holds together, also matter significantly. Finally, the proximity of the water table impacts how easily pore pressure can build, with shallow water making liquefaction more likely.
Examples & Analogies
Think about a sponge (soil) in water (groundwater). If you apply pressure (earthquake) to the sponge while it’s in water, it will respond differently than if it’s dry. The more water around it (high groundwater table), the more ‘squishy’ the sponge will become, which makes it easy for it to lose its shape under stress.
Evaluation of Liquefaction Potential
Chapter 8 of 9
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Several methods are used for assessing the liquefaction potential of a site:
- Field Tests: Standard penetration test (SPT) to obtain N-values; cone penetration test (CPT) to measure resistance.
- Empirical Procedures: Based on empirical data and factors of safety calculation.
- Laboratory Testing: Cyclic triaxial tests and undrained loading tests.
Detailed Explanation
To assess the risk of liquefaction in a given area, engineers rely on various testing methods. Field tests like the SPT and CPT provide crucial data about soil strength and integrity. Empirical procedures then use this data to estimate the liquefaction risk and calculate safety factors. Finally, laboratory tests simulate soil conditions to understand better how they might react during an earthquake.
Examples & Analogies
It's like checking the foundation of a building. Just as engineers might drill down to assess the strength of the concrete (field tests), they might then create a mini version of the building in a lab (laboratory testing) to see how it handles different stresses.
Mitigation of Liquefaction Hazards
Chapter 9 of 9
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Preventive measures are essential for structures in liquefiable zones, encompassing:
- Ground Improvement Techniques: Densification, grouting, drainage improvements.
- Structural Solutions: Deep foundations and base isolation systems.
Detailed Explanation
To protect structures from the dangers of liquefaction, engineers implement various strategies. Ground improvement techniques reinforce the soil, making it more stable during seismic events. Structural solutions like deep foundations allow buildings to reach more stable layers of soil, while base isolation acts as a buffer between the building and ground shaking.
Examples & Analogies
Consider a boat on a body of water. If the water becomes choppy (earthquake), the boat may tilt or capsize. Adding stabilizers (ground improvement) or moving the boat deeper (deep foundations) can help keep it steady and safe.
Key Concepts
-
Liquefaction: The loss of shear strength in saturated soils during dynamic loading.
-
Damping: The energy dissipation capability of soil during seismic activity.
-
Stress-Strain Behavior: The response of soil under cyclic loading.
-
Soil Properties: Characteristics like grain size, density, and void ratio impacting liquefaction.
Examples & Applications
Example 1: During a recent earthquake, liquefaction caused significant damage in a coastal city where sandy soils predominated, leading to building tilting.
Example 2: Soil improvement using vibro-compaction enhanced the resistance against liquefaction in a construction site adjacent to a fault line.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When the ground shakes and water flows, loose soil spreads and stability goes.
Stories
Imagine a sandy beach where waves gently lap the shore. When a storm comes, the waves rise quickly; the sand beneath turns soft and shifts, causing beach umbrellas to topple. This illustrates how saturated loose soils, under stress, behave during an earthquake - just like liquefaction!
Memory Tools
To remember the conditions for liquefaction, think 'LCSW': Loose soils, Cyclic loading, Saturation, Water pressure.
Acronyms
LIQUEFACTION - Loose, Internal water, Quick loading, Excess pressure, Fluid-like reaction, And Tension lost in soil, Inhabitants in danger, Overstressed by nature.
Flash Cards
Glossary
- Liquefaction
A phenomenon where saturated soil loses shear strength and behaves like a liquid during dynamic loading.
- Damping
The ability of soil to dissipate energy during dynamic or cyclic loading.
- Grain Size Distribution
The proportion of various grain sizes in a soil sample, affecting its behavior under loading.
- Relative Density
A measure of the compactness of soil, influencing its susceptibility to liquefaction.
- Void Ratio
Ratio of the volume of voids to the volume of solid particles in soil.
- Plasticity Index (PI)
A measure of the plasticity of soil, influencing its behavior under stress conditions.
- Saturation
The condition where all voids in a soil are filled with water.
- Permeability
The ability of soil to transmit water through its pore spaces.
- Hysteresis Loop
A graphical representation of the energy dissipated in soils during cyclic loading.
