37.6 - Evaluation of Liquefaction Potential
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Field Tests for Liquefaction Assessment
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're diving into how we evaluate liquefaction potential at construction sites. One of the most common methods is the Standard Penetration Test, or SPT. Can anyone tell me what the SPT measures?
It measures the resistance of soil to penetration?
Exactly! The SPT gives us a corrected N-value. This value can then be compared with empirical curves to assess liquefaction potential. How about the Cone Penetration Test, or CPT? Does anyone know what that measures?
It measures how much resistance there is when a cone is pushed into the ground, right?
That's correct! The CPT provides critical data on soil characteristics, like tip resistance and sleeve friction, which help us gauge the soil's liquefaction resistance. Let's not forget about Shear Wave Velocity, which tells us about soil stiffness. Why would stiffer soils be less likely to liquefy?
Because they have more strength to resist the shaking?
Exactly! So, remember the acronym 'SPT' for Standard Penetration Test, and 'CPT' for Cone Penetration Test when discussing field assessments. Great work, everyone!
Empirical Procedures in Liquefaction Evaluation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, moving on to empirical procedures, we rely heavily on the methodologies provided by Seed and Idriss in 1971. Can anyone explain what the Factor of Safety represents in liquefaction assessments?
Isn’t it how we determine if the soil can withstand the cyclic loads?
Exactly! The Factor of Safety, or FS, is calculated using the formula `FS = Cyclic Resistance Ratio divided by Cyclic Stress Ratio`. If FS is less than 1, what does that indicate?
It means liquefaction is likely!
Right! This relationship helps engineers evaluate the safety of a site. Remember this formula when preparing for your tests. Can anyone think of why knowing the cyclic stress ratio is important?
It shows how much stress the soil experiences during an earthquake.
Well said! Understanding the Stress Ratios helps us predict how the soil might fail. To sum up, remember the factors affecting FS: `CRR` and `CSR`. Good job today!
Laboratory Techniques for Assessing Liquefaction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's now discuss laboratory testing methods! We use cyclic triaxial tests to simulate soil behavior under repeated loading. Can anyone explain the benefits of this test?
It helps us see how soil responds to pore pressure during earthquakes!
Great point! These tests reveal how soil loses strength due to pore pressure build-up. What about cyclic simple shear tests—what are they focused on?
They focus on understanding shear strength, right?
Exactly! They give us insight into how soils may fail under shear stresses. Plus, we also conduct undrained loading tests to model what happens when there's rapid loading. Why is this critical?
Because it shows how quickly the soil can respond to sudden stresses?
Spot on! So remember, lab tests are vital in predicting liquefaction by simulating real-world conditions. Keep these tests and their purposes in mind as you study!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The evaluation of liquefaction potential is crucial in geotechnical engineering, involving methods such as the Standard Penetration Test (SPT), Cone Penetration Test (CPT), and cyclic laboratory tests. Key concepts like the Cyclic Resistance Ratio (CRR) and the Cyclic Stress Ratio (CSR) are integral to understanding which soils may liquefy during seismic events.
Detailed
Evaluation of Liquefaction Potential

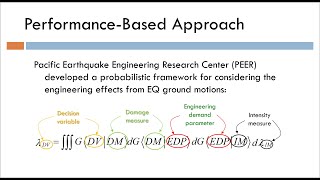

The evaluation of liquefaction potential is a critical aspect in the design and construction of structures located on or near loose, saturated soils. This section outlines several methods for assessing a site's susceptibility to liquefaction during seismic activities. The primary methodologies include:
1. Field Tests

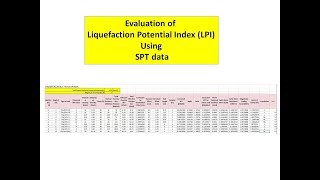

- Standard Penetration Test (SPT): The most widely adopted method for determining soil properties in situ. The corrected N-values obtained from the test can be correlated with empirical liquefaction resistance curves.
- Cone Penetration Test (CPT): Involves measuring the resistance at the tip of a cone pushed into the ground, along with skin friction. This provides insight into soil density and strength.
- Shear Wave Velocity (Vs): Examining the propagation speed of shear waves can indicate soil stiffness, with stiffer soils being less likely to liquefy.
2. Empirical Procedures

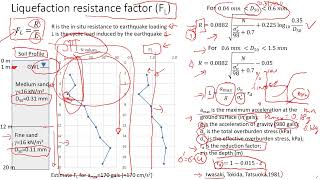

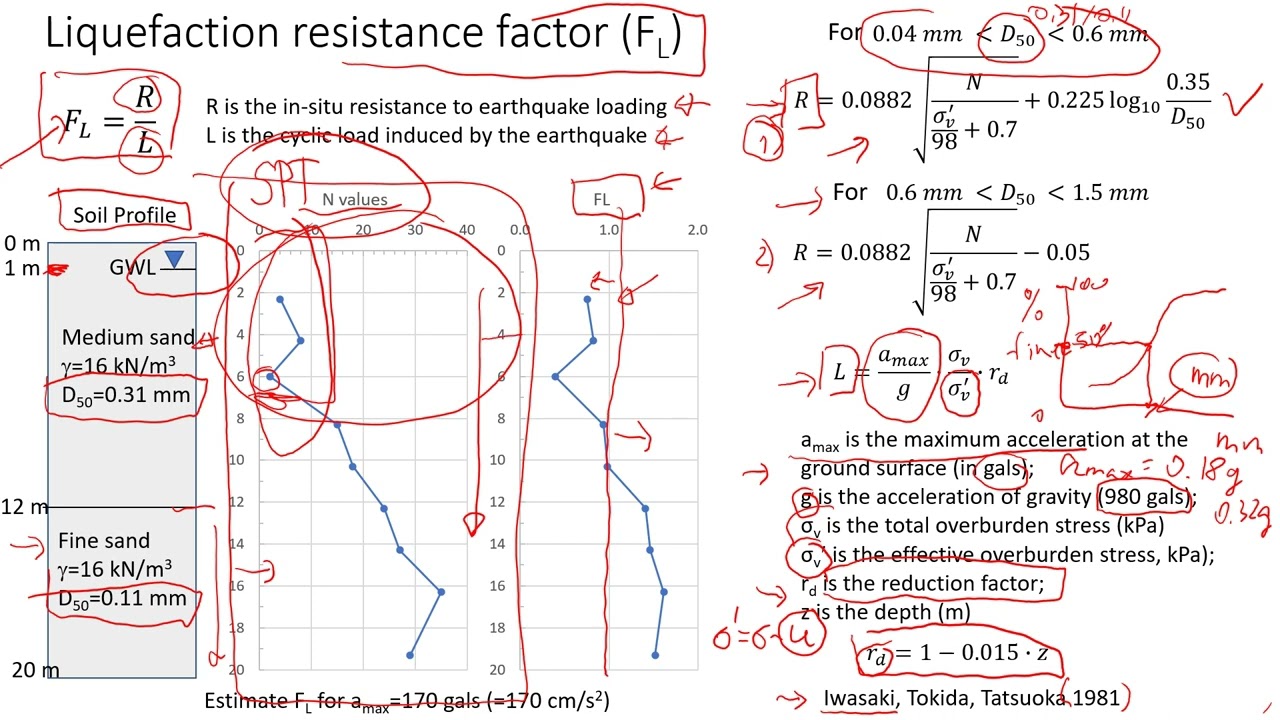

Based on methodologies developed by Seed and Idriss (1971), empirical approaches calculate a Factor of Safety (FS) for liquefaction evaluations. The relationship is defined as:
- FS = Cyclic Resistance Ratio (CRR) / Cyclic Stress Ratio (CSR)
- A FS < 1 indicates a high likelihood of liquefaction.
3. Laboratory Testing
This involves simulations of cyclic loading in controlled environments:
- Cyclic Triaxial Tests: These tests improve understanding of the soil behavior under cyclic loading conditions by inducing pore pressure and measuring resulting deformation.
- Cyclic Simple Shear Tests: Focus on shear strength characteristics, crucial for understanding local conditions.
- Undrained Loading Tests: Simulate rapid loading scenarios to study pore pressure increases, providing valuable data for predicting liquefaction behavior.
Together, these methods form a comprehensive framework for assessing liquefaction risk, allowing engineers to make informed decisions in the design and safety evaluation of structures in seismic areas.

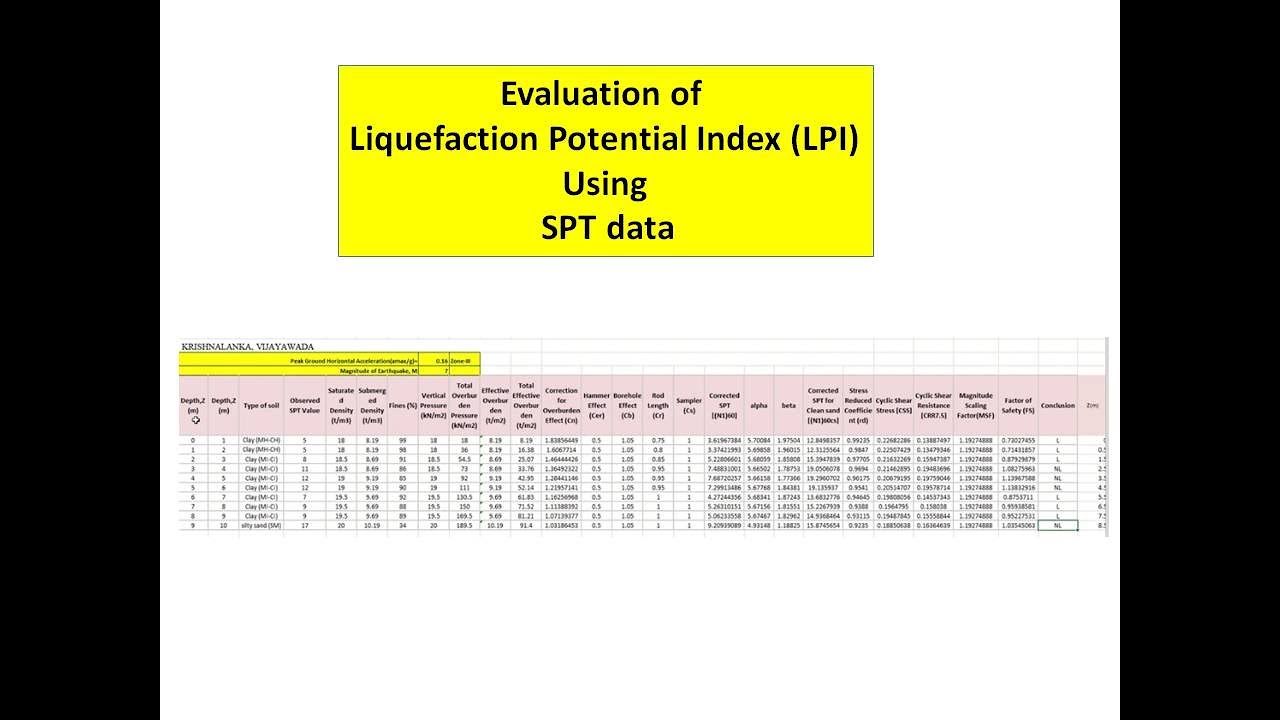

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Field Tests for Liquefaction Assessment
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Several methods are used for assessing the liquefaction potential of a site:
37.6.1 Field Tests
- Standard Penetration Test (SPT): Most common method.
- Corrected N-values used with empirical curves.
- Cone Penetration Test (CPT): Measures tip resistance and sleeve friction.
- Shear Wave Velocity (Vs): Stiffer soils are less likely to liquefy.
Detailed Explanation
Field tests are essential for assessing how likely a site is to experience liquefaction during an earthquake. The Standard Penetration Test (SPT) is one of the most common methods used; it involves driving a sampler into the ground to determine how resistant the soil is. The results are expressed as corrected N-values, which help in comparing soils with different characteristics. The Cone Penetration Test (CPT) determines soil resistance and friction, which provides important data on the soil's behavior under stress. Finally, measuring Shear Wave Velocity (Vs) helps assess soil stiffness; stiffer soils are generally less susceptible to liquefaction due to their ability to transmit stress effectively.
Examples & Analogies
Imagine testing a sponge to see how well it can absorb water. If you simply push down on it too quickly, it may deform or fail to hold its form — similar to how liquefaction occurs in soil. In our case, different tests like SPT and CPT are like applying different pressures to find out how much each sponge (soil sample) can handle before it gives way!
Empirical Procedures for Evaluating Liquefaction
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
37.6.2 Empirical Procedures
- Based on Seed and Idriss (1971) methodology.
- Factor of Safety (FS) = Cyclic Resistance Ratio (CRR) / Cyclic Stress Ratio (CSR)
- FS < 1 → Liquefaction likely.
Detailed Explanation
Empirical procedures are simplified methods based on historical data and research to determine the potential for liquefaction at a site. The Seed and Idriss methodology from 1971 is widely recognized. The evaluation involves calculating a Factor of Safety (FS), which compares two key ratios: the Cyclic Resistance Ratio (CRR) reflects how much resistance a soil can offer against liquefaction, while the Cyclic Stress Ratio (CSR) indicates the stress the soil will experience during seismic events. If the FS is less than 1, it signifies that liquefaction is likely, meaning the soil cannot withstand the seismic forces effectively.
Examples & Analogies
Think of the Factor of Safety as a safety buffer in a bridge design. If the bridge can safely hold 100 tons but is expected to hold 120 tons, it is at risk of collapse. Similarly, if the FS for liquefaction evaluation is less than 1, it indicates that the soil cannot safely handle the anticipated stress from an earthquake, much like the overloaded bridge.
Laboratory Testing for Liquefaction Potential
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
37.6.3 Laboratory Testing
- Cyclic triaxial tests.
- Cyclic simple shear tests.
- Undrained loading tests to observe pore pressure build-up.
Detailed Explanation
Laboratory testing is crucial for a more controlled examination of soil behavior under simulated earthquake conditions. Cyclic triaxial tests involve applying repeated axial stress to soil samples to observe how they respond to cyclic loading. Similarly, cyclic simple shear tests assess how soil behaves when subjected to horizontal shearing forces. Lastly, undrained loading tests monitor how pore pressure builds up in the soil when it is not allowed to drain, which is a key factor leading to liquefaction.
Examples & Analogies
Consider a stress ball: when squeezed repeatedly, it reacts and can change shape. In a similar way, soils react under repeated stress but with much more serious implications. Laboratory tests help us understand how these 'stress balls' (soil samples) respond before they encounter real-world pressures, like those from an earthquake.
Key Concepts
-
Field Testing Methods: Including SPT, CPT, and shear wave velocity measurements.
-
Empirical Procedures: Use of CRR and CSR to evaluate liquefaction potential.
-
Laboratory Testing: Importance of cyclic triaxial and simple shear tests.
Examples & Applications
An example of an SPT result showing the N-value used to determine liquefaction potential for a specific site.
During a simulated earthquake in a lab, cyclic triaxial tests help identify how soil might behave under repeated loading.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Sandy soils sway, lose their strength, in an earthquake's length.
Stories
Imagine a tough warrior in a battle, as the ground shakes, he holds firm thanks to his heavy armor—like stiff soil resisting liquefaction.
Memory Tools
Remember SPT for stability, CPT for cone penetration, Vs for velocities guiding our comprehension!
Acronyms
RP - Resist Pore pressure build-up to prevent liquefaction.
Flash Cards
Glossary
- Standard Penetration Test (SPT)
A field test measuring soil resistance to penetration used to assess soil liquefaction potential.
- Cone Penetration Test (CPT)
A technique that measures the resistance of soil using a cone pushed into the ground to determine soil properties.
- Shear Wave Velocity (Vs)
The velocity of shear waves in soil, indicative of soil stiffness and potential liquefaction resistance.
- Cyclic Resistance Ratio (CRR)
A parameter representing the soil’s resistance to liquefaction; it is determined from empirical correlations.
- Cyclic Stress Ratio (CSR)
Represents the stress applied to soil during cyclic loading like earthquakes, used in liquefaction risk assessments.
- Factor of Safety (FS)
A ratio used to determine the reliability of soil against liquefaction; FS < 1 indicates high liquefaction potential.
- Cyclic Triaxial Tests
Laboratory tests that simulate the stress-strain behavior of soil under cyclic loading conditions.
- Cyclic Simple Shear Tests
A laboratory test that evaluates the shear strength of soil under cyclic loading.
- Undrained Loading Tests
Tests that simulate rapid load applications to observe pore pressure development in soils.
