Hysteresis Loops
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we'll explore hysteresis loops created during cyclic loading. Can anyone tell me what happens during these loops?
Isn't that when the soil loses energy?
Exactly! The area inside the loop shows how much energy is dissipated. Loose soils generally show larger loops. Why do you think that is?
Maybe because they are less compacted and can move around more?
Great thinking! Indeed, loose soils have more damping but lower strength. Remember, we can think of this as 'larger loops equal more damping.'
Can you give an example where this is important?
Sure! In earthquake-prone areas, understanding hysteresis helps in designing foundations that can withstand shaking.
To summarize, hysteresis loops show energy dissipation, and loose soils exhibit larger loops. Let's move on to shear modulus degradation.
Degradation of Shear Modulus
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let's discuss the degradation of shear modulus. What do you think happens to the shear modulus as cyclic strain increases?
I think it decreases, right?
Correct! The shear modulus decreases with increased cyclic strain, which you can visualize with the dynamic modulus curves. Does anyone remember what G_max represents?
Isn't G_max the maximum shear modulus?
Exactly! Remember, we can use the ratio G/G_max to understand this behavior better. Higher strains lead to reduced stiffness, which can be critical during seismic activity.
So, if we know G at a specific strain, we can predict how the soil will behave during an earthquake?
Precisely! Predicting behavior is essential for designing resilient structures. In summary, shear modulus degrades with higher cyclic strain, and we can use dynamic modulus curves to model this.
Excess Pore Water Pressure Build-up
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Lastly, let's examine the build-up of excess pore water pressure. What do you think happens when a soil is loaded cyclically in undrained conditions?
Doesn't it build up pressure and cause problems?
Exactly! This excess pore pressure reduces the effective stress in soils. What could happen if it pushes effective stress to zero?
Liquid-like behavior? That's liquefaction, right?
Spot on! Liquefaction can lead to severe ground failures. To remember this, you might think of it as pressure leading to disaster in saturated soils.
So, to avoid this, we must consider drainage during cyclic loads?
Absolutely! Proper drainage mitigates these risks. In summary, cyclic loading can build up pore water pressure, which may ultimately lead to liquefaction.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section discusses how soils respond to repeated seismic loading through hysteresis loops that indicate energy dissipation, mechanisms of shear modulus degradation with cyclic strain, and the critical build-up of excess pore water pressure that can lead to liquefaction. These behaviors are essential for understanding soil stability during seismic events.
Detailed
Stress-Strain Behavior of Soils under Cyclic Loading
When soils experience cyclic loading, such as during seismic activities, their stress-strain behavior undergoes distinctive changes that are crucial to understanding their stability and performance. This section highlights three fundamental aspects:
1. Hysteresis Loops
- Hysteresis refers to the energy dissipation observed during loading and unloading cycles.
- The cyclic stress-strain curves form loops, where the area within the loop represents the amount of energy lost as heat due to internal friction.
- Loose soils demonstrate larger hysteresis loops, which indicate higher damping capacity but lower shear strength.
2. Degradation of Shear Modulus
- The shear modulus (G) of soil decreases with increasing cyclic strain; this relationship is illustrated through dynamic modulus curves (G/G_max plotted against shear strain).
- Understanding this degradation is crucial for predicting soil response under continuous loading conditions.
3. Excess Pore Water Pressure Build-up
- Cyclic loading under undrained conditions can result in the build-up of excess pore water pressure.
- This increase in pore pressure can drastically reduce effective stress, leading to the potential for liquefaction, wherein the soil behaves like a fluid.
Overall, understanding these three critical behaviors is essential for engineers and geotechnical specialists to design structures capable of withstanding seismic forces.

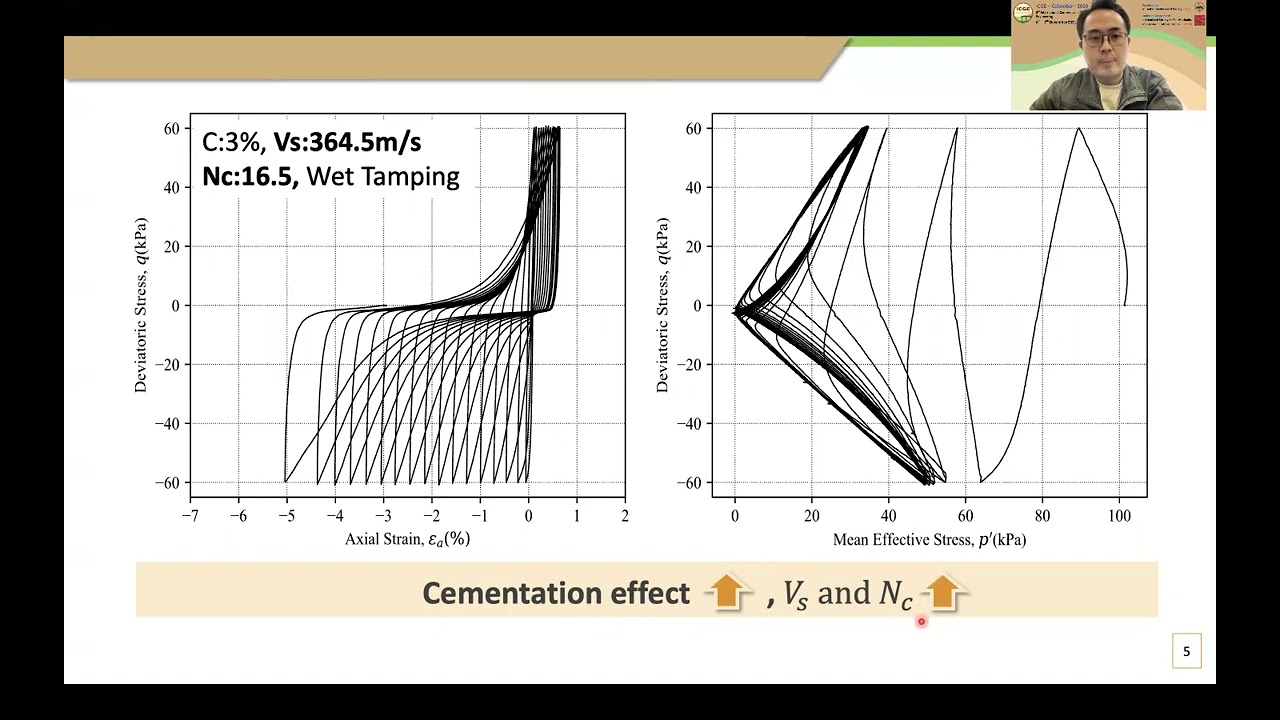

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Hysteresis Loops
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Cyclic stress-strain curves show energy dissipation.
Area inside the loop represents damping capacity.
Loose soils show larger loops (more damping) but lower strength.
Detailed Explanation
Hysteresis loops in cyclic stress-strain curves illustrate how soils respond to repeated loading. When soil is cyclically loaded, it doesn't return to its original position after unloading. Instead, it forms a loop on the stress-strain graph, representing energy loss (dissipation). The area inside this loop indicates the damping capacity of the soil. Loose soils, which are less compacted, generally exhibit larger loops because they can dissipate more energy, but they have lower overall strength compared to denser soils.
Examples & Analogies
Think of a spring with a loose coil compared to a tightly wound one. When you stretch and release the loose spring, it wobbles back and forth, losing energy each time, similar to how loose soil behaves under cyclic loading. The larger the wobble, the more energy is lost in each cycle.
Degradation of Shear Modulus
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Shear modulus (G) decreases with increased cyclic strain.
Dynamic modulus curves (G/G_max vs. shear strain) are used to model this.
Detailed Explanation
The shear modulus (G) is a measure of a soil's ability to resist shear deformation. Under cyclic loading, as the strain increases, the ability of the soil to resist deformation declines, leading to a reduction in shear modulus. This relationship can be modeled using dynamic modulus curves, where the ratio of the current shear modulus to the maximum shear modulus (G/G_max) is plotted against the shear strain. As cyclic loading continues, soil becomes weaker, indicating that it is less capable of supporting structures above it.
Examples & Analogies
Imagine a rubber band that can stretch a lot without breaking initially. However, after a while of constant stretching, it loses its ability to go back to its original size and becomes weaker. This is similar to how soils degrade under repetitive loading; they may start strong but weaken significantly with continued stress.
Build-up of Excess Pore Water Pressure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Occurs due to cyclic loading in undrained conditions.
Leads to progressive reduction in effective stress, potentially to zero (liquefaction).
Detailed Explanation
When soils are subjected to cyclic loading without allowing for drainage (such as during an earthquake), pore water pressures in the soil can increase excessively. This process is known as the build-up of excess pore water pressure. As pore water pressure rises, it reduces the effective stress within the soil, which is the stress that actually contributes to soil strength. If this effective stress approaches zero, the soil can undergo liquefaction, behaving more like a liquid than a solid, leading to significant instability.
Examples & Analogies
Consider a sponge submerged in water. When squeezed (loaded) underwater and then released, it retains some water inside and may become very soft. If enough pressure builds up in the sponge (excess pore pressure), it can no longer hold its shape and starts to feel like a liquid. This is akin to soils losing their strength due to excess pore water pressure during seismic activity.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Hysteresis Loops: Indicates energy dissipation during cyclic loading.
-
Shear Modulus Degradation: Shear modulus decreases as cyclic strain increases.
-
Pore Water Pressure Build-up: Excess pore water pressure during cyclic loading can lead to liquefaction.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If loose sand is rapidly loaded during an earthquake, it may lose strength and behave like a liquid due to liquefaction.
-
Dynamic modulus curves can be used to model how different soil types react under varying cyclic strains.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Loose sand will flow and sway,; Pore pressures rise, strength will fray.
📖 Fascinating Stories
-
Imagine a sandy beach, where water seeps up as waves crash. The sand starts to feel light and loses its grip, just as liquefaction occurs—when pressure turns stability into fluidity.
🧠 Other Memory Gems
-
Remember the decay in soil strength as 'Cycles Decrease Strength' or CDS.
🎯 Super Acronyms
PPL for 'Pore Pressure Leads' to liquefaction risk under cyclic loading.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Hysteresis Loop
Definition:
A graphical representation showing the energy loss in a material due to cyclic loading.
-
Term: Shear Modulus (G)
Definition:
A measure of a material's ability to resist shear deformation; it decreases with increasing cyclic strain.
-
Term: Pore Water Pressure
Definition:
The pressure within the pores of soil, which affects its effective stress and stability.
-
Term: Liquefaction
Definition:
The process by which saturated soil temporarily loses strength and behaves like a liquid under cyclic loading.
