23.2.1. Applicability to Unsteady Flow

Bernoulli's equation can be applied for unsteady flow, but the simplified derivations used are for steady flow. This means there is no time component. This equation is frequently used and often misused.

Bernoulli's equation is a fundamental principle used in fluid mechanics. It describes the behavior of fluid flow and can be applied in situations where the flow conditions change over time (unsteady flow). However, the typical forms of Bernoulli's equation that students learn are derived under the assumption of steady flow, where fluid properties remain constant over time at any point in the flow field. Misapplication of the equation can lead to incorrect conclusions and results.

Think of a car speeding up and slowing down on the road. When the car moves at a constant speed, it is similar to steady flow — the conditions remain consistent. However, when the car accelerates or decelerates, the situation resembles unsteady flow, where the rules for calculating speed might change. Just like in fluid flow, applying the wrong equations in varying situations can lead to mistakes.

Bernoulli's equation assumes frictionless flow, which cannot be applied near solid surfaces due to significant velocity gradients and shear stress. Additionally, mixing zones cannot be considered, and there is an absence of shaft work due to external energy addition.

Bernoulli's equation is based on several assumptions. One major limitation is that it assumes flow is frictionless. In reality, when a fluid flows close to any solid surface, friction acts upon the fluid, creating velocity differences (velocity gradients) and shear stress. This disrupts the simple flow patterns that Bernoulli's equation relies on. Furthermore, when there is mixing or turbulence present in the flow, it complicates the application of Bernoulli's equation. For example, if there is a pump or turbine involved, these introduce additional forces into the system which affect how energy is distributed within the fluid.

Imagine sliding down a slide at a park — when the slide is smooth, you glide down quickly (similar to frictionless flow). However, if the slide becomes rough and bumpy, your speed is impacted, similar to how friction affects fluid flow near solids. Just like speeding down a smooth slide versus a bumpy one, using Bernoulli's equation without acknowledging friction can lead to errors in calculations.

Whenever you apply Bernoulli's equation, you should visualize how the fluid moves along streamlines. It is crucial to draw these streamlines to properly understand pressure and velocity differences.

To correctly apply Bernoulli's equation, it's essential to consider the flow path that the fluid takes, represented by streamlines. A streamline shows the direction of the flow at every point along its length. By examining these streamlines, you can identify changes in pressure and velocity throughout the flow. Drawing streamlines enables you to visualize the flow pattern and ensures you apply Bernoulli’s equation correctly between two specific points in a streamline where the flow is assumed to be irrotational and steady in between those points.

Picture a calm river with floating leaves. The path each leaf takes is like a streamline. If you wanted to understand how the speed of the water varies at different points, you would need to observe the leaves' paths. Similarly, to grasp how pressure and velocity change in a flowing fluid, you need to draw and analyze the streamlines, just as you would with the leaves in the water.

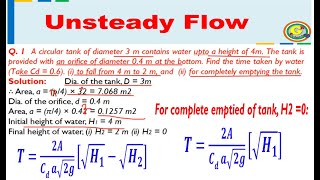

In practical applications, energy losses and the concept of the discharge coefficient (Cd) must be considered. Cd varies from 0.6 to 1.0, indicating real-world energy loss in fluid flow.

In real situations, fluid flow is not perfectly efficient, meaning some energy is lost due to friction and turbulence. This loss is reflected in the discharge coefficient (Cd), which provides a correction factor when applying Bernoulli's equation in practice. The theoretical maximum value of Cd is 1, which indicates no energy loss, but in reality, it typically ranges from 0.6 to 1.0. This coefficient adjusts the calculated results to account for various inefficiencies that occur in fluid flow and helps in achieving more precise results.

Consider a water hose. If you were to measure the flow of water coming out of a faucet, the ideal situation would be that all water flows perfectly without any slack or loss (like an ideal coefficient of 1). However, if some water leaks along the way, the flow will be less than expected, similar to how the discharge coefficient works. You adjust your expectations based on these losses in real-world applications, just like using Cd helps us understand practical fluid dynamics.

--
