Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Bernoulli's Equation
Unlock Audio Lesson
Today, we're going to explore Bernoulli's equation, which helps us understand how fluid moves. Can anyone tell me what the Bernoulli equation relates to?
Doesn't it relate pressure, velocity, and height?
Exactly! The equation connects pressure and velocity with height, indicating how energy in a fluid system is conserved. Remember the acronym PVE: Pressure, Velocity, Energy!
What does it mean by energy being conserved?
Great question! It means that in a closed system, the total energy remains constant. Thus, any increase in kinetic energy results in a decrease in potential energy and vice versa.
So if the height increases, the speed must decrease?
Exactly! You’re beginning to visualize the concept. To apply this in real-world scenarios like wind tunnels, we need to sketch streamlines.
What's the importance of drawing streamlines?
Wonderful! Streamlines help us visualize the flow of fluid. They indicate the path that fluid particles follow, essential for applying Bernoulli's equation correctly.
In summary, remember: Bernoulli's equation connects pressure, velocity, and height, highlighting the conservation of energy within fluid flows. Always start with sketching streamlines!
Limitations of Bernoulli's Equation
Unlock Audio Lesson
Now, let’s discuss when Bernoulli's equation might not apply. What do you think impacts its accuracy?
I heard it doesn’t work well with unsteady flows?
Right! Unsteady flows are tricky because Bernoulli’s equation assumes steady conditions. What else might introduce errors?
Friction seems to be a problem, especially near surfaces!
Correct! Friction alters the flow dynamics and can cause significant energy loss, which is why we must consider it when analyzing wind tunnel results.
What about mixing zones?
Great observation! Mixing zones and changes in energy due to pumps or turbines complicate the application of Bernoulli's equation. We must recognize these factors to use the equation accurately.
In conclusion, Bernoulli's equation is powerful but has limitations. Always assess the flow conditions before applying it!
Practical Application in Wind Tunnel Tests
Unlock Audio Lesson
Let’s pivot our focus to real-life applications – specifically in wind tunnel tests. Can you visualize how we apply the Bernoulli equation here?
I think it's about measuring how air flows over a model?
Exactly! In a wind tunnel, we analyze how air flows over an object. We can use Bernoulli's equation to relate the pressure and speed of air.
So how do we account for friction when modeling this?
Good question! We assume airflow is steady and all measurements happen away from surface effects where friction occurs. Sketching out the streamlines is essential to clarify this.
What happens if our model is very close to the walls?
Excellent point! Being close to the walls introduces complexity due to boundary layers and friction effects, so we need to establish clear control volumes for accurate analysis.
To summarize, wind tunnel tests leverage Bernoulli's principles while navigating practical challenges involving friction and turbulence. Always start with sketching streamlines to clarify flow before applying the equations!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section elaborates on the Bernoulli equation's application in fluid mechanics, particularly in wind tunnel tests, highlighting key concepts such as flow energy, pressure variability, and limitations due to factors like friction. It emphasizes the importance of visualizing streamlines for accurate application of the equation.
Detailed
Understanding Wind Tunnel Tests
This section delves into the critical role of the Bernoulli equation in analyzing fluid dynamics during wind tunnel tests. The Bernoulli equation, a cornerstone of fluid mechanics, relates pressure, velocity, and height, aiding in understanding how fluids move along streamlines.
Key concepts discussed include the visualization of fluid motion as virtual fluid balls, enabling a clearer understanding of flow dynamics. The text stresses the necessity of drawing streamlines to apply Bernoulli's equation effectively and accurately.
Furthermore, the section addresses limitations associated with applying the Bernoulli equation, particularly in scenarios involving unsteady flow, friction, and the presence of external energy inputs like pumps. These factors can significantly affect the applicability of the Bernoulli equation, making it essential for practitioners to recognize when and how to use it correctly in wind tunnel tests. Overall, the significance of this section lies in equipping learners with the knowledge to apply fluid dynamics principles accurately in engineering contexts.
Youtube Videos

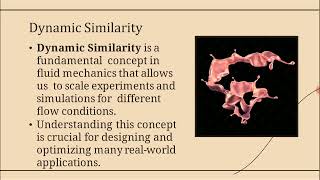

![[Fluid Dynamics: Physical Modelling] Reynolds Similitude, P2: wind tunnel tests and examples (2/2)](https://img.youtube.com/vi/-9NvoAIhMq0/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Wind Tunnel Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Let us have a very quick, what are the limitations of Bernoulli equations. Bernoulli equations can be applied for unsteady flow, but the simplified derivations what you use it, those are for per steady flow. That means, there is no time component is there.
Detailed Explanation
This chunk introduces the topic by discussing the limitations of applying Bernoulli's equations. It states that while these equations can be used for unsteady flow, the derivations commonly utilized are suitable only for steady flows where time does not affect the fluid behavior.
Examples & Analogies
Think of steady flow like water flowing from a garden hose at a constant rate. In this scenario, the pressure and speed of the water remain uniform. Conversely, unsteady flow is like turning a faucet on and off quickly; the pressure and speed vary over time.
Applying Bernoulli Equations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, whenever you apply the Bernoulli equation, you should draw the streamlines. You should visualize how the fluid moves. If I consider a balls are moving, a virtual fluid balls are moving it. If I draw the streamlines, I can apply the Bernoulli equations.
Detailed Explanation
Here, the author emphasizes the importance of visualizing fluid flow using streamlines before applying Bernoulli's equation. The act of sketching streamlines helps to understand how different parts of the fluid interact, which is vital for accurate calculations.
Examples & Analogies
Imagine pouring syrup over pancakes. As the syrup flows, you can see it create a pattern (streamlines) on the pancakes. By observing this flow pattern, you can better understand how to distribute the syrup evenly.
Limitations of Bernoulli's Applications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

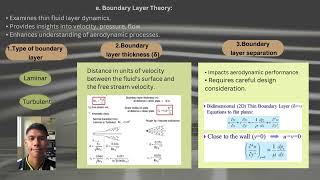

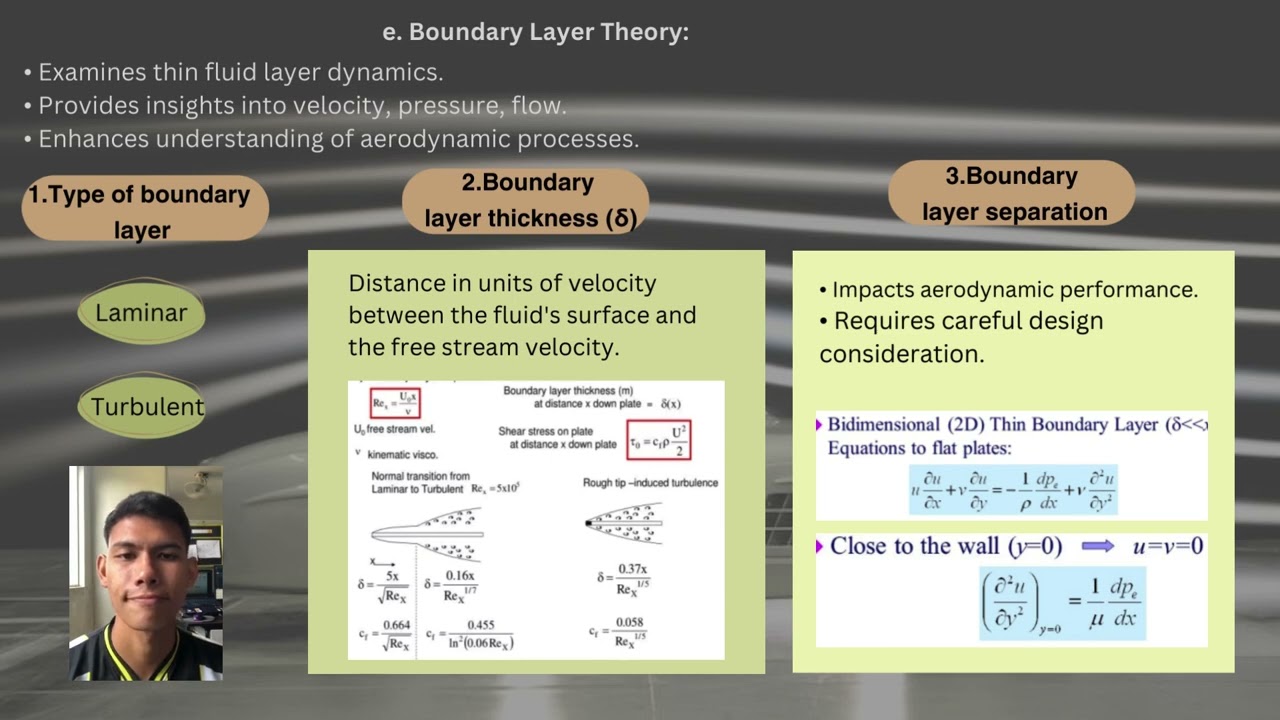

The most important assumption is that the frictionless flow, that means it cannot be applied near to the solid. Because as you know it, whenever the fluid goes through near the solid, if there is a solid fixed surface, there will be the velocity gradient, there will be the shear stress acting on that.
Detailed Explanation
This section underlines critical assumptions of Bernoulli's equation, particularly the need for a frictionless flow condition. Near solid surfaces, friction can significantly alter the flow due to effects like shear stress, making Bernoulli's equation inapplicable.
Examples & Analogies
Consider skating on ice versus on a rough surface. On the ice (analogous to a frictionless flow), you glide smoothly. However, on a rough surface, friction slows you down and makes you lose balance, similar to how fluid behaves near solid boundaries.
Wind Tunnel Effects
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

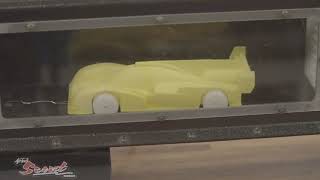

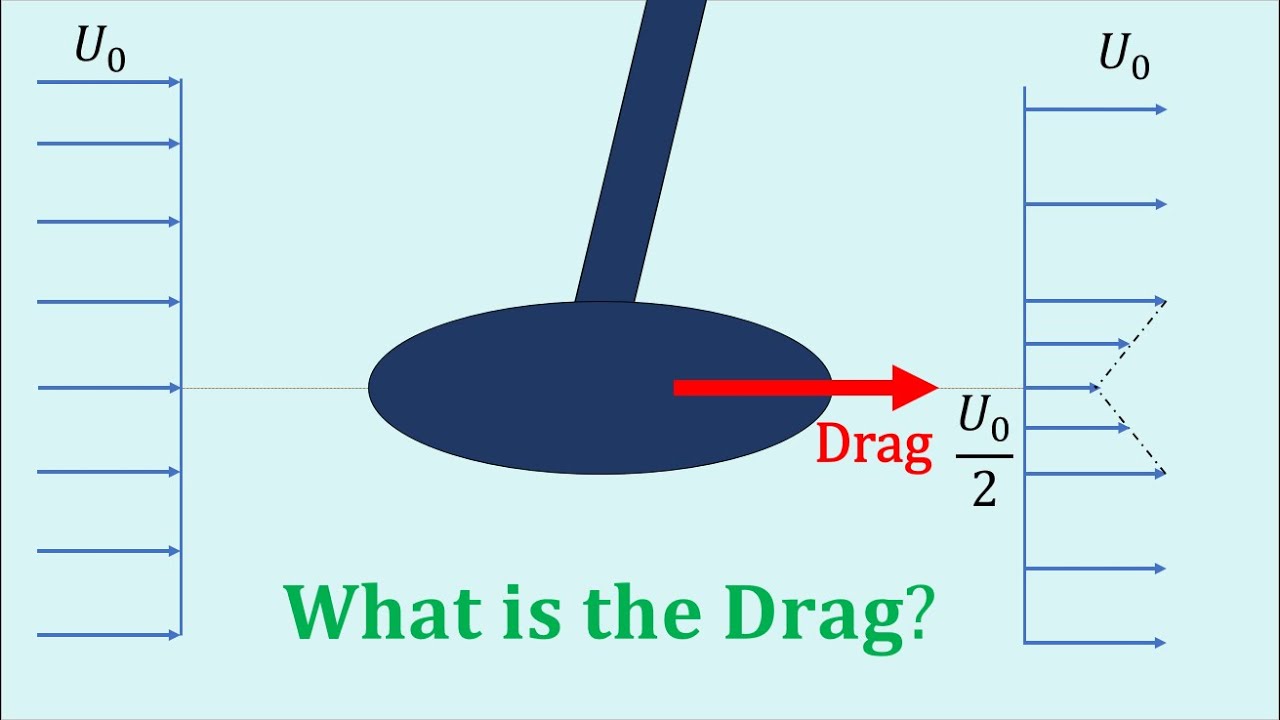

If you look at this wind tunnel test, if you are doing it, we know very well, there are the wall in both side. This is the model. And this wall and model side there will be viscosity effects, so we cannot apply the Bernoulli equations this reasons.
Detailed Explanation
In wind tunnel tests, the walls of the tunnel affect the airflow around the model due to viscosity, which creates friction. This means that Bernoulli's equation cannot be directly applied, highlighting the need to consider real-world complexities in fluid mechanics.
Examples & Analogies
Imagine trying to swim through a pool surrounded by walls versus an open ocean. In the pool, the walls push the water to affect how you swim, similar to how tunnel walls affect wind flow, making calculations based on ideal fluid behavior insufficient.
Importance of Streamline Visualization
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Whenever you have a fluid mechanics problem, first let us gauge the streamlines, find out what are the pressure, what are the velocity at different points, what is the height from a distance.
Detailed Explanation
The text stresses the necessity of gauging streamlines to solve fluid mechanics problems effectively. By determining pressure, velocity, and height at various points, one can apply Bernoulli's equations correctly and achieve accurate results.
Examples & Analogies
Think of navigating through a crowded market. If you map out the paths (streamlines) you might take to get to a specific stall, you can avoid obstacles (pressure points) and arrive at your destination more efficiently.
Understanding Velocity and Energy Relation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Find a relationship between nozzle discharge velocity, tank free surface, assume the steady frictionless flow. Okay, this assumptions really simplified our problems okay.
Detailed Explanation
This segment indicates how, under the idealized assumptions of steady and frictionless flow, one can derive relationships such as the discharge velocity of fluid from a nozzle based on the height of fluid in a tank. These simplifications aid in solving complex fluid dynamics problems.
Examples & Analogies
Consider a child sliding down a slide. The height from which they start is similar to the potential energy that converts to kinetic energy as they slide down, just as fluid height affects its exit velocity from a nozzle.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Bernoulli's Equation: Relates pressure, velocity, and height in fluid dynamics.
-
Streamlines: Pathways of fluid flow which must be drawn to accurately apply Bernoulli’s equation.
-
Limitations: The applicability of Bernoulli's equation is affected by flow conditions such as friction, unsteady flow, and energy inputs.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a wind tunnel, Bernoulli's equation can be used to analyze how airflow separates as it encounters a model, providing insights on aerodynamic lift.
-
When measuring fluid pressure in a nozzle, Bernoulli's equation helps relate the pressure difference to discharge velocity.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In fluid flow, the pressure will drop, as the velocity begins to hop.
📖 Fascinating Stories
-
Imagine a river where the water flows fast over rocks. It has less pressure than where it flows slowly – a perfect example of Bernoulli’s principle!
🧠 Other Memory Gems
-
Remember as 'PVE': Pressure, Velocity, Energy in Bernoulli's context.
🎯 Super Acronyms
CIFS
- Conditions for Bernoulli – Constant
- Incompressible
- Frictionless
- Steady.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Bernoulli Equation
Definition:
A principle in fluid dynamics that relates the pressure, velocity, and height of a fluid flow, indicating conservation of energy.
-
Term: Streamline
Definition:
A line that is tangent to the velocity vector of the flow, representing the path that fluid particles follow.
-
Term: Incompressible Flow
Definition:
Fluid flow where the density remains constant, typically valid at low Mach numbers.
-
Term: Frictionless Flow
Definition:
An ideal flow condition with no shear stresses, usually not achievable in practical scenarios.
-
Term: Virtual Fluid Balls
Definition:
A conceptual model helping visualize fluid motion by interpreting the flow as a collection of discrete 'balls' or particles.
