13.1.1. Dimensional Homogeneity

Welcome all of you to this lectures on dimensional analysis. This very interesting lectures what today I will cover it talking about how to do the experiments in fluid mechanics to characterize the probable. So very interesting topic and this topic I will cover it in 2 lectures.

In this introductory statement, the instructor welcomes students and sets the stage for the topic of dimensional analysis in fluid mechanics. Dimensional analysis is a mathematical technique that helps relate physical quantities through their dimensions (mass, length, time). It is essential for designing experiments and analyzing results effectively, especially in fluid mechanics.

Think of dimensional analysis as the recipe for a cake. Just like you need to measure your ingredients (flour, sugar, eggs) in specific proportions (dimensions), you also need to ensure that when you're conducting experiments, the different variables relate to each other in a consistent way.

Even at the class 11th or 12th levels. So basic dimensions what we have mass length and the time these are 3 basic dimensions mass, length and time. So what we have when we would do a theoretic analysis or the experiment analysis can be made universal okay that is what exactly highlighting here independent of its specific locations using a diverse group to express them.

Basic dimensions serve as foundational concepts in dimensional analysis. The three primary dimensions are mass (M), length (L), and time (T). All physical quantities can be expressed in terms of these three dimensions. Understanding these basic dimensions allows us to analyze and compare different physical phenomena under various conditions, regardless of where they are measured.

Imagine measuring the height of a tree in meters (length), the weight of the tree in kilograms (mass), and the time it takes to measure it in seconds. Your understanding of these measurements allows you to compare different trees effectively, just like how we can analyze experiments in fluid mechanics using mass, length, and time.

Now if you look at the fluid properties what we have some of the fluid properties if you know it is related to the dimensions okay that is the length area and the volume. So it is just a dimension and geometric dimensions so it has only unit in terms of the length okay.

Fluid properties such as area, volume, velocity, and acceleration are all tied to the basic dimensions of mass, length, and time. For example, area is measured in length squared (L²), volume in length cubed (L³), and velocity is length divided by time (L/T). This understanding is crucial in fluid mechanics as it allows us to quantify and describe fluid behavior effectively.

Think about pouring water into different containers. The shape of the container determines the volume it can hold, which is directly related to length measurements. Understanding how these dimensions relate helps you predict how much water each container will hold.

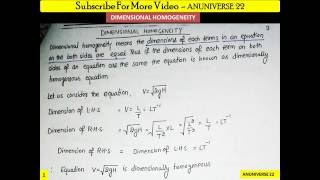

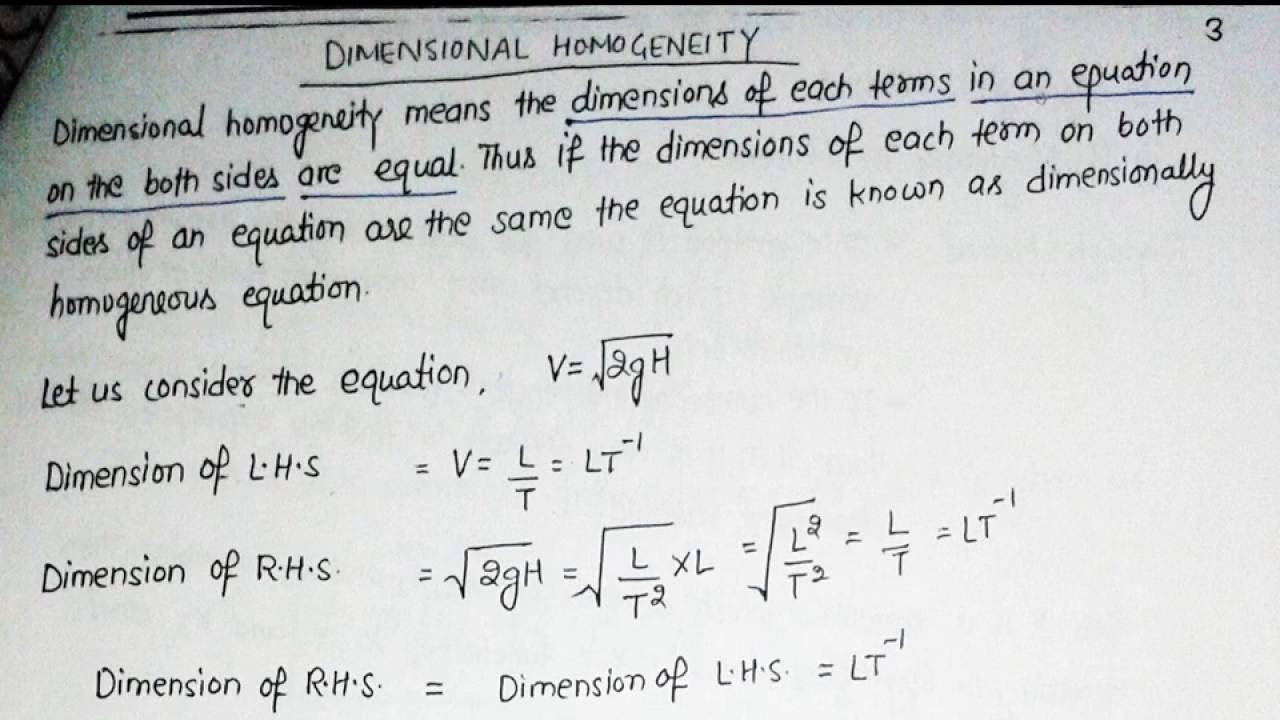

Not all equations but most of the equations of engineering dimensionally homogenous not all that is the let me have a repeat these things that means what it indicates as that the dimensions of the equations will be the same okay the left side of dimensions LHS should have a dimensions of right hand side.

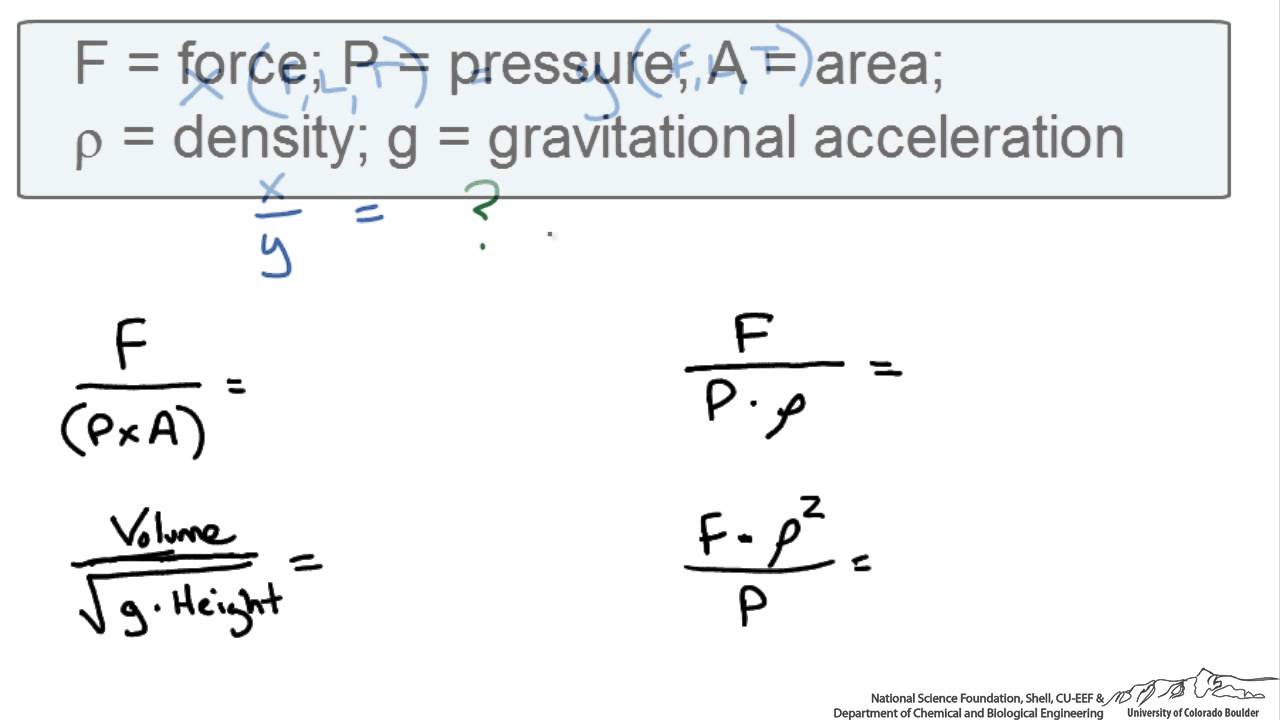

The principle of homogeneity states that in a well-formed equation, all terms must have the same dimensional units. This consistency ensures that the equations are valid and can be used to relate physical quantities. If an equation is dimensionally homogeneous, it indicates that the left-hand side (LHS) and right-hand side (RHS) express the same physical concept.

Consider a balance scale where both sides must weigh the same. If one side has apples and the other has oranges, the weight will not balance properly unless you account for their different weights. Similarly, in equations, each term must balance dimensionally to ensure they express the same relationship.

So if you look at that drag force experiment we have a cylinders. The drag force what is happening is it is a function of D is the diameter of the cylinder V is the velocity of the flow and the rho and the mu is the fluid properties related to density and dynamic viscosities the viscous force components.

When designing experiments to measure drag force on a cylinder in fluid flow, several variables must be considered: the diameter of the cylinder (D), the flow velocity (V), the fluid density (rho), and the fluid dynamic viscosity (mu). Understanding how these variables interact through dimensional analysis allows researchers to conduct fewer, more effective experiments.

Imagine you are trying to understand how a ball behaves when thrown in water versus in air. By focusing on key properties like the ball's diameter and the speed of throw (velocity), along with the characteristics of water and air (density and viscosity), you can predict how the ball will behave in each fluid without needing to test every combination.

We can do less number of experiment that means you can do a 10 experiment if you do a dimensional analysis to design these experiments you just do a 10 experiment to complete this process.

Dimensional analysis helps in reducing the number of experiments needed to establish relationships between physical quantities. By understanding the dimensions of variables and their interdependencies, researchers can conduct a limited number of experiments and extrapolate results instead of running extensive trials.

Think of a student preparing for a math exam who practices just a few types of problems. By understanding the underlying concepts instead of memorizing every possible question, they can confidently solve similar problems during the exam without having to practice every single one.

--
