Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Dimensional Analysis
Unlock Audio Lesson
Welcome class! Today, we’re going to explore dimensional analysis in fluid mechanics. Can anyone tell me what you think dimensional analysis involves?
Is it about measuring dimensions of objects?
Good start, but it’s more about how we can simplify complex physical phenomena. We relate different physical quantities using dimensionless groups. What do you think these could be, based on what we learned previously?
I think they should involve length, density, and maybe speed.
Exactly! Length, velocity, and viscosity are key repeating variables we use to form dimensionless numbers.
What’s the benefit of using these dimensionless numbers?
Great question! They allow us to scale models and predict flow behaviors across different conditions without repeating experiments.
So it’s like creating a universal language for fluid phenomena?
That's a wonderful analogy! By using these dimensionless parameters, we contribute to a better understanding across various scenarios.
Let’s summarize what we’ve learned today: dimensional analysis helps simplify fluid problems, allowing the comparison of different physical conditions through dimensionless numbers.
Reynolds Number and Flow Regimes
Unlock Audio Lesson
Now, let’s dive deeper into the Reynolds number. Can anyone tell me what it represents?
Is it about determining if the flow is smooth or chaotic?
Exactly! The Reynolds number compares inertial forces to viscous forces in a fluid. In essence, it helps predict whether the flow will be laminar or turbulent.
So how do we calculate it?

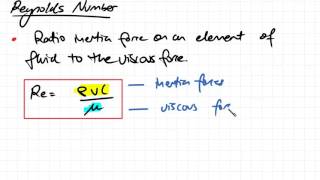

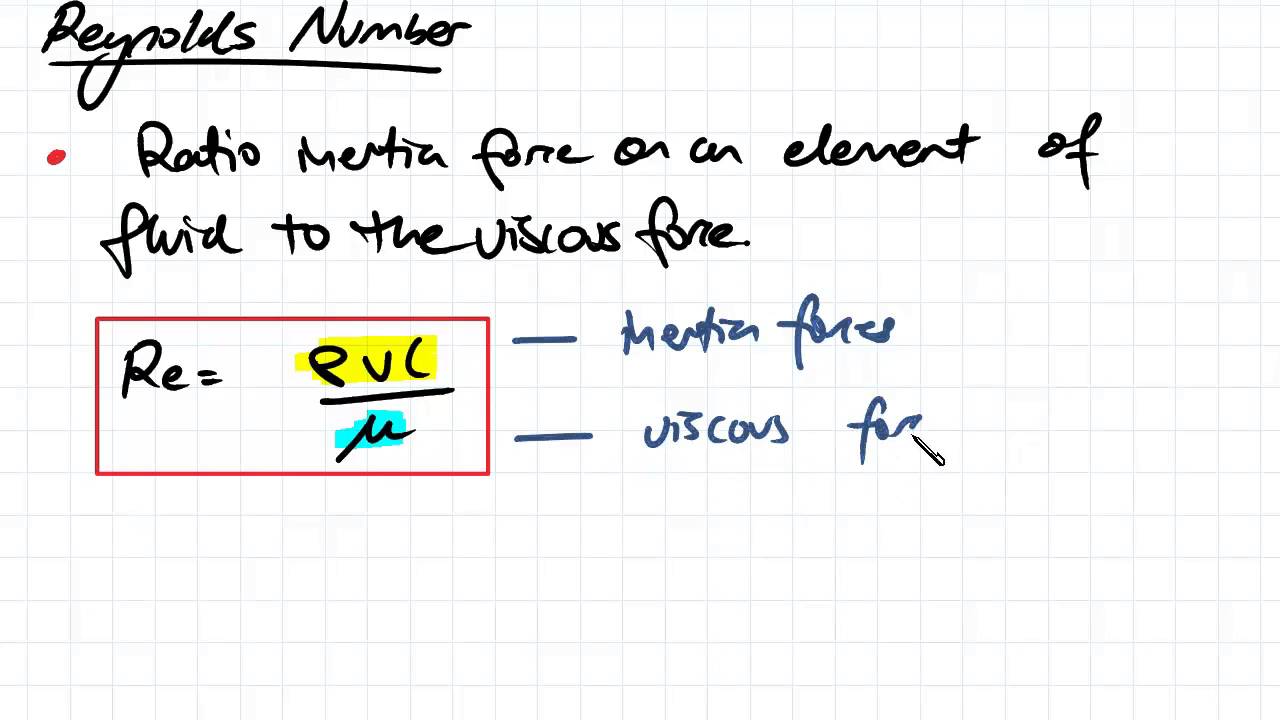

The formula is Re = ρ * U * L / μ. Here, ρ represents density, U is flow velocity, L is characteristic length, and μ is dynamic viscosity.
What happens when Re is low?
When Reynolds number is low, flow tends to be laminar, meaning it’s smooth and orderly. Conversely, high values indicate turbulent flow.
Can you give an example of where this is applied?
Certainly! In pipe flow, if the Reynolds number is below 2000, we generally expect laminar flow, but if it exceeds that, we may face turbulence.
To wrap up, the Reynolds number is a crucial dimensionless group that helps us assess flow regimes effectively.
Other Dimensionless Numbers
Unlock Audio Lesson
Having discussed the Reynolds number, let’s explore additional dimensionless numbers like Froude, Weber, and Euler numbers. Who would like to start with Froude number?
Froude number relates... to gravity and inertia, right?
Yes! It’s crucial for analyzing open-channel flows. The formula is Fr = U / √(gL), where U is the velocity, g is the acceleration due to gravity, and L is a characteristic length.
What happens at high Froude numbers?
High Froude numbers indicate that inertial forces dominate gravity forces, common in rapidly flowing water.
What about Weber number? How does it relate surface tension?
The Weber number represents the ratio of inertial forces to surface tension forces, calculated as We = ρU²L / σ, where σ is the surface tension.
When is this number relevant?
It’s critical in fluid systems that involve bubbles, drops, and interfaces between fluids.
Lastly, the Euler number relates pressure to inertial forces. Remember that each of these dimensionless numbers helps us interpret different aspects of fluid behavior!
Dimensional Groups Usage
Unlock Audio Lesson
Today we’ve learned multiple dimensionless numbers. How can we use this knowledge in engineering?
We can use it to scale models!
Yes, that's correct! By using dimensionless groups, we can test small-scale models and predict behavior in full-scale systems. What’s another application?
It can help in designing things like aircraft?
Exactly. In aerodynamics, understanding the Reynolds number is crucial for determining how an airplane will behave during flight.
Does it apply to hydraulics too?
Absolutely! Hydraulic engineers apply these principles in systems like water treatment, drainage, and flood control.
It seems like dimensional groups are really handy across the board.
They truly are! Understanding how to categorize and manipulate fluid behaviors allows us to develop better systems in many fields.
In summary, we use dimensional analysis to apply fluid mechanics principles effectively across multiple applications.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the concept of dimensional groups and their role in fluid mechanics is examined. Key dimensionless parameters such as Reynolds number, Froude number, Weber number, and Euler number are introduced, emphasizing their significance in comparing different forces in fluid flow and understanding the flow regimes.
Detailed
Dimensional Groups in Fluid Mechanics
Fluid mechanics plays a crucial role in understanding the behavior of fluids under various conditions. A fundamental aspect of this field is dimensional analysis, which helps simplify complex fluid problems by grouping variables into dimensionless parameters. The section introduces a systematic approach to dimensional analysis through the theorem of repeating variables, specifically focusing on three key variables: length, velocity, and viscosity.
Key Concepts
- Repeating Variables: To derive dimensionless groups, we often select repeating variables. In this context, the primary repeating variables are length, velocity, and viscosity.
- Key Dimensionless Numbers: Several dimensionless groups express the relationships among important physical phenomena:
- Reynolds Number (): This number compares inertial forces to viscous forces, helping predict flow patterns (laminar or turbulent).
- Froude Number (Fr): Relates inertial forces to gravitational forces, significant in open channel flows where gravity influences fluid behavior.
- Weber Number (We): This parameter compares inertial to surface tension forces, essential in cases involving bubbles or droplets in fluid mechanics.
- Euler Number (Eu): Relates inertial forces to pressure forces, significant in understanding cavitation effects in fluid flows.
- Dimensional Groups: There are typically eight physical variables (pressure, length, viscosity, etc.) in fluid problems, which can be grouped into five fundamental dimensionless groups aiding in simplification during analysis.
- Applications: Through dimensional analysis, engineers can predict behaviors in a range of applications, from aircraft design to hydraulic systems.
By systematically applying these concepts, engineers and scientists can make great strides in the efficient analysis and design of fluid systems.
Youtube Videos
![Common Dimensional group in fluid mechanics @PrakashAcademy [IITK]](https://img.youtube.com/vi/UP1n4Ohe-nY/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Dimensional Groups
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
To address fluid flow problems, we primarily discuss velocity and pressure fields. The variables involved include gravity, mass functions like density, and flow resistance defined by viscosity. Surface tension and speed of sound also impact flow characteristics.
Detailed Explanation
Dimensional groups help simplify complex fluid flow problems by organizing different physical quantities into categories based on their dimensions — like mass (M), length (L), and time (T). In fluid mechanics, the key variables include:
1. Velocity: Speed of the fluid.
2. Pressure: Force exerted by the fluid per unit area.
3. Gravity: Acceleration due to gravity impacting flow.
4. Density: Mass per unit volume, affecting buoyancy and inertia.
5. Viscosity: Resistance to flow, influencing how smooth or turbulent a fluid behaves.
6. Surface Tension: Affects the interaction at the interface between fluids.
7. Speed of Sound: Determines compressibility characteristics of the fluid.
These variables can often be grouped into a few independent dimensional groups to facilitate analysis and understanding of fluid behavior under different conditions.
Examples & Analogies
Consider a river. It has certain characteristics: how fast the water flows (velocity), how deep it is (pressure), and the effect of wind on its surface (surface tension). By grouping these properties, like creating a recipe for smooth water flow, we can better predict how the river behaves during different weather conditions.
The Four Key Dimensionless Numbers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

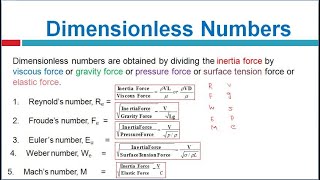

In fluid mechanics, several dimensionless numbers arise from the ratios of different forces.
- Reynolds Number: Ratio of inertial forces to viscous forces, indicating flow type (laminar or turbulent).
- Froude Number: Ratio of inertial forces to gravitational forces, used in situations where gravity plays a significant role.
- Weber Number: Represents the ratio of inertial forces to surface tension forces, relevant in phenomena involving bubbles or droplets.
- Euler Number: Relates pressure forces to inertial forces, especially in compressive flows.
Detailed Explanation
These four dimensionless numbers allow engineers and scientists to classify and predict fluid behavior in various contexts:
1. The Reynolds number helps determine whether flow is smooth (laminar) or chaotic (turbulent). Low values (below 2000) indicate laminar flow, while higher values indicate turbulence.
2. The Froude number focuses on situations where gravitational force is relevant, especially for water flow over weirs or spillways.
3. The Weber number is significant when analyzing systems where surface tension affects fluid movement, such as in spray dynamics or inkjet technologies.
4. The Euler number is useful in applications involving compressible fluids like gases, where understanding the balance between pressure forces and inertial forces is crucial.
These dimensionless numbers help summarize complex relationships into simpler forms for practical analysis.
Examples & Analogies
Picture a fire hose (Reynolds number): if the water flows gently as you turn on the hose, the flow is laminar. But when you turn it on full blast, the water swirls and foams — that’s turbulent flow! Similarly, when a small rock falls into water, the Froude number explains how the rock's speed interacts with gravity, and if you ever played with soap bubbles, the Weber number shows how surface tension keeps them intact.
The Importance of Dimensional Analysis
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Dimensional analysis allows us to derive relationships between physical quantities in fluid flow contexts. It supports us in defining independent dimensional groups and reduces complexity in fluid mechanics problems. For instance, in a volumetric discharge equation, various parameters are related based on their dimensions.
Detailed Explanation
Dimensional analysis simplifies the study of fluid mechanics by enabling the identification of key relationships among variables. By observing the dimensions involved (like mass, length, and time), we can reduce equations to fundamental relationships.
In practice, if we want to express volumetric discharge (Q) as a function of radius (r), dynamic viscosity (μ), and pressure gradient (∂P/∂x), we can perform dimensional analysis to find a non-dimensional group that represents the relationship between these variables. This enables us to apply experimental data to similar real-world problems while ensuring that any derived relationships maintain consistency across different scenarios.
Examples & Analogies
Imagine you're cooking: if you want to make a larger batch of soup, you need to adjust everything (water, vegetables, spices) proportionally. Dimensional analysis works similarly by scaling or adjusting variables in fluid flow problems to find the correct balance, ensuring the soup — or flow — remains just right, no matter the volume.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Repeating Variables: To derive dimensionless groups, we often select repeating variables. In this context, the primary repeating variables are length, velocity, and viscosity.
-
Key Dimensionless Numbers: Several dimensionless groups express the relationships among important physical phenomena:
-
Reynolds Number (): This number compares inertial forces to viscous forces, helping predict flow patterns (laminar or turbulent).
-
Froude Number (Fr): Relates inertial forces to gravitational forces, significant in open channel flows where gravity influences fluid behavior.
-
Weber Number (We): This parameter compares inertial to surface tension forces, essential in cases involving bubbles or droplets in fluid mechanics.
-
Euler Number (Eu): Relates inertial forces to pressure forces, significant in understanding cavitation effects in fluid flows.
-
Dimensional Groups: There are typically eight physical variables (pressure, length, viscosity, etc.) in fluid problems, which can be grouped into five fundamental dimensionless groups aiding in simplification during analysis.
-
Applications: Through dimensional analysis, engineers can predict behaviors in a range of applications, from aircraft design to hydraulic systems.
-
By systematically applying these concepts, engineers and scientists can make great strides in the efficient analysis and design of fluid systems.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of Reynolds number application: Calculating the flow regime in a pipe system where flow velocity, diameter, and viscosity are known.
-
Using the Froude number to analyze flow over a spillway to ensure designs accommodate gravitational influences.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Reynolds rules, friction stays, low is smooth, high swirls away.
📖 Fascinating Stories
-
Imagine a small river flowing gently; it’s smooth when calm (laminar). On a rainy day, it swirls wildly in a storm (turbulent). The Reynolds number tells their tale.
🧠 Other Memory Gems
-
To remember the order of dimensionless numbers: 'Rough Frogs Weigh and Eagerly Swim'. (Reynolds, Froude, Weber, Euler).
🎯 Super Acronyms
ReFoWeEu
- Reynolds
- Froude
- Weber
- Euler - remember this for fluid forces!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Dimensional Analysis
Definition:
A method to simplify complex physical quantities by expressing them in terms of basic dimensions.
-
Term: Reynolds Number
Definition:
A dimensionless number indicating the ratio of inertial forces to viscous forces in fluid flow.
-
Term: Froude Number
Definition:
A dimensionless number representing the ratio of inertial forces to gravitational forces in open channel flow.
-
Term: Weber Number
Definition:
A dimensionless number that compares inertial forces to surface tension forces in fluid systems.
-
Term: Euler Number
Definition:
A dimensionless number representing the ratio of inertial forces to pressure forces within a fluid.
