14.1.5. Reynolds Number

The Reynolds number is defined as the ratio of inertia forces to viscous forces. It is a dimensionless quantity, essential for predicting the flow patterns in different fluid flow situations.

The Reynolds number helps us understand the flow regime of a fluid. When fluid flows through a pipe or around an object, two competing forces come into play: inertia forces, which tend to make the fluid flow smoothly, and viscous forces, which resist the flow. The Reynolds number (Re) is calculated as Re = (Inertia force)/(Viscous force).

When the Reynolds number is low (typically Re < 2000), the flow is laminar, meaning it flows in parallel layers with minimal disruption between them. In contrast, a high Reynolds number (Re > 4000) indicates turbulent flow, which is chaotic and involves eddies and vortices. The range in between (2000 < Re < 4000) is where the flow may transition between laminar and turbulent.

Imagine flowing water through two different pipes: a wide, smooth one and a narrow, rough one. The water flowing through the wide pipe likely flows smoothly (laminar), while the same water through the narrow pipe might swirl around chaotically (turbulent). The Reynolds number quantifies these behaviors by comparing the relative strengths of the flow’s inertia and viscosity.

The Reynolds number can be expressed in the formula: Re = (ρ * v * L) / μ, where ρ = fluid density, v = fluid velocity, L = characteristic length, and μ = dynamic viscosity.

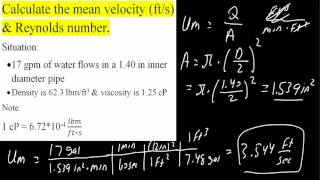

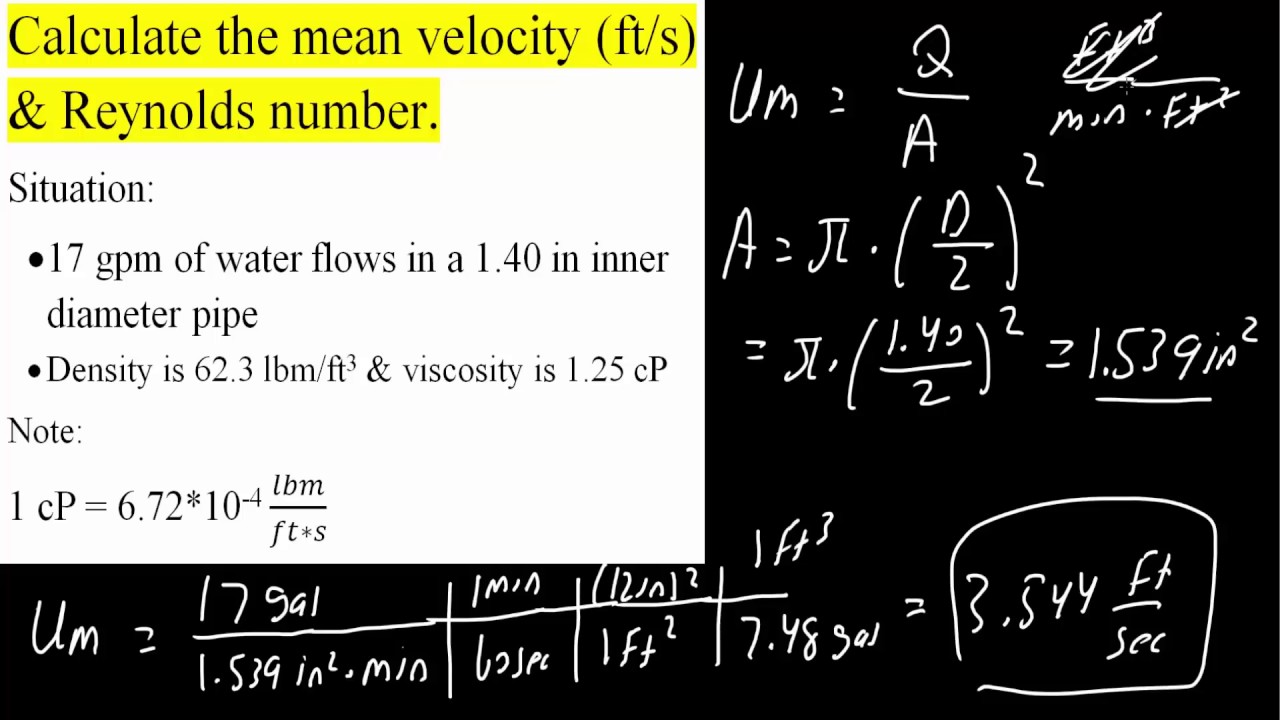

To calculate the Reynolds number, you need to know four parameters: fluid density (ρ), the velocity of the fluid (v), a characteristic length (L) which could be the diameter of a pipe, and the fluid’s dynamic viscosity (μ). These parameters help evaluate whether the flow will be laminar or turbulent based on their values.

• Density (ρ): The mass of fluid per unit volume, affecting inertia.
• Velocity (v): The speed at which the fluid moves, impacting the flow dynamics.
• Characteristic Length (L): This could be the diameter of a pipe or anything that characterizes the scale of the flow.
• Dynamic Viscosity (μ): A measure of the fluid's resistance to flow.

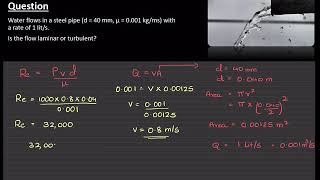

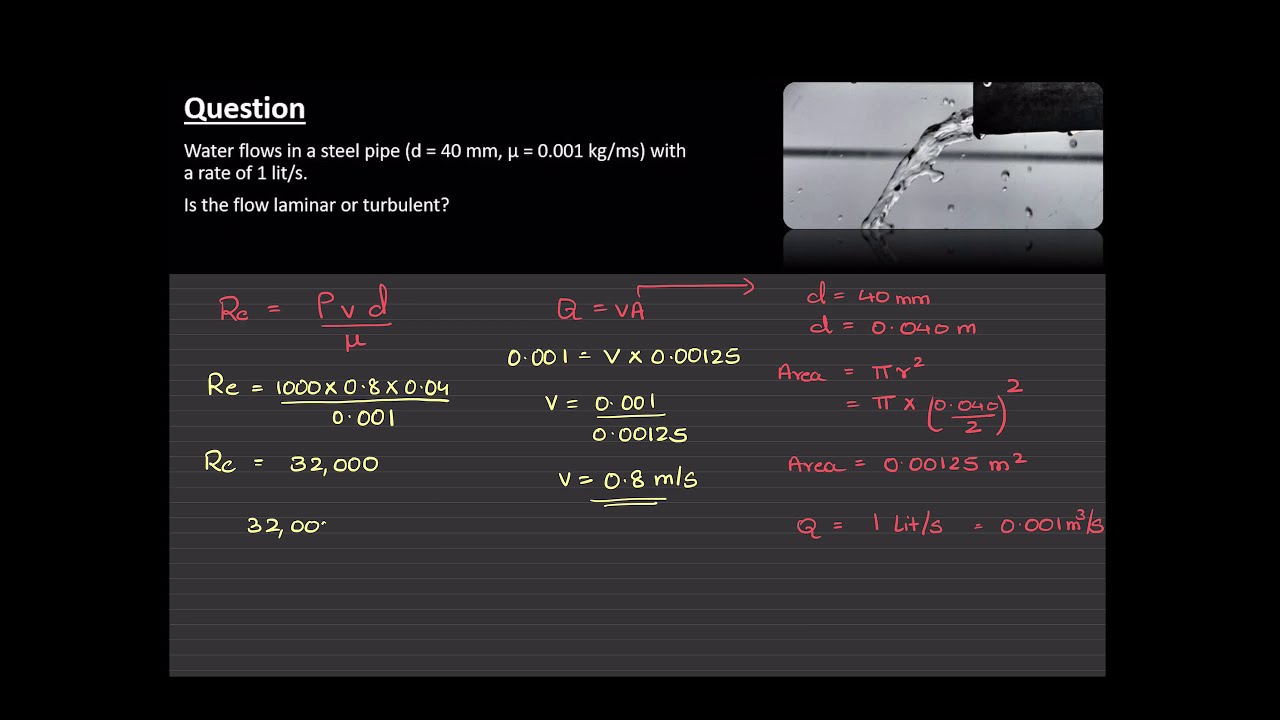

When you plug these values into the Reynolds number formula, you can determine the flow regime once calculated.

Think of a straw. If you sip a drink slowly (low velocity, high viscosity due to thickness of the drink), you’re likely in a laminar flow condition. But if you suck quickly on a thin drink (high velocity, lower viscosity), it can become turbulent quickly. By calculating the Reynolds number, you evaluate when your drink’s flow switches from calm to chaotic.

Understanding the Reynolds number is critical in engineering and fluid dynamics as it helps predict flow behavior, design systems efficiently, and ensure safety.

Knowing the Reynolds number and the resulting flow characteristics allows engineers to design systems that either exploit laminar flow for efficient transport (like in microfluidics) or manage turbulent flow to avoid disruptive forces (like in the design of airplane wings). Different applications, such as pipelines, HVAC systems, and aircraft wings, have specific Reynolds number targets to ensure optimal performance.

For example, in pipelines where viscous friction losses are of concern, maintaining a laminar flow is preferred to save energy and materials. Conversely, turbulent flow might be necessary for mixing fluids efficiently.

Consider a firefighter using a hose. When water flows calmly (laminar), it can be directed effectively. If the flow becomes turbulent, it might spray everywhere and lose effectiveness. Firefighters adjust water flow rates to keep that Reynolds number favorable for optimal coverage of the fire.

In summary, the Reynolds number is a key concept in fluid mechanics, providing insights into flow conditions and aiding in the design of various fluid-related applications.

The Reynolds number’s role extends beyond mere flow characteristics; it helps researchers and engineers understand complex fluid behaviors, which can greatly influence designs. This understanding leads to better efficiency, safety, and performance in diverse fields ranging from aerospace engineering to chemical processing.

As a pilot checks their flight instruments before flying, engineers analyze the Reynolds number before implementing fluid systems. They ensure it will handle expected conditions safely and efficiently, similar to how a pilot prepares for various weather conditions before taking off.

--
