14.1.2 - Variables in Fluid Flow
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Fluid Variables
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're going to explore the key variables involved in fluid flow. Can anyone tell me what the main variables might be?
Isn't velocity one of them?
Absolutely! Velocity is crucial. What else do we have?
Pressure? And density?
Correct! Pressure and density are key variables as well. We also need to consider viscosity, which tells us about the flow resistance.
What about gravity or surface tension?
Yes, great point! Gravity affects flow due to its acceleration, and surface tension matters at fluid interfaces. Remember, these variables can be grouped into five independent dimensional groups.
How do we figure that out?
We'll use dimensional analysis. This tool helps to create non-dimensional numbers that describe fluid behavior without the confusion of units.
To summarize, we discussed key fluid variables: velocity, pressure, density, viscosity, gravity, surface tension, and their importance in modeling fluid behavior.
Dimensional Analysis and Non-Dimensional Numbers
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss dimensional analysis further. Can anyone tell me what dimensional analysis achieves?
It helps to understand how variables relate to each other?
Exactly! By combining our variables, we can derive non-dimensional numbers. What are some important non-dimensional numbers that link forces in fluid flow?
Reynolds number is one of them!
Good! The Reynolds number compares inertial forces to viscous forces. What does it help us determine?
Whether the flow is laminar or turbulent.
Yes! And what about the Froude number? What can anyone tell me about it?
It compares inertial forces to gravity.
Right again! Understanding these non-dimensional numbers is essential for predicting fluid behavior.
In summary, we explored dimensional analysis and important non-dimensional numbers like the Reynolds and Froude numbers, which relate different forces influencing fluid flow.
Applications of Non-Dimensional Numbers
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
I think the Reynolds number is important when designing planes.
Exactly! Aircraft design relies heavily on understanding flow regimes. Why?
Because it affects drag and lift, right?
Absolutely! And when we consider Froude numbers, where do we see relevance?
In spillways and open channel flows?
Yes! These numbers highlight the balance between inertia and gravity in these scenarios. Any other applications?
Like predicting cavitation in turbines with Euler numbers?
Indeed! Euler numbers help us manage cavitation risks. Let’s summarize: we discussed how non-dimensional numbers like Reynolds, Froude, and Euler affect real-world applications in fluid mechanics.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In Section 1.2, we delve into the fundamental variables in fluid dynamics, including length, velocity, viscosity, pressure, density, and more. The section highlights the importance of dimensional analysis and introduces significant non-dimensional numbers such as Reynolds, Froude, Weber, and Mach numbers, which help to characterize different flow regimes and phenomena.
Detailed
In fluid mechanics, understanding the variables that govern fluid flow is crucial. This section outlines eight primary variables affecting fluid dynamics: velocity, pressure, density, dynamic viscosity, length dimensions, acceleration due to gravity, surface tension, and the speed of sound. These variables can be grouped into five independent dimensional groups through the application of dimensional analysis, particularly using the π-theorem. Key non-dimensional numbers are introduced, including the Reynolds number, which compares inertial forces to viscous forces, the Froude number, which relates inertial forces to gravity, and others such as the Weber number and Mach number. Each of these numbers plays a critical role in predicting flow behavior under various conditions. By assimilating these concepts, we characterize fluid flows effectively, enabling applications in real-world scenarios, such as aircraft design influenced by the principles established by the pioneering Wright brothers.

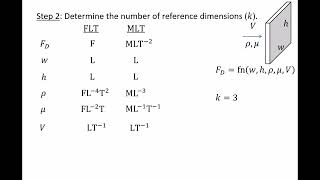

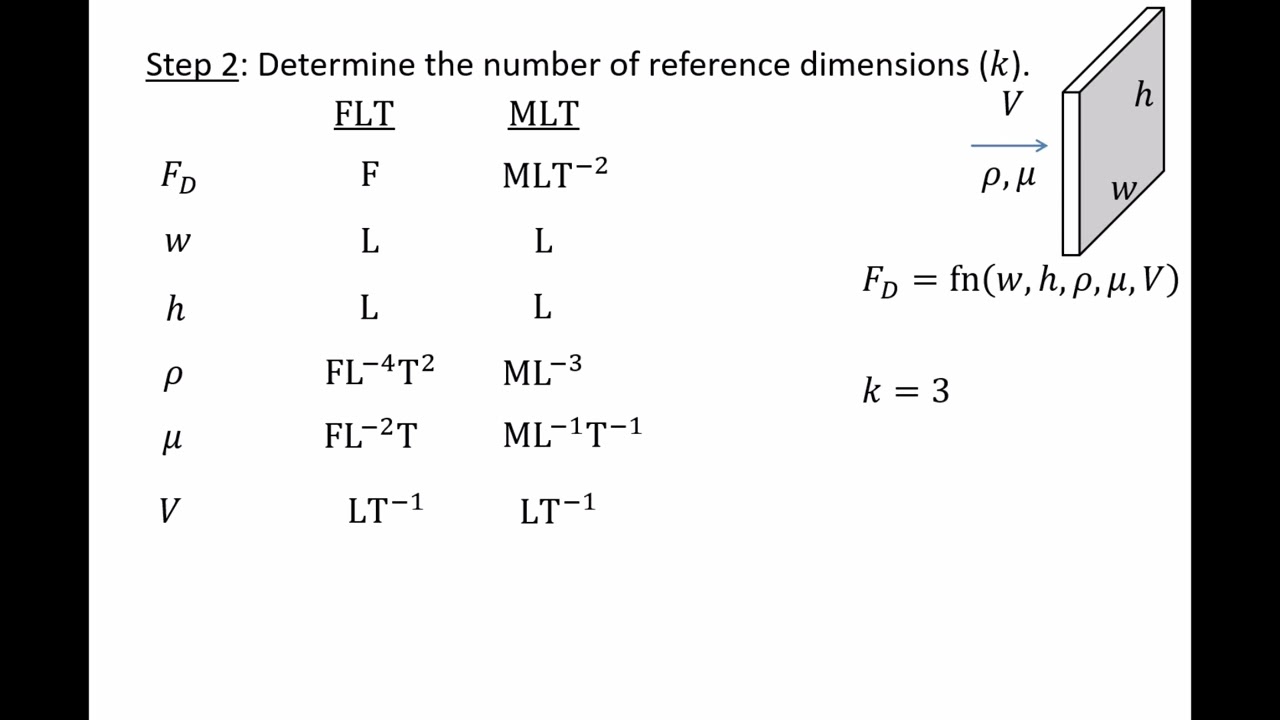

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Key Variables in Fluid Flow
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
When discussing fluid flow problems, we primarily focus on the velocity and pressure field. Other important variables include gravity force, length dimensions, mass functions (density), viscosity, surface tension, speed of sound, and acceleration due to gravity.
Detailed Explanation
In fluid flow analysis, the most crucial variables are velocity and pressure. The velocity represents how fast the fluid is moving, while pressure indicates the force exerted by the fluid per unit area. Additionally, gravity influences the direction of fluid movement, affecting factors like flow patterns. Length dimensions help quantify the size of the fluid system, while density represents mass per unit volume, which is significant in calculating buoyancy and pressure. Viscosity indicates how easily a fluid flows, determining flow resistance. Surface tension is vital when two fluids interact at their interface, like water and oil. Finally, speed of sound in fluid indicates how pressure waves travel through the fluid, which is crucial in understanding flow regimes, such as compressible versus incompressible flow.
Examples & Analogies
Imagine a river. The speed of the water represents velocity, while the rushing water creates pressure on the riverbanks. Gravity pulls the water downstream, and the size of rocks in the river corresponds to length dimensions affecting flow. If you were to introduce a thick molasses into the river, viscosity would determine how easly it flows. When water and oil mix, surface tension determines how they separate. Lastly, when a fish swims by, it creates pressure waves in the water - a reflection of the speed of sound in the water.
Dimensional Analysis in Fluid Mechanics
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Fluid flow problems can be defined using eight variables, which can be grouped into five independent dimensional groups. These include pressure, length, viscosity, surface tension, speed of sound, acceleration due to gravity, density, and velocity.
Detailed Explanation
In fluid mechanics, dimensional analysis helps us simplify complex problems by reducing the number of variables we have to consider. By establishing relationships between these variables, we can group them into sets of independent dimensions. For example, if we have eight variables affecting fluid flow, we can often reduce them to five key groups that capture all the necessary characteristics of the flow. This helps engineers and scientists to predict fluid behavior under different conditions and aids in designing experiments and simulations.
Examples & Analogies
Think of cooking. When making a recipe, you have various ingredients (like water, flour, sugar, and others). Instead of worrying about each individual ingredient's characteristics, you might focus on key categories, like liquids, solids, and seasonings. Dimensional analysis does the same in fluid mechanics by grouping variables to make problems manageable and understandable.
Dominant Forces in Fluid Flow
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Fluid flow is affected by different forces, with some dominating under specific conditions. For example, in laminar flows, viscous forces dominate, while in turbulent flows, inertial forces are significant. The relative importance of these forces can be described using Reynolds number.
Detailed Explanation
Reynolds number is a dimensionless quantity that helps predict flow patterns in different fluid scenarios. It is the ratio of inertial forces to viscous forces. A low Reynolds number indicates that viscous forces dominate (leading to laminar flow, which is smooth and orderly), while a high Reynolds number suggests that inertial forces play a larger role (leading to turbulent flow, which is chaotic and mixed). Understanding which forces dominate in a flow scenario allows for appropriate modeling and problem-solving approaches.
Examples & Analogies
Consider riding a bicycle in still air versus riding in windy conditions. In still air (low Reynolds number), the bike needs little effort to move smoothly. In wind (high Reynolds number), the bike becomes harder to control due to turbulence and chaotic air patterns forcing it to work against the wind. Just as different forces affect the bike’s movement, different forces affect fluid flow as well.
Flow Regimes and Their Numbers
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The Reynolds number is crucial for distinguishing between laminar and turbulent flow. Other important dimensionless numbers include the Froude number, which indicates gravity's role, Weber number for effects of surface tension, and Euler number, which describes the dynamics in cavitation.
Detailed Explanation
Besides the Reynolds number, which helps categorize fluid flow, other dimensionless numbers provide insights into different influences on the flow. The Froude number compares inertial force to gravity in a flow system, helping understand flows where gravity is notable, such as rivers or spills. The Weber number highlights the balance between inertial and surface tension forces, important in systems where bubbles or droplets are present. Lastly, the Euler number compares pressure forces to inertial forces, critical for cavitation analysis usually found near turbine blades or high-speed fluid edges.
Examples & Analogies
When pouring syrup into a glass of water, both the movement of the syrup and the water's surface tension interact to create beautiful swirls. This interaction between inertial forces and surface tension can be understood using Weber numbers. In natural systems, recognizing these dominant forces helps predict how fluids will behave, whether it's a gentle stream or a gushing waterfall.
Key Concepts
-
Fluid Flow Variables: Key variables include viscosity, pressure, density, length, velocity, and acceleration due to gravity.
-
Dimensional Analysis: A method to reduce complexity in fluid dynamics by focusing on units and dimensions.
-
Non-Dimensional Numbers: Key non-dimensional quantities like Reynolds, Froude, Weber, and Mach numbers that characterize flow regimes.
Examples & Applications
In fluid flow through a pipe, the Reynolds number can indicate whether the flow is laminar (low Reynolds) or turbulent (high Reynolds).
The Froude number in an open channel can help determine whether gravity or viscous forces are more significant, influencing potential spillway design.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When Reynolds climbs up high, turbulent flows do fly; But if it's low and calm, laminar flows charm.
Stories
Once upon a time, in a fluid world, velocities danced along the pathways of pipes, battling against viscosity, the sticky villain that tried to slow them down. The knights, Reynolds and Froude, fought valiantly, aiding the flow with numbers to predict if they moved swiftly or swirled gently.
Memory Tools
Remember 'VR-F-WM' to capture Viscosity, Reynolds, Froude, Weber, and Mach - keys to fluid dynamics!
Acronyms
Think of 'R-F-W-M' for Reynolds, Froude, Weber, and Mach numbers to recall the mouse forming in flow dynamics.
Flash Cards
Glossary
- Viscosity
A measure of a fluid's resistance to flow or deformation.
- Reynolds Number
A dimensionless quantity that compares inertial forces to viscous forces in fluid flow.
- Froude Number
A dimensionless number comparing inertial forces to gravitational forces.
- Weber Number
A dimensionless number that quantifies the ratio of inertial forces to surface tension forces.
- Mach Number
A dimensionless quantity defined as the ratio of fluid flow speed to the speed of sound in that fluid.
- Dimensional Analysis
A method used to simplify physical problems by considering the dimensions of the involved variables.
- Cavitation
The formation of vapor bubbles in a liquid due to a drop in pressure.
Reference links
