Atmospheric Scattering
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're going to explore how electromagnetic radiation interacts with the atmosphere. Let's begin with atmospheric scattering. Can anyone tell me what they think happens to light when it passes through the atmosphere?
Doesn't the light change color? I heard the sky is blue because of something called Rayleigh Scattering?
Exactly! Rayleigh Scattering affects shorter wavelengths, like blue light, which is why the sky appears blue during the day. Can anyone tell me what happens with dust or water in the atmosphere?
That's Mie Scattering! It happens because larger particles like dust scatter longer wavelengths.
Well stated! And there’s also non-selective scattering, which affects all wavelengths equally. What can we observe due to this?
Clouds! They look white because the larger droplets scatter all colors of light.
Great job, everyone! So we remember Rayleigh, Mie, and non-selective scattering. Just think of the acronym RMN for Recall, Manage, Navigate to remember these types!
Are these scattering effects important for remote sensing?
Absolutely! They impact sensor readings and data accuracy significantly. Understanding how light scatters helps us choose appropriate wavelengths for analysis.
Atmospheric Absorption
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's shift our focus to atmospheric absorption. Can someone explain what this involves?
I think it’s when gases like water vapor or ozone absorb certain wavelengths of EMR, right?
Correct! This creates atmospheric windows, specific ranges of wavelengths that can pass through without much interference. Why do you think these windows are important?
They help us choose the right wavelengths for remote sensing applications!
Exactly! For example, wavelengths in the near-infrared range are often chosen for vegetation studies, as they penetrate the atmosphere effectively. How might absorption impact our data collection?
If certain wavelengths get absorbed, we might not capture the right information about the surface!
Well said! So we must always consider atmospheric conditions when planning remote sensing missions. Remember, the gases involved create unique windows across the spectrum—think of it as finding your way through a maze!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The interaction of EMR with the atmosphere is crucial in remote sensing, as it significantly affects data quality by causing scattering and absorption of specific wavelengths. Understanding these interactions helps in selecting the appropriate wavelengths for remote sensing applications.
Detailed
Interaction of EMR with the Atmosphere
The interaction of electromagnetic radiation (EMR) with the atmosphere plays a strategic role in remote sensing applications. When EMR travels from the source to the Earth, it encounters various atmospheric processes before reaching the sensor system.
1. Atmospheric Scattering
There are three primary types of atmospheric scattering:
- Rayleigh Scattering: Predominantly affecting shorter wavelengths like blue light, making the sky appear blue.
- Mie Scattering: Caused by larger particles like dust and water droplets, primarily affecting longer wavelengths.
- Non-selective Scattering: Occurs when larger cloud droplets scatter all wavelengths equally, causing clouds to appear white.
These scattering processes can distort the signal received by sensors, leading to challenges in accurately interpreting data.
2. Atmospheric Absorption
Certain gases in the atmosphere, such as water vapor, carbon dioxide, and ozone, absorb specific wavelengths of EMR. This absorption creates atmospheric windows, which refer to ranges of wavelengths that can effectively pass through the atmosphere and are thus suitable for remote sensing. These windows are crucial for determining which wavelengths can be used for specific sensing applications, as they dictate the effectiveness of the data collection process.
By understanding the interactions of EMR with the atmosphere, remote sensing specialists can optimize sensor designs and data interpretation methods to collect accurate information about the Earth's surface.

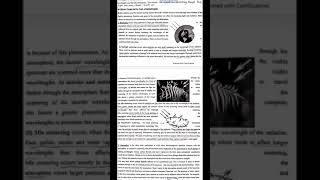

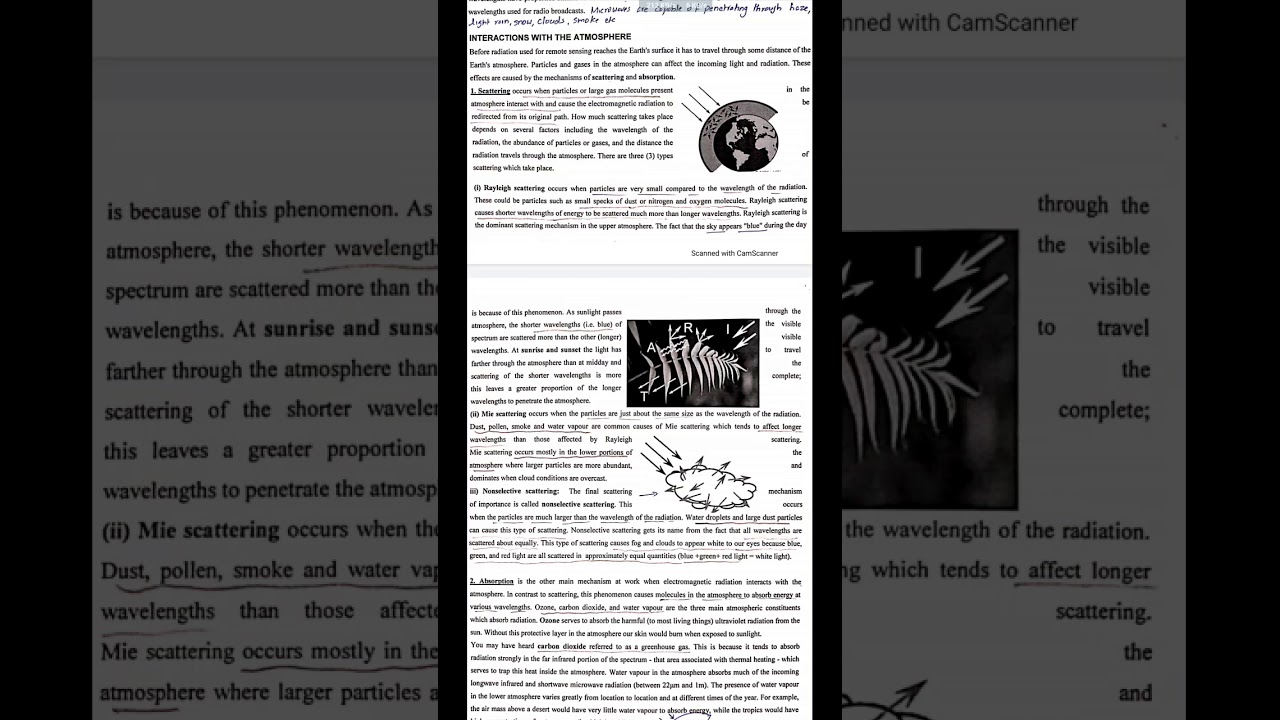

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Atmospheric Scattering
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Atmospheric Scattering
- Rayleigh Scattering: Affects shorter wavelengths (blue sky).
- Mie Scattering: Caused by dust and water droplets.
- Non-selective Scattering: Affects all wavelengths equally (clouds appear white).
Detailed Explanation
Atmospheric scattering is the way in which electromagnetic radiation (EMR) interacts with particles in the atmosphere, affecting how we perceive colors and clarity.
- Rayleigh Scattering occurs when the particles are much smaller than the wavelength of light. This scattering is responsible for the blue color of the sky, as shorter blue wavelengths scatter more than longer red wavelengths.
- Mie Scattering happens with larger particles, such as dust and water droplets, which scatter all wavelengths more evenly. This type of scattering often results in the white appearance of clouds, since all colors are spread out.
- Non-selective Scattering occurs when particles are much larger than the wavelengths of light and affects all wavelengths equally, which contributes to the whiteness of clouds.
Examples & Analogies
Think of scattering like throwing a handful of different-sized balls into the air. The small balls representing short wavelengths scatter in many directions, similar to how blue light scatters in the sky. The larger balls, like the larger particles causing Mie Scattering, represent things like dust, which distribute the light evenly, making clouds appear white.
Atmospheric Absorption
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Atmospheric Absorption
Certain gases in the atmosphere (e.g., water vapor, carbon dioxide, ozone) absorb specific wavelengths of EMR. This creates atmospheric windows — ranges of wavelengths that can pass through the atmosphere and are suitable for remote sensing.
Detailed Explanation
Atmospheric absorption refers to the process by which certain gases present in the atmosphere absorb specific wavelengths of electromagnetic radiation. For example:
- Water vapor, carbon dioxide, and ozone are key gases that absorb particular wavelengths. This absorption is significant because it determines which wavelengths can pass through the atmosphere without being absorbed.
- The concept of atmospheric windows arises from this phenomenon. These windows are ranges of wavelengths where EMR can pass through the atmosphere with minimal absorption, making them critical for remote sensing. Sensors rely on these specific wavelengths to capture clear data about the Earth’s surface.
Examples & Analogies
Imagine sunlight trying to get through a thick curtain. The curtain absorbs some colors of light (think of the gasses absorbing certain EMR) while letting others pass through (the atmospheric windows). The light that gets through allows you to see parts of the room (the Earth) clearly, just as the windows in the atmosphere allow certain wavelengths of EMR to reach our sensors.
Key Concepts
-
Atmospheric Scattering: The deflection of EMR by particles in the atmosphere, which may cause distortion in satellite data.
-
Atmospheric Absorption: The retention of specific wavelengths by gases in the atmosphere, leading to specific ranges where EMR can effectively penetrate.
-
Atmospheric Windows: Specific wavelengths that can penetrate the atmosphere and are usable in remote sensing, crucial for effective satellite data collection.
Examples & Applications
The blue sky effect caused by Rayleigh scattering emphasizes shorter wavelengths.
A thermal infrared sensor effectively operates in the atmospheric window where gaseous absorption is minimal, thus providing clear information about surface temperatures.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Rayleigh for blue, Mie for dust; Clouds look white, that's a must!
Stories
Once upon a time, in a colorful sky, Rayleigh danced with blue light, making everything bright. Mie mixed in with dust, changing the hues, while clouds above played the whites as they snoozed.
Memory Tools
Remember R, M, and NS for Rayleigh, Mie, and Non-selective Scattering.
Acronyms
SNOW
Scattering
Non-selective
Optical
Wavelength to remember the key types of scattering.
Flash Cards
Glossary
- Rayleigh Scattering
The scattering of light or other electromagnetic radiation by particles much smaller than the wavelength of the light.
- Mie Scattering
Scattering that occurs when the particles are comparable in size to the wavelength of the light, affecting longer wavelengths.
- Nonselective Scattering
Scattering that affects all wavelengths equally, leading to white appearance in clouds.
- Atmospheric Absorption
The process by which certain gases in the atmosphere absorb electromagnetic radiation of specific wavelengths.
- Atmospheric Windows
Ranges of wavelengths that are allowed to pass through the atmosphere with minimal absorption.
