Introduction to Effective Stress
Unlock Audio Lesson
Today, we're delving into effective stress. It’s crucial in soil mechanics. Who can tell me what effective stress is?
Is it the stress carried by the soil particles?
Exactly! It’s defined as σ' = σ - u, where σ is total stress and u is pore water pressure. Can someone explain what that means?
It means that effective stress changes when either the total stress or the pore water pressure changes, right?
Correct! Remember the acronym: E = T - P, where E is effective stress, T is total stress, and P is pore pressure. Let’s move on to the factors affecting effective stress.
Hydraulic Gradient and Soil Behavior
Unlock Audio Lesson
The hydraulic gradient plays a critical role. Can someone explain how it affects the soil during upward and downward flow?
When water flows downward, it increases the effective stress?
Right! And what happens during upward flow?
It can reduce effective stress to zero, creating quick sand conditions!
Great! Remember, upward flow counteracts gravity, leaving particles suspended. It’s also essential to understand the implications of this in soil stability.
Impact of Ground Water Changes
Unlock Audio Lesson
Let’s discuss the impact of groundwater level changes. What happens to effective stress when the water table rises?
The pore water pressure increases, therefore effective stress decreases.
Exactly! Conversely, what happens when it drops?
Effective stress increases because pore water pressure decreases.
Very good! We need to keep track of these changes in practical scenarios, especially with construction. Let’s summarize.
Calculation Examples
Unlock Audio Lesson
Now let’s practice some calculations! Who remembers how to calculate effective stress from the total stress and pore water pressure?
We subtract the pore water pressure from total stress!
Great! Here’s a scenario: If total stress is 22.38 kPa at 11m depth and pore pressure is 11 kPa, what’s the effective stress?
It’s 22.38 - 11, so 11.38 kPa.
Spot on! Always ensure you distinguish between total and effective stresses in your calculations.
Real-World Applications
Unlock Audio Lesson
Finally, let’s consider real-world implications. Why is it essential to understand effective stress in construction?
It helps in predicting ground movements and stability of structures.
Exactly! Changes in pore water pressure can lead to failures after storms or excavations. Keeping this in mind will aid in making safer designs.
It’s fascinating how soil properties can affect such large structures!
Indeed! Let’s recap today’s lessons on effective stress.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The effective stress concept is fundamental in soil mechanics, indicating the stress carried by soil skeleton. It emphasizes how pore water pressure influences effective stress during hydraulic conditions, as well as the implications of quick sand conditions and variations in groundwater levels.
Detailed
Effective Stress Equation
Effective stress, denoted as σ', is a vital concept in soil mechanics, reflecting the stress carried by soil particles. It is influenced primarily by pore water pressure (), especially under hydrodynamic conditions.
Hydraulic Gradient and Pore Water Pressure
In seepage flow from point P to Q, the hydraulic gradient (i = Δh/Δs) drives water movement. As water interacts with soil, it can augment or reduce inter-particle forces, influencing effective stress:
- Downward Flow: Increases effective stress as water exerts downward drag on soil particles.
- Upward Flow: Can reduce effective stress to zero, creating a quick sand condition, where the soil acts like a viscous liquid.
Change in Effective Stress Due to Water Table Fluctuation
The effective stress is also sensitive to changes in groundwater levels. A rising water table increases pore pressure, decreasing effective stress, while a falling water table has the opposite effect.
Mathematical Representation
The effective stress is calculated by the equation:
σ' = σ - u,
where σ is total stress and u is pore water pressure. Understanding the distinction between total and effective stress is critical for analyzing ground stability and movements, which may arise from variations in loading due to construction activities or changes in pore water pressure.
Examples
The section provides illustrative examples demonstrating how to compute total stress, pore pressure, and effective stress at different soil depths.

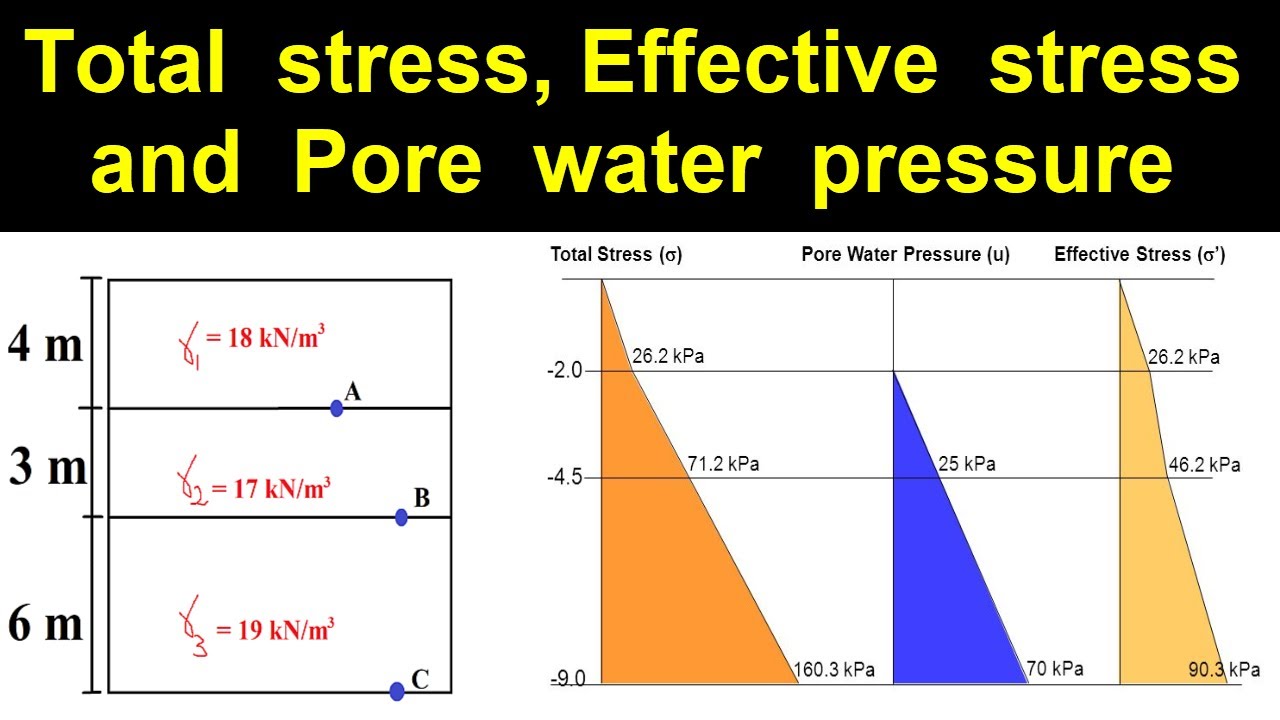

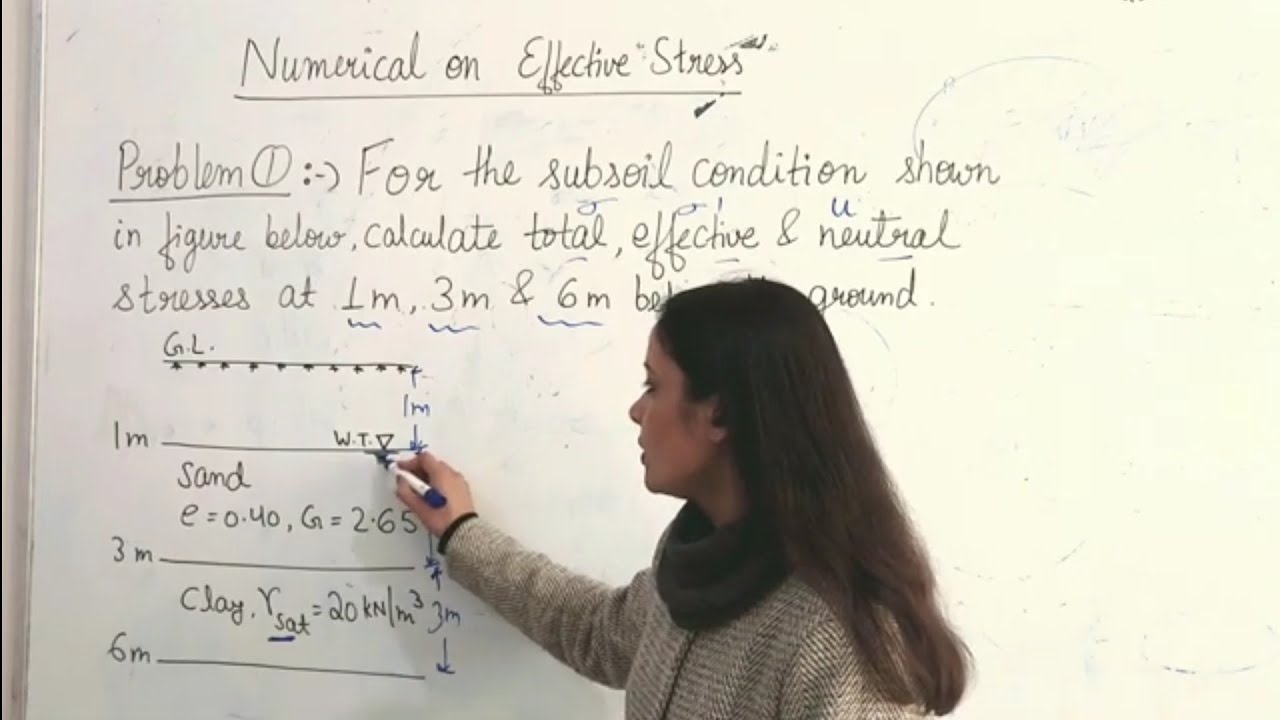

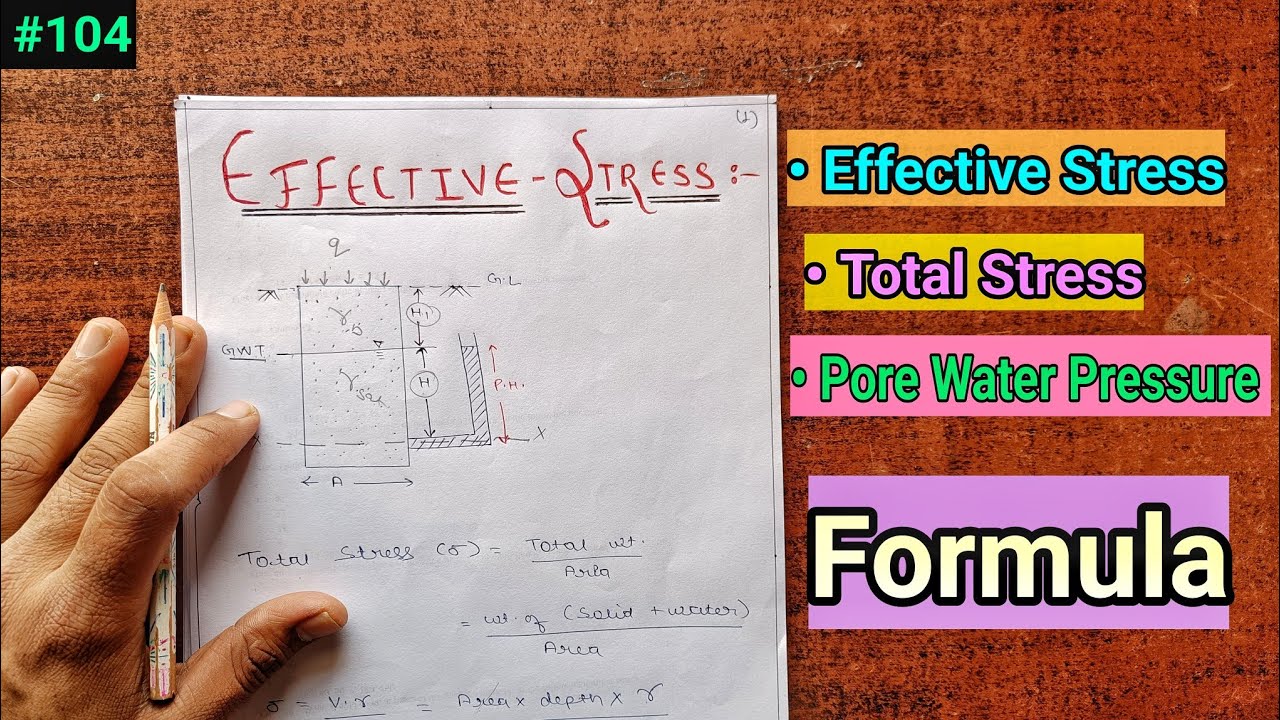

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Effective Stress and Its Relationship with Pore Water Pressure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
At any point within the soil mass, the magnitudes of both total stress and pore water pressure are dependent on the ground water position. With a shift in the water table due to seasonal fluctuations, there is a resulting change in the distribution in pore water pressure with depth.
Detailed Explanation
Effective stress is a key concept in soil mechanics, defined as the difference between the total stress acting on a soil layer and the pore water pressure within that layer. It determines the strength and stability of the soil. When the water table shifts due to seasonal changes, the pore water pressure also changes, affecting the effective stress. For instance, if the water table rises, the pore water pressure increases, which may lead to a decrease in effective stress, weakening the soil's ability to support structures. Conversely, when the water table falls, effective stress increases as the pore water pressure decreases, enhancing soil strength.
Examples & Analogies
Think of effective stress like a sponge in water. When you submerge the sponge (water table rises), it becomes heavy and cannot hold as much weight (decreased effective stress). When you pull the sponge out of the water (water table falls), it lightens up and can support more weight (increased effective stress).
Effects of Changes in Water Table Levels
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Changes in water level below ground result in changes in effective stresses below the water table. A rise increases the pore water pressure at all elevations thus causing a decrease in effective stress. In contrast, a fall in the water table produces an increase in the effective stress.
Detailed Explanation
When the water level underground rises, it exerts pressure on the soil structure, increasing pore water pressure. As the pore water pressure rises, it counteracts the forces that hold soil particles together, leading to lower effective stress and potential instability in the soil. On the other hand, when the water table decreases, pore water pressure lowers, which increases the effective stress because the soil can better resist loads and stay compacted.
Examples & Analogies
Imagine a jar filled with marbles sitting at the bottom of a swimming pool. If water (like a water table) rises around the jar, the marbles (soil particles) may feel loose and wobbly, as the water pressure inside the jar increases. If you drain some water from the pool, the marbles can settle tightly again, illustrating how lowering the water table can help stabilize the soil.
Impact of Changes Above Ground
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Changes in water level above ground do not cause changes in effective stresses in the ground below. A rise above ground surface increases both the total stress and the pore water pressure by the same amount, and consequently effective stress is not altered.
Detailed Explanation
While fluctuations in the underground water table significantly impact effective stress, changes in water levels above the ground do not have the same effect. This is because any increase in surface water adds equivalent amounts of total stress and pore water pressure simultaneously, leaving effective stress unchanged. Understanding this point is crucial in construction and civil engineering, as it clarifies that surface water conditions do not directly affect the soil's load-bearing capacity.
Examples & Analogies
Think of a water balloon that sits on top of a table. If you put more water into the balloon (like increasing water levels above ground), the pressure inside the balloon increases and pushes against the table equally. However, if you were to fill a glass of water on the table (increase water level beneath the surface), it would elevate the pressure beneath the table differently, affecting how the surface can hold weight.
Effective Stress Equation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In some analyses it is better to work with the changes of quantity, rather than in absolute quantities. The effective stress expression then becomes: σ' = σ - u
Detailed Explanation
The effective stress equation is a simple yet powerful formula: σ' = σ - u, where σ' is the effective stress, σ is the total stress, and u is the pore water pressure. This equation allows engineers to quantify how changes in pore water pressure (u) and total stress (σ) affect effective stress (σ'). When both total stress and pore water pressure change equally, the effective stress remains constant, demonstrating the importance of distinguishing these components in analyses.
Examples & Analogies
Think of a teeter-totter at a playground. If you add weight to both sides equally (like increasing total stress and pore water pressure the same amount), the balance remains unchanged (effective stress stays constant). But if one side has more weight than the other, you tip the balance, just like how effective stress changes when pressures differ.
Significance of Differentiating Stresses
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Total and effective stresses must be distinguishable in all calculations. Ground movements and instabilities can be caused by changes in total stress, such as caused by loading by foundations and unloading due to excavations. They can also be caused by changes in pore water pressures, such as failure of slopes after rainfall.
Detailed Explanation
In civil engineering and soil mechanics, accurately distinguishing between total stress and effective stress is vital to understanding soil behavior. Ground movements, such as landslides or settlement, can originate from variations in either total or pore water pressures. For instance, increasing load from a new building (total stress) may cause soil instability if effective stress becomes insufficient to support it. Similarly, a heavy rainfall can lead to increased pore water pressure, resulting in decreased effective stress and slope failure.
Examples & Analogies
Consider a delivery truck sitting on a soft surface. If just a few boxes are added to the truck (increasing total stress), it may not tip over right away, but if the soft ground can't handle that pressure (effective stress is low), it may cause the truck to sink or tilt. Likewise, heavy rains make the ground soggy (increasing pore water pressure), leading to potential road collapse.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Effective Stress: The stress that contributes to soil strength and stability.
-
Hydraulic Gradient: A critical driver of flow in soil, significant in understanding seepage.
-
Pore Water Pressure: Integral to effective stress, affecting soil behavior during saturation.
-
Quick Sand Condition: A dangerous state where effective stress can approach zero, leading to instability.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example 1: Calculate the effective stress at a depth of 11m where total stress is 22.38 kPa and pore pressure is 11 kPa. Solution: σ' = 22.38 - 11 = 11.38 kPa.
-
Example 2: In an excavation scenario with a clay layer above sand, find the artesian pressure if effective stress at the interface is zero. Solution: Use weight of clay and artesian pressure calculations to find h = 6 m.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Effective stress is what you gauge,
📖 Fascinating Stories
-
Once there's a party in the soil, where all particles dance together, but when water flows upward, the dance floor gets slippery, and they are floating—this is quick sand. But when the party's downward, they stay grounded and strong!
🧠 Other Memory Gems
-
P.E.S.T. - Pore pressure, Effective stress, Soil skeleton, Total stress—these are the key elements to remember.
🎯 Super Acronyms
P.E.S. - Pore water pressure, Effective stress, Stability in soil.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Effective Stress (σ')
Definition:
The stress carried by the soil skeleton, equal to total stress minus pore water pressure.
-
Term: Pore Water Pressure (u)
Definition:
The pressure exerted by water within the soil pores.
-
Term: Hydraulic Gradient (i)
Definition:
The slope of the water table, calculated as the head drop per unit length.
-
Term: Quick Sand Condition
Definition:
A state where effective stress is reduced to zero, causing soil to behave like a liquid.
-
Term: Ground Water Table
Definition:
The level below ground where the soil is fully saturated with water.
