Understanding Hydraulic Gradient
Unlock Audio Lesson
Today, we're discussing hydraulic gradients and how they influence groundwater movement. Who can tell me what a hydraulic gradient is?
Is it the difference in water levels between two points?
Exactly! It's the head drop over a length, given by the equation i = ∆h/∆s. This gradient drives water movement through soil. Remember 'i' stands for the hydraulic gradient.
So, if the gradient stays constant, the seepage is also steady?
That's right! If the gradient is constant, we have steady seepage. Good job!
Effects of Downward and Upward Flow
Unlock Audio Lesson
Now, let's talk about how downward and upward flows affect effective stress. What happens when water flows downward?
It increases the effective stress, doesn't it?
Correct! Downward flow enhances inter-particle contact forces. On the other hand, what happens with upward flow?
It can make the effective stress zero, like quicksand!
Exactly! In quicksand conditions, soil acts like a viscous liquid. Let's do a recap: downward flow increases stress, and upward flow decreases it to zero, leading to quicksand conditions.
Importance of Effective Stress
Unlock Audio Lesson
Let's shift to effective stress. Why is it crucial?
It determines how much weight the soil can support, right?
Precisely! Effective stress is what acts on the soil skeleton. When the water table changes, what happens to effective stress?
If it rises, effective stress decreases because pore water pressure increases!
Correct! And if the water table falls?
Then effective stress increases!
Great job! Always remember: changes in the water level above ground do not affect stress below.
Case Examples of Effective Stress
Unlock Audio Lesson
Let's look at some examples. For a soil deposit where the water table is at ground level, how would you draw the effective stress diagram?
We would calculate total stress and pore water pressure first, then subtract to find effective stress.
Exactly! And remember the formula is σ' = σ - u. Can anyone summarize what this means?
It means effective stress is the total stress minus pore water pressure!
Well done! This understanding is essential to predicting soil behavior and stability.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section elucidates the relationship between groundwater positions, effective stress, and pore water pressure. It illustrates how variations in water levels can lead to changes in effective stress, highlighting critical conditions like quicksand.
Detailed
In this section, we explore the effects of groundwater position on effective stress and pore water pressure within soil masses. The concept of hydraulic gradient, described by the formula i = ∆h/∆s, is crucial in understanding seepage flow. As water seeps, it alters inter-particle contact forces, affecting effective stress. Downward flow increases effective stress while upward flow can reduce it to zero, creating a quicksand condition, particularly in fine sand and silt. The section emphasizes the importance of effective stress, which is defined as σ' = σ - u, where total stress (σ) and pore water pressure (u) must be distinguished. It details the consequences of groundwater fluctuations, noting that a rise in the water table raises pore pressure and decreases effective stress, with the opposite being true for a fall. Examples illustrate this with diagrams depicting total stress, pore water pressure, and effective stress at various depths.

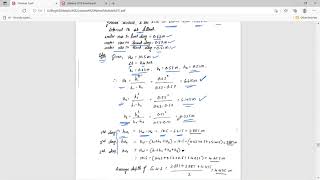

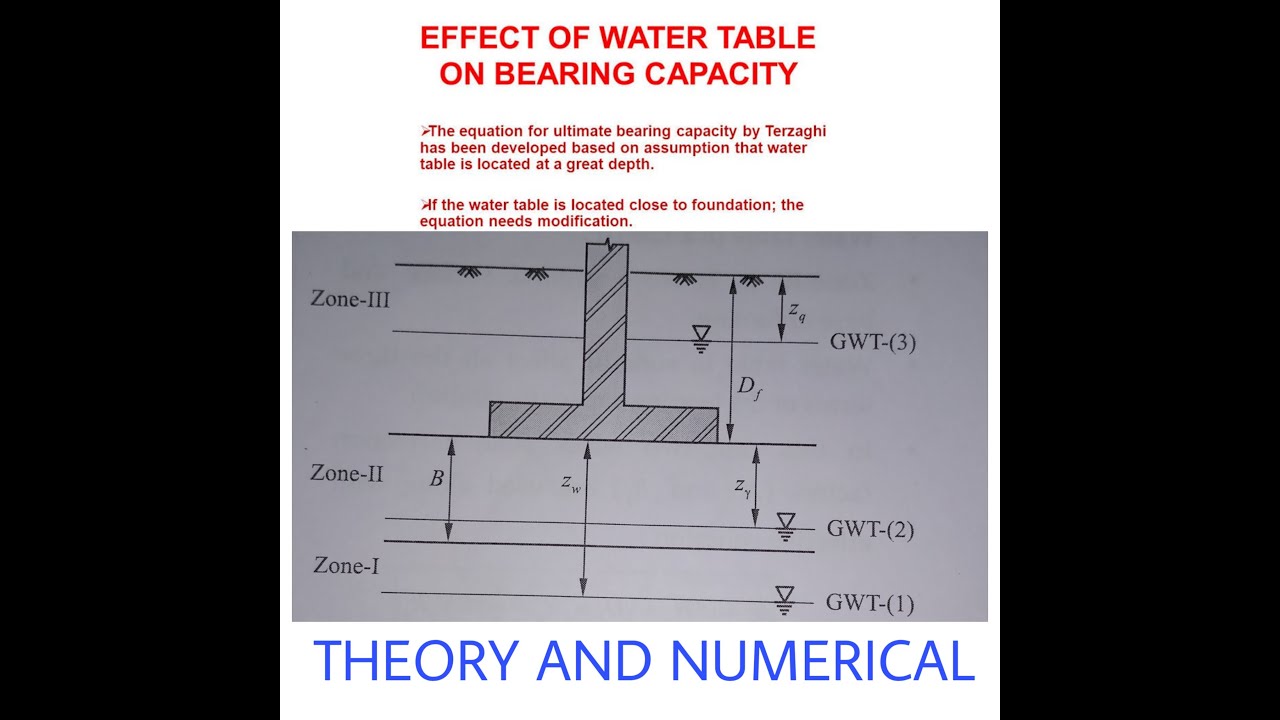

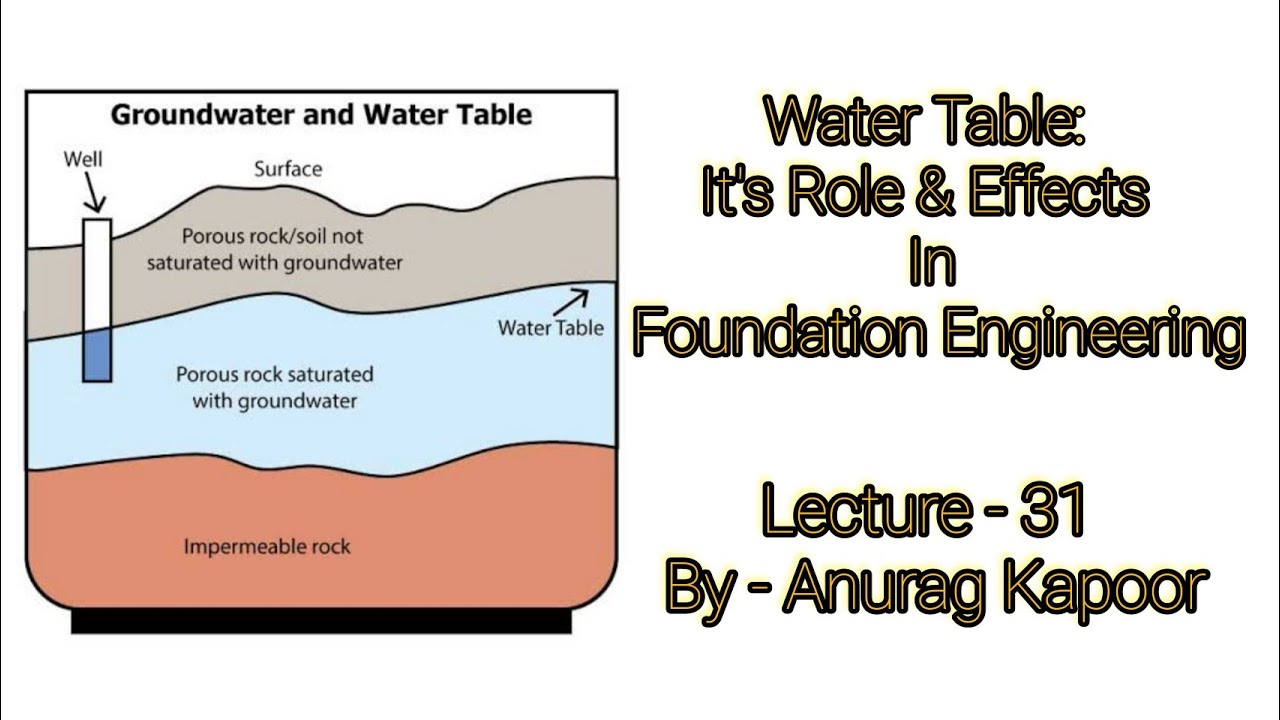

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Effective Stress and Ground Water Position
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
At any point within the soil mass, the magnitudes of both total stress and pore water pressure are dependent on the ground water position. With a shift in the water table due to seasonal fluctuations, there is a resulting change in the distribution of pore water pressure with depth.
Detailed Explanation
Effective stress in soil is influenced by the pressure of water present in the soil pores, known as pore water pressure. When the water table rises or falls, it changes the amount of pore water pressure acting on the soil. When the water table rises, it increases the pore water pressure throughout the soil mass, which reduces the effective stress, as effective stress is defined as total stress minus pore water pressure. Conversely, if the water table falls, the pore water pressure decreases, leading to an increase in effective stress. This relationship is crucial for understanding soil stability and behavior.
Examples & Analogies
Imagine a sponge submerged in water. When you push down on the sponge (which represents total stress), the water within it (pore water pressure) pushes back. If you remove some of the water, the sponge behaves differently under pressure because the resistance it faces (effective stress) changes. This principle is similar to how shifts in the water table affect the soil's ability to support structures.
Effects of Ground Water Level Changes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Changes in water level below ground result in changes in effective stresses below the water table. A rise increases the pore water pressure at all elevations thus causing a decrease in effective stress. In contrast, a fall in the water table produces an increase in the effective stress.
Detailed Explanation
When the water level below the ground increases, it applies pressure to the soil, which raises the pore water pressure and ultimately decreases the effective stress. This reduction in effective stress can compromise the stability of soil, potentially leading to problems like the soil becoming more prone to sliding or failing. On the other hand, when the water level decreases, the pore water pressure is reduced, which increases the effective stress, enhancing the soil's ability to support loads. This effect is particularly important in civil engineering, where understanding soil behavior is essential for building safe structures.
Examples & Analogies
Think of a small hill made of sand. When it rains heavily, the water table rises, soaking the sand and reducing its ability to hold together. As the water saturates the sand, it becomes loose and may slide down. If the rainfall stops and the water table drops, the sand becomes firmer and able to support more weight, similar to how a dry sponge can hold more pressure when less water is within it.
Ground Water Level Above Ground
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Changes in water level above ground do not cause changes in effective stresses in the ground below. A rise above ground surface increases both the total stress and the pore water pressure by the same amount, and consequently effective stress is not altered.
Detailed Explanation
Actions or events that cause water levels to rise above the ground, such as flooding, can increase both the total stress and the pore water pressure exerted on the soil underneath. However, since both pressures increase by the same amount, the effective stress theoretically remains the same. This principle suggests that while there may be more water present, the balance of forces on the soil particles remains unchanged, preserving its stability.
Examples & Analogies
Imagine a heavy weight placed on a balloon filled with water. If you increase the water level in the balloon, thus increasing the pressure from both the balloon's weight and internal water pressure, the balloon doesn't collapse further because both forces increase proportionately. This illustrates how changes above ground don’t necessarily alter the balance of stress below ground.
Effective Stress Calculation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In some analyses it is better to work with the changes of quantity, rather than in absolute quantities. The effective stress expression then becomes: σ' = σ - u. If both total stress and pore water pressure change by the same amount, the effective stress remains constant.
Detailed Explanation
In engineering and soil mechanics, it's often useful to examine how effective stress changes in relation to total stress (σ) and pore water pressure (u). The equation σ' = σ - u defines effective stress (σ'). This means if both total stress and pore water pressure change evenly—say due to a constant rise in water level—the effective stress remains unchanged. This understanding helps engineers analyze potential shifts in soil behavior under varying conditions without needing precise absolute values.
Examples & Analogies
Think of a scale with weights on both sides that are perfectly balanced. If you add more weight to both sides equally, the balance doesn't tip; the relationship remains the same. This symbolizes how effective stress behaves when both total stress and pore water pressure increase by the same amount—balance is maintained and the soil's reliability remains intact.
Importance of Stress Distinction
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Total and effective stresses must be distinguishable in all calculations. Ground movements and instabilities can be caused by changes in total stress, such as caused by loading by foundations and unloading due to excavations. They can also be caused by changes in pore water pressures, such as failure of slopes after rainfall.
Detailed Explanation
It's crucial to differentiate between total stress and effective stress when calculating soil behavior in engineering and construction. Total stress relates to the overall load on soil, while effective stress is what influences how the soil particles interact and hold stability. If total stress increases—like when heavy machinery is placed on soil—effective stress calculations also need to consider any changes in pore water pressure. Similarly, after heavy rainfall, if pore water pressure increases, it can destabilize slopes even if total stress remains constant.
Examples & Analogies
Consider a balancing act on a tightrope. The total weight of the performer (total stress) affects balance, but without proper footing (representing effective stress), they can easily fall. This highlights the importance of recognizing the difference between total and effective stress—both need to be managed to maintain stability and prevent accidents in construction and earthworks.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Hydraulic Gradient: The ratio of head drop to distance, essential for understanding seepage.
-
Effective Stress: The crucial force that holds soil particles together, modified by pore water pressure.
-
Pore Water Pressure: The stress contributed by water in soil pores, influencing effective stress.
-
Quicksand Condition: A phenomenon where effective stress reduces to zero due to upward water flow.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a sandy soil sieve test, a downward water flow increases effective stress, making soil compact.
-
During rainfall, groundwater rises, causing a decrease in effective stress, potentially leading to slope failures.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When the water’s flow goes up so high, the sand acts slick, like it can fly.
📖 Fascinating Stories
-
Imagine a toy boat floating on the sand. When water rises, the boat floats higher, but if it keeps rising, the sandy bed beneath it gets so soft that it can sink, just like our soil in quicksand conditions.
🧠 Other Memory Gems
-
Remember 'PES' for Pore pressure decreases Effective Stress.
🎯 Super Acronyms
Use 'IHE' for Interparticle forces increase with downward flow and Hydrodynamic conditions.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Pore Water Pressure (u)
Definition:
The pressure exerted by water within the soil pores.
-
Term: Effective Stress (σ')
Definition:
The stress carried by the soil skeleton, calculated as σ - u.
-
Term: Hydraulic Gradient (i)
Definition:
The change in hydraulic head per unit distance, driving water movement.
-
Term: Quick Sand Condition
Definition:
A state where pore water pressure neutralizes effective stress, causing soil to act like a liquid.
-
Term: Total Stress (σ)
Definition:
The overall stress acting on a soil element, including both the weight of soil and external loads.
