Understanding Hydraulic Gradient
Unlock Audio Lesson
Today, we will discuss the hydraulic gradient. Can anyone tell me what it is?
Isn't it the change in water pressure in soil?
Good start! The hydraulic gradient is actually defined as the change in hydraulic head per unit length, expressed as *i = ∆h/∆s*. This gradient drives the flow of water through soil.
How does this impact the soil?
Great question! It affects the effective stress of the soil, which is vital for soil stability.
Can effective stress go down to zero?
Yes! In certain conditions like upward flow, effective stress can reduce to zero, causing quicksand conditions. Remember this as it's a critical concept!
So, the hydraulic gradient influences both water flow and soil behavior?
Exactly! Understanding this flow is essential for managing soil stability in engineering. Let's summarize the key points: the hydraulic gradient defines water movement, impacting effective stress and soil behavior.
Effective Stress Concept
Unlock Audio Lesson
Today, let's focus on effective stress. Who can define it?
Effective stress is total stress minus pore water pressure, right?
Exactly! It's represented as σ' = σ - u, where σ is total stress and u is pore water pressure.
What affects these pressures?
Good point! Changes in groundwater levels affect pore water pressure, directly influencing effective stress.
So, if the water table rises, effective stress decreases?
That's correct! Conversely, a drop in the water table increases effective stress. Remember this relationship for further studies!
Can we see real-world effects from this?
Absolutely! It affects everything from building foundations to landslides. To recap, effective stress is critical for understanding soil stability.
Quicksand Conditions
Unlock Audio Lesson
Let’s discuss quicksand conditions. Who knows what it is?
It's when the sand becomes saturated and loses strength, right?
Exactly! In this state, effective stress drops to zero as upward flow neutralizes the weight of soil particles.
Where does this happen usually?
It often occurs in coarse silt or fine sand, especially under artesian conditions. Can anyone think of why this might be dangerous?
Because things can sink into it?
Correct! Structures can fail if they encounter quicksand conditions. So, let's summarize: quicksand occurs when effective stress reaches zero, creating unstable soil.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The hydraulic gradient is quantitatively defined as the head drop per unit length between two points in a soil layer, impacting effective stress due to shifts in pore water pressure. It plays a crucial role in soil behavior during conditions such as upward or downward flow, affecting factors like inter-particle contact and the onset of quicksand conditions.
Detailed
Hydraulic Gradient
The hydraulic gradient is a critical concept when understanding effective stress within soils experiencing seepage flow. It is defined mathematically as the change in hydraulic head (∆h) per unit length (∆s) between two points (P and Q) in the soil, expressed as i = ∆h/∆s. This gradient drives water movement, significantly influencing the forces acting on soil particles.
Pore Water Pressure and Effective Stress
Water movement through soil can increase or decrease effective stress:
- Downward flow increases effective stress because it enhances contact forces between soil particles.
- Upward flow, on the other hand, reduces effective stress and can lead to conditions such as quicksand, where the effective stress falls to zero, allowing soil particles to float in water.
Importance of Effective Stress
Effective stress is pivotal because it governs the stability and strength of soils. It is derived from the total stress minus the pore water pressure (σ' = σ - u). Changes in ground water levels cause fluctuations in pore water pressure, thus affecting effective stress. A significant rise in the water table increases pore water pressure, thereby reducing effective stress, while a fall has the opposite effect.
Understanding these conditions is crucial in civil engineering, particularly when exploring soil loading, excavations, and ground movements, which are often triggered by changes in effective stresses.

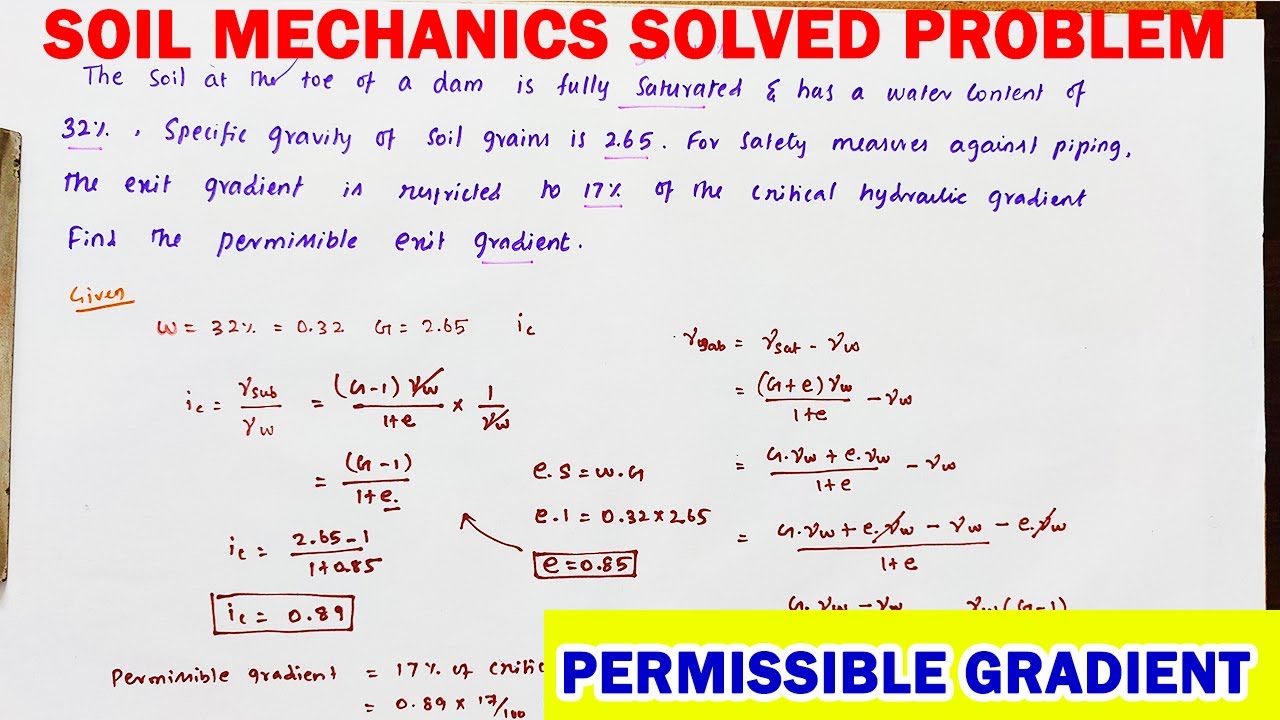

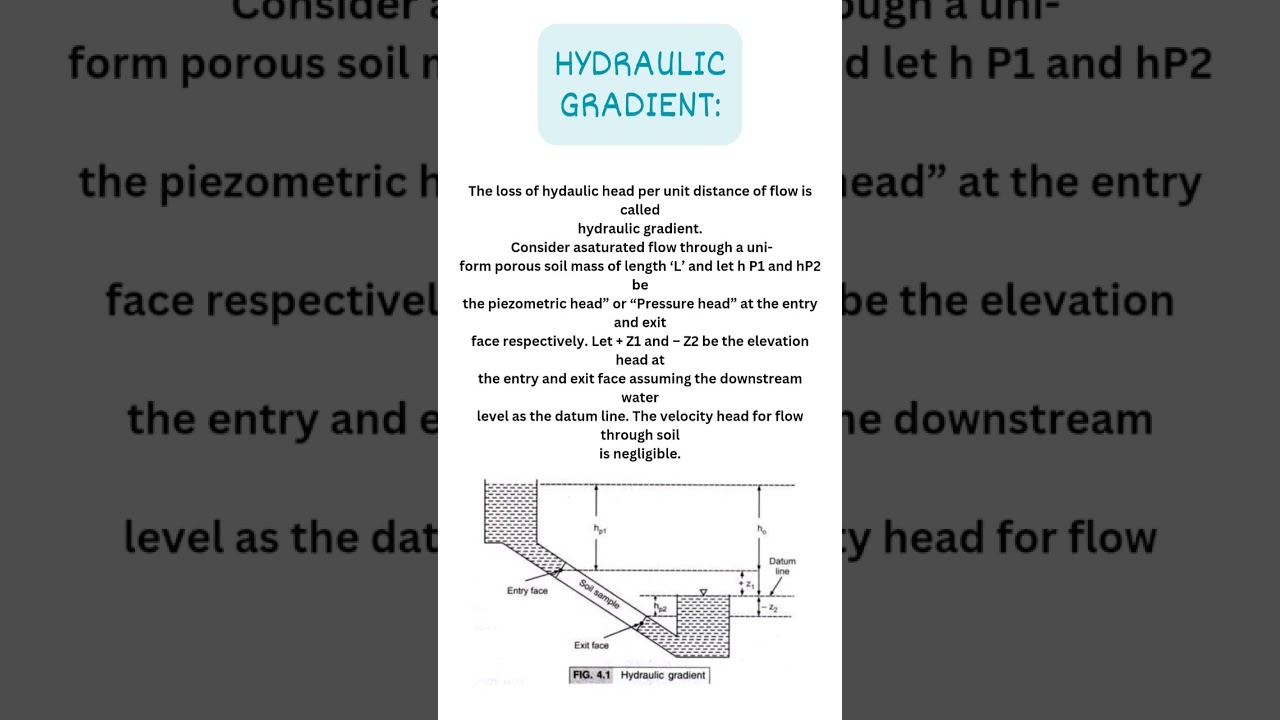

Youtube Videos

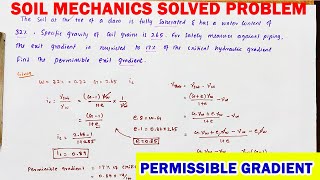

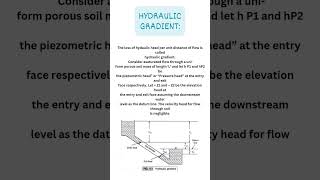

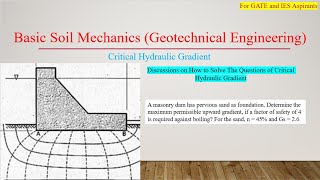

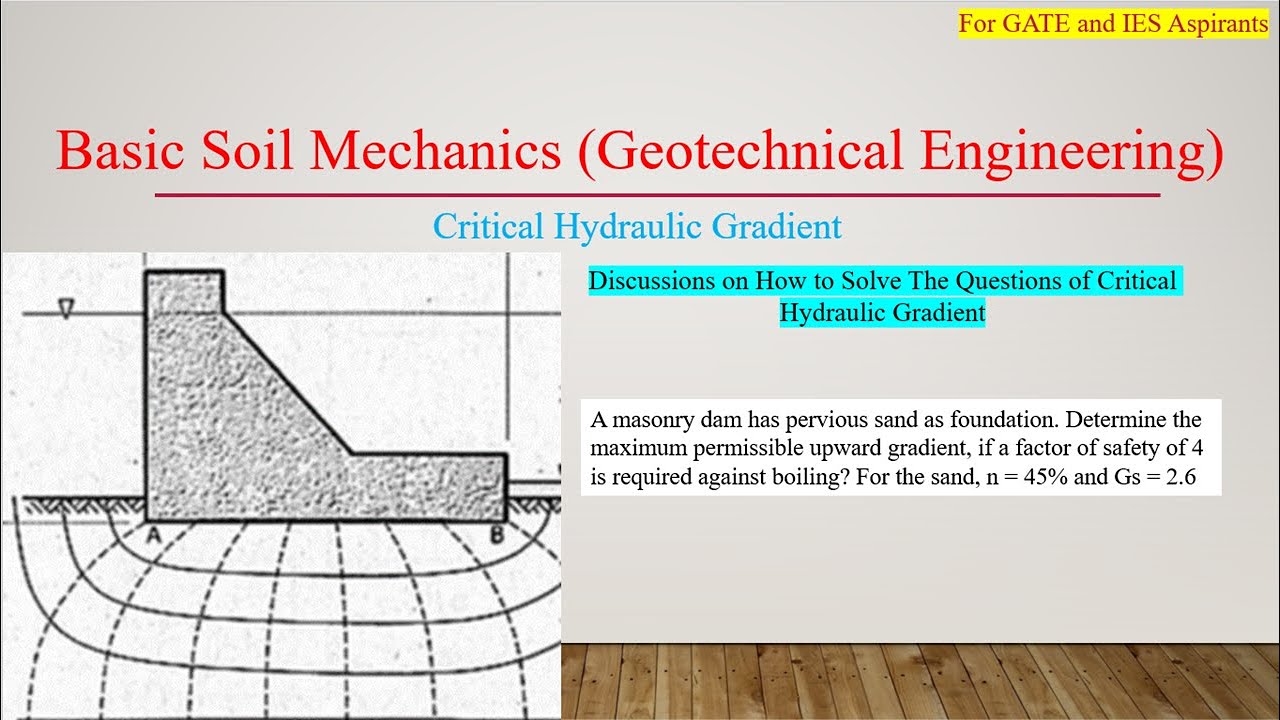

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Hydraulic Gradient
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Consider seepage occurring between two points P and Q. The potential driving the water flow is the hydraulic gradient between the two points, which is equal to the head drop per unit length. In steady state seepage, the gradient remains constant. Hydraulic gradient from P to Q, i = ∆h/∆s.
Detailed Explanation
The hydraulic gradient is a measure of how much the water head (height of water) drops as it moves through the soil. It tells us how quickly and in which direction water will flow. The formula i = ∆h/∆s means that the hydraulic gradient (i) is the difference in height (∆h) divided by the distance (∆s) between two points. When the water flows steadily without change, we call it steady state seepage, meaning the hydraulic gradient stays the same.
Examples & Analogies
Imagine sliding down a hill; the steepness of the hill determines how quickly you slide. The greater the height difference (head) over a given distance, the steeper the hill, just like a larger hydraulic gradient means faster water flow.
Effects of Flow Direction on Effective Stress
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
As water percolates through soil, it exerts a drag on soil particles it comes in contact with. Depending on the flow direction, either downward or upward, the drag either increases or decreases inter-particle contact forces. A downward flow increases effective stress. In contrast, an upward flow opposes the force of gravity and can even cause to counteract completely the contact forces.
Detailed Explanation
When water flows downward, it pushes soil particles together more tightly, which increases the effective stress acting between those particles. This added stress helps to hold the soil together. However, when water flows upward, it can lift the particles away from each other, reducing their contact and effective stress. This upward flow can potentially lead to instability in the soil, likening it to a situation where everything is suspended in water.
Examples & Analogies
Think of a sponge in water. When you push down on a wet sponge, it gets thicker (increasing effective stress). But if you were to try to lift it from below, it might float freely, unable to hold its shape, similar to how soil can behave under upward water flow and become loose.
Quick Sand Condition
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In such a situation, effective stress is reduced to zero and the soil behaves like a very viscous liquid. Such a state is known as quick sand condition. In nature, this condition is usually observed in coarse silt or fine sand subject to artesian conditions.
Detailed Explanation
Quick sand is a condition in which the upward flow of water through soil reduces the effective stress to zero. Without effective stress, the particles lose their grip on one another, making the soil behave like a liquid instead of a solid. This phenomenon often occurs in sandy soils under certain conditions, where the upward water pressure overcomes the weight of the soil.
Examples & Analogies
Imagine pouring water onto a pile of sand; quick sand is like a sandcastle suddenly collapsing when water rushes in from below, turning the solid structure into a mushy mess, highlighting how the pressure from water can completely change the nature of the soil.
Importance of Effective Stress
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
At any point within the soil mass, the magnitudes of both total stress and pore water pressure are dependent on the ground water position. With a shift in the water table due to seasonal fluctuations, there is a resulting change in the distribution in pore water pressure with depth.
Detailed Explanation
Effective stress is a crucial concept in geotechnical engineering. It refers to the stress carried by the soil skeleton and governs its behavior. Changes in the water table—a scenario where the level of groundwater rises or falls—affect pore water pressure. If the water table rises, pore water pressure increases, resulting in lower effective stress. Conversely, if it falls, effective stress rises. Understanding this balance is essential for predicting how soils will behave under load.
Examples & Analogies
Think of a pencil balanced on a tightrope. The tightrope represents effective stress; if you add water balloons (increasing pore water pressure) to the pencil, it's more likely to tip over (decreased effective stress). But draining some water (lowering the water table) allows the pencil to stabilize again.
Effects of Groundwater Level Changes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Changes in water level below ground result in changes in effective stresses below the water table. A rise increases the pore water pressure at all elevations thus causing a decrease in effective stress. In contrast, a fall in the water table produces an increase in the effective stress.
Detailed Explanation
When water levels rise, the pressure from the water increases all through that space, causing a drop in effective stress; this is important because it can affect the stability of structures above it. On the other hand, if the groundwater level drops, effective stress rises, which typically means the soil becomes better at supporting structures, reducing risks of settlement and instability.
Examples & Analogies
It's similar to a sponge filled with water. If you push down on the sponge when it's full of water, it squishes easily and might break. If you let that water drain, the sponge becomes more stable and can withstand more pressure without changing shape.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Hydraulic Gradient: The change in hydraulic head per unit distance.
-
Effective Stress: The stress that contributes to the stability of the soil structure, crucial in assessing soil behavior under load.
-
Quicksand Condition: An unstable condition in soils where upward water flow nullifies effective stress, leading to a loss of strength.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of calculating hydraulic gradient in a soil column to determine water flow behavior.
-
Real-world observation of quicksand at coastal regions during high tides, showing effective stress reduction.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In soil with a gradient neat, effective stress you'll meet. Upward flow makes it weak, avoiding quicksand is what we seek.
📖 Fascinating Stories
-
Imagine a brave little ant that journeys through sandy soil. It finds itself on a rainy day, where water flows up in a swift way. The ant feels lighter and starts to float—hurrying back from a quicksand moat!
🧠 Other Memory Gems
-
To remember hydraulic gradient, think 'Hooray for Water Flow!' which stands for Head drop Over distance equals flow.
🎯 Super Acronyms
IPE
- It’s Pore-water Effect – the 3E's
- Effective stress equals total stress minus pore pressure.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Hydraulic Gradient
Definition:
The ratio of the change in hydraulic head to the distance over which that change occurs, driving water flow in soils.
-
Term: Effective Stress
Definition:
The stress carried by the soil skeleton, calculated as total stress minus pore water pressure.
-
Term: Pore Water Pressure
Definition:
The pressure exerted by water within the soil pores, influencing effective stress.
-
Term: Quicksand
Definition:
A condition where the effective stress in a saturated soil layer reaches zero, making it behave like a liquid.
