Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Effective Stress
Unlock Audio Lesson
Effective stress is the pressure that contributes to the strength of soil. Can anyone tell me why this concept is significant?
Is it because it affects how much load the soil can bear?
Exactly! The effective stress determines the ability of the soil to support loads and helps predict potential failures. Remember the acronym 'ESS' for Effective Stress Strength.
What happens to effective stress if the water table rises?
Great question! When the water table rises, pore water pressure increases, which decreases effective stress. Can anyone explain why this matters?
It might make the soil more prone to collapse under loads.
Absolutely! The stability of structures over soil relies heavily on effective stress.
To summarize, effective stress is crucial for soil stability, and remember, ESS helps cement this concept in your mind.
Water Table Changes and Their Effects
Unlock Audio Lesson
Let's discuss the effects of changing water tables. How does a rising water table impact pore water pressure?
It increases the pore water pressure, right?
Exactly! This increase lowers effective stress. Does anyone remember how we calculate effective stress?
It's total stress minus pore water pressure!
Correct! So, if both total stress and pore water pressure rise simultaneously, what happens to effective stress?
It stays the same because they balance each other out.
Exactly! That’s why it is vital to analyze changes in both variables carefully.
In summary, remember: as water levels change, pore water pressure affects effective stress, potentially impacting soil stability.
Quick Sand Conditions
Unlock Audio Lesson
Now, let's delve into a specific condition known as quick sand. What do you think causes this to happen?
Is it when water flows upward and cancels out the weight of the soil?
Precisely! Upward flow can neutralize effective stress, transforming soil behavior. Remember, when effective stress is zero, the soil can behave like a liquid. Let’s say quick sand is a 'no-strength zone.'
Why is this condition particularly dangerous?
Due to the lack of support for structures or even people, quick sand can lead to sudden collapses. Can anyone relate this to a real-world incident?
I remember seeing something about it in a documentary where it trapped someone!
Exactly! This highlights the importance of understanding these dynamics. To sum up, quick sand conditions occur when effective stress approaches zero due to high upward pore water pressure.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section elaborates on the relationship between the water table and effective stress in soil, noting that changes in pore water pressure due to water level fluctuations directly impact effective stress. It also describes various conditions, such as quick sand, and introduces formulas demonstrating these concepts.
Detailed
Impacts of Water Table Changes
This section explores the significant effects that alterations in the water table have on the effective stress within soil structures. Effective stress is defined as the total stress minus the pore water pressure and is crucial for understanding soil behavior under varying conditions.
Key Points Covered:
- Effective Stress and Pore Water Pressure: Effective stress is impacted by both total stress and pore water pressure, with changes in the water table causing shifts in pore water pressure and thus effective stress. A rise in the water table increases pore water pressure and decreases effective stress, while a drop has the opposite effect.
- Upward vs. Downward Flow: Water flow direction is critical; downward flow increases effective stress, whereas upward flow can neutralize it, creating quick sand conditions where soil behaves like a liquid.
- Importance of Effective Stress: In analyzing soil mechanics, it's vital to distinguish between total stress and pore water pressure, as changes in either can impact soil stability. For instance, ground movement might occur due to loading or unloading impacting total stress or due to water pressure changes.
- Practical Applications: Examples illustrate how to compute total stress, pore water pressure, and effective stress, enhancing understanding of real-world implications such as excavation stability and soil behavior under varying conditions.

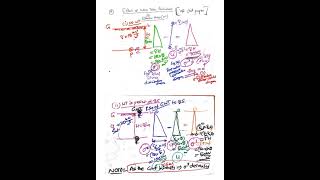

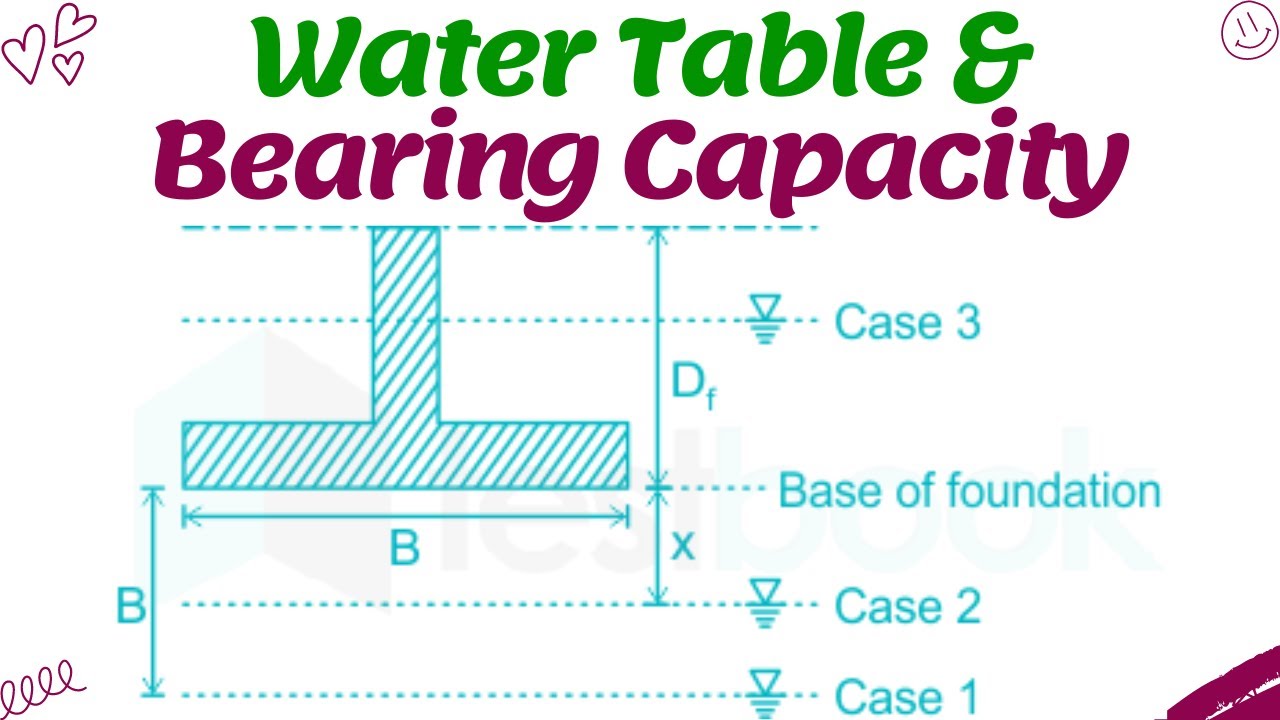

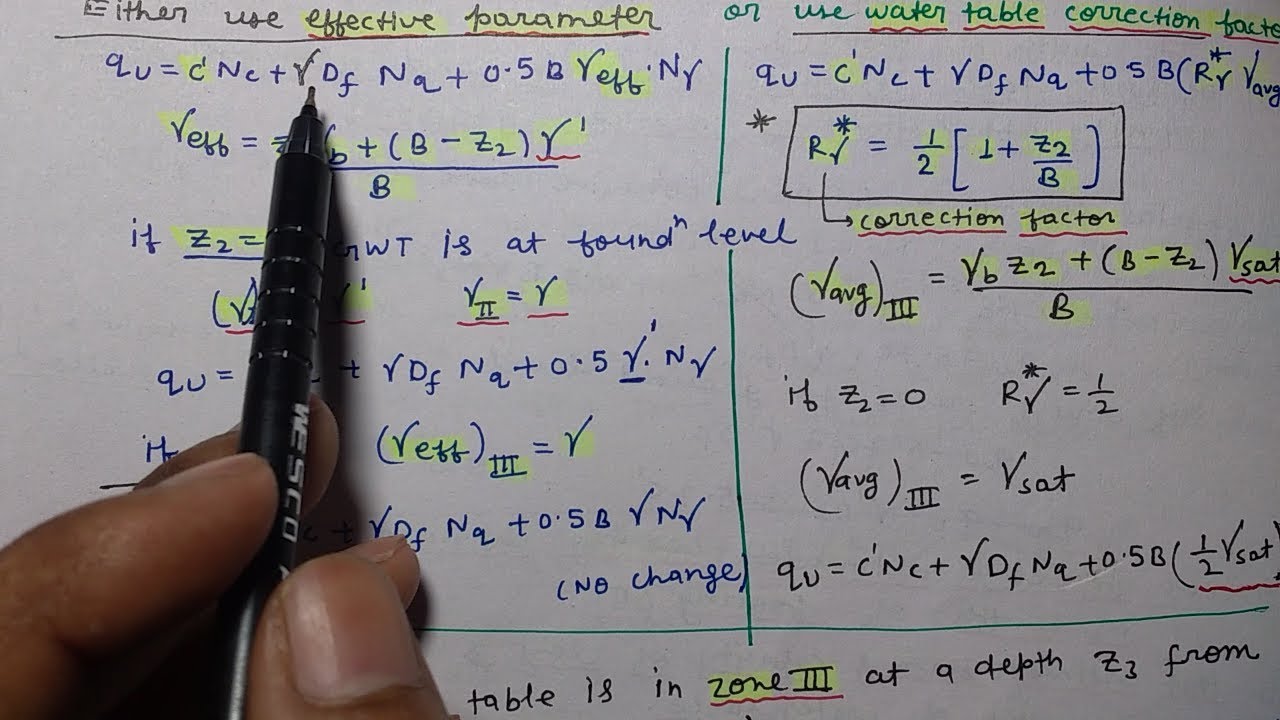

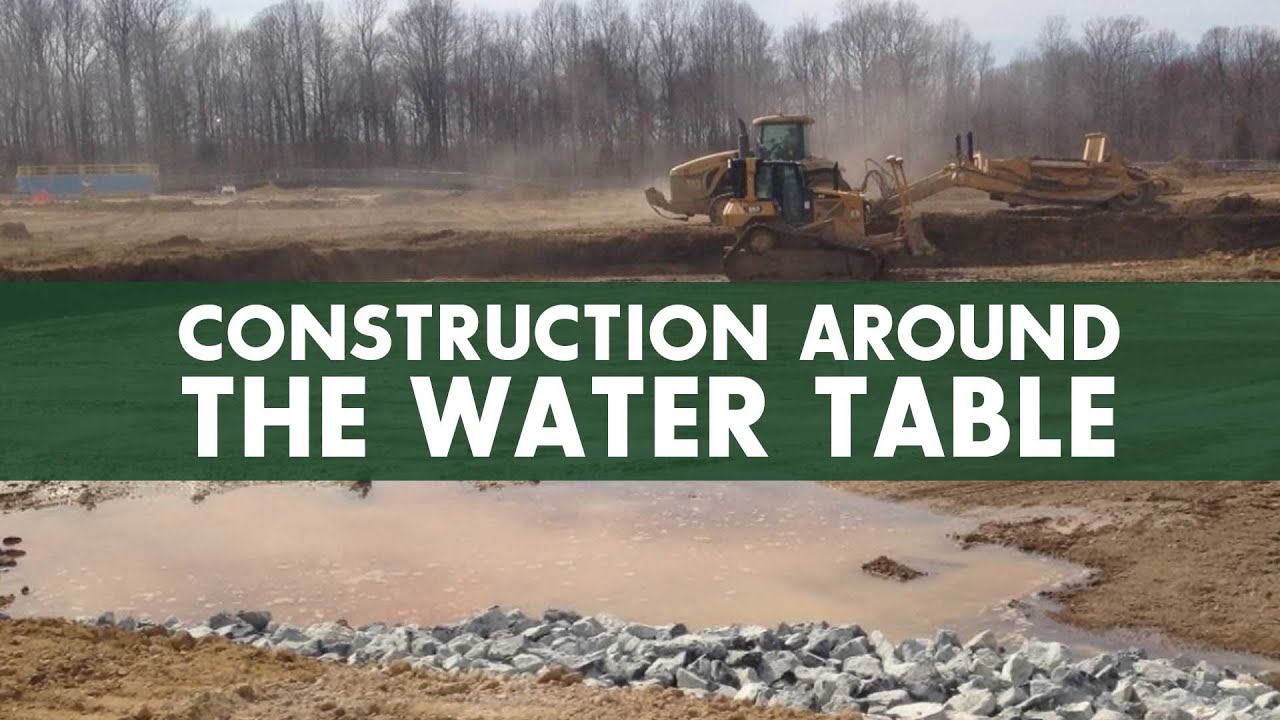

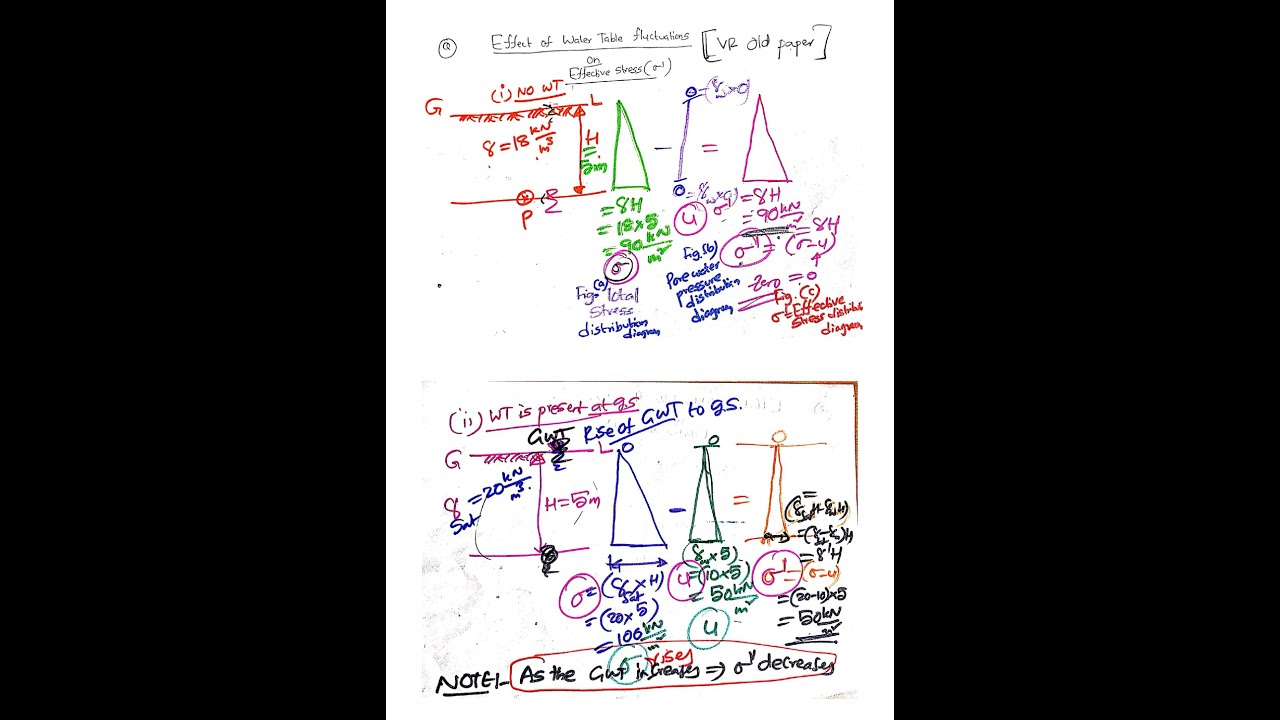

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Effects on Effective Stress
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
With a shift in the water table due to seasonal fluctuations, there is a resulting change in the distribution in pore water pressure with depth. Changes in water level below ground result in changes in effective stresses below the water table. A rise increases the pore water pressure at all elevations thus causing a decrease in effective stress. In contrast, a fall in the water table produces an increase in the effective stress.
Detailed Explanation
When the water table rises, it causes the pore water pressure in the soil to increase. This, in turn, reduces the effective stress, which is the pressure that contributes to the soil's ability to support loads. Conversely, if the water table falls, the pore water pressure decreases, resulting in increased effective stress. Effective stress is essential for soil stability and is a key factor when considering ground support for structures.
Examples & Analogies
Imagine a sponge soaked in water. When you press down on it, the sponge can deform and absorb some of that pressure. If you keep adding water (raising the water table), the sponge becomes swollen and less able to support weight. Now, if you remove some water (lowering the water table), it becomes firmer and can support more weight again.
Changes Above Ground vs. Below Ground
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Changes in water level above ground do not cause changes in effective stresses in the ground below. A rise above ground surface increases both the total stress and the pore water pressure by the same amount, and consequently effective stress is not altered.
Detailed Explanation
When water levels rise above ground, both the total stress (overall pressure from the weight of soil and water) and pore water pressure increase by the same amount, keeping effective stress constant. This means that the changes in surface water level do not impact the soil's ability to support structures as the balance between total and pore pressure is maintained.
Examples & Analogies
Think of a balloon filled with air and water. If you increase the amount of air or water but maintain their ratio, the balloon's structure remains the same. Similarly, when surface water level rises, the relationship between total pressure and pore water pressure stays balanced, leaving effective stress unchanged.
Understanding Effective Stress Expression
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In some analyses it is better to work with the changes of quantity, rather than in absolute quantities. The effective stress expression then becomes: σ' = σ - u. If both total stress and pore water pressure change by the same amount, the effective stress remains constant.
Detailed Explanation
The formula for effective stress indicates how to calculate it using total stress (σ) and pore water pressure (u). If both increase or decrease equally, the effective stress will not change. This helps engineers understand soil behavior under load and predict how it will react to different conditions.
Examples & Analogies
Consider a scale where you place a weight on one side and water on the other. If both sides increase equally—like adding the same amount of weight and water—the balance stays the same. This is similar to how effective stress works when total stress and pore water pressure both change together.
Impact of stress changes on ground stability
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Total and effective stresses must be distinguishable in all calculations. Ground movements and instabilities can be caused by changes in total stress, such as caused by loading by foundations and unloading due to excavations. They can also be caused by changes in pore water pressures, such as failure of slopes after rainfall.
Detailed Explanation
It's crucial to differentiate between total stress and effective stress when analyzing soil and ground behavior. Changes in total stress, such as from added building loads or excavation, can lead to instability. Similarly, changes in pore water pressure, like after heavy rains, can also cause slope failures. Recognizing these factors allows for better prediction and management of potential issues.
Examples & Analogies
If you've ever built a sandcastle near the water on a beach, you’ve seen how water affects structure. If you add too much wet sand on top (increases total stress) without enough drainage (pore water pressure), the castle might collapse. It’s important to balance both factors to keep it standing.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Effective Stress: The pressure contributing to soil strength, affected by changes in pore water pressure.
-
Pore Water Pressure: The pressure within soil caused by interstitial water, impacting soil stability.
-
Quick Sand: A highly unstable condition where effective stress is reduced to zero, often dangerous.
-
Hydraulic Gradient: The change in water level that drives flow through soil, critical to understanding seepage.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An example detailing a scenario where the water table rises due to heavy rainfall, leading to increased pore water pressure and decreased effective stress, causing slope failure.
-
A calculation of effective stress showing how total stress and pore water pressure interact, exemplifying their relationships under different water table conditions.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When the water flows up and the stress goes down, soil becomes soft, it might just drown.
📖 Fascinating Stories
-
Imagine a castle built on a hill. As rain pours and the river swells, the ground softens and support wanes. The castle risks collapse, just like soil turns to quick sand.
🧠 Other Memory Gems
-
Remember 'LESS': Lift Equals Soil Support Reduced, referring to how effective stress changes with water table movements.
🎯 Super Acronyms
ESS
- Effective Stress Stability - helps recall how effective stress is critical for ground stability.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Effective Stress
Definition:
The stress that contributes to soil strength, calculated as total stress minus pore water pressure.
-
Term: Pore Water Pressure
Definition:
The pressure exerted by water within the soil, influencing effective stress.
-
Term: Quick Sand
Definition:
A condition where upward water flow neutralizes effective stress, allowing soil particles to behave like a liquid.
-
Term: Hydraulic Gradient
Definition:
The slope of the hydraulic head that drives water movement through soil.
-
Term: Critical Hydraulic Gradient
Definition:
The hydraulic gradient at which a soil begins to behave like quick sand.
