Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Effective Stress
Unlock Audio Lesson
Welcome class! Today, we're diving into the concept of effective stress. Can someone tell me what they think effective stress refers to?
Is it the stress that acts on soil particles after accounting for water pressure?
Exactly! It’s calculated as effective stress equals total stress minus pore water pressure. Remember this formula: C3' = C3 - u, where C3' is effective stress, C3 is total stress, and u is pore water pressure.
So, if pore water pressure goes up, does effective stress go down?
Yes, you’ve got it! More pore pressure means less effective stress. This is crucial for understanding soil stability.
Seepage Flow and Effective Stress
Unlock Audio Lesson
Now, let's discuss how seepage flow impacts effective stress. What happens to effective stress during downward seepage?
It increases because the flow helps push the particles together.
Exactly! Downward flow can enhance inter-particle contact forces, leading to increased effective stress. But what about upward seepage? Any thoughts?
Upward flow might decrease effective stress since it can counteract gravity!
Correct! In extreme cases, this could even lead to quick sand conditions, where effective stress is zero.
Critical Hydraulic Gradient
Unlock Audio Lesson
Let’s dive into critical hydraulic gradients. What do we mean by this?
Is it the point where upward water flow can completely balance the weight of soil particles?
Yes! At this critical point, effective stress can drop to zero. Can anyone remember what mineral compositions this extreme condition is usually seen in?
I think it's common in fine sands and silts?
Correct! This is vital in assessing ground stability, especially in environmental conditions affecting water levels.
Applications of Effective Stress
Unlock Audio Lesson
Finally, how does effective stress apply to engineering practice? Why is it important in construction?
It helps predict how soil will behave under loading, right?
Exactly! It’s vital for understanding the effects of drainage or water table changes on soil strength. Remember, effective stress is crucial in ensuring stability!
And it can prevent failures in structures!
Absolutely! Always keep effective stress in mind when assessing soil conditions.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section elaborates on the effective stress principle, explaining how changes in pore water pressure due to seepage affect soil strength. It outlines the differences in effective stress during upward and downward water flow, introducing concepts of quick sand conditions and the critical hydraulic gradient.
Detailed
Effective Stress Under Hydrodynamic Conditions
In this section, we explore how pore water pressure changes during seepage flow influence effective stress in soils. Effective stress, defined as the difference between total stress and pore water pressure (C3' = C3 - u), determines the soil's strength and stability.
When water flows downward through soil, it increases inter-particle contact forces due to the drag exerted on soil particles, thus increasing effective stress. Conversely, during upward seepage flow, this drag opposes gravitational forces, which can even reduce effective stress to zero, leading to conditions akin to quick sand.
This phenomenon typically occurs in coarse silts or fine sands under artesian conditions, characterized by a critical hydraulic gradient where upward water flow neutralizes gravitational forces on soil particles. Changes in groundwater levels have significant implications: rising water tables increase pore pressures and reduce effective stress, while falling water levels have the opposite effect. Understanding these dynamics is crucial for predicting ground movements and preventing failures in engineering applications.
Importance of Effective Stress
Effective stress is vital for assessing soil stability during loading and unloading processes, as changes in total stress and pore water pressure directly impact soil behavior. This section emphasizes the need to distinguish between total and effective stresses and highlights the potential for ground instability due to fluctuations in pore water pressures.

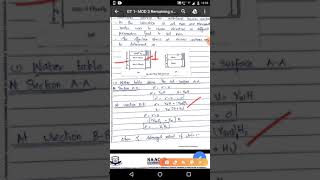

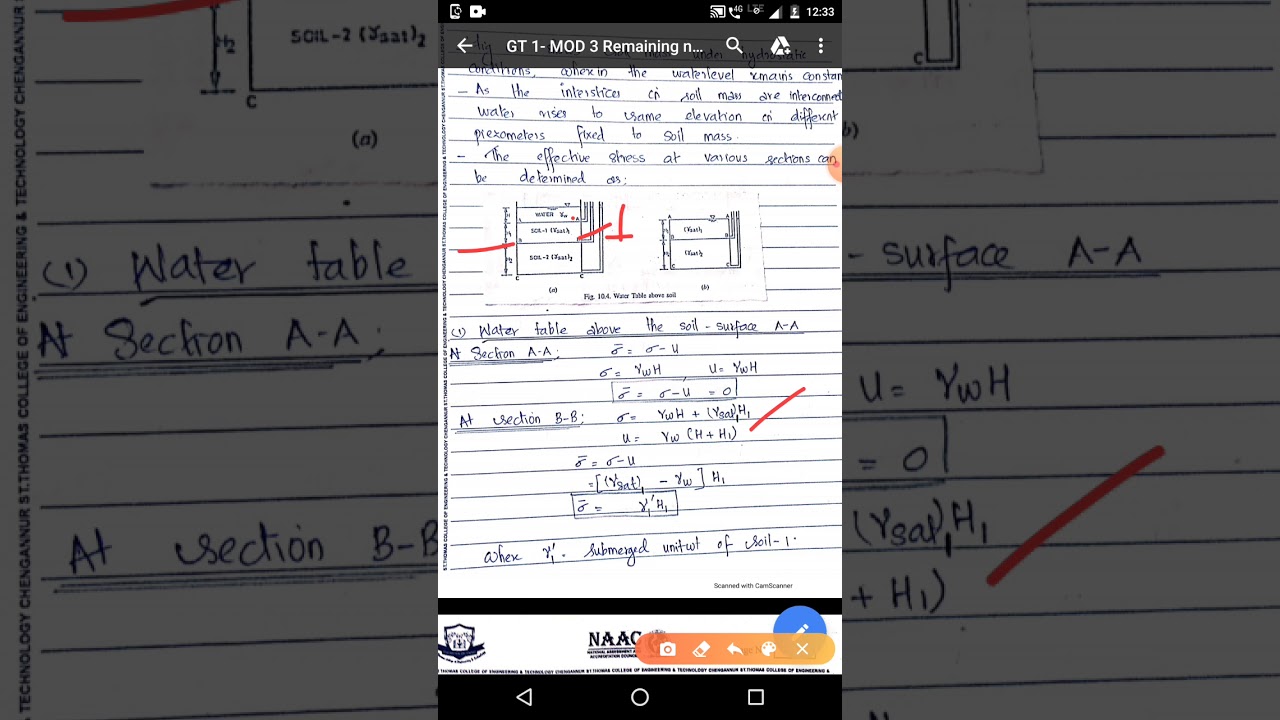

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Pore Water Pressure Changes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
There is a change in pore water pressure in conditions of seepage flow within the ground. Consider seepage occurring between two points P and Q. The potential driving the water flow is the hydraulic gradient between the two points, which is equal to the head drop per unit length. In steady state seepage, the gradient remains constant. Hydraulic gradient from P to Q, i = ∆h/∆s.
Detailed Explanation
In any saturated soil, when water seeps through, it changes the pressure of the water in the soil's pores. When we say 'pore water pressure', we mean the pressure that the water exerts in the spaces between the soil particles. This change is influenced by how much the water is flowing, which can be defined through the hydraulic gradient. The hydraulic gradient is a measure of how quickly water can flow from one point to another, and it is calculated by dividing the difference in water head (height) between two points by the distance between those points. When the seepage is in a constant state, the gradient does not change, which means the conditions of water pressure are also stable over time.
Examples & Analogies
Imagine a straw in a bottle of water. If you suck water through the straw, the water level drops at the top and creates a gradient that pulls more water in. The faster you suck, the steeper the gradient. Similarly, when groundwater flows through soil, it creates a gradient that affects how mud and water pressure interact beneath the surface.
Effects of Water Flow Direction
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
As water percolates through soil, it exerts a drag on soil particles it comes in contact with. Depending on the flow direction, either downward of upward, the drag either increases or decreases inter-particle contact forces. A downward flow increases effective stress. In contrast, an upward flow opposes the force of gravity and can even cause to counteract completely the contact forces.
Detailed Explanation
When water flows downward through soil, it pushes down on the soil particles, increasing the effective stress. Effective stress is essentially the stress that contributes to the soil's ability to bear load. Conversely, when water flows upward, it can lift the soil particles and counteract the gravitational forces that pull them together. This lifting effect can drastically reduce the effective stress, making the soil behave like a liquid, which can lead to dangerous situations like 'quick sand'.
Examples & Analogies
Think of how a trampoline works. When you jump down on it, you compress the springs tightly; similarly, when water flows downward through soil, it compresses the soil further, increasing its strength. However, if you push upward on the trampoline's center, it lifts you off the surface, making it soft and unstable like quick sand.
Quick Sand Condition Explained
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In such a situation, effective stress is reduced to zero and the soil behaves like a very viscous liquid. Such a state is known as quick sand condition. In nature, this condition is usually observed in coarse silt or fine sand subject to artesian conditions.
Detailed Explanation
When the upward flow of water is strong enough, it can neutralize the weight of soil particles, making the effective stress zero. In this scenario, the soil loses its ability to support weight, acting like quicksand, where objects sink easily into it. This state is particularly found in sandy soils or certain silt types that are saturated with water, especially under conditions where groundwater levels rise significantly, like in artesian wells.
Examples & Analogies
Picture a sandcastle by the beach when the tide comes in. As water flows into the sand, the grains become slippery and lose their ability to hold each other up. Instead of standing firm, the sandcastle collapses, much like how soil behaves under quicksand conditions when too much water is present.
Importance of Effective Stress
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
At any point within the soil mass, the magnitudes of both total stress and pore water pressure are dependent on the groundwater position. With a shift in the water table due to seasonal fluctuations, there is a resulting change in the distribution in pore water pressure with depth.
Detailed Explanation
The relationship between total stress (the weight of everything above) and pore water pressure (the pressure from water in the soil) helps determine effective stress, which is crucial for understanding soil stability. When the water table rises or falls, this alters the pore water pressure throughout the soil profile, changing the effective stress experienced by the soil at different depths. This fluctuation impacts how soil behaves under external loads, such as buildings or heavy machinery.
Examples & Analogies
Imagine a sponge soaking up water. The more water it absorbs, the heavier it becomes and the less structural support it can provide when squeezed. Similarly, in soil, when it is saturated with water, it can change how much weight it can support above it. If the water table rises, the sponge becomes more saturated and loses its strength.
Calculating Effective Stress Changes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Changes in water level below ground result in changes in effective stresses below the water table. A rise increases the pore water pressure at all elevations thus causing a decrease in effective stress. In contrast, a fall in the water table produces an increase in the effective stress.
Detailed Explanation
Effective stress can be expressed mathematically as σ' = σ - u, where σ is total stress and u is pore water pressure. When groundwater rises, it increases pore water pressure, reducing effective stress. Conversely, if groundwater levels drop, effective stress rises because total stress remains constant while pore water pressure decreases.
Examples & Analogies
Think about a stack of books with a sponge underneath. If you press down (total stress) while also soaking the sponge (adding pore water pressure), the sponge expands and pushes back (increased pore water pressure). If you remove some water from the sponge while keeping the weight (books) the same, the sponge softens, and the structure gets stronger (increased effective stress).
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Effective Stress: The stress that contributes to soil strength, defined as total stress minus pore water pressure.
-
Pore Water Pressure: The pressure exerted by water within the soil pores that affects inter-particle contact.
-
Seepage and Effective Stress Relationship: Understanding how different seepage directions (upward or downward) affect soil stability.
-
Critical Hydraulic Gradient: The point where upward water flow can neutralize the weight of soil particles, resulting in zero effective stress.
-
Ground Stability: The importance of managing effective stress in engineering applications to prevent structural failures.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example 1 illustrates how downward flow increases effective stress, while upward flow can reduce it to zero under quick sand conditions.
-
Example 2 demonstrates how to calculate artesian pressure using effective stress concepts in an excavation scenario.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Stress up high, pore pressure low, effective strength will surely grow.
📖 Fascinating Stories
-
Imagine a sandcastle by the sea. When the tide rises, waves push against it. The sandcastle stands tall, with strong effective stress, but when the waves pull the sand away, it becomes quick sand, losing its strength.
🧠 Other Memory Gems
-
To remember effective stress, think of P-U-C: Pore Pressure Up = Contact Down.
🎯 Super Acronyms
HIDE (Hydraulic gradient Influences Downward Effective stress) reminds us that hydraulic gradients influence how effective stress is experienced in soils.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Effective Stress
Definition:
The stress that contributes to soil strength, calculated as the difference between total stress and pore water pressure.
-
Term: Pore Water Pressure
Definition:
The pressure exerted by water within the soil pores, affecting soil behavior.
-
Term: Seepage Flow
Definition:
The movement of water through soil, often leading to changes in pore water pressure and effective stress.
-
Term: Quick Sand Condition
Definition:
A state where effective stress is reduced to zero, causing soil to behave like a liquid due to upward water flow.
-
Term: Hydraulic Gradient
Definition:
The slope of the hydraulic head, influencing the direction and rate of water flow through soil.
