6.4.1 - Group Symbols for Coarse Soils
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Soil Classification
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're diving into soil classification. Why do you think it's important to classify soils?
I think it helps to understand their properties for construction.
Exactly! Different soils have different properties that affect their behavior in structures. Can anyone name a type of soil?
Gravel?

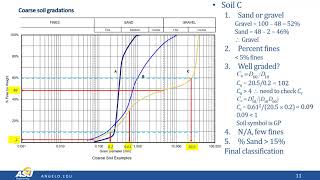

Yes! Gravel is a coarse soil. In ISSCS, we classify it with the symbol GW for well-graded gravel. Remember the acronym 'GW'? It's key!
What about sand?
Good question! Sand is classified as SW for well-graded sand. Let’s remember that S is for Sand!
And what about clays?

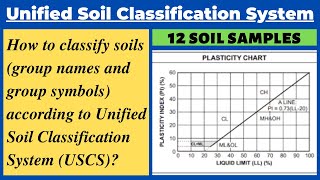

Great point! Clays have their own classifications based on plasticity, like CL for low plasticity and CH for high plasticity. Remember, C is for Clay!
To summarize, coarse soils like gravel and sand are classified by group symbols such as GW and SW, while clay has its classifications based on plasticity.
Understanding Soil Activity
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let’s talk about soil activity. What do you think it means?
Is it about how much clay is in the soil?
Exactly! Activity tells us about the plasticity of clayey soils based on the ratio of the plasticity index to the clay content. Can anyone remind us of the classifications for activity?
Inactive, normal, and active?
Correct! Less than 0.75 is inactive, between 0.75 and 1.25 is normal, and greater than 1.25 is active. A quick mnemonic is 'I-N-A' for Inactive, Normal, Active.
How does this influence construction?
Very interesting point! Higher activity means more volume changes and impacts on foundation design—a crucial factor!
To recap, soil activity helps assess plasticity and informs us about the suitability of clay in construction applications.
Liquidity Index
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let's explore the liquidity index (LI). What do you think it measures?
Is it the water content of the soil?
Yes! LI measures the current state of fine soils relative to their consistency limits. Can someone enumerate the classifications of the liquidity index?
Liquid, very soft, soft, medium stiff, stiff, and semi-solid!
Perfect! Let’s create a rhyme to memorize these: 'Liquid like soup, very soft but soon, soft as a feather, medium stiff together, stiff as a board, semi-solid not bored!'
Why is knowing LI important?
Understanding LI helps in assessing how soils will behave under load, which is vital for engineers!
To summarize, the liquidity index is crucial for predicting soil behavior as it defines its state based on water content.
