Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Fine-Grained Soils
Unlock Audio Lesson
Today, we'll learn about fine-grained soils. Who can tell me what defines a fine-grained soil?
Is it based on particle size?
Exactly! Fine-grained soils have more than 50% of their particles smaller than 0.075 mm. Can anyone name some types of fine-grained soils?
Clay and silt?
Correct! Clays are categorized further based on their plasticity. Remember the acronym 'C' for Clay. Let's explore how we determine the plasticity of these soils.
Plasticity Index and Liquid Limit
Unlock Audio Lesson
The plasticity index, or PI, is crucial for classifying fine soils. Can anyone explain what liquid limit is?
It's the maximum water content at which the soil can still behave as a solid.
Exactly! The liquid limit, W_L, and the plasticity index, I, help us determine soil classifications like low, intermediate, and high plasticity. Remember the 'A line' on the plasticity chart!
Can we use the plasticity index for anything else?
Great question! Yes, it also indicates how much the soil will swell or shrink due to moisture changes, which is important for construction.
Soil Classification with Group Symbols
Unlock Audio Lesson
Now, let’s look at the group symbols used in soil classification. Can anyone share what a group symbol might indicate?
It indicates the type of soil and its properties, right?
Correct, for example, 'CH' indicates clay of high plasticity. Other symbols like 'GW' for well-graded gravel help in categorizing based on grain size. Why do you think this classification is important?
It helps engineers choose the right soil for building!
Yes, that’s vital for ensuring stability and sustainability in construction projects.
Activity and Liquidity Index
Unlock Audio Lesson
Let’s dive into soil activity and liquidity index. Who remembers how to calculate the activity of clayey soils?
It's the plasticity index divided by the percentage of clay particles by weight.
Exactly! This tells us if the soil is inactive, normal, or active. Can anyone tell me about the liquidity index?
It measures the consistency of a soil at different moisture levels!
Great summary! Remember, a liquidity index greater than 1 indicates a liquid state, which is crucial for understanding how a soil behaves when wet.
Visual Classification and Worked Examples
Unlock Audio Lesson
Finally, let’s discuss how to classify soils visually. What characteristics would you notice with your hands?
Sandy soils feel gritty, while clay feels sticky?
Exactly! Now, we will solve a worked example based on the values W_L = 48%, W_P = 26%. Can anyone help classify the soil?
Using the plasticity index, we find it's classified as CI.
Excellent! And what about the liquidity index?
It calculates out to 0.59!
Perfect! You've all done a great job today.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section provides an overview of how fine-grained soils are categorized based on particle sizes and the plasticity characteristics measured by the liquid limit and plasticity index. Additionally, it elaborates on group symbols for classifying different soil types and their associated plasticity levels.
Detailed
The 'Soil classification using group symbols' section outlines the classification of soils, specifically focusing on fine-grained soils which contain more than 50% particles less than 0.075 mm in size. It details how to use a plasticity chart to classify these soils into categories such as clays (C), silts (M), and organic soils (O) based on their liquid limits and plasticity index. The section also describes the activity of clayey soils and how they are classified depending on their plasticity index relative to clay content. Furthermore, it introduces the liquidity index as a measure of a soil’s consistency based on moisture content. The section emphasizes visual classification characteristics and provides practical examples for classifying fine-grained soils, using the Indian Standard Soil Classification System.

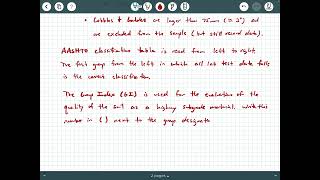

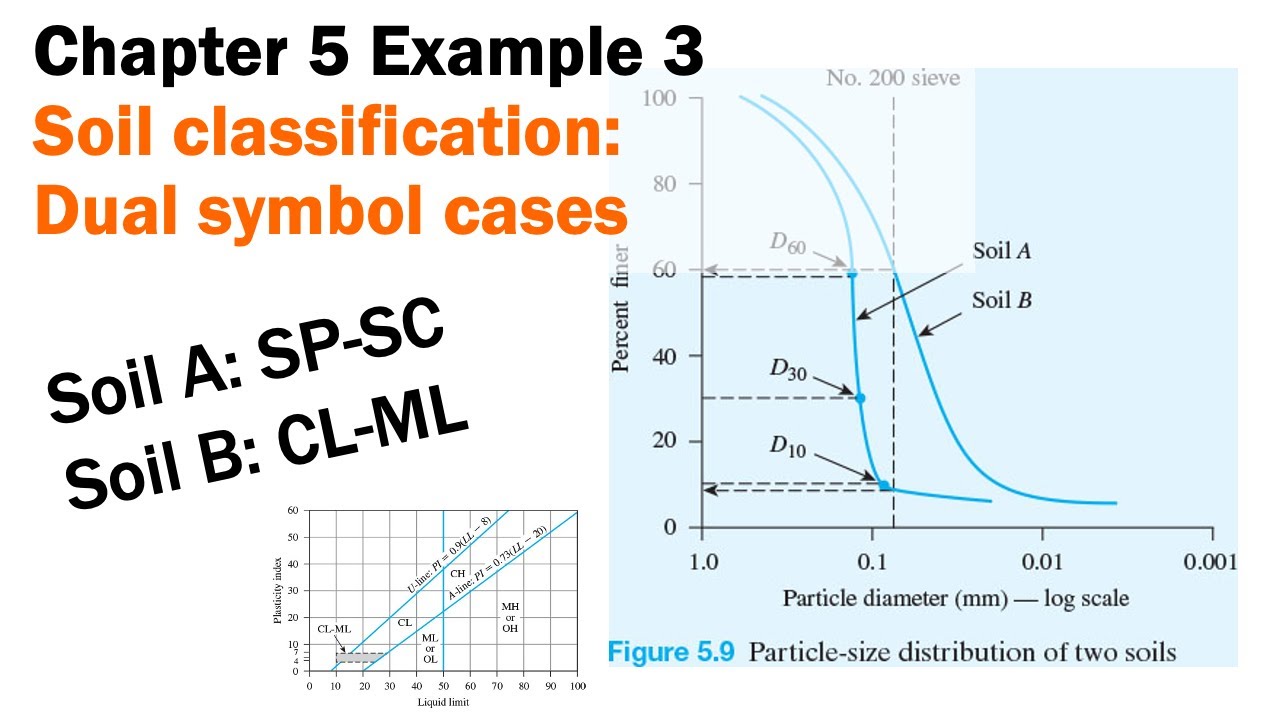

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Group Symbols for Coarse Soils
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Coarse soils
GW Well-graded GRAVEL
GP Poorly-graded GRAVEL
GM Silty GRAVEL
GC Clayey GRAVEL
SW Well-graded SAND
SP Poorly-graded SAND
SM Silty SAND
SC Clayey SAND
Detailed Explanation
This chunk outlines the classifications for coarse soils, which include various types of gravel and sand. The 'GW' symbol indicates well-graded gravel, which means it has a good distribution of particle sizes. 'GP' stands for poorly-graded gravel, indicating that the particle sizes are not well distributed. Silty and clayey variations of gravel are also specified by symbols 'GM' and 'GC', respectively. Similarly, symbols 'SW', 'SP', 'SM', and 'SC' are used for well-graded, poorly-graded, silty, and clayey sands. Understanding these symbols helps in quickly identifying the characteristics of coarse soils.
Examples & Analogies
Think of coarse soils like a bag of mixed candies. Some bags have a variety of candy sizes (well-graded), while others may have mostly large candies with few small ones (poorly-graded). Each type of candy represents different characteristics that help you understand the overall quality of the bag.
Group Symbols for Fine Soils
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Fine soils
ML SILT of low plasticity
MI SILT of intermediate plasticity
MH SILT of high plasticity
CL CLAY of low plasticity
CI CLAY of intermediate plasticity
CH CLAY of high plasticity
OL Organic soil of low plasticity
OI Organic soil of intermediate plasticity
OH Organic soil of high plasticity
Pt Peat
Detailed Explanation
This chunk details the classifications for fine soils, including silts and clays. The 'ML' symbol refers to silts with low plasticity, while 'MI' and 'MH' refer to intermediate and high plasticity silts, respectively. For clays, the symbols 'CL', 'CI', and 'CH' indicate low, intermediate, and high plasticity clays. Organic soils also fall under distinct classifications, with 'OL' for low plasticity, 'OI' for intermediate plasticity, and 'OH' for high plasticity organic soils, alongside 'Pt' for peat. This classification is essential for understanding how these fine soils behave under varying conditions.
Examples & Analogies
Imagine fine soils as different types of dough. Some doughs are easy to mold (low plasticity, like 'ML'), while others are stretchy and can be shaped in many ways (high plasticity, like 'MH'). Knowing what type of dough you have helps bakers decide how to use it effectively.
Soil Activity Classification
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Activity:
"Clayey soils" necessarily do not consist of 100% clay size particles. The proportion of clay mineral flakes (< 0.002 mm size) in a fine soil increases its tendency to swell and shrink with changes in water content. This is called the activity of the clayey soil, and it represents the degree of plasticity related to the clay content.
Activity = (PIasticity index) /(% clay particles by weight)
Classification as per activity is:
Activity Classification
< 0.75 Inactive
0.75 - 1.25 Normal
1.25 Active
Detailed Explanation
This chunk explains the concept of soil activity, which relates to the clay content in soil and how it influences the soil's plasticity. Soil is not always made up of purely clay particles; therefore, the activity is calculated using the plasticity index divided by the percentage of clay particles by weight. The activity can be classified as inactive (less than 0.75), normal (between 0.75 and 1.25), and active (greater than 1.25). Soils with higher activity can expand and contract more significantly based on moisture levels.
Examples & Analogies
Think of soil activity like a sponge. A sponge that absorbs a lot of water (active soil) will expand greatly, while a sponge that barely absorbs any water (inactive soil) stays much the same size. The more clay-like particles present, the more the 'sponge' expands and contracts.
Liquidity Index Classification
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Liquidity Index
In fine soils, especially with clay size content, the existing state is dependent on the current water content (w) with respect to the consistency limits (or Atterberg limits). The liquidity index (LI) provides a quantitative measure of the present state.
Classification as per liquidity index is:
Liquidity index Classification
1 Liquid
0.75 - 1.00 Very soft
0.50 - 0.75 Soft
0.25 - 0. 50 Medium stiff
0 - 0.25 Stiff
< 0 Semi-solid
Detailed Explanation
This chunk discusses the liquidity index, which assesses the current state of fine soils based on their water content in relation to its consistency limits. The liquidity index is classified into several categories, ranging from liquid to semi-solid. This index is crucial for engineers and builders as it gives an understanding of how the soil will perform in different moisture conditions, which is important for construction projects.
Examples & Analogies
Consider the liquidity index like the different states of a milkshake. If too much milk is added, it becomes liquid; if just the right amount is used, it may be thick and creamy (soft); and if there’s not enough milk, it becomes solid (stiff). Knowing the state helps you decide how best to drink or serve it!
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Fine-Grained Soils: These contain more than 50% of the particles smaller than 0.075 mm.
-
Plasticity Index: Determines how much a soil can deform under stress before failing.
-
Liquid Limit: Indicates the water content at which soil transitions from plastic to liquid state.
-
Group Symbols: Alphanumeric representations used for classifying soils based on texture and plasticity.
-
Activity of Clay: A measure to determine clay's plastic nature depending on its composition.
-
Liquidity Index: Indicates how consistent a soil is based on moisture content.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Classifying a soil with W_L = 48%, W_P = 26%, clay content of 55% results in CI classification.
-
A soil with 20% clay, PI of 10% is classified as inactive due to its low activity.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Plasticity keeps soil flyin', too much water's where it's dyin'.
📖 Fascinating Stories
-
Imagine a clay particle trying to hold its shape; with moisture, it expands like a balloon, showcasing plasticity in action.
🧠 Other Memory Gems
-
PI: Plasticity Index - Picture Ice to remember it measures how soil 'melts' when wet.
🎯 Super Acronyms
CL for Clay
- Cleares Learning as it shows Lightness in texture.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: FineGrained Soils
Definition:
Soils with more than 50% of material having particle sizes less than 0.075 mm.
-
Term: Plasticity Index (PI)
Definition:
A measure of the plasticity of a soil, determined from the liquid limit.
-
Term: Liquid Limit (W_L)
Definition:
The water content at which soil changes from a plastic to a liquid state.
-
Term: Activity
Definition:
A measure of a clay’s plasticity relative to its clay content.
-
Term: Liquidity Index (LI)
Definition:
A measure of the consistency of fine soils at given water contents.
-
Term: Group Symbol
Definition:
An alphanumeric symbol categorizing soil types based on their composition and properties.
