6.4.2 - Group Symbols for Fine Soils
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Fine Soils
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will discuss fine-grained soils. Can anyone tell me what defines fine soils?
Isn't it that they have particles smaller than 0.075 mm?
Exactly! And more than 50% of these soils are made of such small particles. This is significant because these soils often exhibit plasticity. Now, what do we mean by plasticity?
I remember that it has to do with the soil being able to mold when wet!
Correct! Clay particles, with their flaky shape, can hold water and become plastic. A helpful mnemonic to remember the effect of water is 'WATER = Wielding Adaptive Terrain Elasticity & Resilience.'
That's a neat way to remember it!
Let's summarize: fine soils are primarily defined by size and plasticity influenced by water.
Plasticity Chart
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s introduce the plasticity chart. It helps in classifying soils using their liquid limit and plasticity index. Who can tell me the equation for the 'A' line?
Is it I_P = 0.73(W_L - 20)?
Yes! Thisrelationship allows us to categorize fine soils into clays, silts, or organic soils. Can anyone give an example from the chart?
CH would be for clay of high plasticity, right?
Exactly! Plasticity plays an essential role in engineering, so understanding these classifications is crucial.
Could you explain why clay with high plasticity is significant in construction?
Great question! High plasticity clays can expand and contract, impacting structure stability. Remember: 'High Plasticity Equals High Caution!'
Liquidity Index and Activity
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s explore the liquidity index now. Who remembers what it measures?
It relates to the soil's current state depending on water content!
Right! The LI gives us insight into how soft or stiff the soil is. Can someone share the classifications based on LI?
Sure! > 1 is liquid, and < 0 is semi-solid.
Exactly! We can also connect this to detect soil behavior in construction projects. Remember the phrase: 'Medium needs monitoring, Soft stands for stability!'
That’s catchy! Helps solidify the understanding.
Visual Classification of Soils
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, visual classification. Can anyone describe how to identify sand, silt, and clay just by looking at them?
I think sand is gritty, silt feels dusty and clay feels sticky when wet.
Perfect! Visual cues are essential, especially in the field. Remember: 'Sandy is gritty, Silty is misty, Clayey is sticky!'
How accurate is this visual method?
It’s quite useful for initial assessments but should be confirmed with tests. Always use visual classification as a preliminary step.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Fine-grained soils, characterized by particle sizes less than 0.075 mm, are categorized into clays, silts, and organic soils based on their plasticity and liquidity index. The use of group symbols helps in effective soil classification, informing the engineering properties of these soils.
Detailed
Detailed Summary
Fine-grained soils are defined as having more than 50% of their particle size less than 0.075 mm. Amongst these, clay particles exhibit a flaky shape, allowing water adhesion that grants them the property of plasticity. The Indian Standard Soil Classification System (ISSCS) provides a plasticity chart to assist in the classification of these soils based on their liquid limit (W_L) and plasticity index (I_P). This chart utilizes an equation, I_P = 0.73(W_L - 20), to differentiate between clays (C), silts (M), and organic soils (O).
The organic content is calculated as a percentage of organic matter mass against the dry soil mass. Soils are further classified based on plasticity into three divisions: low (W_L < 35%), intermediate (35% < W_L < 50%), and high (W_L > 50%). As an example, the symbol CH represents clay with high plasticity.
The soil classification system includes specific group symbols ranging from coarse to fine soils, e.g., GW for well-graded gravel and CL for clay of low plasticity.
A vital characteristic of clayey soils is their activity, which is the ratio of plasticity index to the percentage of clay particles, classified as inactive (< 0.75), normal (0.75 - 1.25), or active (> 1.25). The liquidity index (LI) provides a measure of the soil's current water content relative to its consistency limits, with classifications from liquid (> 1) to semi-solid (< 0).
Visual classification aids identification in the field, where the visual characteristics of sand, silt, and clay can be noted. Practical applications, such as problem scenarios based on soil tests, help consolidate these concepts.

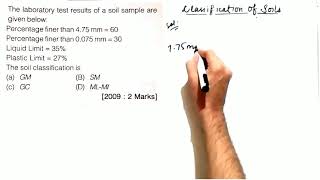

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Soil Classification
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Soil classification using group symbols is as follows:
Group Symbol Classification
Coarse soils
GW Well-graded GRAVEL
GP Poorly-graded GRAVEL
GM Silty GRAVEL
GC Clayey GRAVEL
SW Well-graded SAND
SP Poorly-graded SAND
SM Silty SAND
SC Clayey SAND
Fine soils
ML SILT of low plasticity
MI SILT of intermediate plasticity
MH SILT of high plasticity
CL CLAY of low plasticity
CI CLAY of intermediate plasticity
CH CLAY of high plasticity
OL Organic soil of low plasticity
OI Organic soil of intermediate plasticity
OH Organic soil of high plasticity
Pt Peat
Detailed Explanation
In soil engineering, different types of soils are classified using group symbols, which help in identifying their characteristics and behaviors. Coarse soils refer to those with larger particle sizes, such as gravel and sand, whereas fine soils consist of smaller particles like silt and clay. Each type of soil is given a specific symbol. For instance, 'GW' stands for well-graded gravel, while 'CI' denotes clay of intermediate plasticity. This systematic classification aids engineers and geologists in choosing the right materials for construction and understanding their engineering properties.
Examples & Analogies
Think of soil classification like a grading system in school. Just as students are graded on their performance in different subjects, soils are categorized based on their physical properties. A student might receive a grade of 'A' for outstanding performance in mathematics (well-graded gravel) or a 'C' for satisfactory work in English (clay of intermediate plasticity). This makes it easier for teachers to tailor their approaches, just as engineers select soil types based on specific project requirements.
Fine Soil Group Symbols
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Fine soils
ML SILT of low plasticity
MI SILT of intermediate plasticity
MH SILT of high plasticity
CL CLAY of low plasticity
CI CLAY of intermediate plasticity
CH CLAY of high plasticity
OL Organic soil of low plasticity
OI Organic soil of intermediate plasticity
OH Organic soil of high plasticity
Pt Peat
Detailed Explanation
Fine soils are further classified into subcategories that reflect their plasticity, which is the ability of soil to deform under stress. The symbols 'ML', 'MI', and 'MH' represent silts with low, intermediate, and high plasticity, respectively. Similarly, 'CL', 'CI', and 'CH' indicate clay's plasticity levels. This classification helps determine how these soils behave when wet or dry, which is crucial for construction, agriculture, and land use planning.
Examples & Analogies
Imagine you have three types of dough: soft, medium, and firm. Each type behaves differently when shaped or pressed. Similarly, in soil science, silts and clays can be thought of as different dough types – some are easy to mold (low plasticity), some require a bit more effort (intermediate plasticity), and others are very stiff and challenging to shape (high plasticity). Knowing this helps engineers decide what materials to use for foundations and other structures.
Group Symbols for Coarse Soils
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Coarse soils
GW Well-graded GRAVEL
GP Poorly-graded GRAVEL
GM Silty GRAVEL
GC Clayey GRAVEL
SW Well-graded SAND
SP Poorly-graded SAND
SM Silty SAND
SC Clayey SAND
Detailed Explanation
Coarse soils, such as gravel and sand, are also classified according to their grading and composition. 'GW' indicates well-graded gravel, meaning the gravel particles are of various sizes, providing good stability and drainage. In contrast, 'GP' signifies poorly-graded gravel, which has particles that are more uniform in size. This classification is vital for projects requiring materials that drain well and provide solid foundations, as different types can affect water flow and stability.
Examples & Analogies
Think of coarse soils like marbles of different sizes. If you have a mix of large and small marbles, they fit together well and provide a stable base (well-graded gravel). But if all your marbles are the same size, they might not fit together perfectly, which could lead to instability (poorly-graded gravel). This understanding helps builders choose the right type of soil for construction sites.
Key Concepts
-
Fine-grained soils: Composed mainly of particles smaller than 0.075 mm.
-
Plasticity Chart: A tool for categorizing soils using their liquid limit and plasticity index.
-
Liquidity Index: Measures current water content in relation to soil’s cohesive strength.
-
Soil Activity: Indicates the plasticity sensitivity of clay soils.
Examples & Applications
Example of classifying soil as CH for clay of high plasticity.
A calculation of liquidity index and activity based on test results.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Fine soils are small, less than point-oh-seventy-five, keeping structures all alive.
Stories
Imagine a journey through a field of fine soils, where clay, silt, and gems shine bright, guiding engineers to build structures right.
Memory Tools
For liquidity index, think: 'Liquid Is Stiff' to remember the classes from liquid to semi-solid.
Acronyms
P.A.L
Plasticity
Activity
Liquidity.
Flash Cards
Glossary
- Finegrained soils
Soils where more than 50% of the particles are smaller than 0.075 mm.
- Plasticity
The ability of soil to deform under the influence of water.
- Plasticity Index (PI)
The numerical difference between the liquid limit and the plastic limit of soil.
- Liquidity Index (LI)
A measure of the current moisture state of the soil relative to its plastic limits.
- Activity
A ratio representing the sensitivity of clay's plasticity to changes in moisture.
- Visual Classification
Identifying soils based on their physical characteristics.
- Indian Standard Soil Classification System (ISSCS)
A framework designed to classify soils based on physical and engineering properties.
