Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
One-Dimensional Flow and the Laplace Equation
Unlock Audio Lesson
Today, we're diving into one-dimensional flow using the Laplace Equation. Can anyone remind me what the Laplace Equation looks like?
Isn’t it ∂²h/∂x² = 0?
Exactly right! When we integrate this equation twice, we find a general solution. Let’s say the permeameter length is L and at one end x=0 the head is H. What happens at x=L?
The head h would be 0 at x=L?
Correct. So when we substitute those values into our integrated equation, we can solve for the constants. Can you tell me the specific flow solution that arises from this?
The head is dissipated uniformly across the length?
That’s right! We can say head is dissipated linearly in the given permeameter. Key takeaway: the Laplace Equation gives us a clear framework for both understanding and calculating flow dynamics.
Two-Dimensional Flow and Flow Nets
Unlock Audio Lesson
Now, let's transition to two-dimensional flow. How do flow nets help in visualizing seepage?
They represent equipotential lines and flow lines, showing the defined paths of water movement?
Exactly! We have two orthogonal sets of curves—equipotential lines connecting points of equal total head h and flow lines indicating seepage direction. Why do two flow lines never meet, do you think?
Because if they did, it would imply the same hydraulic gradient at two points, which is impossible?
Spot on! The space between flow lines is known as a flow channel. Can anyone describe how standpipe piezometers illustrate hydraulic gradient dynamics in this flow situation?
If placed on an equipotential line, they would all read the same water level, despite different elevations showing different pore pressures!
Great answer! So, when we analyze a field in a flow channel, the head drop across it is crucial for calculating flow rates. Let's remember, Δh is divided by the number of flow channels for total flow rate calculation.
Flow Rate Calculations
Unlock Audio Lesson
Let's work on calculating flow rate through a flow channel. What do you remember about the permeability and average hydraulic gradient?
Permeability k is multiplied by the hydraulic gradient, and since flow lines are spaced b apart, that helps in calculating the flow rate.
Correct, and if we think about our earlier example of equal head drops in the flow channel, we can express the flow rate as q= k * Δh / L. Can anyone explain what would happen if we increase the number of flow channels?
The total flow rate would increase, right? Because we would effectively be increasing the area for flow?
Exactly! More channels allow for more flow. Excellent understanding! Remember to keep these relationships in mind when tackling seepage and hydraulic issues.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section covers how to derive specific solutions for both one-dimensional and two-dimensional flows. It highlights the Laplace equation's application, the concept of flow nets, and how equipotential lines and flow lines interact in seepage problems.
Detailed
In this section, we explore the specific solutions for flow in both one-dimensional and two-dimensional contexts using the Laplace Equation. The one-dimensional flow solution shows head dissipation across a permeameter, represented by linear head loss over a set length. For two-dimensional flow, the section introduces flow nets, which consist of intersecting flow and equipotential lines. These concepts are crucial for visualizing and calculating seepage in structures like embankment dams, where understanding the hydraulic gradients and flow channels is essential. The relationships between head, hydraulic gradients, and flow calculations are illustrated with equations for clearer comprehension.

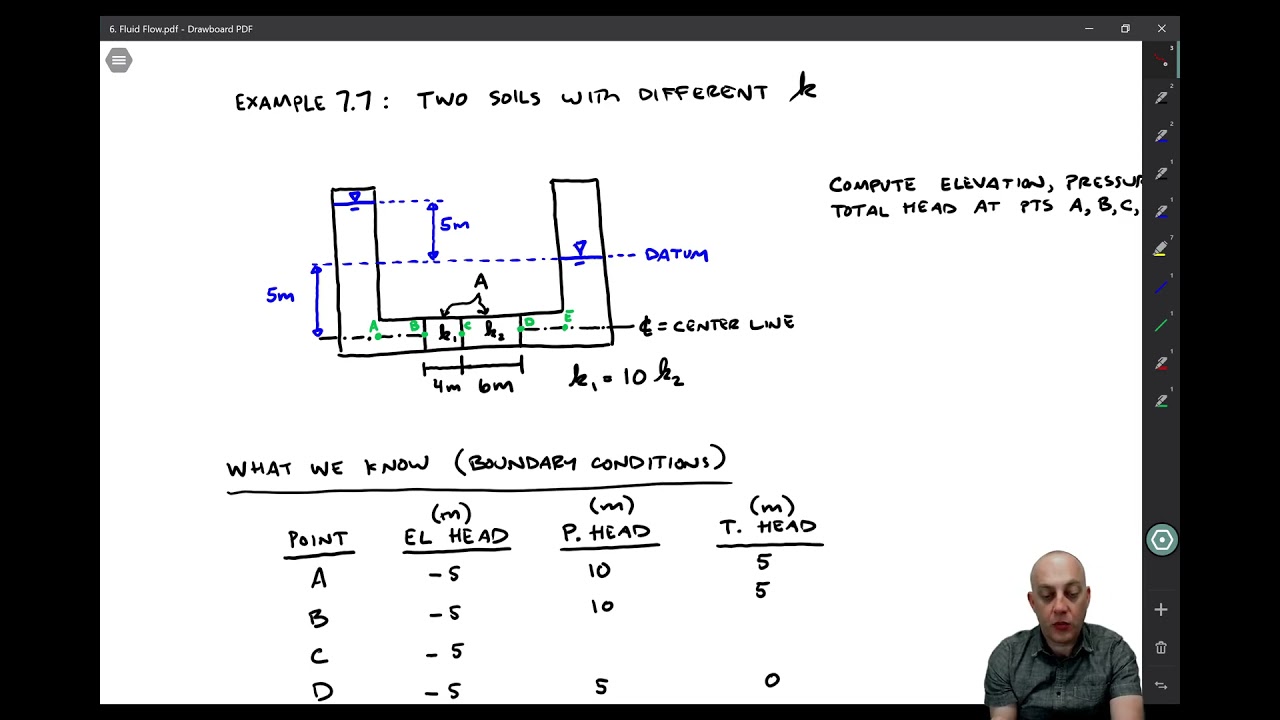

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Laplace Equation and General Solution
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For this, the Laplace Equation is
Integrating twice, a general solution is obtained.
Detailed Explanation
The Laplace Equation is a fundamental equation in fluid dynamics that describes the behavior of fluid flow. To find a solution to this equation, we integrate it twice, leading to a general solution that captures the basic characteristics of flow in the observed system.
Examples & Analogies
Think of the Laplace Equation like a recipe. Just as a recipe outlines the steps needed to create a dish, the equation provides the steps necessary to understand how fluid moves through a medium, helping engineers determine how to best manage and direct that flow.
Determining Constants from Boundary Conditions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The values of constants can be determined from the specific boundary conditions. As shown, at x = 0, h = H, and at x = L, h = 0.
Detailed Explanation
In solving flow problems, boundary conditions define the behavior of the fluid at specific points. In this case, we know that at position x = 0 (the start of our permeameter), the head (h) is at its maximum value H. Conversely, at position x = L (the end), the head is zero. These conditions are used to calculate the constants in our general solution, tailoring it to the specific scenario.
Examples & Analogies
Consider a water slide. At the top (x = 0), the slide is full of water (h = H), but once you reach the bottom (x = L), the water is gone (h = 0). Just like the slide, understanding where your starting and ending points are helps you determine how fast the water will flow down.
Specific Solution for Flow in the Permeameter
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The specific solution for flow in the above permeameter is which states that head is dissipated in a linearly uniform manner over the entire length of the permeameter.
Detailed Explanation
The specific solution derived for flow within a permeameter describes how the water head decreases uniformly as it moves through the permeameter. This means that as you measure the pressure at different points along the permeameter, the pressure values will reduce in a straight line from the starting to the ending point.
Examples & Analogies
Imagine pouring maple syrup down an inclined plate. As the syrup flows down, it spreads evenly over the surface. Similarly, in our permeameter, the fluid flows evenly along its length, reflecting a consistent reduction in pressure or head.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Laplace Equation: A fundamental equation in fluid dynamics for analyzing potential flow.
-
One-dimensional Flow: Flow characterized by a single dimension, often simplified for easier calculations.
-
Flow Nets: A graphical representation essential for visualizing two-dimensional seepage patterns.
-
Equipotential Lines: Important for identifying points of equal energy and hydraulic head in a flow field.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of a permeameter demonstrating how head dissipates linearly along the length.
-
Using flow nets to visualize seepage through an embankment, with distinct flow and equipotential lines.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For flow in a line, head drops just fine; the Laplace's call saves us from the wall.
📖 Fascinating Stories
-
Imagine water flowing down a mountain; it follows paths marked by flow lines and takes rests at equipotential points—navigating smoothly like a trained hiker.
🧠 Other Memory Gems
-
PEF: Permeability, Equipotential, Flow lines as key concepts in fluid dynamics.
🎯 Super Acronyms
FLAP
- Flow Lines
- Equipotential Lines
- Average hydraulic gradient
- Permeability—remembering key aspects of flow.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Laplace Equation
Definition:
A second-order partial differential equation used to describe the potential flow fields.
-
Term: Flow Nets
Definition:
A graphical representation of two-dimensional flow characterized by equipotential lines and flow lines.
-
Term: Equipotential Line
Definition:
A line connecting points of equal total hydraulic head.
-
Term: Flow Line
Definition:
A line indicating the path along which water flows, showing the direction of seepage.
-
Term: Head Drop
Definition:
The difference in total head between two points in the flow field.
-
Term: Permeability (k)
Definition:
A property of soil or rock that describes its ability to transmit water.
