Introduction to Flow Nets
Unlock Audio Lesson
Today, we will discuss two-dimensional flow and how it can be depicted using flow nets. Can anyone explain what flow nets are?
Are they those diagrams that show where water flows?
Exactly! Flow nets consist of equipotential lines that connect points with equal total head and flow lines that show the direction of water movement. Remember the acronym 'EFL': Equipotential lines Flow lines.
What happens if flow lines intersect?
Great question! Flow lines cannot intersect because that would imply multiple flow directions at a single point, which isn't possible.
So, each area between the lines is called a flow channel?
Correct, the space between two adjacent flow lines is termed a flow channel, while the area bounded by them and two equipotential lines is called a field.
How do we calculate the flow rates in these channels?
That’s the next topic! Let's summarize before digging into flow rate calculations.
Calculating Flow Rates
Unlock Audio Lesson
Now, let’s talk about calculating flow rates. When using piezometers in a channel, if they sit on the same equipotential line, what do you expect?
They should all have the same water level?
Exactly! Despite differences in elevation affecting pore pressure, the water level stays constant along an equipotential line. Can anyone tell me why there’s no flow along this line?
Because there's no hydraulic gradient there?
Correct! For flow channels, if we consider a field of length L with a total head drop of b5h, the average hydraulic gradient is b5h/L. So, what would the flow rate be?
Is it something like q = k × b5h?
Right again! You multiply the permeability, k, with the difference in head. Now to summarize, calculating flow involves understanding the hydraulic gradient and the geometry of flow nets.
Total Flow Calculation
Unlock Audio Lesson
Finally, let’s discuss calculating total flow. If you have N flow channels, what do you think we should do with the total head drop?
Maybe divide it up into segments?
Exactly! Dividing the total head drop, h, into N segments gives us granularity for our calculations. If b5h is the head drop per section, you can then find total flow by summing flows across all channels.
So, the flow rate is like a cumulative sum?
Good connection! Understanding this helps you visualize flow across embankments or earthen dams. Always think of the total impact of individual channel flows.
This really helps me understand how seepage works in real-world applications!
That's our goal! Remember, flow rates in two-dimensional flow are not just numbers; they indicate real phenomena in engineering.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In two-dimensional flow, flow nets are created using two orthogonal sets of curves, which are equipotential lines indicating points of equal total head and flow lines that show the direction of seepage. This section explores the graphical solutions to the Laplace equation, the concept of flow channels, and how to calculate flow rates within these channels.
Detailed
Two-dimensional Flow
In this section, we explore two-dimensional flow, which is crucial for understanding seepage in various engineering contexts. The solutions to the Laplace equation for two-dimensional seepage can be represented graphically as flow nets, consisting of two orthogonal sets of curves:
- Equipotential Lines: These lines connect points of equal total head (b7).
- Flow Lines: These lines depict the direction of seepage, following the hydraulic gradient.
It's essential to note that flow lines cannot intersect, nor can equipotential lines, indicating that flow occurs continuously along these paths. The space between adjacent flow lines is referred to as flow channels, and the area bounded by two flow lines and two equipotential lines is known as a field.
The section further discusses the calculation of flow rates in a channel. When using standpipe piezometers located along a single equipotential line, the water levels will be the same, although pore pressures may vary due to different elevations. No flow is observed along an equipotential line due to the absence of hydraulic gradient.
Additionally, we examine the advantages of drawing flow nets as curvilinear squares and discuss how to derive the flow rate by multiplying permeability with the difference in head across adjacent equipotential lines. Finally, for real-world applications, the total flow rate can be calculated by dividing the overall head drop into equal segments, allowing for the determination of total flow through multiple flow channels.

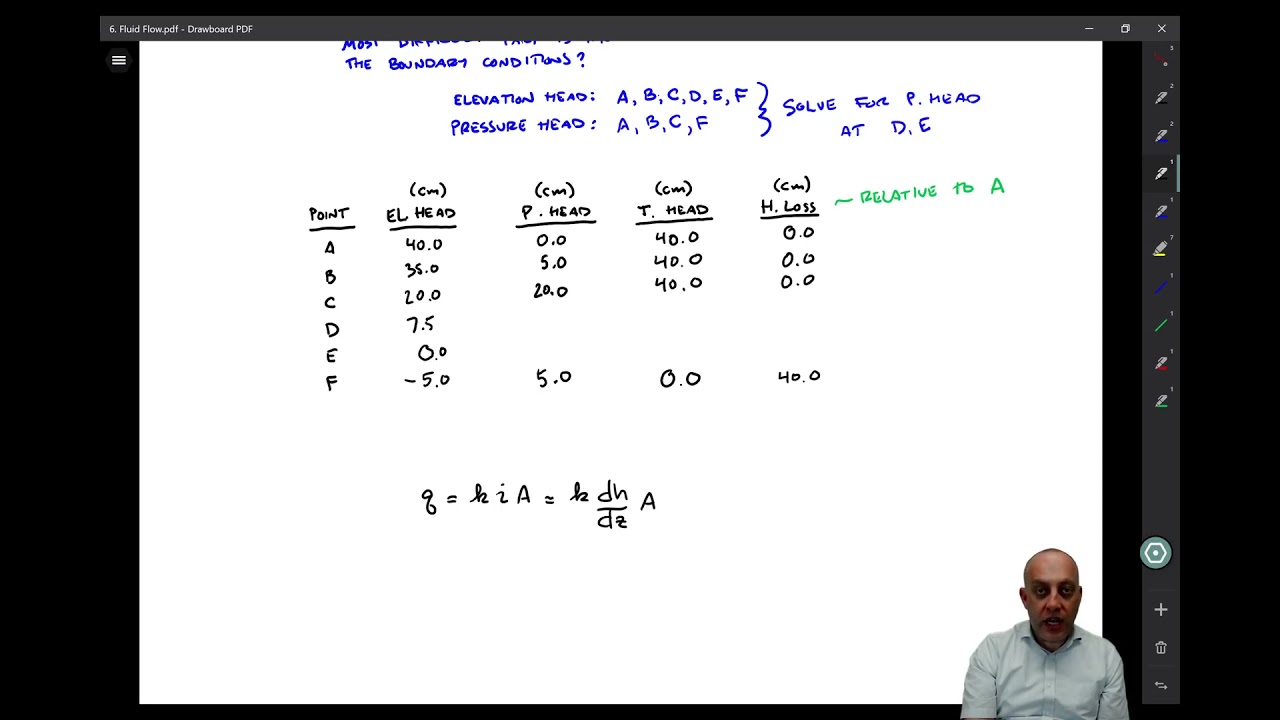

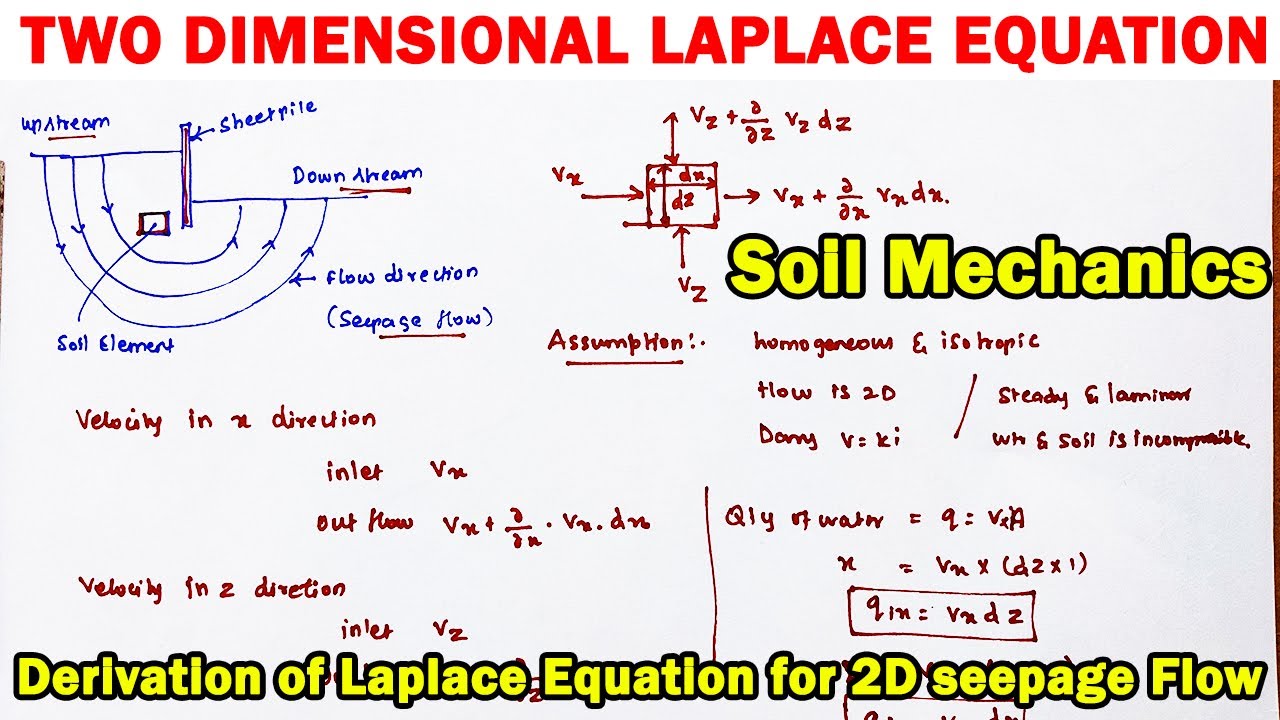

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Flow Nets Overview
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Graphical form of solutions to Laplace equation for two-dimensional seepage can be presented as flow nets. Two orthogonal sets of curves form a flow net:
- Equipotential lines connecting points of equal total head h
- Flow lines indicating the direction of seepage down a hydraulic gradient.
Detailed Explanation
Flow nets are useful graphical tools used to visualize the flow of water through soils in two dimensions. They consist of two sets of curves: equipotential lines and flow lines. Equipotential lines connect points where water pressure is the same, indicating levels of total head. Flow lines, on the other hand, show the direction that water will flow, guiding us to understand how water moves through different materials under pressure. Importantly, flow lines and equipotential lines never intersect, which means that at any point in the flow net, the paths of flow and pressure are distinct and separate.
Examples & Analogies
Imagine a road map where the equipotential lines are the roads at a constant altitude (like a flat bridge) and the flow lines are the paths vehicles take down a hilly road. You can see that roads (equipotential) at the same height do not cross each other, just like flow lines do not meet.
Characteristics of Flow Lines and Equipotential Lines
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Two flow lines can never meet and similarly, two equipotential lines can never meet. The space between two adjacent flow lines is known as a flow channel, and the figure formed on the flownet between any two adjacent flow lines and two adjacent equipotential lines is referred to as a field.
Detailed Explanation
The uniqueness of flow nets is that flow lines and equipotential lines maintain their separation. This separation creates flow channels, the spaces through which water flows. Additionally, the area enclosed by two adjacent flow lines and two adjacent equipotential lines is called a field. This field represents a specific volumetric area of soil where water is moving and can be analyzed for flow characteristics. Knowing this helps engineers determine how water will behave in specific areas, such as near foundations or embankments.
Examples & Analogies
Think of a field as a kitchen countertop divided by strips of dough (flow lines) marked by rows of cookie cutters (equipotential lines). Each area between the strips represents a place where ingredients (like water) can flow but where the strips prevent mixing with other areas directly.
Use of Standpipe Piezometers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If standpipe piezometers were inserted into the ground with their tips on a single equipotential line, then the water would rise to the same level in each standpipe. The pore pressures would be different because of their different elevations. There can be no flow along an equipotential line as there is no hydraulic gradient.
Detailed Explanation
Standpipe piezometers are tools used to measure water pressure at various depths within soil. When these devices are placed along an equipotential line, the water level in each standpipe will equalize due to no pressure difference (or hydraulic gradient) existing at that level. However, the actual pressure exerted by the water will change if the standpipes are at different heights, showcasing that even among equal heads, the water pressure can differ based on depth.
Examples & Analogies
Imagine a group of drinking straws submerged in a glass of water at the same height. If you place your finger on the top of one straw, the water in that straw will stay at the same level as the water in the other straws (if all are at the same height). However, if you compare straws of different lengths, the water pressure in the longer straw will be greater even if the water levels are equal at the top.
Flow Rate Calculation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Consider a field of length L within a flow channel. There is a fall of total head ∆h. The average hydraulic gradient is. As the flow lines are b apart and considering unit length perpendicular to field, the flow rate is.
Detailed Explanation
To determine the flow rate through a channel, we must consider the field's length and the total change in head (or height) water experiences as it flows through. The hydraulic gradient is calculated as the difference in height divided by the distance over which this change occurs. The flow rate can then be estimated by considering how far apart the flow lines are (denoted as 'b') and how wide a unit length of the field is. Mathematically, this creates a clear understanding of how much water flows through a cross-section of this channel.
Examples & Analogies
Think of water flowing down a hill where the height of the hill represents total head. The slope of the hill gives you an idea of how steep the descent is (the hydraulic gradient), while measuring how far apart the rivulets of water flow tells you how fast and how much water is moving down that slope.
Advantages of Curvilinear Flow Nets
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
There is an advantage in sketching flow nets in the form of curvilinear 'squares' so that a circle can be inscribed within each four-sided figure bounded by two equipotential lines and two flow lines.
Detailed Explanation
Sketching flow nets as curvilinear squares allows for a geometric approach to solving flow problems. By inscribing circles within these shapes, it simplifies the math and helps visualize the flow's properties. This method maintains the relationship between flow and pressure while simplifying calculations involved in determining flow rates across these areas.
Examples & Analogies
Picture a pizza with slices cut in a circular fashion, with each slice representing a segment of flow net. By analyzing just one slice (the curvilinear square), you can efficiently understand the flow characteristics without needing to comprehend the entire pizza—this helps narrow down complex problems into manageable parts.
Total Flow Calculation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For a complete problem, the flow net can be drawn with the overall head drop h divided into N so that ∆h = h / N.
Detailed Explanation
When solving flow problems, it is essential to calculate the total flow through a network of flow nets. This is done by dividing the overall change in head (or total head drop) by the number of flow channels (N). This way, we average the head drop over several segments instead of calculating it for one large section, which makes for more manageable calculations and greater accuracy.
Examples & Analogies
Imagine climbing stairs. Instead of calculating the height of a tall building in one go, you can think of it as a series of steps (flow channels) that you take one at a time. Each step represents a smaller change in height, making it easier to comprehend and manage your ascent.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Flow Nets: Graphical representations of seepage involving equipotential and flow lines.
-
Equipotential Lines: Indicate points of equal head, forming the basis of hydraulic calculations.
-
Flow Lines: Show the path of fluid flow determined by the hydraulic gradient.
-
Flow Channels: Spaces delineated by two flow lines, containing paths for fluid movement.
-
Total Flow Calculation: Involves dividing the total head drop into segments for accuracy.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A practical example would involve constructing a flow net for a simple embankment dam to visualize how seepage occurs.
-
Using standpipe piezometers in a flow channel to measure water levels at different elevations while ensuring they stay constant on equipotential lines.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In flow nets, paths you’ll see, Equipotential lines and flow lines, that’s the key.
📖 Fascinating Stories
-
Once, there lived two friends, Eqi and Flow. Eqi always kept her levels equal, while Flow loved to dance along the gradient, never crossing paths. Together, they showed the magic of seepage.
🧠 Other Memory Gems
-
Remember EFL for Equipotential Flow Lines!
🎯 Super Acronyms
FLOW
- Fluid Lines Offer Waterflow.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Equipotential lines
Definition:
Lines connecting points of equal hydraulic potential or total head.
-
Term: Flow lines
Definition:
Lines depicting the direction of seepage in a flow field.
-
Term: Flow channel
Definition:
Space between two adjacent flow lines, representing a path for fluid flow.
-
Term: Field
Definition:
The area bounded by two flow lines and two equipotential lines.
-
Term: Hydraulic gradient
Definition:
The slope of the hydraulic head, indicating the direction of hydraulic flow.
-
Term: Permeability (k)
Definition:
A measure of a material's ability to allow fluids to pass through it.
