Introduction to Compaction Grouting
Unlock Audio Lesson
Today, we're going to learn about compaction grouting. Can anyone tell me what grouting usually refers to?
I think it involves filling spaces or cracks in materials?
Exactly! And in the context of soil, compaction grouting involves injecting a stiff grout to displace and compact surrounding soil.
What materials are used for the grout?
Great question! The grout is typically a mixture of cement, water, and aggregates, designed to remain homogeneous and not permeate the soil.
So, it pushes the soil without making it messy?
Precisely! This method is advantageous as it creates minimal disturbance, especially in urban settings.
To remember this process, think of it as a 'sponge effect' – it allows for controlled expansion without entering the soil's pores.
Let's conclude this session. Compaction grouting is an effective way to improve soil stability by injecting grout to compact surrounding materials.
Applications and Benefits of Compaction Grouting
Unlock Audio Lesson
Now that we understand what compaction grouting is, can anyone think of situations where this method would be particularly useful?
Under existing buildings? That would make sense to avoid disruptions.
Correct! It's especially valuable in urban environments where noise and vibration must be controlled.
What about narrow areas? Can it be used there too?
Absolutely! Compaction grouting is often employed in confined spaces where traditional methods might be challenging.
And what benefits does it actually provide to the soil?
The technique increases the density and bearing capacity of the soil, helps in settlement control, and reduces liquefaction risk.
As a memory aid, remember 'D-B-L' – Density, Bearing capacity, and Liquefaction mitigation!
Let's summarize this session: Compaction grouting is applied under structures, in urban settings, and limited spaces, improving soil stability.
Execution Process of Compaction Grouting
Unlock Audio Lesson
Next, let’s dive into how compaction grouting is executed. Can anyone outline the general steps?
Do you start by drilling injection holes?
Yes! Injection pipes are set in place initially, often using drilling machines.
And then you inject the grout, right?
Correct! The mixture is pushed through the pipes, displacing soil as it expands.
How deep does the injection go?
The injection continues until the entire soil thickness is treated, often at depths between 0.3 to 1.5 meters.
A helpful mnemonic here is 'PIE' – Pipes injected every step until effective.
In summary, the process starts with setting pipes, followed by the progressive injection of grout to treat the soil layer.
Effectiveness of Compaction Grouting
Unlock Audio Lesson
Let’s look at the effectiveness of compaction grouting. Can anyone recall some research findings?
I remember there were case studies shared that showed it reduced liquefaction risk.
Exactly! Studies revealed that compaction grouting significantly improves SPT resistance to mitigate liquefaction risk.
What factors influence its success?
Well, the method of construction and the type of soil are key factors. It's most effective in sandy soils with fewer fines.
To remember these factors, think 'M-S-F' – Method, Soil type, and Fines content.
To summarize, compaction grouting is particularly effective in sandy soils and can significantly reduce the risk of liquefaction.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The process of compaction grouting involves injecting a stiff grout mixture into the soil to displace and compact surrounding materials, effectively improving the soil's load-bearing capacity and reducing liquefaction risk. It is particularly useful in urban settings and under existing structures due to its low disturbance method.
Detailed
Compaction Grouting
Compaction grouting is a specialized soil improvement technique designed to address issues of liquefaction and soil instability. This method entails the injection of a thick grout mixture, which consists of cement, water, and aggregates, into the ground through a series of pipes. As the grout is injected, it cannot permeate the existing soil pores; rather, it remains homogeneous and expands within the soil. This expansion leads to soil displacement, resulting in an increased density of the surrounding material without causing excessive vibrations or noise.
The compaction grouting process is typically executed using a bottom-up approach, where injection pipes are strategically placed and raised incrementally to treat the soil layer fully. The primary aims of this method include the control of local settlements, the re-leveling of structures, and the enhancement of the soil's bearing capacity.
Key categories for compaction grouting applications include treatments conducted under existing structures, in urban environments where noise and vibration must be minimized, and in confined or narrow areas. Research, including case studies, has indicated that effective implementation of this technique, especially on granular soils with low fine content, can significantly mitigate liquefaction risks. Furthermore, compaction grouting also contributes to increasing both the strength and lateral earth pressures of treated soils.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Compaction Grouting
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

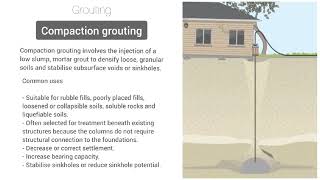

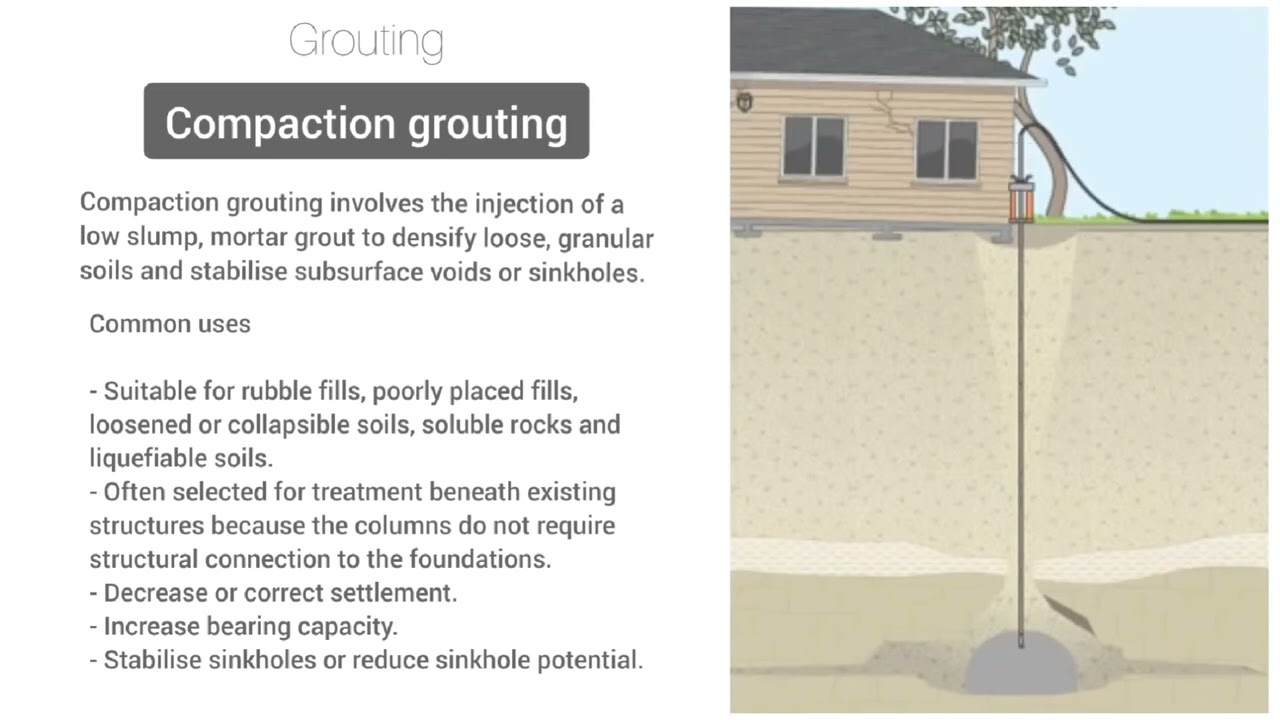

Compaction grouting is a soil injection with low workability cement paste that remains homogeneous without entering the soil pores. The cement mass extends, soil is moved, and finally compacted.
Detailed Explanation
Compaction grouting is a technique used to improve the stability and density of soil. Instead of permeating the soil like other grouting methods, compaction grouting uses a stiff cement mixture that does not enter the soil pores. Instead, when injected, this mixture pushes the soil around it, causing the soil to become more compacted as it is displaced. This helps stabilize the ground, particularly in areas that may be prone to liquefaction during seismic events.
Examples & Analogies
Think of a sponge—when you press it together, the water is squeezed out, and it becomes firmer. Similarly, compaction grouting pushes the soil particles closer together, making the ground stronger and more stable.
Categories of Compaction Grouting
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The liquefaction improvement using compaction grouting divides into the following categories:
(a) Treatment under existing structures;
(b) Treatment in urban areas with low levels of vibration and noise;
(c) Treatment in narrow areas.
Detailed Explanation
Compaction grouting can be applied in various scenarios: under existing structures, in urban areas where noise and vibration must be minimized, and in narrow spaces where traditional methods might not fit. Each of these categories represents specific conditions where compaction grouting can effectively enhance soil stability without causing disruption to its surroundings.
Examples & Analogies
Imagine fixing a wobbly table. If the table is in a crowded café, you’d want to fix it quietly without disturbing the customers. Similarly, compaction grouting offers a way to stabilize structures without causing a mess or noise.
Execution of Compaction Grouting
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

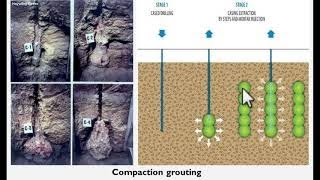

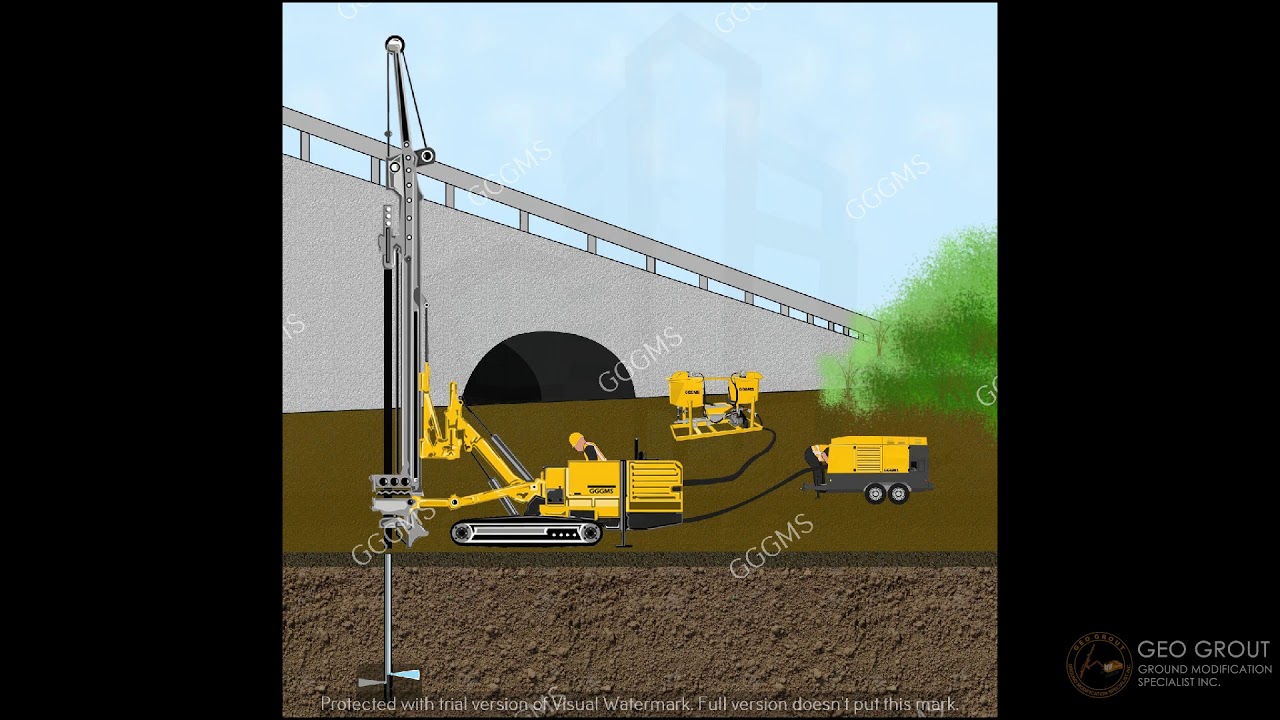

The execution of compaction by injection technology using bottom-up method takes place as follows. In the first stage, injection pipes are set up on the foundation soil of the existing or future foundations using drilling machines. The injection process begins. Mixture injected through the pipes pushes the surrounding soil; then the injection pipes raise about 0.3-1.5 m and the process renews. The 'in steps' injection process continues until the whole thickness of the soil layer is treated.
Detailed Explanation
The process of compaction grouting involves installing pipes into the ground and injecting a cement mixture through these pipes. The pipes are raised in increments of about 0.3 to 1.5 meters after each injection, allowing the cement to push soil outward, compacting it effectively. This method ensures that the entire layer of soil is treated systematically, leading to increased density and stability.
Examples & Analogies
Picture a layered cake. To ensure every layer is solid and stable, you wouldn’t just pour icing on top; you’d need to carefully spread it between every layer. Each injection in compaction grouting acts like that icing, ensuring the soil layers are evenly treated and compacted.
Purpose and Benefits of Compaction Grouting
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The primary purpose of compaction grouting is to increase the density of soft, loose or disturbed soil, typically for settlement control, structural re-leveling, increasing the soil’s bearing capacity, and mitigation of liquefaction potential.
Detailed Explanation
Compaction grouting addresses several issues: it strengthens weak soils, helps control settlement of structures, and boosts the soil's ability to support loads. This process is particularly important in areas at risk of liquefaction, as it makes the ground more stable and less prone to movement during earthquakes or other stressors.
Examples & Analogies
Think about a bridge over a river. If the land below is unstable, the bridge is at risk. Compaction grouting is like reinforcing the riverbank to ensure the bridge stands strong against floods and currents, providing safety and stability.
Case Studies of Compaction Grouting
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Orense (2008) had a review of two case histories on the application of compaction grouting as liquefaction remediation. One case involved the implementation in an open unrestricted space such as airport runways, while the second one was under an existing manufacturing plant.
Detailed Explanation
In the documented case studies, compaction grouting was applied successfully in both open areas like airport runways and constrained areas like established manufacturing plants. These examples highlight the versatility of the technique, demonstrating its effectiveness across different environments and structural types. The studies indicated improved resistance to liquefaction in both settings.
Examples & Analogies
Consider a sports field that needs to be reinforced for heavy foot traffic (like airport runways) and a theater that has to maintain its quiet atmosphere while still needing structural support. Compaction grouting can effectively address the demands of both locations, maintaining their function and safety.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Soil injection: The putative introduction of materials into soil to enhance its properties.
-
Controlled lifting: A method to lift the soil surface in a regulated manner to alleviate local settlements.
-
Sandy soils: Types of soil that predominantly consist of sand, generally more amenable to grouting techniques.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A manufacturing plant undergoing compaction grouting underneath its foundation to mitigate settling.
-
Using compaction grouting beneath an airport runway to enhance stability and prevent liquefaction during seismic events.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Grout without drought, firm without a shout!
📖 Fascinating Stories
-
Imagine a team of builders needing to stabilize a shaky building. They inject a special potion into the ground, which makes the soil strong, saving the building from sinking. This potion represents grout, enhancing stability under pressure.
🧠 Other Memory Gems
-
D-B-L: Density, Bearing capacity, Liquefaction mitigation.
🎯 Super Acronyms
P-I-E
- Pipes Injected Every step until effective.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Compaction Grouting
Definition:
A method of soil improvement that involves injecting a stiff grout mixture to increase soil density and stabilize conditions, primarily used to mitigate liquefaction.
-
Term: Liquefaction
Definition:
A phenomenon where saturated soil loses strength and stiffness in response to an applied stress, often occurring during seismic events.
-
Term: SPT
Definition:
Standard Penetration Test, a common method to measure soil resistance and evaluate its properties.
-
Term: Grout
Definition:
A fluid mixture used for injection purposes, often composed of cement, water, and aggregates.
-
Term: Bearing Capacity
Definition:
The ability of soil to support the loads applied to the ground.
-
Term: Vibration
Definition:
A condition of oscillating motion that can occur during soil treatment, which should be minimized in sensitive areas.
