1.2. Permeation Grouting

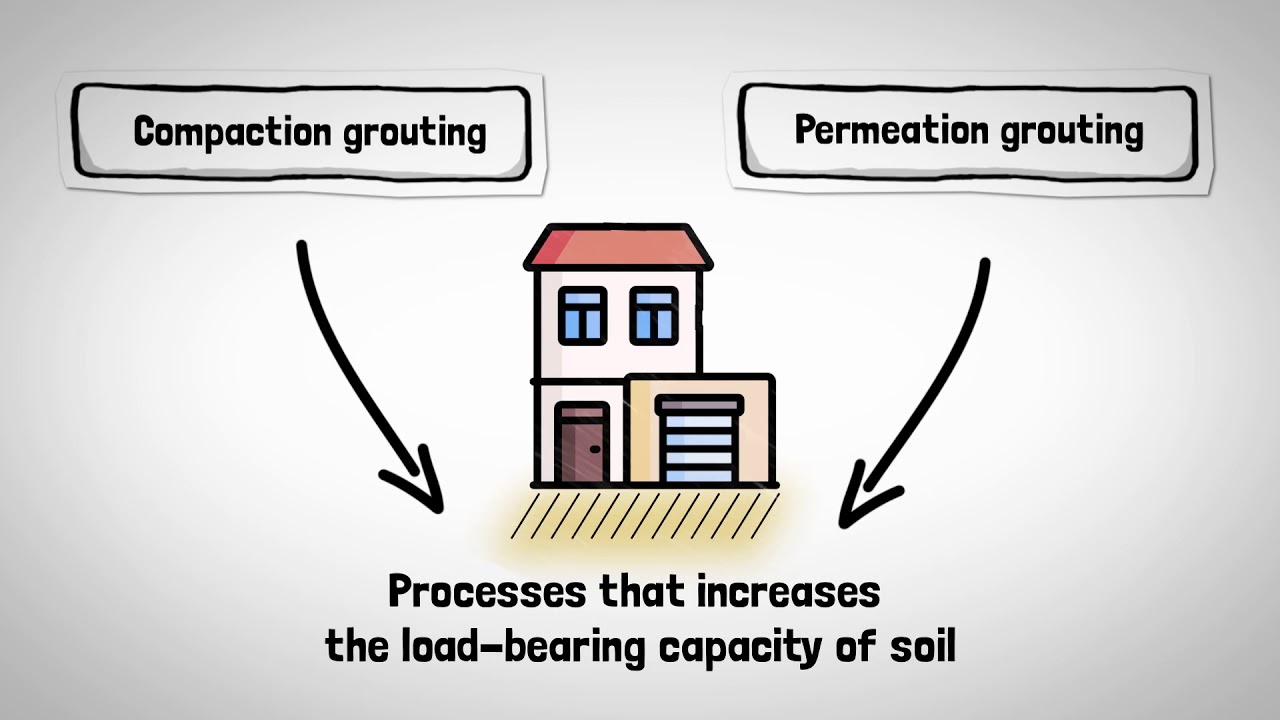

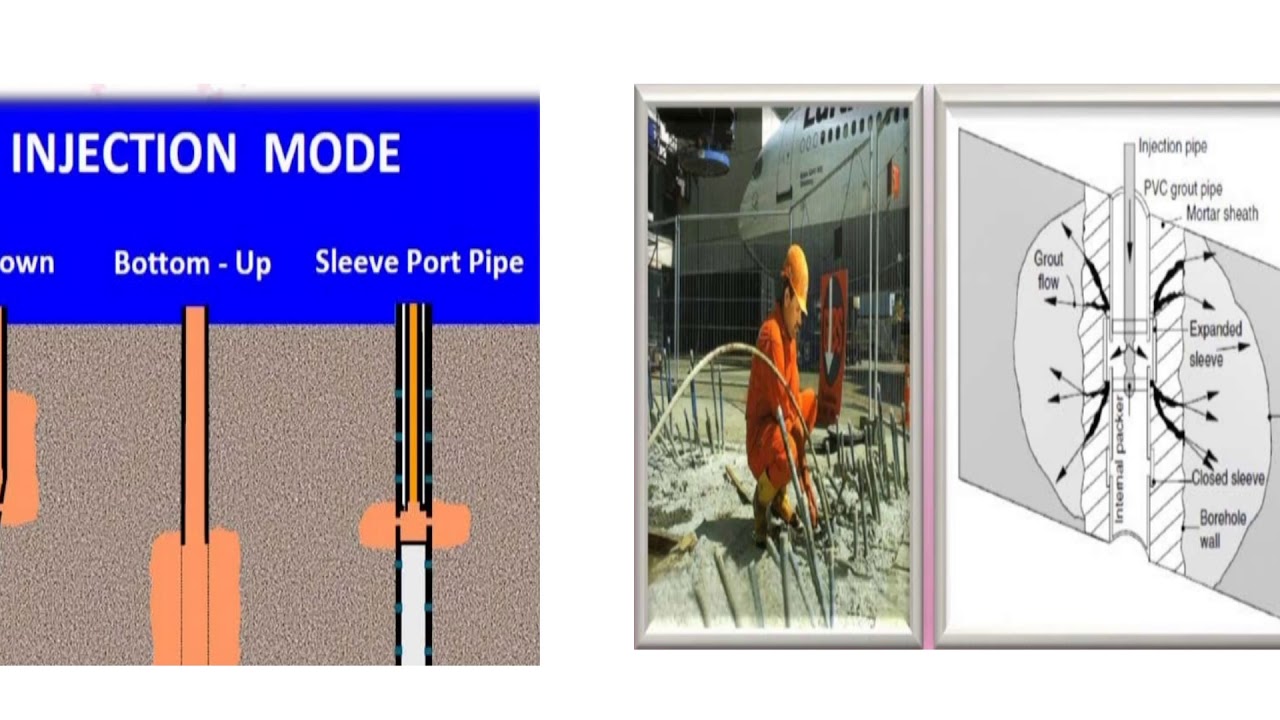

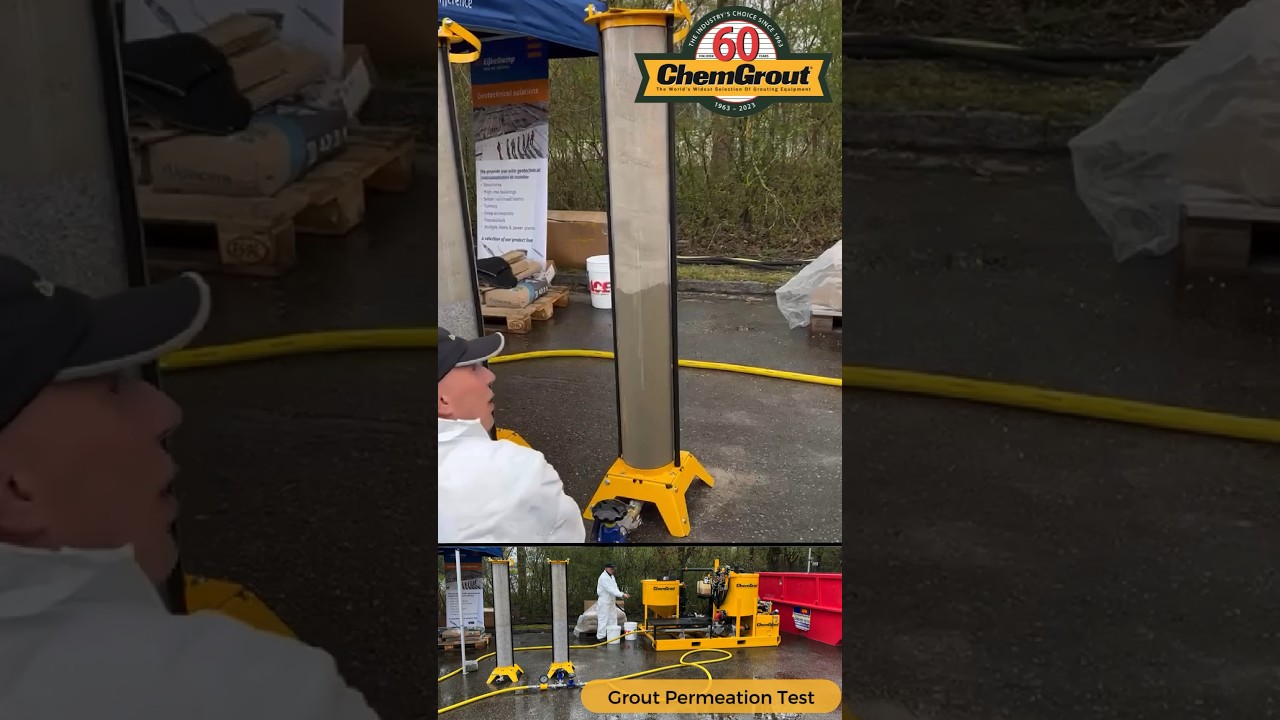

Permeation grouting consists of the injection of a low-viscosity fluid in the soil pores without changes in the soil physical structure. The main goal of permeation grouting is both to strengthen soils through particle cementation (to stabilize the links between particles) and to waterproof ground by filling its pores with injected fluid.

Permeation grouting is a technique used to improve soil stability. It involves injecting a fluid that has a low viscosity, meaning it's thin enough to flow easily through the small spaces (pores) in the soil. When this fluid is injected, it fills the gaps between soil particles, helping to glue them together. This process not only reinforces the soil, making it stronger (due to cementation), but it also helps make the ground waterproof by filling the soil pores, preventing water from moving through.

Imagine trying to fill a sponge with water. If you pour slowly, the sponge soaks up the water without changing its shape. In the same way, permeation grouting fills the spaces in the soil without altering its structure, making it stronger and less permeable to water.

This method improves the soil physical and mechanical characteristics, successfully stabilizes the excavation walls in soft soils, controls the groundwater migration in order to implement the underpinnings at the existing foundations and prevents the effects of earthquakes – compaction and soil liquefaction.

Permeation grouting has several important applications. First, it enhances the physical and mechanical properties of the soil, making it more stable during construction. It is especially useful in stabilizing walls of excavations that are in soft soils, which can be prone to collapse. Moreover, this method helps manage groundwater flow, crucial during the construction of foundations. Importantly, it also mitigates the risks associated with earthquakes, such as soil compaction and liquefaction, by making the ground more solid and less susceptible to changes during seismic activity.

Consider a building built on soft ground. Without proper support, heavy rains or an earthquake might cause the ground to shift and the building to collapse. By using permeation grouting, we can reinforce the soil, much like inserting supports into a wobbly table to ensure it stands firm, enabling it to withstand challenges like heavy rain or shaking.

Permeation grouting is a technology used to mitigate liquefaction that is suitable for un-compacted soils solidification in order to reduce the risks of compaction and liquefaction that may occur as result of possible earthquakes. The process is quiet flexible and it can be designed with a minimal disruption at the surface and therefore, it is advantageous for use in urban areas or areas with limited access.

One of the significant advantages of permeation grouting is its flexibility. It can be tailored to treat specific areas without causing much disruption to the surrounding environment. This is particularly beneficial in urban settings where space is limited and any surface disturbance can cause major inconveniences. Essentially, the method allows for underground soil improvement with minimal visible impact on the surface infrastructure.

Think of how some beauty treatments can be done without surgery, creating results without significant downtime or disruption. Similarly, permeation grouting works below the surface, improving the soil's strength and stability while leaving the surface area relatively untouched.

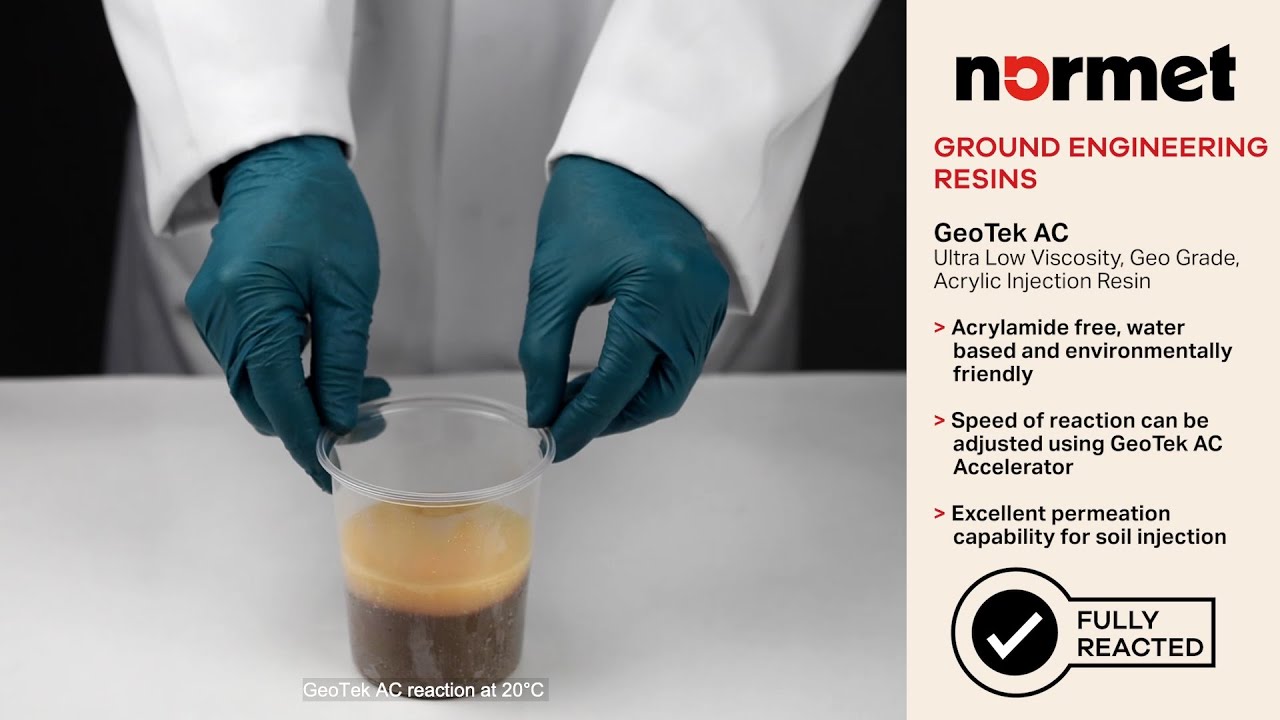

Particulate grouts (e.g. cement or bentonite) are generally used for medium to coarse grained sands, such that the particles in the grout easily percolate through the formation. Micro fine cement is also used for fine grained sands where Ordinary Portland Cement cannot percolate through the formation. Chemical grouts (e.g. silicates) are used in formations with smaller pore spaces, but are limited to soils coarser than fine grained sands.

Different types of grouts are used depending on the soil's characteristics. For instance, particulate grouts like cement are designed for medium to coarse sands, enabling the grout to flow and fill spaces effectively. For finer sands, micro fine cement is used, as standard cement cannot penetrate these tiny spaces. On the other hand, chemical grouts made from silicates are better suited for soils with smaller pores, although they work best with coarser soils. This tailored approach ensures effective soil stabilization regardless of the conditions.

Imagine using different types of glue for different materials. You might use a strong adhesive for wood but a gentler glue for paper. In the same way, engineers choose specific grouts based on the type of soil they are dealing with to achieve the best results.

Like any other grouting improvement process, the quality control during permeation grouting is very important to ascertain the effectiveness of the technique. As such, the process parameters such as grout pressure, flow rate, volume of grout for corresponding depth are monitored throughout the construction process.

Quality control is crucial in permeation grouting to ensure that the method is effective. Engineers and technicians monitor several parameters during the process, including the pressure at which the grout is injected, how fast it flows, and the volume used relative to the depth of injection. This monitoring ensures that the grout properly fills the intended areas and creates the desired stabilization effect.

Think of baking a cake; if you don’t measure the ingredients carefully or monitor the oven's temperature, you might end up with a ruined cake. Similarly, in permeation grouting, meticulous monitoring is necessary to ensure everything works correctly, resulting in successfully improved soil.

--
