Introduction to Jet Grouting
Unlock Audio Lesson
Today, we will explore jet grouting. To start, can anyone tell me what they think jet grouting involves?
Is it about injecting something into the soil?
Exactly! Jet grouting involves injecting a high-pressure mixture into the soil to improve its properties. Why do you think that might be necessary?
To prevent liquefaction during earthquakes?
Correct! It helps stabilize soil that might otherwise become unstable during shaking. This brings us to its three main applications: underpinning, stabilization of soft soils, and pollution control.
What does underpinning mean in this context?
Great question! Underpinning refers to strengthening existing foundations using techniques like jet grouting. Remember, 'Underpinning is like giving your house a stronger base to stand on.'
How Jet Grouting Works
Unlock Audio Lesson
Let's talk about how the jet grouting process works. It starts with drilling small-diameter holes. What do you think happens next?
Is the cement mixture injected afterward?
That's right! The injected mixture is delivered through a rotating metal rod, which helps to mix and displace the existing soil. We can think of the mixture spreading out like butter on toast.
Does it form any kind of new structure in the soil?
Yes! The injected grout fills voids and solidifies, creating a stronger structural matrix within the soil. This process is vital for enhancing soil strength and reducing the risk of liquefaction.
Real-World Applications of Jet Grouting
Unlock Audio Lesson
Now, let’s discuss some actual projects using jet grouting. Can anyone think of situations where this method would be useful?
Like on a highway where there might be liquefaction risks?
Exactly! For instance, during an earthquake, jet grouting can prevent soil liquefaction under a highway bridge, as studied by Cooke (2000).
What if the jet grouted areas can't handle all the stress?
That's a critical consideration! The spacing and diameter of jet grouted columns must be calculated based on the structure's load to ensure safety and stability.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section details jet grouting as a method for stabilizing soft or liquefiable soils, underpinning existing foundations, and controlling groundwater pollution. The technique involves drilling and injecting a cement mixture to improve soil strength and reduce liquefaction potential.
Detailed
Jet Grouting
Jet grouting is a modern soil improvement technique employed primarily in three applications: underpinning or excavation support, stabilization of soft or liquefiable soils, and groundwater or pollution control. The methodology involves the injection of a high-pressure mixed fluid that forms jets capable of eroding and replacing existing soil with a specialized injection mixture. The process typically commences with drilling small-diameter holes (90-150 mm) up to the desired injection depth.
The injected cement mixture is delivered through a metal rod that rotates and is retracted, allowing the mixture to fill the voids and enhance soil properties. This technique is particularly beneficial for supporting existing structures, improving underpinnings, and mitigating the risk of liquefaction, especially in cohesionless soils. Notably, research by Cooke (2000) indicated that jet grouting could successfully limit the movement of structures during seismic events by containing shear deformations in liquefiable soils. Furthermore, jet grouted columns are strategically spaced based on load requirements to enhance structural support while preventing liquefaction in adjacent soil layers. This comprehensive approach to soil stabilization highlights the efficacy of jet grouting in civil engineering applications.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Jet Grouting
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Applications of the jet grouting system fall into three broad categories: underpinning or excavation support, stabilization of soft or liquefiable soils, groundwater or pollution control. The method consists of soil injection of a mixed fluid at high pressure forming jets that erode and replace the existing soil with the injection mixture.
Detailed Explanation
Jet grouting is a modern technique used in geotechnical engineering. It is primarily used in three key areas: supporting excavations, stabilizing weak or water-saturated soils, and controlling groundwater or pollution. The process involves injecting a mixture of soil and fluid at high pressure, creating jets that break up the existing soil structure and mix it with the injected material, effectively replacing the soil.
Examples & Analogies
Think of making a smoothie. When you blend fruits and liquids together, the blades mix everything up, transforming solid pieces into a smooth mixture. Similarly, jet grouting uses high-pressure jets to integrate the surrounding soil with a new mix, reinforcing it much like blending fruits strengthens your smoothie.

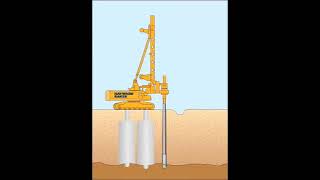

Process of Jet Grouting
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In general this method begins by drilling small-diameter holes (90-150 mm) up to the final injection depth. Cement mixture is injected into the soil with a metal rod that runs a rotational and withdrawal motion whilst.
Detailed Explanation
The jet grouting process starts with drilling small holes into the ground. The diameter of these holes usually ranges from 90 to 150 mm, and they are drilled to a specific depth based on the project requirements. Once the hole is made, a cement mixture is injected using a metal rod, which rotates and moves up and down to effectively mix the materials within the soil and create the required structural formations.
Examples & Analogies
It's similar to using a hand mixer. You insert the mixer into a bowl, then move it around while it mixes the ingredients. In jet grouting, the injected cement mixture is like the batter, and the mixing rod, like the mixer, ensures that everything is combined effectively to create a stable and strong material.
Applications in Foundation Support
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This technology is useful to underpinnings of existing foundations, to support excavations in cohesive less soils, to control the groundwater migration and to improve the strength of liquefiable soil.
Detailed Explanation
Jet grouting serves various applications, especially in areas where the ground is weak or liquefiable. By reinforcing the soil beneath existing foundations, it helps prevent settling or collapsing. It can also support excavations in soils that are less cohesive, ensuring that digging operations are safe and stable.
Examples & Analogies
Imagine adding support beams to an old house to make it more stable. Just like these beams provide strength and prevent the structure from swaying, jet grouting strengthens the ground, making it capable of supporting structures and preventing them from destabilizing.
Mitigation of Liquefaction Risk
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Cooke (2000) studied the use of jet grouting under an embankment slope at existing highway bridges to mitigate the risk of earthquake-induced liquefaction damage.
Detailed Explanation
Liquefaction is a phenomenon where saturated soil loses strength and stiffness in response to applied stress, often during earthquakes. Jet grouting can mitigate this risk by reinforcing the soil, enhancing its structural integrity and reducing movement that may lead to damage during seismic events.
Examples & Analogies
Think of liquefaction like quicksand, where the ground you would normally stand on turns fluid-like when disturbed. Jet grouting acts like a solid foundation stabilizer on quicksand, ensuring that structures remain secure and won't sink or shift during a quake.
Strength and Performance Dependence
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The performance of a jet-grouted zone is highly dependent on its strength. The strength assumed for the jet grouted material was high and resulted in no material failure during shaking.
Detailed Explanation
For jet grouting to be effective, the materials used must be strong and resilient. The performance of the treated zone relies on the strength of the grouted material, ensuring that it can withstand certain stresses without failing, especially during seismic activity.
Examples & Analogies
Think of a well-built bridge; if the materials used are strong and properly engineered, it can withstand heavy traffic and adverse weather conditions. Similarly, a jet-grouted area must have the right mix and strength to resist forces that may arise, such as those during an earthquake.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Jet Grouting: A technique to stabilize soils by injecting a high-pressure grout mixture.
-
Applications: Used for underpinning, soil stabilization, and groundwater pollution control.
-
Mechanism: Involves drilling and injecting a cement mixture to replace existing soil.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using jet grouting to stabilize a highway bridge against liquefaction during an earthquake.
-
Implementing jet grouted columns beneath a building foundation to improve load-bearing capacity.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Jet grouting helps soil stand upright, preventing quakes from causing fright.
📖 Fascinating Stories
-
Imagine building a strong castle on sand; jet grouting injects strength and makes it grand, protecting from floods and shifting land.
🧠 Other Memory Gems
-
J.E.T: Just Erode and Transform - remember that jet grouting transforms the soil beneath our feet.
🎯 Super Acronyms
S.O.U.L
- Stabilization Of Underlying Liquefiable soils.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Jet Grouting
Definition:
A soil improvement technique involving the injection of a high-pressure grout mixture to stabilize and replace existing soil.
-
Term: Liquefaction
Definition:
The process whereby saturated soil substantially loses strength and stiffness in response to applied stress, often due to seismic activity.
-
Term: Underpinning
Definition:
A method used to strengthen and stabilize the foundation of existing structures by increasing its load-bearing capacity.
