7 - Actuators and Their Role in Automation
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Definition and Function of Actuators
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we are diving into the world of actuators. Can anyone tell me what an actuator is?
Isn’t it a type of device that moves something?
Exactly! Actuators convert control signals into mechanical motion. Think of them as the muscles of a robotic system. Can anyone list some of their functions?
They convert different forms of energy into motion!
You got it! They also execute movements based on control commands and enable automation. A good way to remember this is the acronym 'MEMO'—Motion, Energy, Mechanism, Operation.
That’s helpful!
Great! Let's summarize: Actuators define the movements in automated systems by converting energy into mechanical action.
Classification of Actuators
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we know what actuators are, let's classify them. Can anyone suggest how we might group them?
By their energy source?
Exactly right! Actuators can be classified based on their energy source—like electrical, hydraulic, pneumatic, or even thermal and magnetic. Can someone give me an example of each?
Electrical ones are like motors; hydraulic ones are used in heavy machinery.
Perfect! Now, who can tell me the difference between linear and rotary actuators?
Linear actuators move in straight lines while rotary actuators turn!
Well done! So remember: Linear = straight, Rotary = turn.
Actuator Selection Criteria
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s move on to how we select actuators. What do you think is the most important factor?
Maybe the type of motion required?
Good point! The required motion is crucial. We also consider load, speed, precision, and even environmental conditions. Let’s create a memory aid: 'PLACES' to remember these criteria—Precision, Load, Acceleration, Cost, Environment, Space.
'PLACES,' got it!
Excellent! Remember to think about all these aspects when designing automated systems.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Actuators underlie the mechanics of automation, pivotal for tasks ranging from robotics to civil engineering applications. They operate based on energy sources such as electrical, hydraulic, and pneumatic systems, enabling various forms of motion and control necessary for effective automation.
Detailed
In automation and robotics, actuators serve as vital components designed to convert control signals into physical movement, analogous to muscles in biological systems. They operate through diverse energy sources, including electrical, hydraulic, and pneumatic forms, executing both linear and rotary motions. The classification of actuators reveals their functionality across multiple applications like robotic arms, construction equipment, and building management systems. Understanding how to select and integrate actuators based on specific criteria—such as load, speed, and environmental conditions—is essential for engineers aiming to design efficient automated systems. Furthermore, these components must interface correctly with controllers to implement effective control strategies, which are crucial in realizing automation goals across various industries, highlighting their integral role in both current and future technological advancements.

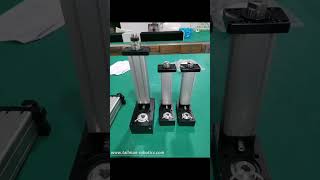

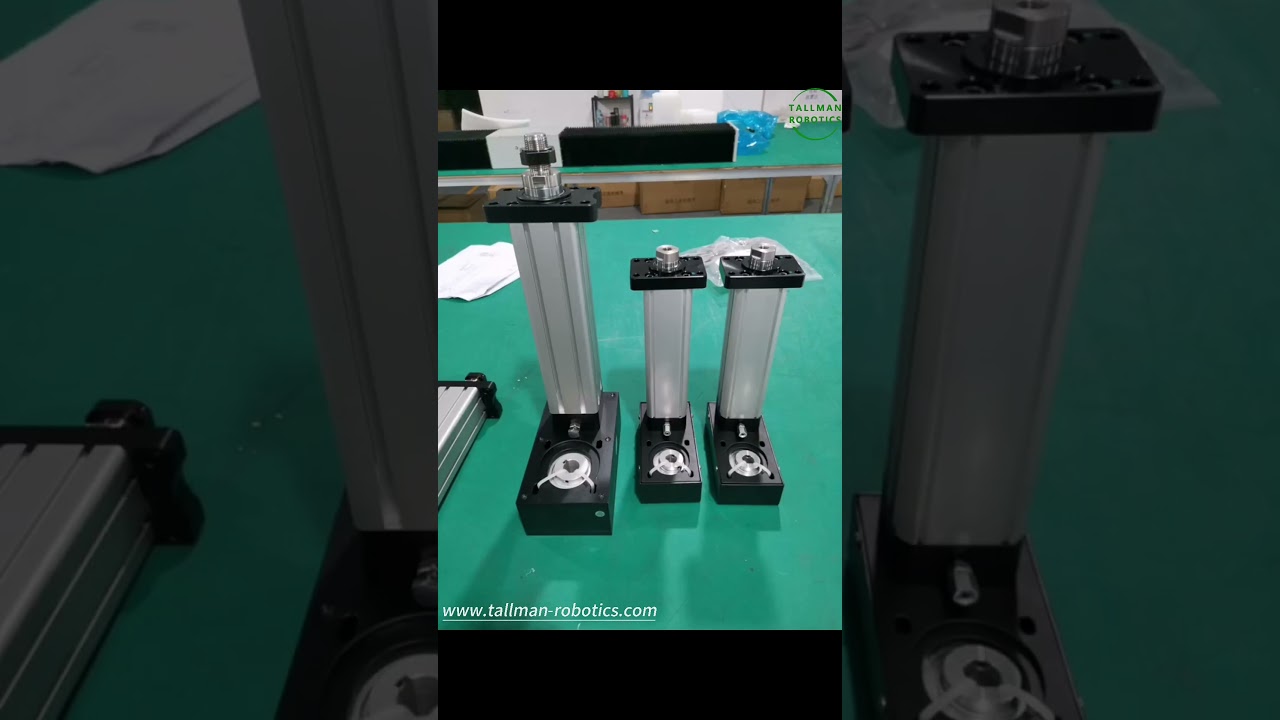

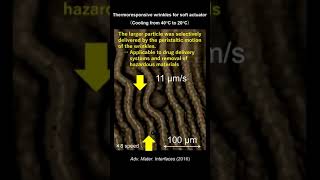

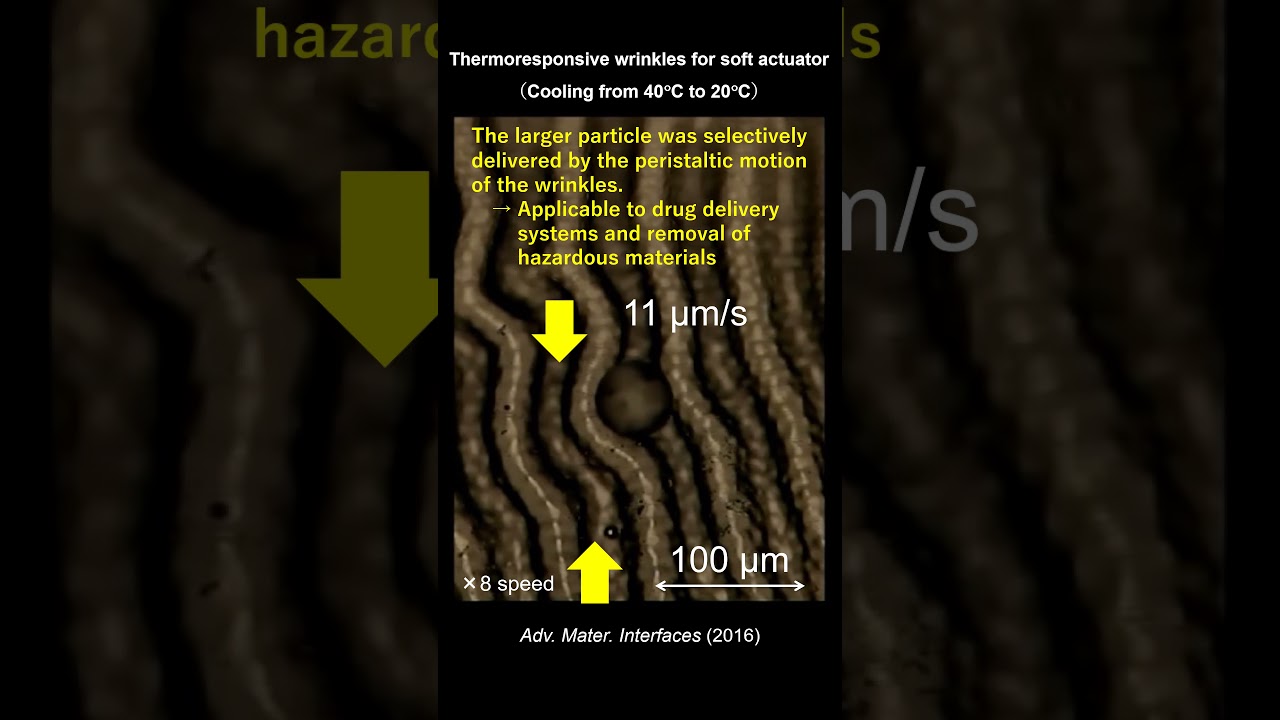

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Actuators
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
In robotics and automation, actuators play a crucial role as the physical devices responsible for converting control signals into mechanical motion or action. Just as sensors serve as the 'sensory organs' of a robotics system, actuators serve as its 'muscles.' Whether it’s rotating a robotic arm, lifting a structural component, or adjusting a control valve in a building system, actuators are essential to making automation systems function in real-world applications. For civil engineers, the importance of actuators extends beyond factory floors to smart infrastructure, automated construction machinery, building management systems, and robotic inspection tools. Understanding how actuators function, their types, selection criteria, and integration with controllers is key for designing efficient automated systems.
Detailed Explanation
This chunk serves as an introduction to the role of actuators in automation. Actuators are compared to the muscles of a robotics system, indicating their function of executing physical movement in response to control signals. They are essential for numerous applications, ranging from industrial tasks to civil engineering projects such as smart infrastructure. Understanding actuators helps engineers design better automated systems by knowing how to select and integrate them.
Examples & Analogies
Think of a robot as a person. The sensors are like the eyes and ears, gathering information about the environment, while the actuators are like the muscles that allow the person to move and act. Just as a person needs both sensory input and muscular control to function effectively, an automated system relies on both sensors and actuators.
Definition and Function of Actuators
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
An actuator is a component of a machine that is responsible for moving or controlling a mechanism or system. It receives a control signal (often electrical) and responds by producing physical movement. Functions of Actuators: • Convert energy (electrical, hydraulic, pneumatic) into mechanical motion. • Execute movement based on control commands. • Provide linear or rotary displacement. • Enable automation in systems requiring repetitive or precise movement.
Detailed Explanation
An actuator takes a specific control signal—usually electrical—and translates this into movement or control of a system. The main functions include converting various types of energy (like electrical or hydraulic) into motion and executing commands that lead to either straight-line (linear) or rotational (rotary) movements. Actuators are crucial for automation because they allow systems to perform repetitive or highly precise tasks efficiently.
Examples & Analogies
Imagine a toy car that moves when you press a remote control button. The button sends an electrical signal to an actuator in the car, which converts that signal into motion—making the car drive forward, backward, or turn.
Classification of Actuators
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Actuators are broadly classified based on the energy source and the type of motion they produce. Based on Energy Source: 1. Electrical Actuators - Operate using electrical energy. Examples: Electric motors, solenoids. 2. Hydraulic Actuators - Use pressurized fluid to produce movement. Capable of high force output. 3. Pneumatic Actuators - Use compressed air for movement. Suitable for fast, repetitive tasks. 4. Thermal and Magnetic Actuators - Use thermal expansion or magnetic fields for motion.
Detailed Explanation
Actuators can be categorized based on the energy source they utilize or the motion they produce. For instance, electrical actuators use electrical energy and are common in applications like robotics, while hydraulic actuators use pressurized fluids to produce powerful movements—often seen in heavy machinery. Pneumatic actuators employ compressed air and are suited for tasks requiring quick, repeated movements, whereas thermal and magnetic actuators are typically found in specialized applications.
Examples & Analogies
Consider how different types of vehicles work. Electric cars run on electricity like electrical actuators, while construction equipment like excavators operate using hydraulic power. In this analogy, the type of fuel (energy source) determines how the vehicle (actuator) operates.
Applications of Electric Actuators
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Electric actuators are widely used in robotic and automation systems due to their ease of control and integration with microcontrollers and PLCs. Types of Electric Actuators: (a) DC Motors - Provide continuous rotary motion. (b) AC Motors - Used in industrial automation. (c) Stepper Motors - Move in discrete steps. (d) Servo Motors - Combine motor and feedback system. (e) Solenoids - Electromagnetic actuators for linear motion.
Detailed Explanation
Electric actuators are favored for their simplicity in control and wide adaptability to various systems. DC motors are perfect for applications needing continuous motion, whereas stepper motors allow for precision in movement by stepping through defined increments. Servo motors are high precision devices that provide controlled movement due to their feedback system. Other devices like solenoids serve particular purposes, such as creating linear movement to operate locks or valves.
Examples & Analogies
Think about a camera's autofocus feature. The camera uses tiny motors to shift the lens into focus. These motors are a type of electric actuator (often servo motors) that adjust based on the distance to the subject—the same way servo motors adjust the position of robotic arms to perform tasks precisely.
Role of Actuators in Automation
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Actuators are central to executing automated tasks. They translate digital decisions from controllers (PLCs, microcontrollers, SCADA systems) into real-world physical actions. Applications in Automation Systems: • Robotic arms – Actuators drive each joint to move precisely. • Automated guided vehicles (AGVs) – Motors help in navigation. • Building management systems – Control HVAC dampers, lighting adjustments, automated blinds.
Detailed Explanation
Actuators translate digital commands from various control systems into physical actions, making them vital for automation. For example, in robotic systems, actuators enable the precise movement of joints, allowing robots to perform complex tasks. In automated vehicles, they guide the navigation process, while in smart buildings, they manage environmental systems like heating and lighting automatically.
Examples & Analogies
Imagine ordering a pizza online. The digital system processes your order (control signal), and then the kitchen staff (actuators) receives this instruction. Just like they prepare the pizza, actuators in an automated system carry out tasks based on instructions from controllers, bringing the digital command into reality.
Actuator Selection Criteria
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Choosing the right actuator depends on multiple engineering and application-specific factors: 1. Required motion – Linear or rotary 2. Load to be moved – Weight, size, and friction 3. Speed and acceleration – Desired motion profile 4. Precision and accuracy – Need for fine control 5. Available energy source – Electricity, air, or fluid 6. Environment conditions – Temperature, dust, moisture 7. Space constraints – Size and shape of actuator 8. Cost and maintenance – Initial and operational costs.
Detailed Explanation
Selecting the appropriate actuator for a specific application involves assessing several factors. These include the type of movement required (linear or rotary), characteristics of the load, speed requirements, and the precision needed. Additionally, engineers must consider the energy source available, environmental conditions, actuator size, and overall cost, which includes both purchase and maintenance.
Examples & Analogies
When buying a new car, you consider factors like fuel efficiency, size, functionality, and budget. Similarly, engineers weigh various criteria to choose the best actuator for the job at hand, ensuring it meets their specific needs just like picking the right vehicle for your lifestyle.
Key Concepts
-
Actuators convert control signals into mechanical actions.
-
Types of actuators include electrical, hydraulic, and pneumatic.
-
Classification can also be based on motion types - linear and rotary.
-
Selection of actuators depends on various criteria like load, speed, and precision.
Examples & Applications
Electric motors in robotics directly control the movements of robotic limbs.
Hydraulic actuators are used in excavators to lift heavy materials.
Pneumatic actuators can operate doors in automated production lines.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Actuators move, make things swell, turning signals into motion—just like magic, can't you tell?
Stories
Imagine a robot on a busy assembly line, its arms made of metal and circuits. Every time it receives a command, it moves smoothly, just like a dancer, each actuator responding in perfect harmony to ensure the job gets done.
Memory Tools
'MEMO' reminds us: Motion, Energy, Mechanism, Operation are what actuators do.
Acronyms
'PLACES' reminds us of the important actuator selection criteria
Precision
Load
Acceleration
Cost
Environment
Space.
Flash Cards
Glossary
- Actuator
A device that converts control signals into physical motion or action.
- Linear Actuator
An actuator that produces straight-line motion.
- Rotary Actuator
An actuator that generates rotational movement.
- Hydraulic Actuator
An actuator that uses pressurized fluid to create movement.
- Pneumatic Actuator
An actuator that utilizes compressed air for movement.
- Electrical Actuator
An actuator powered by electrical energy, commonly used in automation.
