13 - OSCILLATIONS

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Oscillations

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we will explore oscillations, which are repetitive motions around a central point. Can anyone give me an example of oscillatory motion they’ve seen?

Student 1
Student 1

Is swinging on a swing an example of oscillation?

Teacher
Teacher

Yes, great example! Swinging is indeed an oscillatory motion. Now, what do we mean by periodic motion?

Student 2
Student 2

It's a motion that repeats after a certain time!

Teacher
Teacher

Correct! We call the time it takes to complete one full cycle the period. Who can remember the unit for period?

Student 3
Student 3

The unit is seconds!

Teacher
Teacher

Exactly! So the period is measured in seconds. Now let's summarize: oscillations are periodic movements around an equilibrium position, like the swings in a playground.

Frequency and its Relationship to Period

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, we need to understand the term frequency. Who can tell me how frequency relates to period?

Student 4
Student 4

I think frequency is how many cycles happen in a certain amount of time.

Teacher
Teacher

Excellent! And can anyone provide the formula that connects frequency to period?

Student 1
Student 1

Frequency is the reciprocal of period, so ν = 1/T.

Teacher
Teacher

Perfect! Remember, frequency is measured in hertz (Hz), which indicates cycles per second.

Student 2
Student 2

So, if T is 2 seconds, then frequency is 0.5 Hz?

Teacher
Teacher

That's right! Let’s conclude this discussion: Period and frequency describe how oscillations repeat. The longer the period, the lower the frequency.

Displacement and Amplitude in SHM

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Next, let’s discuss displacement and amplitude. Can anyone define displacement in the context of oscillations?

Student 3
Student 3

It's the distance from the equilibrium position.

Teacher
Teacher

Correct! And how does amplitude fit into this definition?

Student 4
Student 4

Amplitude is the maximum displacement from the mean position!

Teacher
Teacher

Exactly right! So if we say that a pendulum swings with an amplitude of 5 cm, what does that mean?

Student 1
Student 1

It moves 5 cm from the central position to each side!

Teacher
Teacher

Great job! Remember this: amplitude signifies how far something moves from its rest position during an oscillation.

Simple Harmonic Motion

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s delve into simple harmonic motion, or SHM. What distinguishes SHM from other oscillations?

Student 2
Student 2

The forces acting on the object are proportional to its displacement from the equilibrium!

Teacher
Teacher

Absolutely! And what does that mean for the motion of the object?

Student 3
Student 3

It means SHM is predictable and follows a sinusoidal pattern.

Teacher
Teacher

Exactly. Remember that in SHM, we can describe displacement using the formula x(t) = A cos(ωt + φ). Let's summarize these important points before we move on.

Energy in SHM

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, energy plays an essential role in simple harmonic motion. Who can tell me about kinetic and potential energy in SHM?

Student 4
Student 4

Kinetic energy is highest at the mean position, while potential energy is highest at maximum displacement!

Teacher
Teacher

Correct! Why do these values change as the pendulum swings?

Student 1
Student 1

Because energy transforms between kinetic and potential as the pendulum moves!

Teacher
Teacher

Exactly! The total energy in SHM remains constant. So every time the pendulum swings back and forth, it is a perfect transformation of energy.

Teacher
Teacher

As a summary, in SHM, the energy oscillates between kinetic and potential, demonstrating the conservation of mechanical energy.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section introduces oscillatory motion, emphasizing its importance in various physical phenomena and characteristics like period, frequency, and amplitude.

Standard

Oscillatory motions are repetitive movements around an equilibrium position, exemplified by pendulums and vibrating strings. The section lays the groundwork for understanding simple harmonic motion (SHM), which occurs in numerous physical contexts including musical instruments and mechanical systems. Key concepts like periodic motion, displacement, and the relationship between period and frequency are introduced.

Detailed

Detailed Overview of Oscillations

Oscillations are fundamental motions encountered in various physical systems, including musical instruments and mechanical devices. This section begins with a clear definition of oscillatory motion, characterized as repetitive back-and-forth movement around a mean position. Numerous real-world examples, such as swinging pendulums or vibrating strings in instruments, help illustrate this concept.

Key Concepts:

  1. Periodic Motion: Defined as a motion that repeats at regular intervals, exemplified by the motion of a ball being bounced or a clock pendulum.
  2. Equilibrium Position: Every oscillating system has a mean position where it experiences no net force, leading to oscillations once displaced.
  3. Simple Harmonic Motion (SHM): The simplest form of oscillatory motion, characterized by forces proportional to the distance from equilibrium and directed towards it.
  4. Fundamental Terms: Period (T), frequency (ν), amplitude (A), and phase (φ) are critical for describing oscillatory motion concisely. The relationship between frequency and period is highlighted, emphasizing the importance of these concepts in both physics and engineering.

The discussion of oscillations continues into observations about damping and forced oscillations, outlining scenarios in which real systems experience gradual energy loss due to friction or other dissipative forces. Understanding oscillatory motion is vital for further explorations in wave phenomena and other advanced topics in physics.

Youtube Videos

Example 13.2 Oscillations
Example 13.2 Oscillations
Oscillations One Shot Physics 2024-25 | Class 11th Physics NCERT with Experiment by Ashu Sir
Oscillations One Shot Physics 2024-25 | Class 11th Physics NCERT with Experiment by Ashu Sir

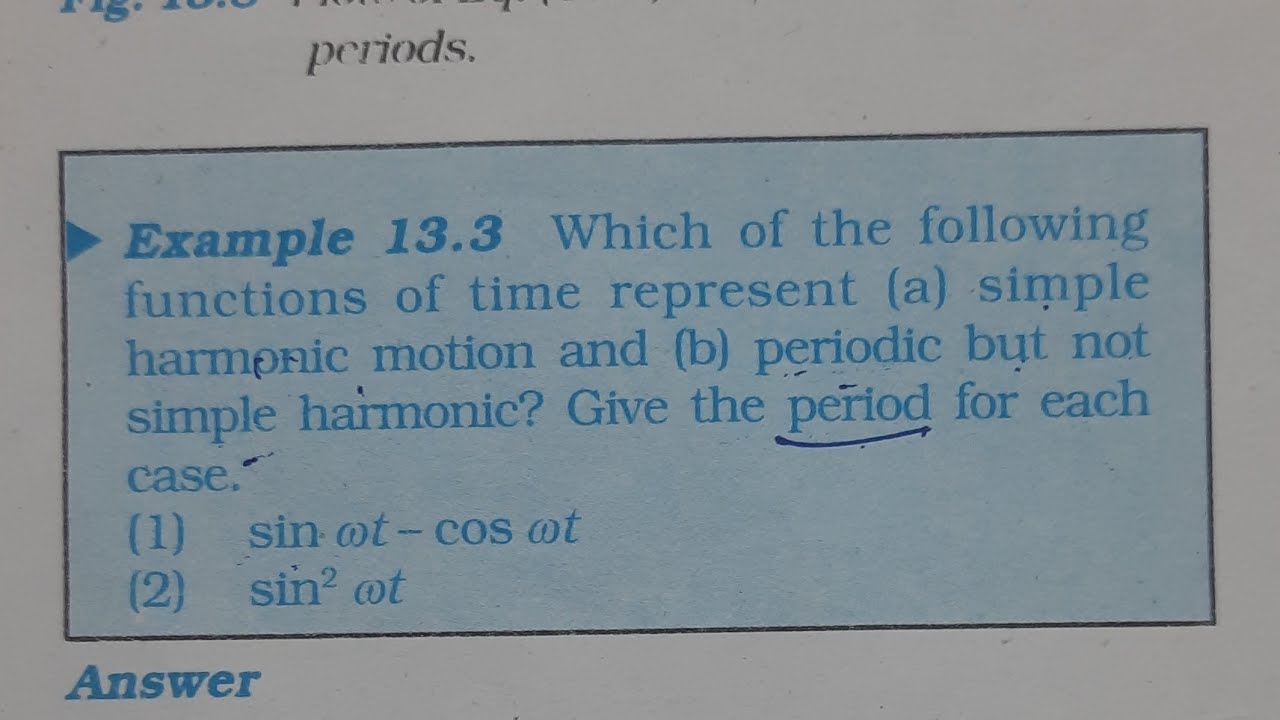

Example 13.3 Oscillations
Example 13.3 Oscillations
Simple Harmonic Motion
Simple Harmonic Motion
Oscillation | Full Chapter in ONE SHOT | Chapter 13 | Class 11 Physics 🔥
Oscillation | Full Chapter in ONE SHOT | Chapter 13 | Class 11 Physics 🔥
Simple Harmonic Motion is Simple!
Simple Harmonic Motion is Simple!
Physics teacher shows SHM #shorts #wave
Physics teacher shows SHM #shorts #wave
Angle between particle velocity, wave velocity & transverse wave is? AIIMS vs IIT #shorts #neet #jee
Angle between particle velocity, wave velocity & transverse wave is? AIIMS vs IIT #shorts #neet #jee
Oscillations | CBSE Class 11th Physics | Full Chapter in 1️⃣5️⃣ Mins🔥 | Rapid Revision Series
Oscillations | CBSE Class 11th Physics | Full Chapter in 1️⃣5️⃣ Mins🔥 | Rapid Revision Series
Class 11th Physics Chapter 13 | Exercise Questions (13.1 to 13.18) | Oscillations | NCERT
Class 11th Physics Chapter 13 | Exercise Questions (13.1 to 13.18) | Oscillations | NCERT

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Oscillatory Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In our daily life we come across various kinds of motions.
You have already learnt about some of them, e.g., rectilinear motion and motion of a projectile. Both these motions are non-repetitive. We have also learnt about uniform circular motion and orbital motion of planets in the solar system. In these cases, the motion is repeated after a certain interval of time, that is, it is periodic. In your childhood, you must have enjoyed rocking in a cradle or swinging on a swing. Both these motions are repetitive in nature but different from the periodic motion of a planet. Here, the object moves to and fro about a mean position. The pendulum of a wall clock executes a similar motion. Examples of such periodic to and fro motion abound: a boat tossing up and down in a river, the piston in a steam engine going back and forth, etc. Such a motion is termed as oscillatory motion. In this chapter we study this motion.

Detailed Explanation

This paragraph introduces the concept of oscillatory motion, explaining that it's a type of movement that repeats itself over time, unlike rectilinear or projectile motions which do not repeat. Examples such as swinging and pendulums illustrate this concept. Oscillatory motion is defined as any repetitive movement around a central (mean) position.

Examples & Analogies

Think of a swing in a playground. When you push it, it moves back and forth in a rhythm, repeatedly hitting the same highest and lowest points. This is similar to how a oscillatory motion works – moving to and fro around a central point.

Periodic Motion Defined

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Thus, a motion that repeats itself at regular intervals of time is called periodic motion. Very often, the body undergoing periodic motion has an equilibrium position somewhere inside its path. When the body is at this position no net external force acts on it. Therefore, if it is left there at rest, it remains there forever. If the body is given a small displacement from the position, a force comes into play which tries to bring the body back to the equilibrium point, giving rise to oscillations or vibrations.

Detailed Explanation

This portion defines periodic motion more formally, highlighting the concept of an equilibrium position, where no net force affects the object. It explains that if the object is disturbed, it experiences a restoring force that pulls it back toward equilibrium, creating oscillations.

Examples & Analogies

Imagine a ball at the bottom of a bowl. If it’s unbothered, it stays there. If you push it slightly, it rolls away but eventually rolls back to the center – this back and forth motion is a simple gesture of oscillation.

Oscillations vs Vibrations

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

There is no significant difference between oscillations and vibrations. It seems that when the frequency is small, we call it oscillation (like, the oscillation of a branch of a tree), while when the frequency is high, we call it vibration (like, the vibration of a string of a musical instrument).

Detailed Explanation

This chunk clarifies the terms oscillation and vibration, explaining that they refer to similar physical phenomena differentiated mainly by their frequencies. Lower frequency movements are termed oscillations, while higher frequency movements are vibrations.

Examples & Analogies

Picture a tree branch swaying gently in the wind – that’s an oscillation. Now think of a guitar string being plucked; it vibrates much faster and creates the music we hear. Both terms describe motion but at different frequencies.

Simple Harmonic Motion (SHM)

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Simple harmonic motion is the simplest form of oscillatory motion. This motion arises when the force on the oscillating body is directly proportional to its displacement from the mean position, which is also the equilibrium position. Further, at any point in its oscillation, this force is directed towards the mean position.

Detailed Explanation

This section describes simple harmonic motion (SHM), where the restoring force is proportional to the displacement of the object from its equilibrium. This means that if an object moves away from its resting position, a force acts to pull it back, creating a regular oscillating motion.

Examples & Analogies

Imagine a mass attached to a spring. If you pull the mass downwards and let go, the spring pulls it back up, then it overshoots, bounces back down and the cycle repeats. This regular movement up and down is an example of SHM.

Damped and Forced Oscillations

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In practice, oscillating bodies eventually come to rest at their equilibrium positions because of the damping due to friction and other dissipative causes. However, they can be forced to remain oscillating by means of some external periodic agency. We discuss the phenomena of damped and forced oscillations later in the chapter.

Detailed Explanation

In this part, it is explained that oscillations tend to decrease in amplitude and eventually stop due to friction (damping). However, it is also possible to maintain oscillations by applying a continuous external force, setting the stage for later discussions on these concepts.

Examples & Analogies

Think of a swing slowing down due to friction when you don't push it again. If however, someone keeps pushing it at regular intervals, the swing will keep going. This represents damped oscillation and forced oscillation.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Periodic Motion: Defined as a motion that repeats at regular intervals, exemplified by the motion of a ball being bounced or a clock pendulum.

  • Equilibrium Position: Every oscillating system has a mean position where it experiences no net force, leading to oscillations once displaced.

  • Simple Harmonic Motion (SHM): The simplest form of oscillatory motion, characterized by forces proportional to the distance from equilibrium and directed towards it.

  • Fundamental Terms: Period (T), frequency (ν), amplitude (A), and phase (φ) are critical for describing oscillatory motion concisely. The relationship between frequency and period is highlighted, emphasizing the importance of these concepts in both physics and engineering.

  • The discussion of oscillations continues into observations about damping and forced oscillations, outlining scenarios in which real systems experience gradual energy loss due to friction or other dissipative forces. Understanding oscillatory motion is vital for further explorations in wave phenomena and other advanced topics in physics.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • A pendulum swinging back and forth is an example of oscillation, demonstrating periodic motion.

  • Vibrating strings in musical instruments convert motion into sound, illustrating SHM.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Oscillate, don't hesitate, it's a motion that won't wait!

📖 Fascinating Stories

  • Once upon a time, a pendulum danced back and forth, never tiring, always swinging. The longer its swing, the slower it moved, showing us that motion has patterns we can predict.

🧠 Other Memory Gems

  • To remember SHM’s characteristics: 'Silly Penguins Average Funny Dances' (S: Simple, P: Periodic, A: Amplitude, F: Force direction).

🎯 Super Acronyms

P.A.F.F. - Period, Amplitude, Frequency, Force

  • Key terms in oscillations.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Oscillation

    Definition:

    A repetitive movement around a central point or mean position.

  • Term: Periodic Motion

    Definition:

    Motion that repeats at regular intervals.

  • Term: Amplitude

    Definition:

    The maximum extent of a move away from the mean position in oscillatory motion.

  • Term: Frequency

    Definition:

    The number of oscillations or cycles per unit time, measured in hertz (Hz).

  • Term: Period

    Definition:

    The duration of one complete cycle of periodic motion.

  • Term: Simple Harmonic Motion (SHM)

    Definition:

    A type of oscillatory motion where the restoring force is proportional to the displacement from the equilibrium position.

  • Term: Displacement

    Definition:

    The distance from the equilibrium position at any point in an oscillatory motion.
