13.3 - SIMPLE HARMONIC MOTION

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding SHM and Its Equation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we will dive into Simple Harmonic Motion, or SHM. SHM is defined as the motion of a particle oscillating about a mean position, with its displacement expressed as a cosine function. Can anyone tell me the equation that defines SHM?

Student 1
Student 1

Is it x(t) equals A cosine of ωt plus φ?

Teacher
Teacher

Exactly! The equation is x(t) = A cos(ωt + φ). Here, A is the amplitude. Does anyone remember what amplitude means?

Student 2
Student 2

It's the maximum distance from the equilibrium position, right?

Teacher
Teacher

Correct! The amplitude tells us how far the oscillation goes from the center. Now, who can explain what ω represents?

Student 3
Student 3

Isn't ω the angular frequency? It tells us how fast the motion oscillates?

Teacher
Teacher

Yes, excellent! Angular frequency relates to the frequency of oscillation and helps in determining the time period T using the formula ω = 2π/T. Let's summarize this session: SHM is defined by the cosine function, where A is amplitude and ω is angular frequency.

Characteristics of SHM

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's explore the characteristics of SHM. We have discussed amplitude and angular frequency. Can anyone tell me about the phase constant φ?

Student 4
Student 4

The phase constant shifts the wave along the time axis, right? It affects when we start observing the wave.

Teacher
Teacher

Correct! The position of the particle at any given time is influenced by φ. How does this relate to the idea of time period T?

Student 1
Student 1

The time period T is the duration for one complete cycle of oscillation, and it's related to the angular frequency?

Teacher
Teacher

Right! T = 2π/ω. The time period is essential for understanding how long it takes for the motion to repeat. To summarize: amplitude indicates the extent of displacement, ω relates to how fast the motion oscillates, and φ changes the starting position.

SHM in Real Life

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's talk about where we see SHM in real life. Can anyone provide an example of SHM?

Student 2
Student 2

A pendulum swinging back and forth is a good example, right?

Student 4
Student 4

What about a vibrating guitar string?

Teacher
Teacher

Absolutely correct! Both examples demonstrate SHM. The pendulum exhibits SHM for small displacements, and the string vibrates to produce sound in harmonic motion. It's interesting how prevalent SHM is across many phenomena. Let’s summarize: Pendulums and vibrating strings are practical examples of SHM.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Simple Harmonic Motion (SHM) describes a periodic oscillation where the displacement of a particle varies sinusoidally with time.

Standard

This section introduces Simple Harmonic Motion (SHM) as a specific type of periodic motion characterized by sinusoidal displacement of an oscillating particle. Key concepts such as amplitude, angular frequency, and phase are defined, along with the mathematical representation of SHM and its relationship to uniform circular motion.

Detailed

Simple Harmonic Motion (SHM)

Overview of Simple Harmonic Motion

Simple Harmonic Motion (SHM) is a specific type of oscillatory motion where the displacement of a particle from its equilibrium position varies sinusoidally over time. The mathematical representation of SHM is expressed as:

Equation of SHM

$$
x(t) = A \cos(\omega t + \phi)$$

Where:
- x(t): Displacement of the particle at time t
- A: Amplitude (maximum displacement)
- ω: Angular frequency (related to the frequency of oscillation)
- φ: Phase constant (initial angle)

Key Characteristics

  • Amplitude (A): The maximum extent of the oscillation from the mean position.
  • Angular Frequency (ω): Indicates how rapidly the motion oscillates, with units in radians per second, related to the time period (T) by the formula:
    $$\omega = \frac{2\pi}{T}$$
  • Phase (ωt + φ): Determines the position of the particle at any given time, with φ providing a shift based on the initial conditions.

Application of SHM

SHM is not only theoretical but can be observed in daily phenomena, such as the motion of pendulums and vibrating systems. This type of motion allows a deeper understanding of various physical systems, including mechanical oscillators and sound waves. Moreover, SHM serves as a foundational concept in studying waves and related phenomena in the next chapter.

In conclusion, SHM's definition, mathematics, and examples laid the groundwork for understanding oscillatory behavior in physics.

Youtube Videos

Physics Oscillations part 13 (Accelaration in Simple harmonic Motion) CBSE class 11
Physics Oscillations part 13 (Accelaration in Simple harmonic Motion) CBSE class 11

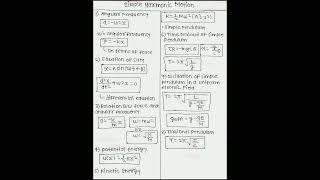

simple harmonic motion (SHM) class 11 important formulas
simple harmonic motion (SHM) class 11 important formulas
Oscillation | Full Chapter in ONE SHOT | Chapter 13 | Class 11 Physics 🔥
Oscillation | Full Chapter in ONE SHOT | Chapter 13 | Class 11 Physics 🔥
Oscillations One Shot Physics 2024-25 | Class 11th Physics NCERT with Experiment by Ashu Sir
Oscillations One Shot Physics 2024-25 | Class 11th Physics NCERT with Experiment by Ashu Sir
Energy in Simple Harmonic Motion - Oscillations | Class 11 Physics Chapter 13 | CBSE 2024-25
Energy in Simple Harmonic Motion - Oscillations | Class 11 Physics Chapter 13 | CBSE 2024-25
simple harmonic motion|| physics hacks|| #virals #real #motivation #hack
simple harmonic motion|| physics hacks|| #virals #real #motivation #hack
Oscillation Oneshot || Simple Harmonic motion SHM Oneshot || Class11 Physics Chapter 14 ONESHOT
Oscillation Oneshot || Simple Harmonic motion SHM Oneshot || Class11 Physics Chapter 14 ONESHOT

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Simple Harmonic Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Consider a particle oscillating back and forth about the origin of an x-axis between the limits +A and -A as shown in Fig. 13.3. This oscillatory motion is said to be simple harmonic if the displacement x of the particle from the origin varies with time as:
x(t) = A cos(ωt + φ) (13.4)

Detailed Explanation

Simple Harmonic Motion (SHM) describes a specific type of oscillation characterized by a sinusoidal function. The equation x(t) = A cos(ωt + φ) represents the position of a particle over time, where:
- A is the amplitude, the maximum extent of the oscillation from the mean position.
- ω is the angular frequency, determining how quickly the oscillation occurs.
- φ is the phase constant, which accounts for where in its cycle the oscillation begins.
Thus, SHM is a periodic motion where the displacement of the object is described by a cosine function of time, making it distinct from general periodic motions.

Examples & Analogies

Think of a swing at a playground. When you push the swing, it moves forward and backward; this movement can be described using SHM. The highest point of the swing's movement corresponds to the maximum displacement or amplitude, while the speed of the swing at the lowest point is highest, much like the sinusoidal function shows.

Characteristics of Simple Harmonic Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Thus, simple harmonic motion (SHM) is not any periodic motion but one in which displacement is a sinusoidal function of time. Fig. 13.4 shows the positions of a particle executing SHM at discrete value of time, each interval of time being T/4, where T is the period of motion.

Detailed Explanation

SHM is known for its oscillatory nature, where the object moves back and forth around a central position. The key characteristics of SHM are:
- The motion is repetitive, occurring in a fixed interval known as the period (T), which is the time taken to complete one full cycle of motion.
- The displacement from the equilibrium position varies in a sinusoidal manner, leading to a smooth repetitive pattern.
- The relationship between displacement, velocity, and acceleration in SHM can be derived from its sinusoidal nature, demonstrating their interdependence and periodic behavior.

Examples & Analogies

Imagine a pendulum swinging. At the highest points of its swing, it momentarily stops (zero velocity) before changing direction, similar to how a sine or cosine graph peaks. The period of the pendulum is how long it takes to return to its starting point, embodying the rhythm of SHM.

Key Parameters in Simple Harmonic Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The quantities A, ω, and φ which characterize a given SHM have standard names, as summarised in Fig. 13.6. Let us understand these quantities. The amplitude A of SHM is the magnitude of maximum displacement of the particle. Note, A can be taken to be positive without any loss of generality.

Detailed Explanation

Each parameter in the SHM equation plays a significant role:
- Amplitude (A): Represents the maximum distance from the equilibrium position; it indicates how far the particle moves from its center.
- Angular Frequency (ω): Relates to how quickly the particle oscillates; higher values mean faster oscillations.
- Phase Constant (φ): Defines the starting position of the motion at time t = 0, which affects the displacement’s initial value.
Understanding these parameters helps in analyzing and predicting the behavior of oscillatory systems.

Examples & Analogies

Consider a tuning fork. When struck, it vibrates with an amplitude that determines how loud the sound is (the further it moves, the more intense its sound). The frequency of these vibrations translates into the pitch of the sound: faster vibrations result in a higher pitch.

Relationship Between Angular Frequency and Period

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Finally, the quantity ω can be seen to be related to the period of motion T. Taking, for simplicity, φ = 0 in Eq. (13.4), we have
x(t) = A cos(ωt). Since the motion has a period T, x(t) is equal to x(t + T). That is, A cos(ωt) = A cos(ω(t + T)).

Detailed Explanation

The relationship between angular frequency and period is crucial in understanding SHM. The angular frequency ω, measured in radians per second, describes how rapidly the oscillation occurs. The period T is the time taken to complete one full cycle of the oscillation. The key equation linking these two is:
ω = 2π/T. Thus, while a larger ω leads to more cycles per second (higher frequency), the period is inversely proportional to ω, meaning a faster oscillation results in a shorter period.

Examples & Analogies

Think of a merry-go-round. If it spins faster, it completes more revolutions in the same amount of time, reflecting a shorter period of rotation. Conversely, a slower ride results in a longer period before returning to the same position.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Simple Harmonic Motion: Defined as the motion of a particle oscillating about its mean position with sinusoidal displacement.

  • Amplitude (A): The maximum distance from the mean position.

  • Angular Frequency (ω): Measures the rate of oscillation in radians per second.

  • Phase Constant (φ): A term that indicates the starting position of the oscillation.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • The motion of a pendulum is a classic example of simple harmonic motion when displaced slightly from its vertical position.

  • Vibrating strings of musical instruments demonstrate SHM, where the vibration creates sound waves.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • In SHM, displacement swings wide, from plus A to minus side.

📖 Fascinating Stories

  • Imagine a pendulum in the moonlight, swinging gently with each heartbeat—its rhythm a dance of harmony as it glides from left to right.

🧠 Other Memory Gems

  • A.P.P: Remember Amplitude, Phase, and Period for SHM.

🎯 Super Acronyms

SHM = Simple Harmonic Motion.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Simple Harmonic Motion (SHM)

    Definition:

    A type of periodic motion where the displacement is a sinusoidal function of time, characterized by a restoring force proportional to the displacement.

  • Term: Amplitude (A)

    Definition:

    The maximum distance of an oscillating particle from its mean position.

  • Term: Angular Frequency (ω)

    Definition:

    The rate of oscillation measured in radians per second, related to the frequency and time period.

  • Term: Phase Constant (φ)

    Definition:

    The initial phase of the sinusoidal function, indicating how far the function is shifted in time.

  • Term: Time Period (T)

    Definition:

    The duration of one complete cycle of motion.
