13.10 - POINTS TO PONDER

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

The Nature of Periodicity

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're going to explore periodic motion. Can anyone tell me what we understand by the term 'period'?

Student 1
Student 1

Isn't it the time it takes to complete one cycle of motion?

Teacher
Teacher

Absolutely! The period T is indeed the least time after which motion repeats itself. In mathematical terms, if we were to observe the motion, it would repeat after 'nT' where 'n' is an integer. So, periodicity means repeating behavior over time.

Student 2
Student 2

Does this mean that any motion that repeats is considered periodic?

Teacher
Teacher

Good question! Yes, but not all periodic motions are 'simple harmonic motions.'

Student 3
Student 3

What's the difference?

Teacher
Teacher

Only motions that follow the force law F = -kx are classified as simple harmonic motion.

Student 4
Student 4

F is the restoring force, right?

Teacher
Teacher

Correct! Always remember that SHM relates closely to the forces involved.

Teacher
Teacher

Let's summarize: Periodicity involves a regular, repeating cycle, and simple harmonic motion is a special case governed by specific force laws.

SHM and Circular Motion

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's transition to the connection between circular motion and simple harmonic motion. Who can explain how circular motion can result from SHM?

Student 1
Student 1

Is it because of the forces acting on the particle?

Teacher
Teacher

Exactly! Circular motion can arise from various forces, including the inverse-square law in planetary motion as well as the specific SHM force. In SHM represented in two dimensions, we need to ensure that the phases between the x and y motions differ by π/2.

Student 2
Student 2

So, if something starts from the coordinates (0, A), it moves in a circle with radius A, right?

Teacher
Teacher

That's right! With an initial velocity, it guarantees uniform circular motion. Remember: phase relationships are crucial!

Student 3
Student 3

What if the phase relationship is off?

Teacher
Teacher

Then the motion won't be circular. Perfect circular motion requires that phase difference!

Teacher
Teacher

In summary, both SHM and circular motion are linked through their force laws and phase relationships.

Initial Conditions and Motion Completeness

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Moving on, let's talk about initial conditions. Why do you think we need them in SHM?

Student 4
Student 4

To predict the future behavior of the motion?

Teacher
Teacher

Exactly! For linear SHM, two initial conditions are needed – position and velocity, or amplitude and phase, or energy and phase.

Student 1
Student 1

What if I know one of them? Can I find the other?

Teacher
Teacher

Great thought! Yes, if you have amplitude or energy, you can derive the phase using either initial position or velocity. This interrelation is key.

Student 2
Student 2

Just to clarify, does this mean that periodic motions can be expressed through various combinations?

Teacher
Teacher

Exactly! Combinations of SHM motions aren't periodic unless their frequencies relate as integral multiples. Nonetheless, they can be expressed as an infinite sum of harmonic motions!

Teacher
Teacher

Remember: The right initial conditions completely define the motion.

SHM Characteristics and Damping

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s now delve into the independence of SHM's period. Can anyone tell me what it doesn't depend on?

Student 3
Student 3

Amplitude and energy, right?

Teacher
Teacher

Spot on! The period of SHM remains unaffected, unlike planetary orbits where the mass and energy play significant roles, as described by Kepler's laws.

Student 4
Student 4

Wait, does that mean a pendulum is SHM but only for small angles?

Teacher
Teacher

Yes! A simple pendulum behaves as SHM with small angular displacements but deviates with larger angles.

Student 1
Student 1

What about displaced motion and its expressions?

Teacher
Teacher

That's important! Displacement can be expressed in forms like x=A cos(ωt + α), showcasing the equivalence among different expressions. Damped motion, however, will not follow SHM strictly.

Teacher
Teacher

In summary, the period of SHM is a constant, independent of amplitude and energy, and the expressions of motion reinforce the maths inside our understanding.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses key concepts of periodic motion, highlighting specific conditions that define simple harmonic motion and its characteristics.

Standard

The section explores the nature of periodic motion, distinguishing simple harmonic motion from other types. It explains the mathematical underpinnings of motion, the role of initial conditions, and the implications of combinations of simple harmonic motions.

Detailed

Detailed Summary of POINTS TO PONDER

Key Concepts

  1. Periodicity of Motion: The period (T) is the least time after which motion repeats. Any periodic motion can be represented as multiples of T (nT).
  2. Simple Harmonic Motion (SHM): Not all periodic motions are SHM. Only motions described by the force law F = -kx are considered SHM.
  3. Circular Motion and Force Laws: Circular motion can emerge from forces like the inverse-square law and harmonic forces in two dimensions. For circular motion under simple harmonic forces, phase angles must differ by π/2.
  4. Initial Conditions in SHM: For linear SHM, two initial conditions (e.g., position and velocity) determine the motion. Variants include amplitude and phase, or energy and phase.
  5. Phase Determination: The phase can be dictated by the displacement or velocity when either amplitude or energy is given.
  6. Combination of Motions: Combinations of simple harmonic motions aren't necessarily periodic unless one frequency is an integral multiple of another. Any periodic motion can be decomposed into harmonic motions.
  7. Period Independence: The period of SHM remains constant, independent of amplitude, energy, or phase, contrasting planetary orbits that follow Kepler's laws.
  8. Simple Pendulum Motion: A simple pendulum exhibits SHM for small angular displacements.
  9. Expression of Displacement: Displacement in SHM can be expressed in different equivalent forms, reinforcing the nature of damped motion as approximately harmonic under specific conditions.

Youtube Videos

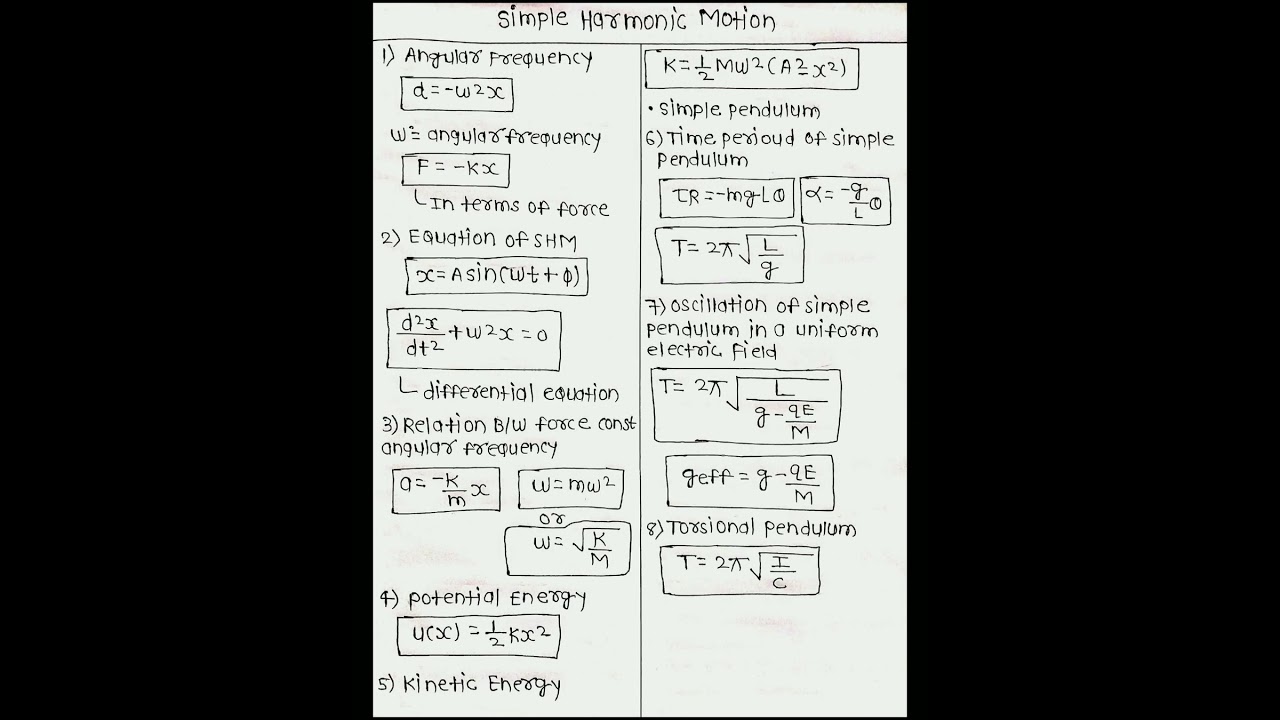

simple harmonic motion (SHM) class 11 important formulas
simple harmonic motion (SHM) class 11 important formulas

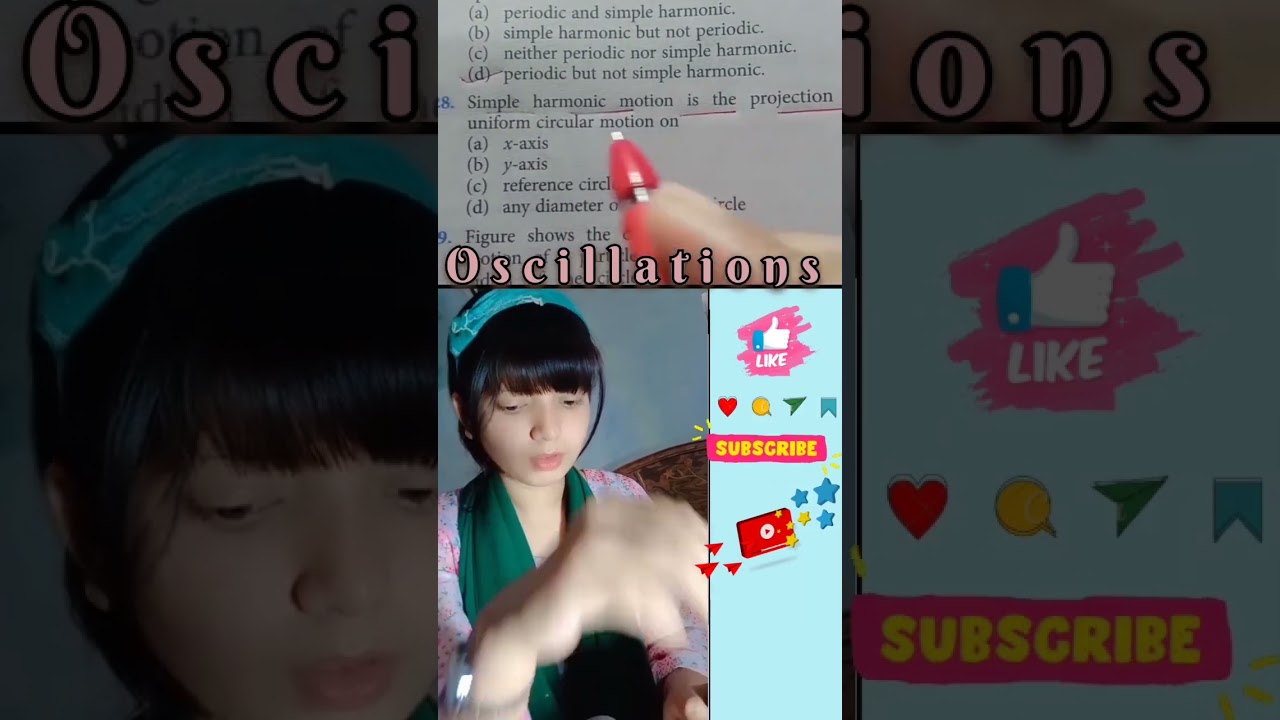

oscillations class 11 physics | oscillations | oscillations pyq | physics practice questions
oscillations class 11 physics | oscillations | oscillations pyq | physics practice questions
Simple Harmonic Motion
Simple Harmonic Motion

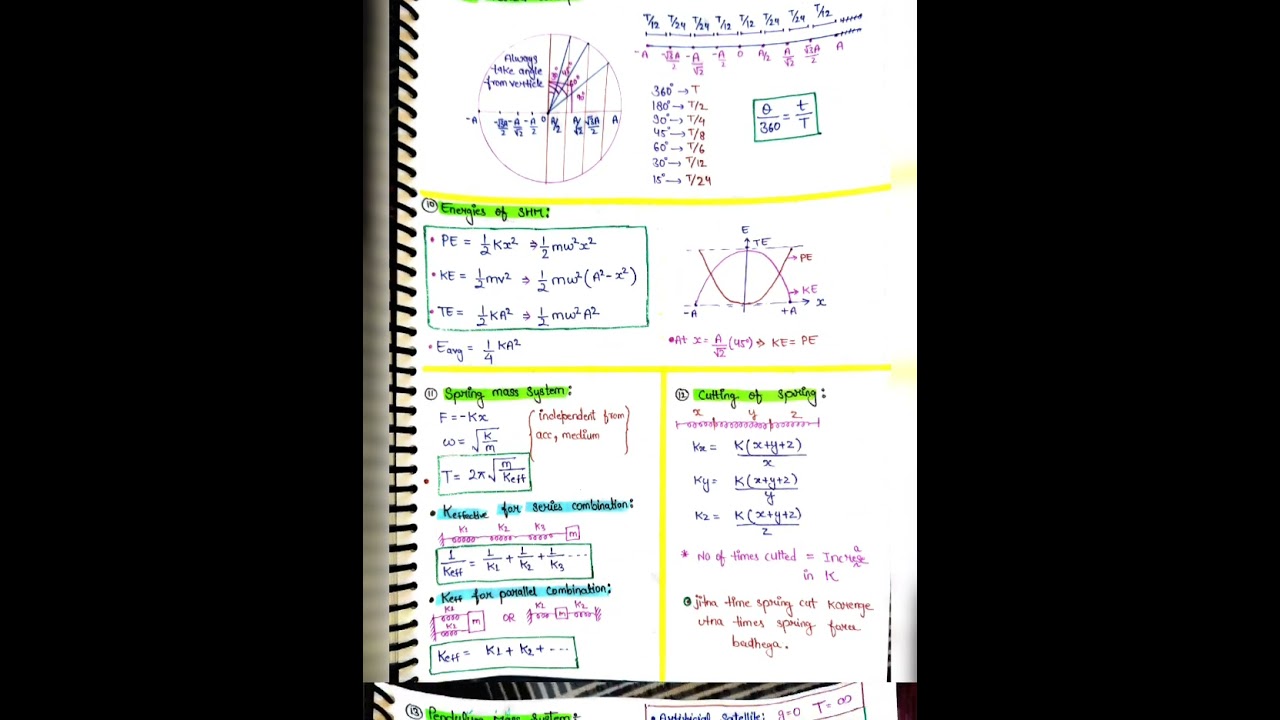

Oscillation class 11th all formulas and notes // SHM //#youtubeshorts #physics #neet #jee #viral #pw
Oscillation class 11th all formulas and notes // SHM //#youtubeshorts #physics #neet #jee #viral #pw
Oscillation | Full Chapter in ONE SHOT | Chapter 13 | Class 11 Physics 🔥
Oscillation | Full Chapter in ONE SHOT | Chapter 13 | Class 11 Physics 🔥
Class 11th Physics Chapter 13 | Exercise Questions (13.1 to 13.18) | Oscillations | NCERT
Class 11th Physics Chapter 13 | Exercise Questions (13.1 to 13.18) | Oscillations | NCERT
simple harmonic motion|| physics hacks|| #virals #real #motivation #hack
simple harmonic motion|| physics hacks|| #virals #real #motivation #hack

Audio Book

Dive deep into the subject with an immersive audiobook experience.

The Nature of Periodic Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The period T is the least time after which motion repeats itself. Thus, motion repeats itself after nT where n is an integer.

Detailed Explanation

The concept of periodic motion signifies that certain movements recur over set intervals. The 'period T' represents the shortest duration it takes for a complete cycle of the motion to occur. When we say 'nT', we refer to the total time taken for multiple repetitions of the motion, where 'n' can be any whole number (1, 2, 3, etc.). This idea can help us understand rhythms, oscillations, and cycles in various physical contexts and systems.

Examples & Analogies

Think about the hands of a clock. Every hour is one complete cycle, and the time it takes for the minute hand to go around the entire clock face is its 'period'. If you observe the clock for two hours, it has completed two cycles (n=2), so the total time is 2T.

Not All Periodic Motion is Simple Harmonic

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Every periodic motion is not simple harmonic motion. Only that periodic motion governed by the force law F = – k x is simple harmonic.

Detailed Explanation

While all simple harmonic motions are periodic, not all periodic motions are simple harmonic. Simple harmonic motion specifically refers to situations where the restoring force pulling the object toward its equilibrium position is proportional to the displacement from that position, expressed mathematically by F = -k x. Other forms of periodic motion, such as circular motion or motions influenced by other variables, don’t fit this definition and may exhibit completely different characteristics.

Examples & Analogies

Imagine a swing. When you pull the swing and let it go, it swings back and forth in a regular manner (periodic motion) and could also be seen as simple harmonic if it satisfies certain force conditions. However, think of a merry-go-round, which is periodic but not simple harmonic, as the force drawing it back isn’t proportional to any displacement.

Circular Motion and Harmonic Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Circular motion can arise due to an inverse-square law force (as in planetary motion) as well as due to simple harmonic force in two dimensions equal to: – mω2r. In the latter case, the phases of motion, in two perpendicular directions (x and y) must differ by π/2.

Detailed Explanation

Circular motion can be produced by different types of forces. For instance, planetary motion is governed by an inverse-square law force. In contrast, when circular motion results from simple harmonic forces, the displacement in two perpendicular directions follows a specific relationship where their phases differ by π/2 radians (90 degrees). This means that as one value reaches a peak, the other is at its minimum, creating a unique relationship between the two dimensions.

Examples & Analogies

Imagine two children on swings at the park. One is swinging forward (on the x-axis), while the other swings up and down (on the y-axis). When one is at the highest point of the swing, the other is at the lowest point, creating that specific phase difference of 90 degrees, mirroring the harmony between these two separate motions.

Initial Conditions in Simple Harmonic Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

For linear simple harmonic motion with a given ω, two initial conditions are necessary and sufficient to determine the motion completely. The initial conditions may be (i) initial position and initial velocity or (ii) amplitude and phase or (iii) energy and phase.

Detailed Explanation

In the study of simple harmonic motion, initial conditions play a crucial role in defining the system's behavior. To fully describe how an oscillating system will move, you either need to know its starting position and the speed at which it is moving, or you can specify the maximum displacement (amplitude) and its phase angle. Similarly, you could determine the energy in the system along with the phase. These different sets of conditions lend insight into predicting future positions and motions.

Examples & Analogies

Think of setting up a yo-yo. If you start it at the top and give it a push, you can predict how high it will go and how quickly it will return based on its starting height and how hard you pushed it. Alternatively, if you know how high the yo-yo can go and its initial angle, you can similarly predict its behavior. Each method allows you to understand the motion of the yo-yo in the same way.

Combining Simple Harmonic Motions

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

A combination of two simple harmonic motions with arbitrary amplitudes and phases is not necessarily periodic. It is periodic only if the frequency of one motion is an integral multiple of the other’s frequency. However, a periodic motion can always be expressed as a sum of an infinite number of harmonic motions with appropriate amplitudes.

Detailed Explanation

When you combine two or more simple harmonic motions, the resulting motion may not be periodic unless their frequencies are properly related as integer multiples. This means that to achieve periodic behavior, their oscillations must synchronize in such a way that they can repeat over time. Yet, in contrast, any periodic motion can be expressed in terms of a series of simple harmonic motions, leading to complex waveforms that might include various frequencies and amplitudes.

Examples & Analogies

Think about a musical instrument. If two strings are played together, and they vibrate at different frequencies but in a harmonious way, the sound produced can be rich and complex but not necessarily repetitive unless carefully attuned. However, even a simple recurring note can be broken down into a mix of simpler wave frequencies, explaining why music has such depth despite its apparent simplicity.

Independence of the Period of SHM

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The period of SHM does not depend on amplitude or energy or the phase constant. Contrast this with the periods of planetary orbits under gravitation (Kepler’s third law).

Detailed Explanation

One intriguing characteristic of simple harmonic motion (SHM) is that its period remains constant, regardless of how far the object is displaced (its amplitude) or the energy involved. This is markedly different from the motion of planetary objects, where the period can change based on distance from the sun or the forces acting upon them, as described by Kepler's third law. In SHM, the uniformity of the period reflects the proportional nature of the forces at play.

Examples & Analogies

Consider a pendulum. It will swing back and forth in a constant rhythm whether it’s slightly pulled or given a hard yank. No matter how far you pull it, the time it takes to complete each swing remains unchanged—as long as the displacements are small, showing that its behavior doesn’t shift with energy or amplitude in the same way a planet's orbit might.

Simple Pendulum Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The motion of a simple pendulum is simple harmonic for small angular displacements.

Detailed Explanation

For small angles, the swing of a pendulum exhibits simple harmonic characteristics. This means that, mathematically, the restoring force that pulls the pendulum back to its rest position follows the principles of SHM. When the pendulum is displaced by a small angle, the approximation leads to a linear relationship that holds true for small motions, thus allowing us to study its oscillatory behavior in terms of simple harmonic motion.

Examples & Analogies

Imagine swinging a swing at the park. If you swing gently just a little, the swing goes up and down in a way that's easy to predict and repetitive—showing simple harmonic qualities. However, if you swing hard, creating wide arcs, that predictability diminishes and it may not follow the simple harmonic nature as precisely.

SHM in Displacement Functions

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

For motion of a particle to be simple harmonic, its displacement x must be expressible in either of the following forms: x = A cos ωt + B sin ωt, x = A cos (ωt + α), x = B sin (ωt + β). The three forms are completely equivalent.

Detailed Explanation

To recognize motion as simple harmonic, the way we write the displacement needs to conform to specific sine and cosine functions. Each form emphasizes how the oscillator behaves differently while representing the same physical system. An increase in complexity doesn’t alter the fundamental characteristics of simple harmonic motion; it simply provides varied ways to depict the same behavior mathematically.

Examples & Analogies

Imagine a dance performance where each dancer has a different style but conveys the same rhythm. Whether they dance in synchronization to a drumbeat or express it through wave-like movements, they still represent the same core essence. Similarly, the mathematical forms represent the same concept of oscillation—in myriad forms but rooted in the same periodic foundation.

Damped Simple Harmonic Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Thus, damped simple harmonic motion is not strictly simple harmonic. It is approximately so only for time intervals much less than 2m/b where b is the damping constant.

Detailed Explanation

In real-world applications, many occurrences of simple harmonic motion experience damping, which reduces the amplitude over time due to external factors like friction or air resistance. While this damped motion lacks the neat periodic behavior of pure SHM, it approaches this behavior if observed over very short timescales. However, if the measurements extend longer than specific thresholds, the periodicity becomes significantly affected.

Examples & Analogies

Picture a lighted swing affected by the wind. Initially, as you push it, the swing's oscillations appear regular. However, with increasing wind resistance, its swings become less pronounced over time. If you only measure very brief intervals, the sway might seem rhythmic, yet longer observations reveal diminished movement of the swing over time—showing a transition from simple harmonic to a more complex motion influenced by damping.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Periodicity of Motion: The period (T) is the least time after which motion repeats. Any periodic motion can be represented as multiples of T (nT).

  • Simple Harmonic Motion (SHM): Not all periodic motions are SHM. Only motions described by the force law F = -kx are considered SHM.

  • Circular Motion and Force Laws: Circular motion can emerge from forces like the inverse-square law and harmonic forces in two dimensions. For circular motion under simple harmonic forces, phase angles must differ by π/2.

  • Initial Conditions in SHM: For linear SHM, two initial conditions (e.g., position and velocity) determine the motion. Variants include amplitude and phase, or energy and phase.

  • Phase Determination: The phase can be dictated by the displacement or velocity when either amplitude or energy is given.

  • Combination of Motions: Combinations of simple harmonic motions aren't necessarily periodic unless one frequency is an integral multiple of another. Any periodic motion can be decomposed into harmonic motions.

  • Period Independence: The period of SHM remains constant, independent of amplitude, energy, or phase, contrasting planetary orbits that follow Kepler's laws.

  • Simple Pendulum Motion: A simple pendulum exhibits SHM for small angular displacements.

  • Expression of Displacement: Displacement in SHM can be expressed in different equivalent forms, reinforcing the nature of damped motion as approximately harmonic under specific conditions.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • A child on a swing exhibits periodic motion as they swing back and forth.

  • A mass on a spring oscillating up and down exhibits simple harmonic motion.

  • A planet revolving around a sun follows periodic motion governed by gravitational forces.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • A pendulum swings with no alarm, T stays the same whether tall or harm.

📖 Fascinating Stories

  • Once upon a time, in a land far away, the waves danced gracefully, in some rhythmic sway. The wise old pendulum told secrets of time, that the period never changes, it’s simply sublime!

🧠 Other Memory Gems

  • For SHM: 'A Phase's Periodic Forces' - Amplitude, Phase, Restoring force and simple harmonic!

🎯 Super Acronyms

SHM

  • 'Synchronized Harmonic Motion.'

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Periodic Motion

    Definition:

    Any motion that repetitively occurs after a fixed interval of time.

  • Term: Simple Harmonic Motion (SHM)

    Definition:

    A type of periodic motion where the restoring force is proportional to the displacement, acting in the opposite direction.

  • Term: Amplitude

    Definition:

    The maximum extent of a vibration or oscillation measured from the position of equilibrium.

  • Term: Phase

    Definition:

    A specific stage in the cycle of a wave or oscillatory motion, measured in degrees or radians.

  • Term: Damping

    Definition:

    The reduction in the amplitude of oscillation due to energy loss.
