Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Simple Harmonic Motion
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we're going to explore simple harmonic motion, or SHM. Can anyone tell me what simple harmonic motion is?
Isn't SHM the motion where an object moves back and forth around an equilibrium position?
Exactly! Itβs motion that's periodic and sinusoidal in nature. A classic example would be a mass on a spring. Now, what do you think happens when we look at this motion from a circular perspective?
Does it relate to something like circular motion?
Exactly! That leads us to our next topic: how SHM can be observed through uniform circular motion.
To remember this connection, think of 'SHM: Sine Harmonic Motion from Circle.'
Got it! So circular motion can translate into SHM through projection.
Projection of Circular Motion
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's visualize this: imagine tying a ball to a string and making it move in a circle. How do you think we can observe its SHM?
By looking at the ball from the side and watching how it moves up and down, right?
Exactly! The ball's horizontal motion is projected on a line. This linear motion is what we call SHM.
And how is that mathematically represented?
"Good question! The horizontal position can be expressed as:
Relationship Between SHM and Circular Motion Forces
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's discuss forces. In SHM, there is a restoring force acting towards the equilibrium position. Who can explain how that relates to uniform circular motion?
In circular motion, there is centripetal force keeping the object in motion. But in SHM, the force acts to bring the object back to equilibrium, right?
Correct! The centripetal force results in a motion that isnβt necessarily oscillatory, while the restoring force in SHM is essential for its to-and-fro movement.
So, both forces drive different types of motion but relate to the same underlying physics?
Exactly! Understanding these forces is key to mastering oscillatory systems.
Applications of SHM and Circular Motion
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Can anyone think of real-life applications of SHM or uniform circular motion?
Musical instruments, like a guitar or violin, use vibrating strings, which are in SHM.
And satellites in orbit β they follow circular paths!
Great points! Whether it's sound waves or planetary motion, this knowledge is foundational.
To keep in mind: 'Oscillation leads to sound, motion leads to gravity!'
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section reveals the connection between simple harmonic motion and uniform circular motion. By observing a ball being rotated in uniform circular motion, its projection on a diameter illustrates simple harmonic motion, characterized by sinusoidal displacement over time.
Detailed
Detailed Summary
Connection Between SHM and Circular Motion
In this section, we demonstrate that the projection of an object undergoing uniform circular motion on a diameter of the circle results in simple harmonic motion (SHM). To visualize this connection:
- Experiment: If you tie a ball to a string and rotate it horizontally at a constant angular speed, the ball performs uniform circular motion.
- Observation: When viewed from the side, the ball's motion appears to translate into a to-and-fro motion along a line, representing its projection on the diameter of the circle.
- Mathematical Representation: The position of the ball as it revolves uniformly can be described mathematically. If a particle moves along a circular path of radius A with angular speed Ο, its projection on the x-axis can be defined as:
$$x(t) = A ext{cos}( heta),$$
where ΞΈ at time t can be expressed as:
$$ heta = ext{Ο}t + Ο.$$
- Connection to SHM: This formula corresponds directly to the equation of SHM, demonstrating that the projection of uniform circular motion leads to periodic sinusoidal motion, thus unlocking an understanding of oscillatory behavior in various physical systems.
- Observations and Examples: Observing shadows or projections can further elucidate the relationship between circular motion and SHM, showcasing the inherent link in physical oscillatory phenomena. Essential concepts such as displacement, amplitudes, and phase shifts are also introduced.
Importance
Understanding the linkage between SHM and uniform circular motion provides foundational insight into oscillatory systems in physics. This connection also supports various applications in fields such as engineering, music, and wave mechanics.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to the Connection
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In this section, we show that the projection of uniform circular motion on a diameter of the circle follows simple harmonic motion. A simple experiment (Fig. 13.9) helps us visualize this connection.
Detailed Explanation
This chunk introduces the idea that simple harmonic motion (SHM) can be derived from uniform circular motion. If you imagine a ball tied to a string being swung around in a circle at a constant speed, it moves in a predictable path. When viewed from the side, the path traced by the shadow of the ball on a wall perpendicular to the circle looks like back-and-forth (to and fro) motion. This type of repetitive movement is characteristic of SHM.
Examples & Analogies
Think about how a ceiling fan works. If you observe the shadow of the fanβs blades on a wall, it moves repeatedly in a to-and-fro motion, even though the fan is spinning around in a loop. This is similar to how the projection of the circular motion of the ball creates SHM.
Visualizing SHM Through Circular Motion
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Tie a ball to the end of a string and make it move in a horizontal plane about a fixed point with a constant angular speed. The ball would then perform a uniform circular motion in the horizontal plane. Observe the ball sideways or from the front, fixing your attention in the plane of motion.
Detailed Explanation
This chunk describes a practical experiment where a ball is swung around in a circle at a constant speed, demonstrating uniform circular motion. By watching the ball's motion from the side, we can see that it moves left and right in a straight lineβthis is the same motion as simple harmonic motion. The visual projection onto a straight line highlights the essential characteristics of SHM, where the position oscillates about a central point.
Examples & Analogies
Imagine a pendulum clock. While the pendulum moves back and forth, it also traces a circular arc at the end of the string. If you view a point at the bottom of the pendulum's arc directly, it might look like it's moving up and down in a straight line like SHM, rather than in a circular arc.
Mathematical Representation of SHM from Circular Motion
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

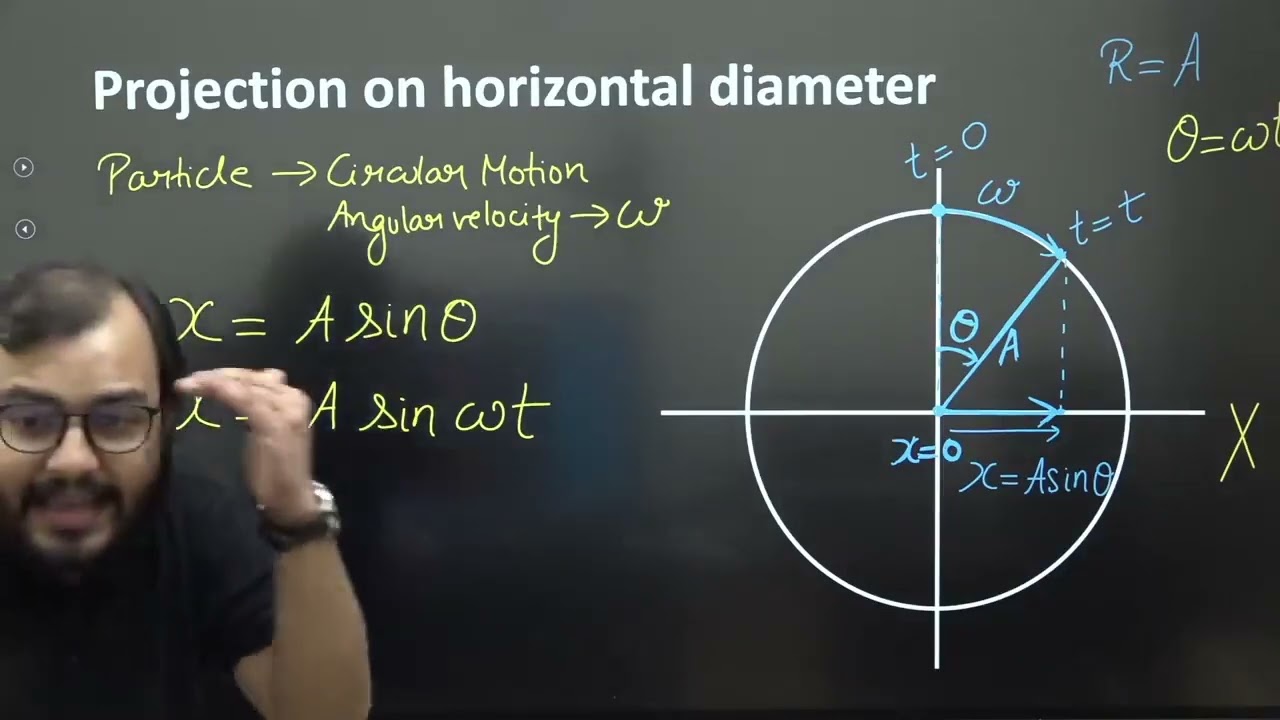

Suppose a particle P is moving uniformly on a circle of radius A with angular speed Ο. The position vector of the particle at time t is given by x(t) = A cos(Οt + Ο), which is the defining equation of SHM.
Detailed Explanation
This chunk highlights how the motion of a particle on a circular path can be expressed mathematically. The position of the particle as it moves on the circle can be described using the cosine function, indicating that its horizontal position varies over time. This relationship is what defines simple harmonic motion, connecting the circular motion's angular parameters to linear oscillation.
Examples & Analogies
Consider a Ferris wheel. Each cabin moves in a circular path. If you fix your gaze on one cabin, its height changes over time mimicking a sine wave. If you measured this height at intervals, you'd find that it looks similar to SHM graphs where the height oscillates continuously about a central point.
Projection on Different Axes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We can take the projection of the motion of P on any diameter, say the y-axis. In that case, the displacement y(t) of P' on the y-axis is given by y = A sin(Οt + Ο), which is also an SHM of the same amplitude as that of the projection on the x-axis, but differing by a phase of Ο/2.
Detailed Explanation
This chunk discusses how the projection of uniform circular motion can be represented in more than one dimension. When the circular motion is viewed from different diameters, the mathematical representation changes slightly (it becomes a sine function instead of cosine). This emphasizes how SHM occurs simultaneously on multiple axes, indicating that the motion is fundamentally harmonic and consistent.
Examples & Analogies
Think of the motion of a double pendulum. One rod swings down, while at the same time, the second rod swings out to the side. You can observe two interconnected motions that change depending on their angles, demonstrating that they are performing SHM along different axes simultaneously, just like our circular projections.
Differences Between Forces in Circular Motion and SHM
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In spite of this connection between circular motion and SHM, the force acting on a particle in linear simple harmonic motion is very different from the centripetal force needed to keep a particle in uniform circular motion.
Detailed Explanation
This chunk explains that while circular motion and SHM are related, the forces governing each are fundamentally different. In circular motion, a centripetal force is required to keep the particle moving along a circular path. In contrast, SHM is controlled by a restoring force that pulls the object back toward its equilibrium position. This distinction is crucial in understanding the nature of each type of motion.
Examples & Analogies
Picture a bungee jumper. As they free fall toward the ground, they experience gravitational force (similar to centripetal force). Upon reaching the end of the rope, a restoring force kicks in, pulling them back upwards. This mimics a more straightforward SHM path contrasting with the continuous centripetal forces involved in something like carousel riders who continuously require the centripetal force to stay in motion.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Projection of Circular Motion: The visualization of SHM as the shadow of an object undergoing circular motion.
-
- Amplitude and Phase: Important characteristics of SHM that influence its behavior and properties.
-
Restoring Force: Essential for creating oscillatory motion by always acting towards the equilibrium position.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The motion of a swing can be modeled as simple harmonic motion due to the restoring force provided by gravity.
-
The displacement of a mass attached to a spring when pulled and released demonstrates SHM.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
In circles we spin, with pace not a sin, projection shows waves, where harmonics begin.
π Fascinating Stories
-
Once a ball danced in a circle, round and round it goes. A projection cast a shadow that swung to and fro, showing the beauty of SHM.
π§ Other Memory Gems
-
Remember 'CIRCLE' to connect Circular motion to SHM: C - Circular motion, I - Is, R - Really, C - Creating, L - Linear harmonic, E - Energy.
π― Super Acronyms
Use SHM
- S: - Sinusoidal
- H: - Harmonics
- M: - Motion to remember the elements of simple harmonic motion.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Simple Harmonic Motion (SHM)
Definition:
A type of periodic motion where the restoring force is directly proportional to the displacement from the equilibrium position.
-
Term: Uniform Circular Motion
Definition:
Motion of an object moving in a circle at a constant speed.
-
Term: Restoring Force
Definition:
The force that acts to bring a system back to its equilibrium position.
-
Term: Amplitude
Definition:
The maximum extent of a vibration or oscillation, measured from the position of equilibrium.
-
Term: Phase
Definition:
A measure of the position of a point in time on a waveform cycle.
-
Term: Angular Speed (Ο)
Definition:
Rate of change of the angle, typically measured in radians per second.
