3.12 - KIRCHHOFF'S RULES

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding Circuit Junctions

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we'll start by discussing Kirchhoff's junction rule. What do you think happens to the current at a junction in a circuit?

Student 1
Student 1

I think the current just splits depending on the resistances!

Teacher
Teacher

Exactly! The junction rule states that the total current entering a junction equals the total current leaving it. This is because charge cannot just disappear; it must flow through the circuit.

Student 2
Student 2

So, if I have two currents entering a junction, do they need to be equal to one current leaving it?

Teacher
Teacher

Yes! Here’s a memory aid: Think of 'In = Out'. Can anyone give me an example?

Student 3
Student 3

If 2A enters a junction from one wire and 1A from another, then 3A must leave!

Teacher
Teacher

Great! That's a perfect example. Remember, if we denote currents entering as positive and currents leaving as negative, we can simply set up equations to analyze circuits.

Teacher
Teacher

In summary, Kirchhoff's junction rule is all about charge conservation—what goes in must come out!

Analyzing Closed Loops

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let's move on to the loop rule. What happens to electrical potential when we go around a closed loop in a circuit?

Student 4
Student 4

Uh, I think it has to balance out somehow, right?

Teacher
Teacher

Exactly! The loop rule states that the sum of potential differences in any closed loop equals zero. So, if you gain potential in one part, you must lose the same amount elsewhere.

Student 2
Student 2

Is that why it's important to label the direction of each loop?

Teacher
Teacher

Yes! Maintaining a consistent direction helps avoid confusion. Let's create a mnemonic: 'Gain Power, Lose Power', meaning every gain must be offset by a loss in potential.

Student 1
Student 1

Can you give an example of how it works in a simple circuit?

Teacher
Teacher

"Certainly! Consider a loop with a 10V battery and two resistors: if we drop 5V across one resistor and another 5V across the second, then:

Applying Kirchhoff's Rules

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's take what we've learned and apply it to some circuit examples. Why are Kirchhoff's rules valuable for complex circuits?

Student 4
Student 4

They help us figure out the currents and voltages when it's not just series or parallel!

Teacher
Teacher

Exactly! In a cubic arrangement of resistors, for instance, we can label currents and set up equations based on the junction and loop rules. Let's practice.

Student 1
Student 1

What if I get confused between which directions to label?

Teacher
Teacher

Great question! Just remember: once you've chosen a direction for current, stick to it consistently. This can help simplify your calculations.

Student 2
Student 2

Can we all agree on a convention for positive directions before starting a problem?

Teacher
Teacher

Absolutely! That's a great strategy. Let's solve a real problem involving a circuit with multiple nodes and resistors using these rules.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Kirchhoff's rules are fundamental principles used to analyze complex electrical circuits, enabling the calculation of currents and potential differences in various configurations of resistors and power sources.

Standard

This section introduces Kirchhoff's two fundamental rules: the junction rule, which states that the total current entering a junction equals the total current leaving it, and the loop rule, which asserts that the sum of potential differences around any closed loop is zero. These rules allow for the systematic analysis of complex circuits consisting of multiple components.

Detailed

Kirchhoff's Rules

Kirchhoff's laws are essential for understanding and analyzing complex electrical circuits. They consist of two main rules:

  1. Junction Rule: This rule states that at any junction in a circuit, the sum of currents entering the junction must equal the sum of currents leaving it. This principle is based on the conservation of charge, acknowledging that charge cannot accumulate at a junction.
  2. Loop Rule: According to this rule, the algebraic sum of all potential differences in any closed loop circuit must equal zero. This indicates that the total energy gained by the charge as it moves around the circuit is equal to the energy lost.

Both of these rules facilitate the analysis of circuits where simple series and parallel calculations are insufficient. For example, in a cube-like arrangement of resistors or in complex circuits involving multiple batteries, Kirchhoff's rules help determine the current and voltage throughout the circuit accurately. The section also covers practical applications, such as the Wheatstone bridge, to measure unknown resistances using these rules.

Youtube Videos

Kirchoff's Law | Physics | Class 12th Boards
Kirchoff's Law | Physics | Class 12th Boards
Kirchhoff's Laws | Current Electricity | CBSE 12th | Physics Handwritten Notes #cbse
Kirchhoff's Laws | Current Electricity | CBSE 12th | Physics Handwritten Notes #cbse
Class 12 Physics | Current Electricity | Kirchhoff's Law | NCERT Chapter 3 | Ashu Sir
Class 12 Physics | Current Electricity | Kirchhoff's Law | NCERT Chapter 3 | Ashu Sir
Current Electricity 11: Kirchhoff's Law - Kirchhoff's Current Law & Kirchhoff's Voltage Law JEE/NEET
Current Electricity 11: Kirchhoff's Law - Kirchhoff's Current Law & Kirchhoff's Voltage Law JEE/NEET
Kirchoffs Laws | Wheatstone bridge| Potentiometer| Current Electricity #3| NEET | JEE Physics| Recap
Kirchoffs Laws | Wheatstone bridge| Potentiometer| Current Electricity #3| NEET | JEE Physics| Recap

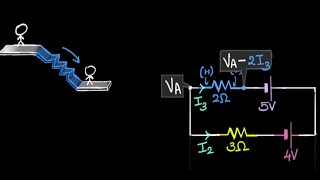

Kirchhoff's voltage law (conceptual) | Electricity | Physics | Khan Academy
Kirchhoff's voltage law (conceptual) | Electricity | Physics | Khan Academy
74.Kirchoff's Current and Voltage law (Kcl & Kvl) | Pledge 2023 | Current Electricity | CBSE | NCERT
74.Kirchoff's Current and Voltage law (Kcl & Kvl) | Pledge 2023 | Current Electricity | CBSE | NCERT
Kirchhoff's Voltage Law | Class 12 physics Current Electricity |Warm up match with physics |ssp sir
Kirchhoff's Voltage Law | Class 12 physics Current Electricity |Warm up match with physics |ssp sir
Short Trick to Solve Kirchhoff law Question | #shorts #physicstricks #sachinsirphysics
Short Trick to Solve Kirchhoff law Question | #shorts #physicstricks #sachinsirphysics
Mastering Kirchhoff's Current Law
Mastering Kirchhoff's Current Law

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Kirchhoff's Rules

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Electric circuits generally consist of a number of resistors and cells interconnected sometimes in a complicated way. The formulae we have derived earlier for series and parallel combinations of resistors are not always sufficient to determine all the currents and potential differences in the circuit. Two rules, called Kirchhoff’s rules, are very useful for analysis of electric circuits.

Detailed Explanation

Kirchhoff's Rules are essential tools in electrical engineering and physics for analyzing complex circuits. When you have multiple resistors and power sources connected in various configurations, simply using the formulas for series and parallel connections won't always work. Kirchhoff's Rules provide a systematic way to find unknown currents and voltages in these networks. They help us to track how electric charge moves through the circuit, ensuring that we can solve for any current or voltage point in complex arrangements.

Examples & Analogies

Think of a traffic intersection where multiple roads meet. Just like traffic can enter and leave an intersection in various different directions, electric current can enter and leave a junction in a circuit. Kirchhoff's Rules help us manage this flow, ensuring that we can predict how much current flows down each 'road' (or branch of the circuit).

Labeling Currents and Directions

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Given a circuit, we start by labelling currents in each resistor by a symbol, say I, and a directed arrow to indicate that a current I flows along the resistor in the direction indicated. If ultimately I is determined to be positive, the actual current in the resistor is in the direction of the arrow. If I turns out to be negative, the current actually flows in a direction opposite to the arrow. Similarly, for each source (i.e., cell or some other source of electrical power) the positive and negative electrodes are labelled, as well as, a directed arrow with a symbol for the current flowing through the cell.

Detailed Explanation

In analyzing circuits using Kirchhoff's Rules, it's crucial to clearly label currents and their directions. By assigning a symbolic representation to each current and using arrows to indicate their flow, we can systematically apply Kirchhoff's Rules later. If you find that the symbol for a current comes out as negative in your calculations, it indicates that the actual flow of current is in the opposite direction. This systematic labeling ensures clarity in complex circuits with multiple pathways for current.

Examples & Analogies

Imagine you're planning a group hike, and you want to make sure everyone knows where to go. You mark paths with arrows indicating directions. If your map says someone is on the wrong path, you can adjust everyone’s route accordingly. Similarly, labeling currents in an electrical circuit keeps track of 'traffic', helping us understand how charge moves through each part.

Junction Rule

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

(a) Junction rule: At any junction, the sum of the currents entering the junction is equal to the sum of currents leaving the junction. This applies equally well if instead of a junction of several lines, we consider a point in a line.

Detailed Explanation

The Junction Rule is a restatement of the principle of conservation of electric charge. When you analyze a junction in a circuit, the total amount of current flowing into the junction must equal the total current flowing out. If you think of the junction as a water fountain, the water flowing into the fountain must equal the amount spilling out; otherwise, the fountain would either overflow or run dry. This fundamental idea helps ensure that our calculations of current through different pathways in a circuit are logically consistent.

Examples & Analogies

Consider a traffic roundabout where cars can enter and exit at different points. The number of cars entering the roundabout must equal the number of cars exiting; otherwise, you'd end up with a traffic jam. Kirchhoff's Junction Rule operates in the same way: it keeps track of the flow of electric current in a circuit, ensuring that what goes 'in' must also come 'out'.

Loop Rule

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

(b) Loop rule: The algebraic sum of changes in potential around any closed loop involving resistors and cells in the loop is zero.

Detailed Explanation

The Loop Rule states that as you traverse a closed loop in the circuit, the total change in electric potential must equal zero. This is because energy is conserved; any energy gained by moving through a power source (like a battery) must be equal to the energy lost as heat in resistors. If you think of the electric potential as a hill, gaining height (potential) while climbing up a battery means you lose height (potential) while going downhill through resistors. So as you complete a cycle in a circuit, everything balances out, leading to a net change of zero.

Examples & Analogies

Imagine taking a hiking loop where you climb uphill at one point and then come down during another part of the hike. The total elevation change at the end of the loop is zero—you go up and then down! Similarly, in circuits, when you follow the Loop Rule, all the increases and decreases in potential energy balance out to maintain overall energy conservation.

Practical Application of Kirchhoff's Rules

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Example 3.5: A battery of 10 V and negligible internal resistance is connected across the diagonally opposite corners of a cubical network consisting of 12 resistors each of resistance 1 Ω. Determine the equivalent resistance of the network and the current along each edge of the cube.

Detailed Explanation

In this example, we apply both of Kirchhoff’s Rules to analyze a three-dimensional circuit formed by 12 resistors. Given the cube's symmetry, we can simplify our calculations by recognizing that certain branches will carry the same current. By using the Loop Rule for specific closed loops and then applying the Junction Rule at junctions, we can create equations that lead us to find the equivalent resistance and the current in each branch of the circuit. This practical approach demonstrates the utility of Kirchhoff's Rules in solving complex circuits that cannot be simplified using basic series and parallel rules alone.

Examples & Analogies

Think of it as organizing a group project with multiple team members. Each member represents a resistor, and you have to coordinate your work (current) to achieve a final deliverable (equivalent resistance). Using Kirchhoff's Rules is like ensuring everyone knows their part and how it contributes to the whole, ensuring smooth progress towards your project goals.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Junction Rule: Describes conservation of charge at junctions.

  • Loop Rule: Describes conservation of energy around loops.

  • Voltage: Related to energy per charge provided by a power source.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example of a circuit with two resistors and a battery illustrating Kirchhoff's rules.

  • Wheatstone bridge circuit demonstrating how to measure resistances.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • In the junction, if you please, count those currents with such ease; what goes in must come out, don't you doubt!

📖 Fascinating Stories

  • Imagine a busy junction in a town where all cars must stop and count before leaving. The same applies to currents at a junction in a circuit.

🧠 Other Memory Gems

  • For Kirchhoff's rules, remember 'JV = 0'—Junction Variables lead to the conclusion of Zero.

🎯 Super Acronyms

J = Junction rule, L = Loop rule to help recall different rules.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Kirchhoff's Junction Rule

    Definition:

    The sum of currents entering a junction is equal to the sum of currents leaving it.

  • Term: Kirchhoff's Loop Rule

    Definition:

    The algebraic sum of all potential differences in a closed loop equals zero.

  • Term: Electromotive Force (emf)

    Definition:

    The voltage provided by a power source in an open circuit.

  • Term: Potential Difference

    Definition:

    The difference in electric potential between two points in a circuit.
