3.7. RESISTIVITY OF VARIOUS MATERIALS
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Resistivity is a fundamental property of materials that describes how strongly they resist the flow of electric current. Does anyone know the unit of measurement for resistivity?
Is it ohm-meter?
That's correct! It's measured in ohm-meters (Ωm). Now, why do you think this property is vital for different materials in electronics?
It helps determine if a material is a conductor or an insulator!
Exactly! Understanding resistivity helps us classify materials into conductors, semiconductors, and insulators, which is crucial in electronics design.
Let's remember this with the acronym 'CSI' for Conductors, Semiconductors, and Insulators!
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Now, let’s dive deeper into each type. Who can give me an example of a conductor?
Copper is a good conductor!
Great! Copper has a low resistivity, allowing electricity to flow easily. What about insulators?
Rubber and plastic are insulators.
Correct again! Insulators have very high resistivities, which is why they are used to protect against electric shock.
Semiconductors, on the other hand, are special because their resistivity can change with temperature. What happens to the resistivity of semiconductors when they get warmer?
Their resistivity decreases!
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountSemiconductors have unique properties. Can anyone tell me why they are interesting for applications?
Because we can control their conductivity by adding impurities!
Exactly! This process is known as doping, and it enables the creation of specific electronic components like diodes and transistors.
So, without semiconductors, we wouldn’t have all the electronics we do today?
That’s right! Understanding the resistivity and how it impacts conductivity allows engineers to design better electronic devices.
Overview
Short Summary
This section discusses the resistivity of different materials, classifying them as conductors, semiconductors, and insulators based on their resistivity values.
Medium Summary
The resistivity of materials varies significantly, with metals having low resistivity and insulators exhibiting extremely high resistivity. Semiconductors occupy an intermediate position and their resistivity can be modified by temperature and impurities. Understanding these differences is crucial for their applications in electrical engineering and electronics.
Detailed Summary
Resistivity of Various Materials
The resistivity of a material determines its ability to conduct electric current. Materials are classified into three categories based on their resistivities:
- Conductors: Such as metals (e.g., copper, aluminum), have resistivities typically in the range of 10^-8 Ωm to 10^-6 Ωm, making them excellent for conducting electricity.
- Insulators: Materials like rubber, ceramic, and plastics demonstrate high resistivities, often 1018 times greater than metals, impeding current flow.
- Semiconductors: These materials (e.g., silicon, germanium) have resistivities that can decrease with increasing temperature. Their unique properties allow for control of conduction, which is essential in electronic devices. The resistivity of semiconductors can also be adjusted through doping, which involves adding impurities to enhance their conductivity.
The section emphasizes how temperature and impurities influence resistivity, especially in semiconductors, which have vital applications in modern electronics. Understanding these principles is foundational for studying current electricity and is essential in fields such as electronic engineering.

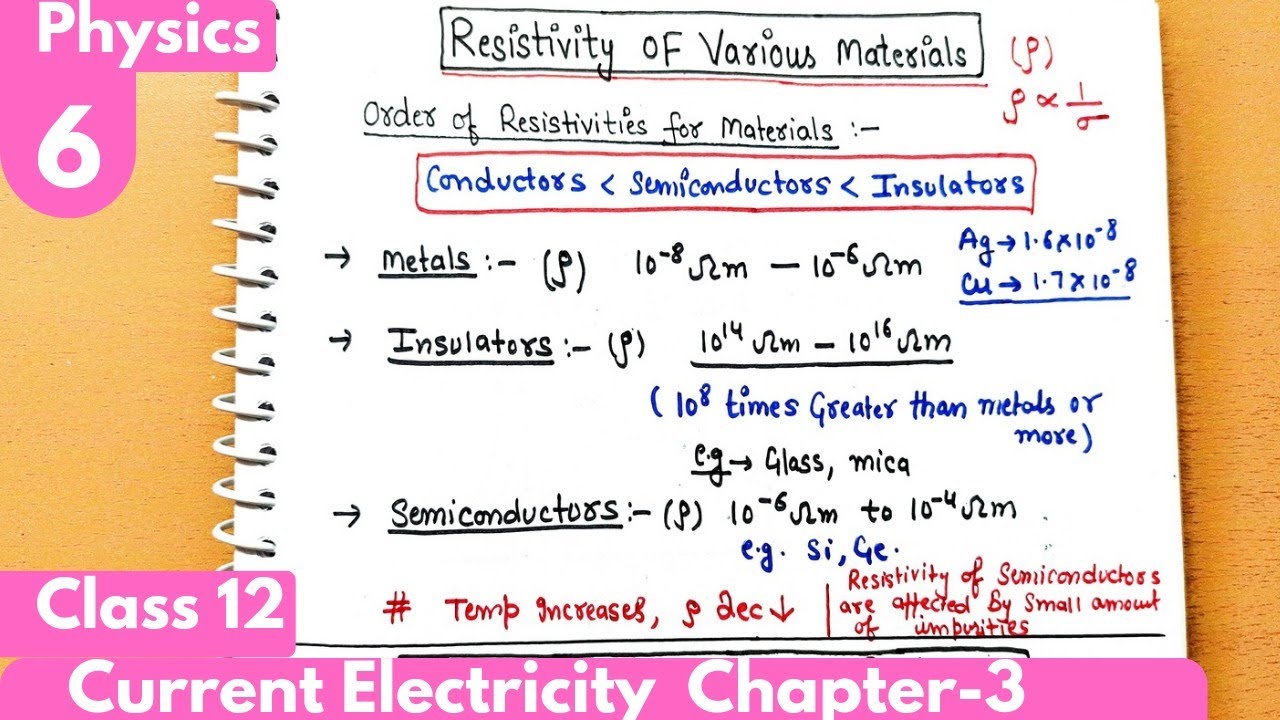

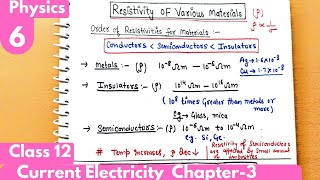

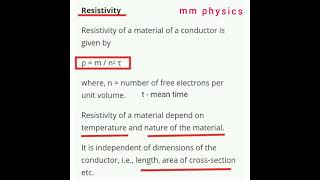

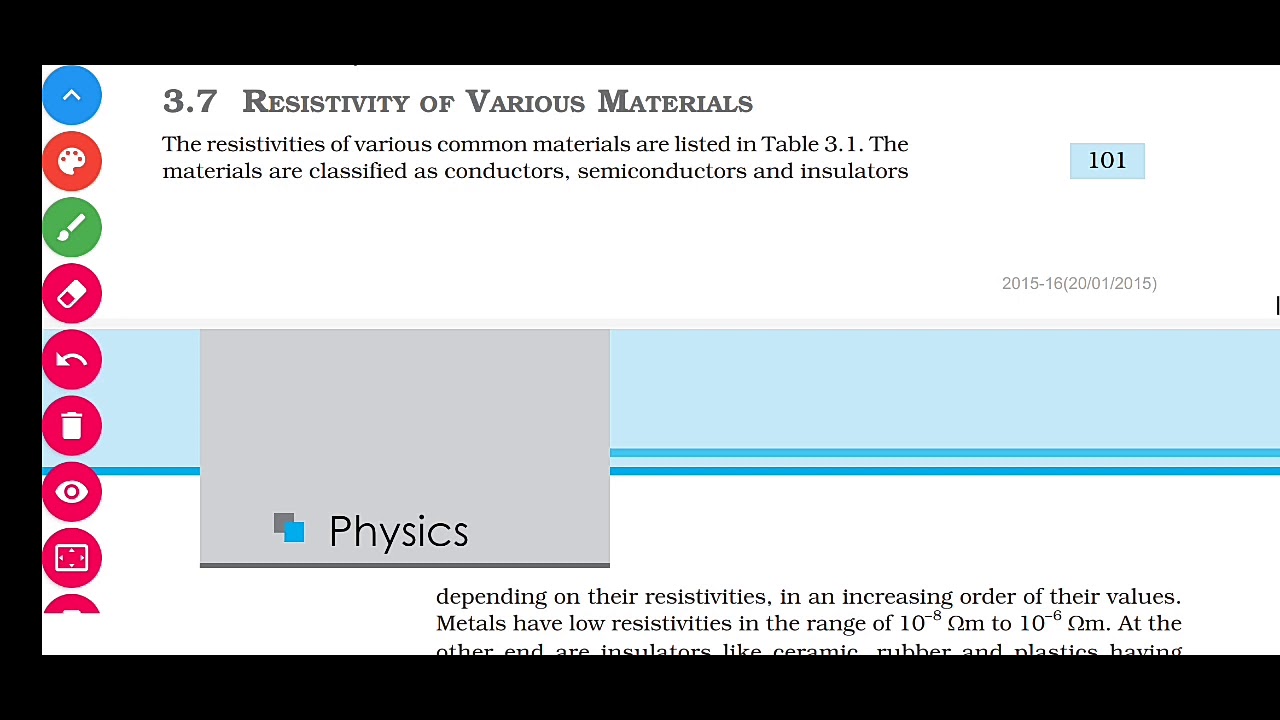

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThe materials are classified as conductors, semiconductors and insulators depending on their resistivities, in an increasing order of their values.
Detailed Explanation
Materials are divided into three categories based on how well they conduct electricity:
- Conductors: These have low resistivity, which means they allow electric current to pass through easily. Metals, such as copper and aluminum, are the most common conductors.
- Semiconductors: These have resistivities that are between those of conductors and insulators. Their ability to conduct electricity can change under different conditions, such as temperature or the presence of impurities. Silicon is a well-known semiconductor.
- Insulators: These have very high resistivity, which makes it difficult for electric current to flow through them. Materials like rubber and glass fall into this category.
Examples & Analogies
Think of water flowing through pipes. A wide pipe (conductor) allows water to flow freely with little resistance. A narrow pipe (semiconductor) restricts the flow but can still allow some movement under pressure (like temperature or impurities). A solid block (insulator), on the other hand, prevents any water from passing through.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountMetals have low resistivities in the range of 10–8 Wm to 10–6 Wm. At the other end are insulators like ceramic, rubber and plastics having resistivities 10^18 times greater than metals or more.
Detailed Explanation
The resistivity of different materials varies significantly:
- Metals: These typically have resistivity values ranging from 10^-8 to 10^-6 ohm-meters. This means they are very efficient at conducting electricity.
- Insulators: These can have resistivity values that exceed 10^18 ohm-meters, making them extremely ineffective at conducting electricity. This property makes them useful in preventing unwanted current flow, such as in electrical wires where insulation is necessary to keep current confined to conductors.
Examples & Analogies
Consider a crowded highway (metal) where cars can move quickly with little resistance. Compare this to a solid wall of traffic (insulator) where cars are stuck, illustrating how difficult it is for current to flow.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.

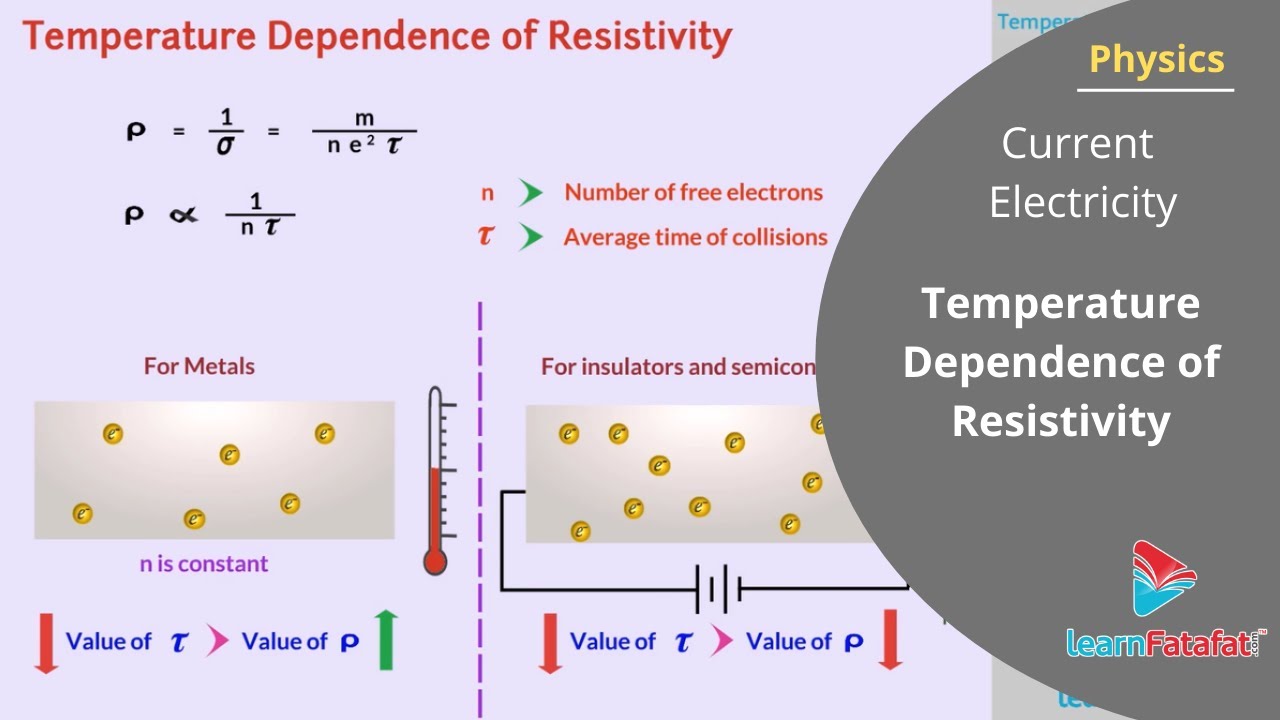

Create a free accountIn between the two are the semiconductors. These, however, have resistivities characteristically decreasing with a rise in temperature. The resistivities of semiconductors can be decreased by adding small amount of suitable impurities.
Detailed Explanation
Semiconductors behave uniquely compared to conductors and insulators. As temperature increases, the resistivity of semiconductors decreases, meaning they become better at conducting electricity. This characteristic allows them to be used in various electronic applications. Additionally, by adding tiny amounts of other materials (called dopants), the conductivity of semiconductors can be further improved or altered, allowing for precise control of their properties for different applications like diodes and transistors.
Examples & Analogies
Imagine a team of players (semiconductors) during a game. As the weather gets warmer (temperature rise), they become more active and can run faster (decrease in resistivity). Adding a coach (impurities) helps them strategize better and improves their performance even more.
--
Key Concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
Resistivity: A property indicating how well a material can conduct electricity, affecting its classification as a conductor, insulator, or semiconductor.
Conductors: Materials that allow easy flow of electricity with low resistivity.
Insulators: Materials that restrict electricity flow, characterized by high resistivity.
Semiconductors: Unique materials that can change their resistivity with temperature or impurities, enabling electronic applications.
Examples
Memory Aids
Interactive tools to help you remember key concepts
Stories
Memory Tools
Flash Cards
Glossary
Resistivity
A measure of how strongly a material opposes the flow of electric current, measured in ohm-meters (Ωm).
Conductor
Materials with low resistivity that easily allow electric current to flow, e.g., metals.
Insulator
Materials with high resistivity that inhibit electric current flow, e.g., rubber or plastic.
Semiconductor
Materials whose resistivity can change with temperature or by adding impurities (doping).
Doping
The process of adding impurities to semiconductors to alter their electrical properties.
