3.6 - LIMITATIONS OF OHM'S LAW

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding Ohm's Law

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we’ll explore Ohm's Law, which states that the current through a conductor between two points is directly proportional to the voltage across the two points, represented as V = IR.

Student 1
Student 1

What does it mean for a current to be proportional to voltage?

Teacher
Teacher

Good question! It means that if you increase the voltage, the current will increase, assuming resistance remains constant. This relationship is often visualized with a straight line on a graph.

Student 2
Student 2

So, what are the units for voltage and current?

Teacher
Teacher

Voltage is measured in volts (V), and current is in amperes (A). When we talk about resistance, it is measured in ohms (Ω).

Student 3
Student 3

Why is it important to know this law?

Teacher
Teacher

Understanding Ohm's Law helps us analyze and design electrical circuits efficiently. However, we need to be aware of its limitations.

Teacher
Teacher

To remember Ohm's Law, think 'VIR' as Voltage = Current times Resistance. That is, 'Very Important Relationship'!

Student 4
Student 4

Can you summarize it?

Teacher
Teacher

Certainly! Ohm's Law describes the linear relationship between voltage and current under constant resistance. Let’s move on to discuss its limitations next.

Limitations of Ohm's Law

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s discuss some limitations of Ohm's Law. First, can anyone explain what happens when voltage is applied in a circuit?

Student 1
Student 1

Usually, the current increases as the voltage increases.

Teacher
Teacher

Correct, but this isn’t always the case. In certain materials, V does not remain proportional to I. What might cause that?

Student 2
Student 2

Well, maybe in non-linear materials like semiconductors?

Teacher
Teacher

Exactly! In a diode, for example, when you reverse the voltage, it doesn’t necessarily produce the same current. This direction dependence is a key limitation.

Student 3
Student 3

Can you provide an example of a material that shows non-unique V-I characteristics?

Teacher
Teacher

Certainly! Gallium Arsenide (GaAs) is one such semiconductor that may have multiple voltage values for the same current. This phenomenon is essential in modern electronics!

Student 4
Student 4

How can we remember these points?

Teacher
Teacher

You can remember the limitations through the acronym 'DNA': Direction, Non-unique, and Non-linear. These will help you recall the exceptions to Ohm’s Law.

Student 1
Student 1

Could you summarize this part?

Teacher
Teacher

Of course! Ohm's Law has limitations, particularly in materials like diodes and semiconductors where voltage-dependent characteristics defy the linear equation V = IR. Next, let's explore scenarios where these limitations become especially relevant.

Applications and Importance of Ohm's Law Limitations

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Why is understanding the limitations of Ohm's Law crucial for us in electronics?

Student 2
Student 2

Because it helps us design circuits that can handle different materials correctly!

Teacher
Teacher

Exactly! When we design circuits with diodes or transistors, we must consider how these components behave differently than resistive elements.

Student 3
Student 3

What happens if we ignore these limitations?

Teacher
Teacher

Ignoring these limitations can lead to unexpected results in circuit behavior, potentially damaging components or leading to malfunction.

Student 4
Student 4

Can we think of any real-world examples?

Teacher
Teacher

Certainly! Diodes are used in power supply circuits to rectify current. Ignoring their properties would mess up the output voltage!

Student 1
Student 1

Can we remember this with a saying?

Teacher
Teacher

Sure! Think 'Be Wise, Design with Diodes!' This helps remind us to respect component characteristics in design.

Student 2
Student 2

Can you summarize what we've covered?

Teacher
Teacher

Absolutely! Understanding and respecting the limitations of Ohm's Law is essential in electronic design, ensuring that current flow is managed appropriately in non-linear devices. Let’s wrap this up with a summary of the session.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Ohm's Law, though widely applicable, has significant limitations in certain materials and devices.

Standard

This section discusses the limitations of Ohm's Law, describing situations where voltage ceases to be proportional to current, where the relationship depends on the direction of current, and where multiple voltages correspond to the same current. Such behaviors are crucial in understanding non-linear devices like diodes and semiconductors.

Detailed

Detailed Summary

Ohm's Law states that the relationship between voltage (V) and current (I) in a conductor is typically linear, with the proportionality factor being the resistance (R). However, there are limitations to this law when applied to specific materials and devices. In this section, we delve into three major limitations:

  1. Voltage-Current Non-linear Relationship: There exist materials where V does not remain proportional to I. This can lead to scenarios where, if the voltage doubles, the current does not necessarily double, violating Ohm's Law.
  2. Direction-Dependent Behavior: In some cases, the relation between V and I changes when the polarity of the voltage is reversed. For instance, in diodes, when the voltage is applied in one direction, current flows, but when reversed, it either does not flow or flows in a different magnitude.
  3. Ambiguity in Relation: There are materials where more than one value of V may exist for a particular current I. This is illustrated in the case of Gallium Arsenide (GaAs) semiconductors.

These deviations from the linear relationship are particularly significant in electronic components and materials that are pivotal in circuits such as diodes and transistors, highlighting the need for a nuanced understanding of current flow in non-ohmic materials.

Youtube Videos

Class 12 Physics Chapter 3 Current Electricity - Limitations of Ohm’s Law.
Class 12 Physics Chapter 3 Current Electricity - Limitations of Ohm’s Law.

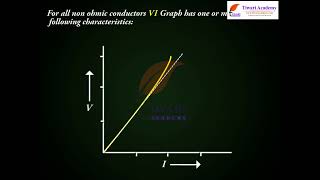

Current Electricity Class 12 Physics - Limitation of Ohms Law and Resistivity
Current Electricity Class 12 Physics - Limitation of Ohms Law and Resistivity

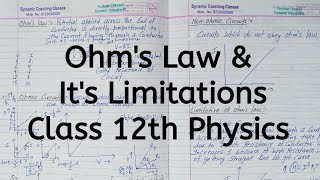

Limitations of Ohm's Law - Current Electricity | Class 12 Physics Chapter 3 | CBSE
Limitations of Ohm's Law - Current Electricity | Class 12 Physics Chapter 3 | CBSE

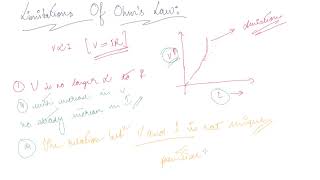

CBSE Class 12 Physics Current Electricity Limitations of Ohm's Law |Extraminds
CBSE Class 12 Physics Current Electricity Limitations of Ohm's Law |Extraminds

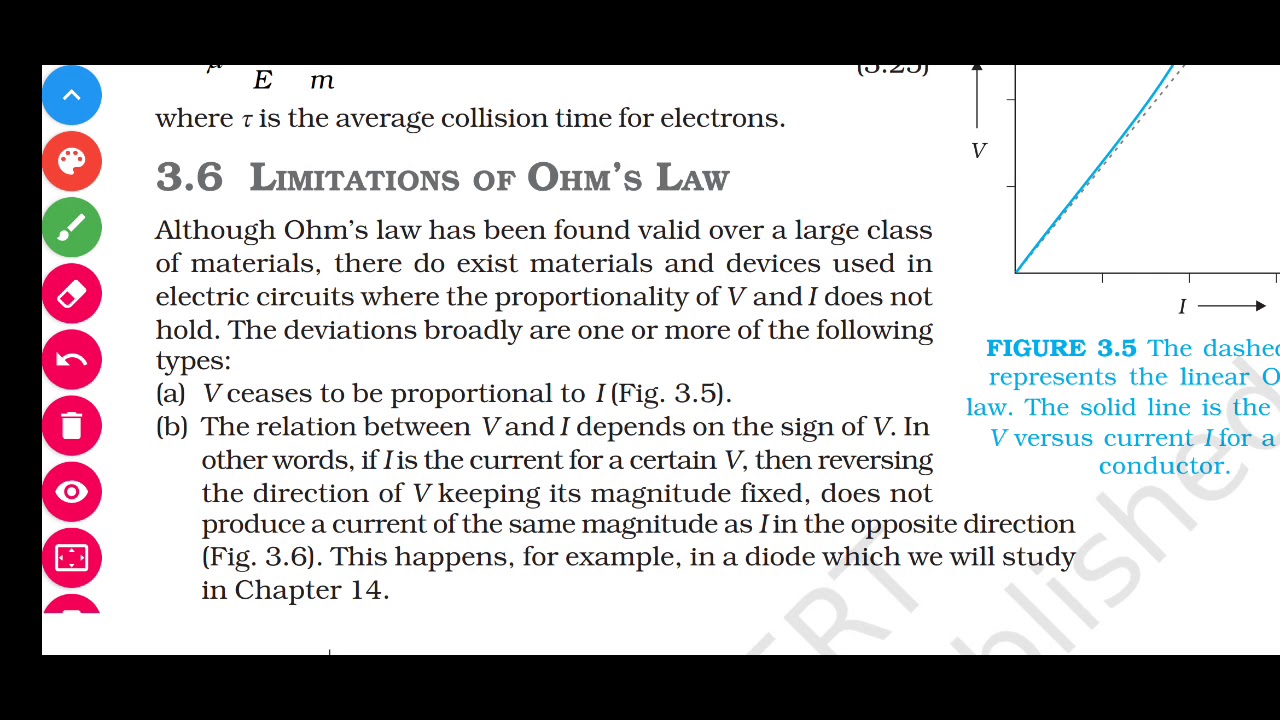

3.6 Limitations of Ohm's NCERT CLASS XII PHYSICS Chapter 3 Current Electricity
3.6 Limitations of Ohm's NCERT CLASS XII PHYSICS Chapter 3 Current Electricity
Limitations of Ohm's Law | Class 12th | Physics | Chapter 3 | Part 5 |
Limitations of Ohm's Law | Class 12th | Physics | Chapter 3 | Part 5 |

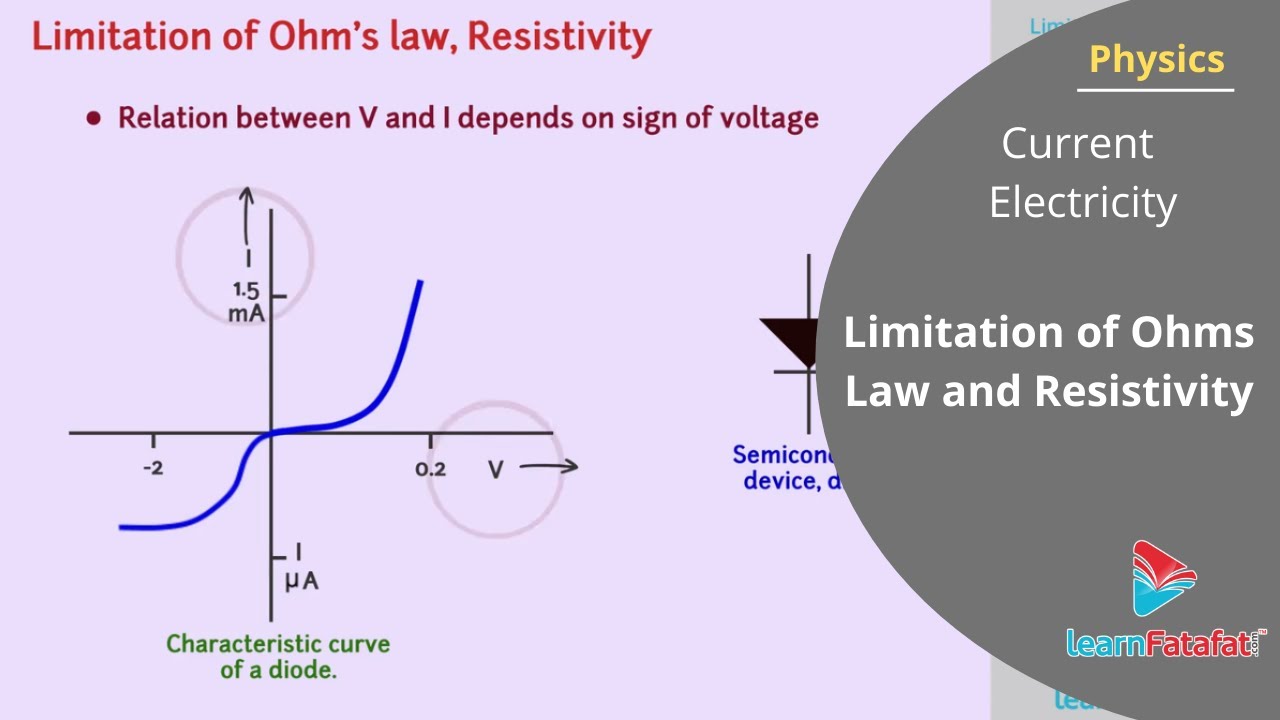

Limitations of Ohm's Law|Current Electricity|Class 12|NCERT|Physics|@skwonderkids5047.
Limitations of Ohm's Law|Current Electricity|Class 12|NCERT|Physics|@skwonderkids5047.
Ohm's law, its Limitations, Chapter 3, Current Electricity, Class 12 Physics
Ohm's law, its Limitations, Chapter 3, Current Electricity, Class 12 Physics
Limitations of Ohm's Law | Class 12 Physics Current Electricity
Limitations of Ohm's Law | Class 12 Physics Current Electricity
Current Electricity: Limitations of Ohm's law
Current Electricity: Limitations of Ohm's law

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Non-Proportionality of Voltage and Current

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Although Ohm's law has been found valid over a large class of materials, there do exist materials and devices used in electric circuits where the proportionality of V and I does not hold.

Detailed Explanation

Ohm's law states that the voltage (V) across a conductor is directly proportional to the current (I) flowing through it, represented by the equation V = IR. However, this relationship does not apply to all materials or devices. In certain situations, particularly with non-linear devices, the voltage does not change in a way that is directly proportional to the current. This means that as you change the current, the voltage might not respond in a predictable, linear manner.

Examples & Analogies

Consider a water pipe. If the pipe is of a fixed diameter, adding more water (current) will increase the pressure (voltage) in a predictable way. However, if the pipe has a narrowing (like a diode), at some point adding more water will not significantly increase the pressure and will behave in a non-linear fashion.

Current Dependence on Voltage Sign

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The relation between V and I depends on the sign of V. In other words, if I is the current for a certain V, then reversing the direction of V keeping its magnitude fixed, does not produce a current of the same magnitude as I in the opposite direction.

Detailed Explanation

In certain devices, like diodes, the relationship between voltage and current is not symmetrical. This means that when the voltage is applied in one direction, the device allows current to flow freely. However, when the voltage is reversed, the current might not flow in the same manner. This non-reciprocal behavior means that the response of the current to the applied voltage depends on the direction of that voltage.

Examples & Analogies

Think of a one-way street where cars can only travel in one direction. If cars represent current, when you allow movement in one direction (positive voltage), traffic flows freely. However, if you try to send cars back the other way (negative voltage), they cannot move. This is akin to how diodes work, allowing current in one direction but blocking it in the reverse direction.

Non-Unique Voltage for Given Current

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The relation between V and I is not unique, i.e., there is more than one value of V for the same current I.

Detailed Explanation

In certain materials, the behavior of voltage and current is such that for a given amount of current flowing through, you could have multiple potential differences across the material. This means that if you were to measure the current flowing, multiple scenarios could yield the same current measurement but with different voltage readings. This can occur in materials exhibiting complex characteristics, such as transistors or certain types of semiconductors.

Examples & Analogies

Imagine a car driving at 60 km/h. Depending on the terrain (e.g., uphill, downhill, flat), the engine might take different amounts of power. Therefore, for the same car speed (current), the power needed from the engine might vary depending on external conditions (the voltage), showing that multiple 'voltage' situations can lead to the same output.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Limitations of Ohm's Law: V and I are not always proportional in certain materials.

  • Non-Linear Behavior: In some devices, such as diodes, changing the direction of voltage changes the current differently.

  • Multiple Values of Voltage: Some materials can yield multiple voltage values for the same current.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • A diode exhibits non-linear characteristics, allowing current to flow only in one direction under certain voltage conditions.

  • Semiconductors like GaAs show unique V-I characteristics that deviate from Ohm's Law.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When V goes up, oh so bright, I should rise and shine just right!

📖 Fascinating Stories

  • Imagine a bus that can only take its passengers in one direction; if you reverse the route, no one boards. This is like a diode with current flow.

🧠 Other Memory Gems

  • Remember the acronym 'DNA' for the limitations: Direction, Non-unique, Non-linear.

🎯 Super Acronyms

'VIR' - Voltage = Current times Resistance helps remind you of Ohm's Law.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Ohm's Law

    Definition:

    The relationship between voltage and current in a conductor, stated as V = IR.

  • Term: Nonlinear Materials

    Definition:

    Materials where the current is not directly proportional to voltage.

  • Term: Semiconductor

    Definition:

    Materials with conductive properties between conductors and insulators.

  • Term: Diode

    Definition:

    A semiconductor device that conducts current primarily in one direction.

  • Term: VI Characteristics

    Definition:

    Graph showing the relationship between voltage and current in a device.

  • Term: Gallium Arsenide (GaAs)

    Definition:

    A semiconductor material used in electronics with unique V-I characteristics.
