6.8 - AC GENERATOR

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Components of an AC Generator

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s learn about the essential components of an AC generator. What do you think they are?

Student 1
Student 1

The coil and the magnetic field?

Teacher
Teacher

Yes! The coil, called the armature, rotates to induce emf. What about how it connects to the external circuit?

Student 2
Student 2

It uses slip rings and brushes?

Teacher
Teacher

Exactly right! The slip rings allow the generated current to flow to the external circuit while the coil rotates. This setup is critical for producing stable electricity.

Student 3
Student 3

How does the field strength affect the generator?

Teacher
Teacher

Excellent question! The strength of the magnetic field directly affects the amount of induced emf. The stronger the field, the greater the output voltage.

Student 4
Student 4

Could we use a story to remember these parts?

Teacher
Teacher

Sure! Imagine a dynamic duo: a 'heroic coil' swirls in a 'mighty magnetic field,' generating electricity for the world!

Mathematical Representation of Induced EMF

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s dive into the math! The induced voltage in the coil can be expressed as e = NBAω sin(wt). Can anyone break this down for me?

Student 1
Student 1

N is the number of turns, B is the magnetic field strength, A is the area, and ω is the angular velocity?

Teacher
Teacher

Perfect! And what does the sin(wt) part represent?

Student 2
Student 2

It shows how the angle of the coil changes over time!

Teacher
Teacher

Exactly! This periodic change leads to 'alternating current' or AC. Why do you think AC is essential for power supply?

Student 3
Student 3

Because it can be easily transformed to different voltages!

Teacher
Teacher

Right again! Let's summarize. The total induced emf depends on the product of these factors, and knowing this lets us optimize generator design.

Student 4
Student 4

Can we create an acronym for the formula?

Teacher
Teacher

Sure! Think of 'NABPower' to remember: N for turns, A for area, B for magnetic field strength, and Power for ω.

Summarizing AC Generators

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

As we wrap up our session on AC generators, let's review.

Student 1
Student 1

They convert mechanical energy to electrical energy!

Teacher
Teacher

That's right! And they operate using electromagnetic induction.

Student 2
Student 2

The key components are the rotating coil, magnetic field, and slip rings.

Teacher
Teacher

Good recall! The induced emf depends on N, B, A, and ω. Who remembers an acronym to help with this?

Student 3
Student 3

NABPower!

Teacher
Teacher

Well done! Finally, AC generators are vital in our power systems, used in hydroelectric, thermal, and nuclear plants.

Student 4
Student 4

Thanks for the engaging session!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

The AC generator converts mechanical energy into electrical energy via electromagnetic induction.

Standard

An AC generator operates on the principle of electromagnetic induction. As a coil rotates in a magnetic field, the change in magnetic flux induces an electromotive force (emf). This section discusses the fundamental workings of AC generators and their applications in modern power systems.

Detailed

Detailed Summary

The section on AC generators discusses the principle of electromagnetic induction, which is vital for the generation of alternating current (AC). Pioneered by Nikola Tesla, the modern AC generator transforms mechanical energy into electrical energy. A coil, known as the armature, is rotated within a magnetic field, causing the magnetic flux through it to change. This change in flux induces an electromotive force (emf) as defined by Faraday's law, leading to an alternating current due to the periodic change in flux direction.

The section elaborates on the essential components of an AC generator and their functions:
- Coil (Armature): Mounted on a rotor shaft, its rotation in the magnetic field induces emf.
- Magnetic Field: Provided by electromagnets, it interacts with the armature to convert mechanical motion into electrical energy.
- Slip Rings and Brushes: Essential for maintaining electrical connection between the rotating coil and the external circuit.

The relationship between the induced emf, the magnetic field strength, the area of the coil, and the angular velocity of the coil is explained. The peak voltage output of the generator and its dependency on these factors is mathematically derived. The application of AC generators in hydroelectric, thermal, and nuclear power plants is also highlighted, demonstrating their importance in modern energy production.

Youtube Videos

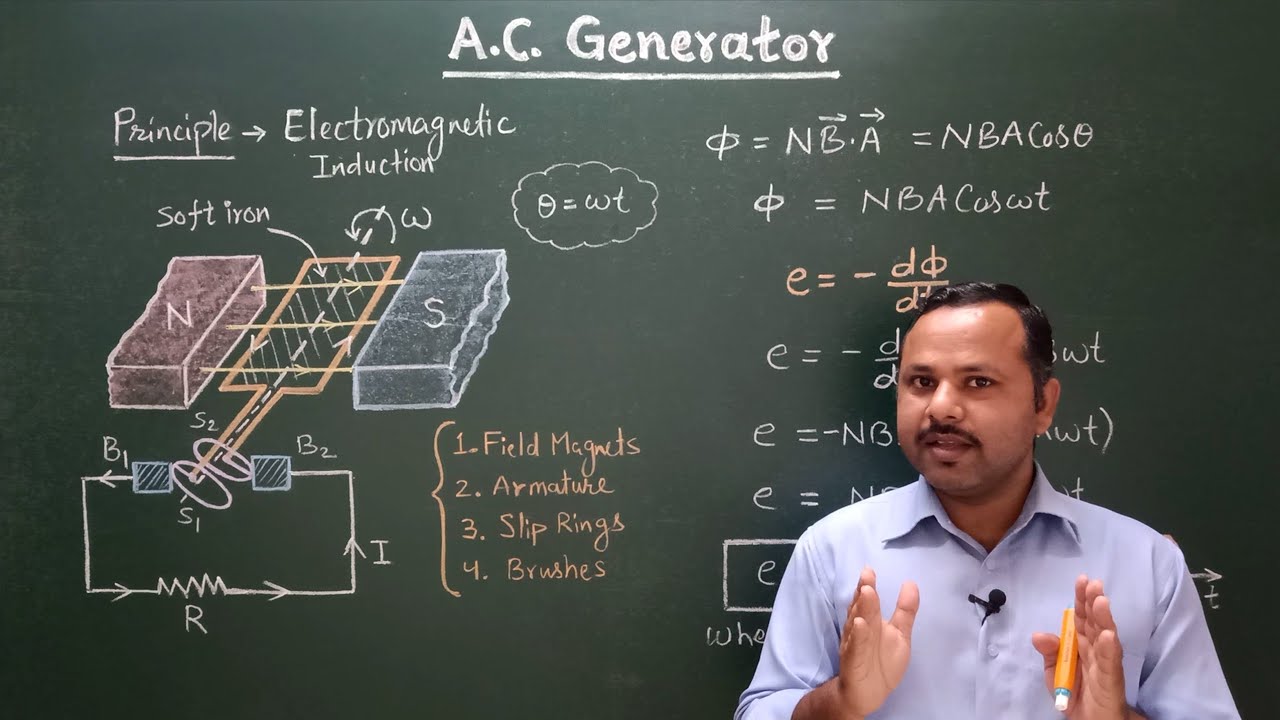

18. AC Generator | EMI Class 12th physics | Physics Handwritten Notes #cbse
18. AC Generator | EMI Class 12th physics | Physics Handwritten Notes #cbse
CBSE Class XII - Physics / Electromagnetic Induction/AC Generator/01
CBSE Class XII - Physics / Electromagnetic Induction/AC Generator/01
AC Generator: Construction and Working - Electromagnetic Induction | Class 12 Physics Ch 6 (2023-24)
AC Generator: Construction and Working - Electromagnetic Induction | Class 12 Physics Ch 6 (2023-24)
ElectroMagnetic Induction 09 II A.C Generator - Working of A.C Generator and a Famous Story JEE/NEET
ElectroMagnetic Induction 09 II A.C Generator - Working of A.C Generator and a Famous Story JEE/NEET
AC Generator - Electromagnetic Induction | Class 12 Physics Chapter 6 | CBSE 2024-25
AC Generator - Electromagnetic Induction | Class 12 Physics Chapter 6 | CBSE 2024-25
Class 12th Physics | AC Generator | Example 6.10 | Chapter 6: Electromagnetic Induction | NCERT
Class 12th Physics | AC Generator | Example 6.10 | Chapter 6: Electromagnetic Induction | NCERT

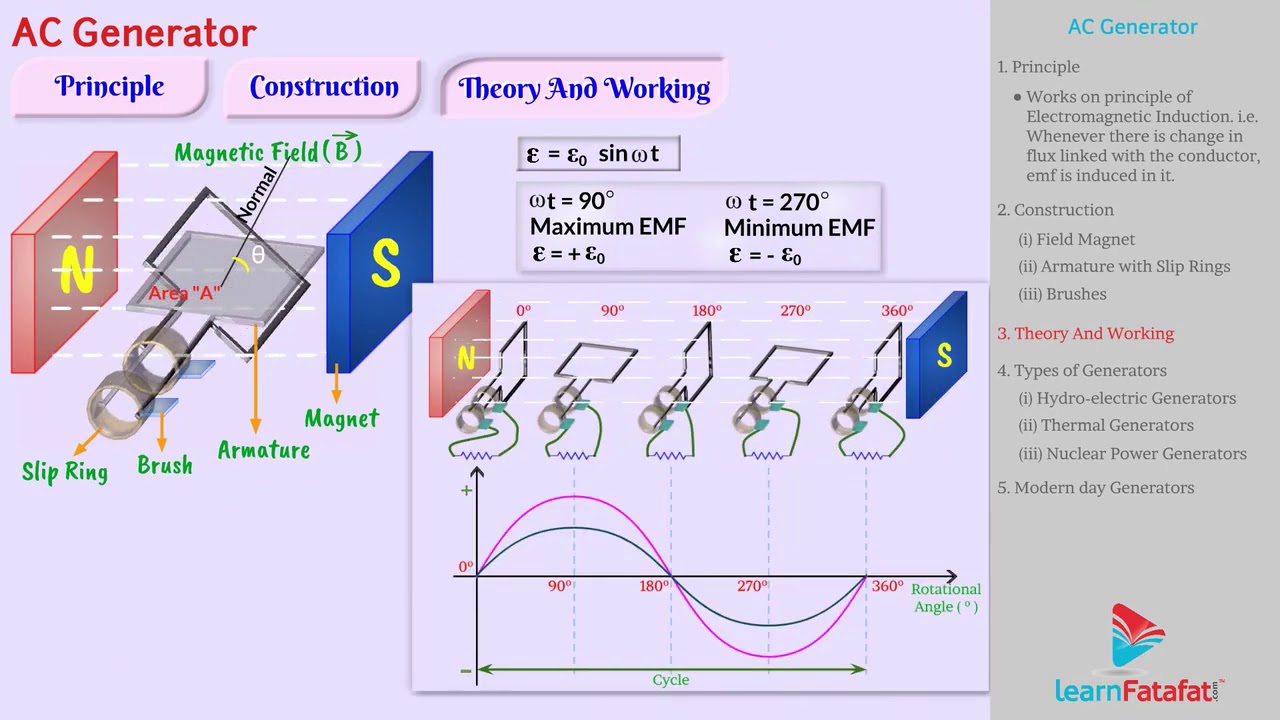

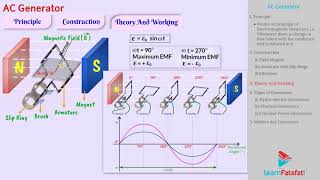

Electromagnetic Induction Class 12 Physics - AC Generator
Electromagnetic Induction Class 12 Physics - AC Generator

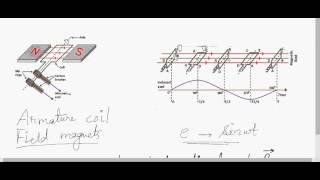

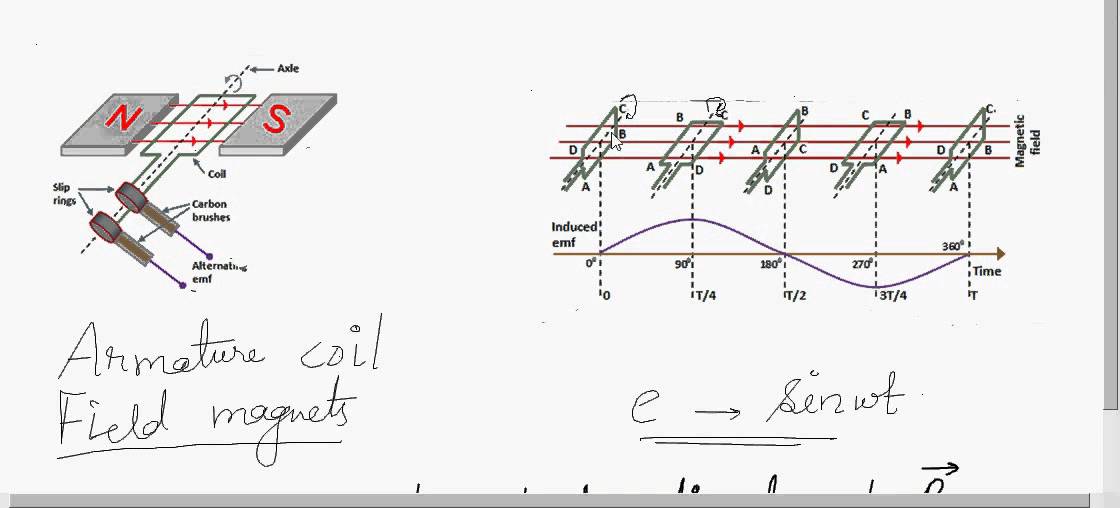

CBSE Class XII - Physics / Electromagnetic Induction/AC Generator/02
CBSE Class XII - Physics / Electromagnetic Induction/AC Generator/02
12th class physics chapter 6 EMI electromagnetic induction in 10 minutes one shot revision PW ....
12th class physics chapter 6 EMI electromagnetic induction in 10 minutes one shot revision PW ....
Physics Electromagnetic Induction part 20 (AC generator) CBSE class 12
Physics Electromagnetic Induction part 20 (AC generator) CBSE class 12

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to AC Generators

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The phenomenon of electromagnetic induction has been technologically exploited in many ways. An exceptionally important application is the generation of alternating currents (ac). The modern ac generator with a typical output capacity of 100 MW is a highly evolved machine.

Detailed Explanation

An AC generator is a device that converts mechanical energy into electrical energy through the principle of electromagnetic induction. Electromagnetic induction occurs when a conductor moves through a magnetic field, which results in the generation of an electric current. The modern AC generator is a sophisticated version of this basic concept, capable of producing a substantial amount of electrical power (up to 100 megawatts). This means that a single generator can power thousands of homes.

Examples & Analogies

Imagine pedaling a bicycle where the movement of the pedals turns a dynamo, creating electricity to power a light bulb. In much the same way, larger generators turn mechanical energy (from wind, water, or other sources) into electricity for our homes and industries.

Operating Principle of AC Generators

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

As was pointed out in Section 6.3, one method to induce an emf or current in a loop is through a change in the loop’s orientation or a change in its effective area. As the coil rotates in a magnetic field B, the effective area of the loop (the face perpendicular to the field) is A cos q, where q is the angle between A and B.

Detailed Explanation

The operation of an AC generator relies on changing the orientation of a coil within a magnetic field. When the coil rotates, the area exposed to the magnetic field changes, which alters the magnetic flux through the coil. The induced electromotive force (emf) in the coil is given by Faraday's law of induction, which states that a change in magnetic flux induces electric current.

Examples & Analogies

Think of a windmill. As the blades turn (similar to the coil in the generator), they catch the wind and move through the air. This movement can be thought of as changing the 'effective area' of the windmill in the wind. Similarly, the rotation of the coil in a generator changes its area facing the magnetic field, producing electricity.

Components of an AC Generator

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The basic elements of an ac generator consist of a coil mounted on a rotor shaft. The axis of rotation of the coil is perpendicular to the direction of the magnetic field. The coil (called armature) is mechanically rotated in the uniform magnetic field by some external means.

Detailed Explanation

An AC generator is made up of several key components: a coil (or armature), a rotor shaft that allows the coil to rotate, and a magnetic field generated either by permanent magnets or electromagnets. The coil rotates within the magnetic field, and this rotation induces an emf in the coil due to the change in magnetic flux as described in Faraday’s law.

Examples & Analogies

Imagine a carousel (the rotor) with a horse on it (the coil) spinning in circles. The magnetic field can be visualized as the air surrounding the carousel. As the horse spins around, it 'cuts' through the air, similarly to how the coil cuts through the magnetic field, generating energy.

Induced EMF in AC Generators

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

When the coil is rotated with a constant angular speed w, the angle q between the magnetic field vector B and the area vector A of the coil at any instant t is q = wt. As a result, the effective area of the coil exposed to the magnetic field lines changes with time, and from Eq. (6.1), the flux at any time t is F = BA cos q = BA cos wt.

Detailed Explanation

In an AC generator, the emf induced in the coil changes continuously as the coil rotates. The angular position of the coil changes over time, which modifies the effective area exposed to the magnetic field. This fluctuation in angle causes the magnetic flux through the coil to vary, which is mathematically expressed using the cosine function. The induced emf is thus dependent on the rotation speed and the orientation of the coil relative to the magnetic field.

Examples & Analogies

Consider a swinging door: as it opens and closes, the angle of the door relative to the wall changes. Similarly, as the coil in the generator rotates, its angle changes with respect to the magnetic field, causing the electrical output (emf) to change continuously, much like the flow of wind through a swinging door varies.

Conclusion of AC Generators

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In commercial generators, the mechanical energy required for rotation of the armature is provided by water falling from a height, for example, from dams. These are called hydro-electric generators.

Detailed Explanation

The mechanical energy to rotate the coil of an AC generator often comes from natural sources. Hydro-electric generators harness energy from falling water, converting it into electrical energy. Other forms of generators use steam produced from heated water (thermal generators) or nuclear reactions (nuclear generators) to achieve similar outcomes. The scale of energy production can be immense, powering entire cities.

Examples & Analogies

Think about how a dam stores water. As the water is released and flows downwards, it turns turbines that are attached to generators, converting the potential energy of the water into electrical energy. This is how much of our power supply is generated today.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Electromotive Force: The voltage generated in a coil due to changing magnetic flux.

  • Magnetic Field: The region around a magnet where magnetic forces can be detected.

  • Rotation of Coil: The movement of the coil in a magnetic field which induces an emf.

  • Slip Rings: Devices used to transfer electrical energy from a rotating coil to an external circuit.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • A common example of an AC generator is a hydroelectric power plant, where falling water turns the turbines which rotate the coils in generators to produce electricity.

  • A bicycle dynamo also serves as a small-scale AC generator, using the motion of the pedals to generate electricity to power lights.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • AC spins in a coil so bright, turning energy into the light.

📖 Fascinating Stories

  • Once upon a time, in a land of spinning wheels, a magical coil danced with a mighty magnet, producing light and energy for all the world.

🧠 Other Memory Gems

  • Remember 'SOME' for Slip rings, Oscillation, Mechanical energy – key aspects of AC Generators.

🎯 Super Acronyms

A+Torque = Energy! (Where A is for Alternating, Torque represents the rotating coil.)
