Introduction to Faraday's Law

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we are going to dive into Faraday's Law of Induction, which explains how electricity can be generated from magnetic fields. Can anyone tell me what they think electromagnetic induction means?

Student 1
Student 1

I think it’s about how magnets and electricity work together.

Teacher
Teacher

Exactly! When we move a magnet near a coil or change the magnetic field around it, it can induce a current in the coil. The key concept we’ll focus on is that changing magnetic flux induces an electromotive force, or emf. Can anyone remind us what flux means in this context?

Student 2
Student 2

I recall it's related to the amount of magnetic field passing through a certain area.

Teacher
Teacher

Correct! It’s the product of the magnetic field strength and the area it penetrates. Great job!

Mathematical Expression of Faraday's Law

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's look at the mathematical expression of Faraday's Law: \( e = - \frac{d\Phi_B}{dt} \). What do you think each symbol represents?

Student 3
Student 3

I think \( e \) is the induced emf, but what does \( \Phi_B \) stand for?

Teacher
Teacher

Great question! \( \Phi_B \) is the magnetic flux. And the negative sign indicates the direction of the induced emf. This is aligned with Lenz's Law which states that the induced current will oppose the change that created it. Can anyone share an example of this?

Student 4
Student 4

If you push a magnet towards a coil, the current will flow in a direction that tries to oppose the magnet's approach?

Teacher
Teacher

Exactly! You're catching on very well!

Applications of Faraday's Law

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

So, we now understand the basics of Faraday's Law. Can anyone think of where we see this law applied in real life?

Student 1
Student 1

What about in electric generators?

Teacher
Teacher

Yes! Electric generators convert mechanical energy into electrical energy by rotating coils in magnetic fields. This is a direct application of Faraday's Law! What are some other devices that might use this principle?

Student 2
Student 2

Transformers also! They transfer electrical energy between circuits using electromagnetic induction.

Teacher
Teacher

Correct again! Transformers change voltages in circuits and are everywhere in electrical systems.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Faraday's Law states that an electromotive force (emf) is induced in a coil when the magnetic flux through it changes over time.

Standard

Faraday's Law describes how electric current can be generated by changing magnetic fields. It details the relationship between the induced emf and the rate of change of magnetic flux, leading to the understanding of electromagnetic induction that is foundational to modern electrical technologies.

Detailed

Faraday's Law of Induction is a fundamental principle of electromagnetism that describes how a change in magnetic flux through a coil induces an electromotive force (emf). Specifically, the law states that the induced emf in a circuit is directly related to the rate at which the magnetic flux through the circuit changes. Mathematically, this relationship can be expressed as \( e = - \frac{d\Phi_B}{dt} \), where \( \Phi_B \) is the magnetic flux and the negative sign indicates that the induced emf opposes the change in flux, as captured by Lenz's Law. This law is pivotal in the operation of electrical generators, transformers, and various electromagnetic devices. The experiments conducted by Michael Faraday showcased the principle of electromagnetic induction and laid the foundation for the technological advancements in electricity.

Youtube Videos

Faraday's Laws of Electromagnetic Induction Electromagnetic Induction Class 12 Physics Ch 6
Faraday's Laws of Electromagnetic Induction Electromagnetic Induction Class 12 Physics Ch 6
12 Chap 6 II ElectroMagnetic Induction 01 : Magnetic Flux II Faraday's Law & Lenz's Law JEE/NEET
12 Chap 6 II ElectroMagnetic Induction 01 : Magnetic Flux II Faraday's Law & Lenz's Law JEE/NEET

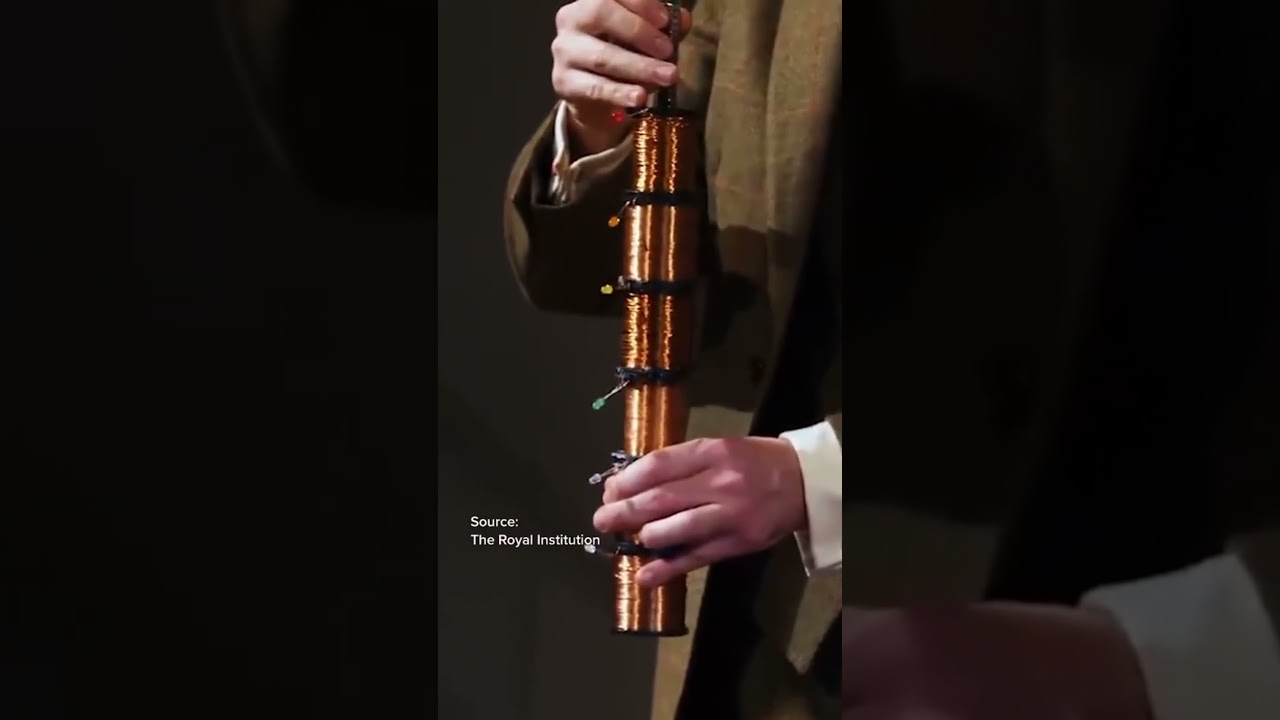

Faraday's law #vigyanrecharge
Faraday's law #vigyanrecharge
Physics Electromagnetic Induction part 4 (Faraday's Law) CBSE class 12
Physics Electromagnetic Induction part 4 (Faraday's Law) CBSE class 12
50. Magnetic Flux and Lenz law |Electromagnetic Induction | CBSE | NCERT | Physics Baba 2.0
50. Magnetic Flux and Lenz law |Electromagnetic Induction | CBSE | NCERT | Physics Baba 2.0
12th class physics chapter 6 EMI electromagnetic induction in 10 minutes one shot revision PW ....
12th class physics chapter 6 EMI electromagnetic induction in 10 minutes one shot revision PW ....

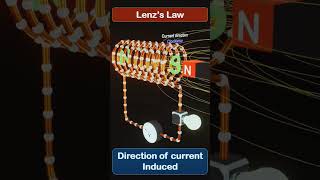

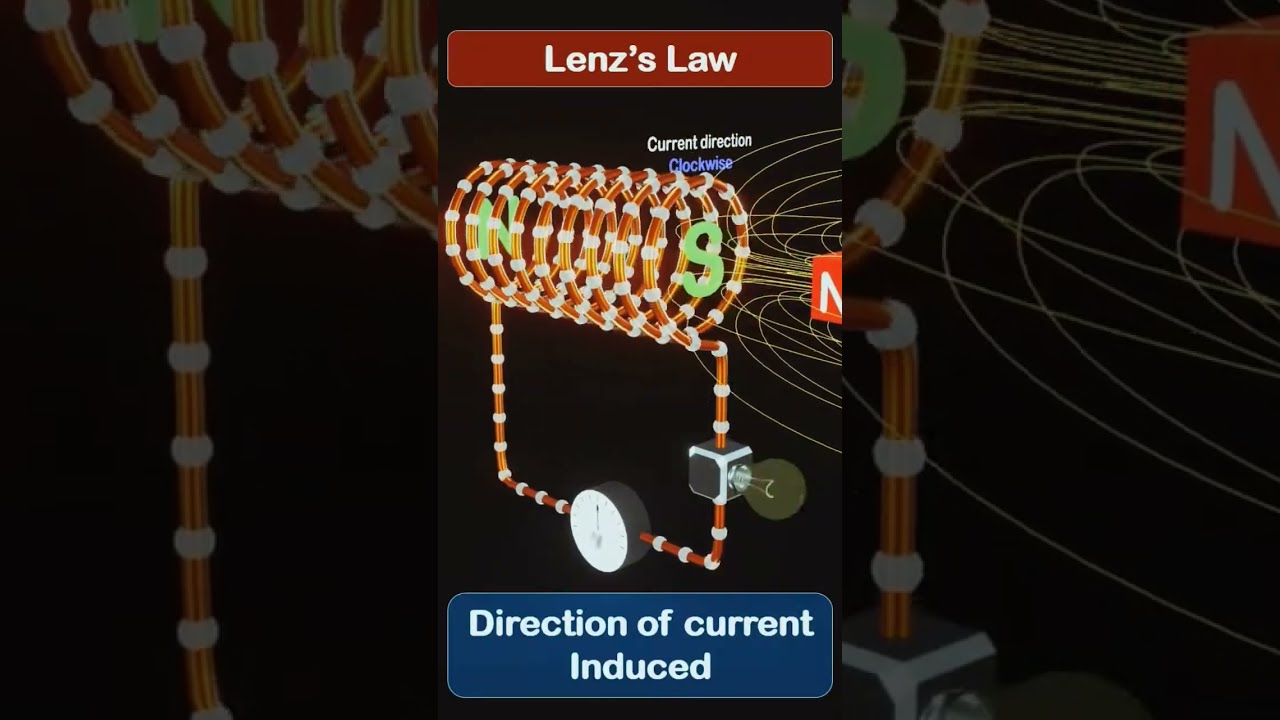

lenz's Law #shorts #physics #animation #electromagneticinduction #12th #3danimation
lenz's Law #shorts #physics #animation #electromagneticinduction #12th #3danimation

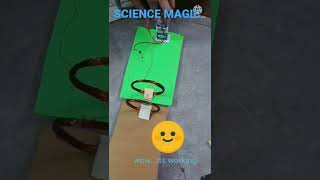

Electromagnetic Induction  Project
Electromagnetic Induction Project
Coils and electromagnetic induction | 3d animation #shorts
Coils and electromagnetic induction | 3d animation #shorts
Electromagnetic Induction ( Michael Faraday ) #shorts #science #engineering #physics
Electromagnetic Induction ( Michael Faraday ) #shorts #science #engineering #physics

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Faraday's Law

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

From the experimental observations, Faraday arrived at a conclusion that an emf is induced in a coil when magnetic flux through the coil changes with time. Experimental observations discussed in Section 6.2 can be explained using this concept. The motion of a magnet towards or away from coil C in Experiment 6.1 and moving a current-carrying coil C towards or away from coil C in Experiment 6.2, change the magnetic flux associated with coil C. The change in magnetic flux induces emf in coil C.

Detailed Explanation

Faraday's Law states that an electromotive force (emf) is induced in a coil of wire whenever there is a change in the magnetic flux through that coil over time. This is fundamental to understanding how electrical power is generated. For instance, if you move a magnet towards or away from a coil, the magnetic field around the coil changes, leading to a change in magnetic flux. This change induces an emf in the coil, causing current to flow if the circuit is closed.

Examples & Analogies

Think of this process like water flowing through a hose. If you squeeze the hose (representing changing the magnetic field), the water (electric current) flows differently. Just as a squeeze in the hose causes an immediate response in water flow, altering the magnetic field relative to the coil causes an immediate response in the induced current.

Understanding the Induction Process Through Experiments

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

A plausible explanation for the observations of Experiment 6.3 is as follows: When the tapping key K is pressed, the current in coil C (and the resulting magnetic field) rises from zero to a maximum value in a short time. Consequently, the magnetic flux through the neighbouring coil C also increases. It is the change in magnetic flux through coil C that produces an induced emf in coil C. When the key is held pressed, current in coil C is constant...

Detailed Explanation

In Experiment 6.3, pressing the key leads to a sudden increase in current in a coil, which creates a magnetic field. This change in the magnetic field causes the magnetic flux through a nearby coil to change. The varying magnetic flux induces an emf in the neighboring coil because it is coupled through the changing magnetic field. Importantly, once the key is pressed and the current stabilizes, the induced emf disappears since there are no longer changes in flux. Finally, releasing the key rapidly decreases the current, which again changes the magnetic flux, inducing an emf in the opposite direction.

Examples & Analogies

Imagine a photographer adjusting a dimmer switch to increase light in a room. As they gradually increase the light, people in the room start to notice the brightness (analogous to increasing current), but once the light stays at a constant level, no one notices further changes until the switch is lowered back down. The initial adjustment increases light slowly, causing gradual changes in brightness.

Mathematical Expression of Faraday's Law

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

1.6 The magnitude of the induced emf in a circuit is equal to the time rate of change of magnetic flux through the circuit. Mathematically, the induced emf is given by e = -dF/dt. The negative sign indicates the direction of e and hence the direction of current in a closed loop.

Detailed Explanation

The mathematical representation of Faraday's Law captures the relationship between the change in magnetic flux and the induced electromotive force (emf). The formula e = -dF/dt indicates that the induced emf is directly related to how fast the magnetic flux changes through the loop. The negative sign, a significant element of Lenz's law, tells us that the induced current will flow in a direction that opposes the change in magnetic flux, preserving energy in the system.

Examples & Analogies

Consider a person pulling a water bucket from a well. If they pull it faster (analogous to a rapid change in magnetic flux), more effort is required to keep the bucket moving, and the same principle applies to changes in magnetic flux and the resulting current: the quicker the change, the larger the current induced. The opposing current can be likened to the resistance felt in the well's bucket due to water pressure.

Induced EMF in Coils with Multiple Turns

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In the case of a closely wound coil of N turns, change of flux associated with each turn is the same. Therefore, the expression for the total induced emf is given by e = -N(dF/dt).

Detailed Explanation

When dealing with coils that consist of multiple turns (N turns), Faraday’s Law must account for each individual turn experiencing the same change in magnetic flux. Thus, the total emf induced in the coil is the sum of all the individual contributions for each turn, leading to the expression e = -N(dF/dt). It emphasizes the cumulative effect of multiple loops of wire encountering changes in the magnetic environment.

Examples & Analogies

Think of a group of people holding onto a rope. If one person tugs the rope quickly (indicating a change in magnetic flux), all others feel that tug due to the rope being pulled, similar to how each loop in the coil responds to the changing magnetic field together to create a stronger total response.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Faraday's Law: Describes how an emf is induced by changing magnetic flux.

  • Magnetic Flux: The product of the magnetic field and the area through which it passes.

  • Lenz's Law: States the direction of an induced current opposes the change in flux.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Moving a magnet towards a coil induces a current in the coil.

  • Rotating a coil within a magnetic field generates electricity in a generator.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Faraday’s Law, oh so grand, / Changing flux gives currents demand.

📖 Fascinating Stories

  • Once a clever inventor named Faraday saw a magnet move near a wire and realized this motion could draw electricity, sparking innovations.

🧠 Other Memory Gems

  • Flux changes induce emf: 'F-C-I' (Flux Changes Induce).

🎯 Super Acronyms

LEAD

  • Lenz's Law
  • Electromagnetic induction
  • Area
  • Direction.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Electromagnetic Induction

    Definition:

    The generation of an electromotive force (emf) in a closed circuit by changing magnetic flux.

  • Term: Magnetic Flux (\(\Phi_B\))

    Definition:

    The product of the magnetic field (B) and the area (A) which it penetrates, represented as \(\Phi_B = B \cdot A\).

  • Term: Electromotive Force (emf)

    Definition:

    The voltage generated by the electromagnetic induction, measured in volts.

  • Term: Lenz's Law

    Definition:

    A principle stating that the direction of induced current opposes the change in magnetic flux that produces it.
