6.5 - LENZ'S LAW AND CONSERVATION OF ENERGY

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Lenz's Law

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're going to explore Lenz's Law, which states that the direction of an induced current is such that it opposes the change in magnetic flux. Can anyone tell me what they think this means?

Student 1
Student 1

Does it mean that if I move a magnet towards a coil, the coil will create a current that pushes back against the magnet?

Teacher
Teacher

Exactly, that’s spot on! As the North pole of a magnet approaches a coil, the induced current will flow in a direction that creates a magnetic field opposing this approach. Let’s remember this with the acronym 'C.O.U.N.T.' – 'Current Opposes Unwanted New Trends.'

Student 2
Student 2

What if I'm moving the magnet away from the coil?

Teacher
Teacher

Good question! If you pull the magnet away, the current will flow in the opposite direction to oppose the decrease in flux. This can be remembered as ‘Reversal with Retracting Magnet’ or 'R.R.M.'

Student 3
Student 3

Why is it so important to have this law?

Teacher
Teacher

Lenz's Law ensures energy conservation. If we didn’t have it, we could generate infinite energy through perpetual motion, which violates the laws of thermodynamics. Can anyone explain why that might be a problem?

Student 4
Student 4

Because nothing can operate without energy input, right?

Teacher
Teacher

Exactly! The energy must come from somewhere, and Lenz's Law helps reinforce that idea.

Applications of Lenz's Law

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we understand Lenz's Law, let's consider its practical applications! Can anyone think of devices that rely on this principle?

Student 1
Student 1

What about electric generators?

Teacher
Teacher

Exactly! Electric generators convert mechanical energy to electrical energy using electromagnetic induction. As the coil in a generator rotates, it constantly changes the magnetic flux, inducing currents that comply with Lenz's Law.

Student 2
Student 2

What about transformers? Do they relate to Lenz’s Law?

Teacher
Teacher

Yes! Transformers utilize induction, where changing current in one coil induces a current in another. Lenz's Law helps to maintain the directionality and function of these currents effectively. Let’s summarize that with ‘G.E.T.’— 'Generators Employ Transformation.'

Student 3
Student 3

Doesn’t this also help us understand how magnetic brakes work?

Teacher
Teacher

Absolutely! Magnetic braking utilizes Lenz’s Law by inducing currents in a material that opposes the motion of a magnetic field, effectively slowing it down. Great connections being made!

Understanding Conservation of Energy

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's connect Lenz's Law to the conservation of energy. What happens if the induced current flows in a direction that contradicts energy conservation?

Student 1
Student 1

We could create energy out of nothing, which isn't possible!

Teacher
Teacher

Exactly! If this were possible, we could essentially create a perpetual motion machine. But Lenz's Law prevents this by ensuring every induced current requires an external energy input to oppose changes in flux. Remember 'P.M.M.'— 'Perpetual Motion Machine is Mad!'.

Student 2
Student 2

So the energy we spend in moving a magnet also turns into heat in the coil?

Teacher
Teacher

Yes! This heat is due to resistance in the coil—called Joule heating. It shows a vital energy transformation where we're converting mechanical energy into thermal energy, fulfilling energy conservation principles.

Student 3
Student 3

How does this apply to our daily use of electrical devices?

Teacher
Teacher

Every time we use electrical devices, we depend on these principles to ensure our energy supply is efficiently utilized without violating the laws of nature.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Lenz's Law describes how induced currents oppose the change in magnetic flux that causes them, illustrating the principle of conservation of energy.

Standard

Lenz's Law states that the direction of induced electromotive force (emf) is such that it generates a current opposing the change in magnetic flux. This principle is crucial in understanding electromagnetic induction, as it aligns with the law of conservation of energy, preventing the possibility of perpetual motion and ensuring energy balance in electromagnetic systems.

Detailed

Lenz's Law and Conservation of Energy

Lenz's Law, formulated by Heinrich Friedrich Lenz in 1834, specifies that the polarity of the induced emf in a circuit is such that it generates a current opposing the change in magnetic flux through that circuit. This law is represented in equations by the negative sign in Faraday’s law of electromagnetic induction, suggesting that induced currents work against the very cause of their induction.

For instance, if a bar magnet's North pole approaches a coil, the induced current flows in a direction that produces a magnetic field opposing the increase in flux caused by the magnet. Conversely, if the magnet is withdrawn, the current direction reverses to counteract the decrease in magnetic flux.

Open circuits also experience induced emf due to changing magnetic flux, though no current flows. The significance of Lenz's law lies in its alignment with the conservation of energy principle, as it discourages the existence of perpetual motion machines by demanding that work must be done to move magnets against induced currents. Energy is dissipated as Joule heating in the process. This interplay highlights the interconnected nature of electricity and magnetism, and reinforces foundational principles in electromagnetism.

Youtube Videos

Lenz law || Electromagnetic Induction ||Full animated hindi explanation|| Physics || class 12th
Lenz law || Electromagnetic Induction ||Full animated hindi explanation|| Physics || class 12th
4. Lenz's Law | Electromagnetic induction | CBSE 12th | Physics #cbse
4. Lenz's Law | Electromagnetic induction | CBSE 12th | Physics #cbse
Lenz's Law and Energy Conservation, Chapter 6, Electromagnetic Induction, Class 12 Physics
Lenz's Law and Energy Conservation, Chapter 6, Electromagnetic Induction, Class 12 Physics

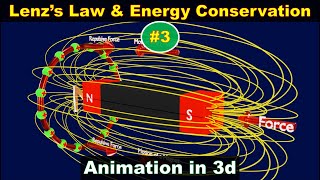

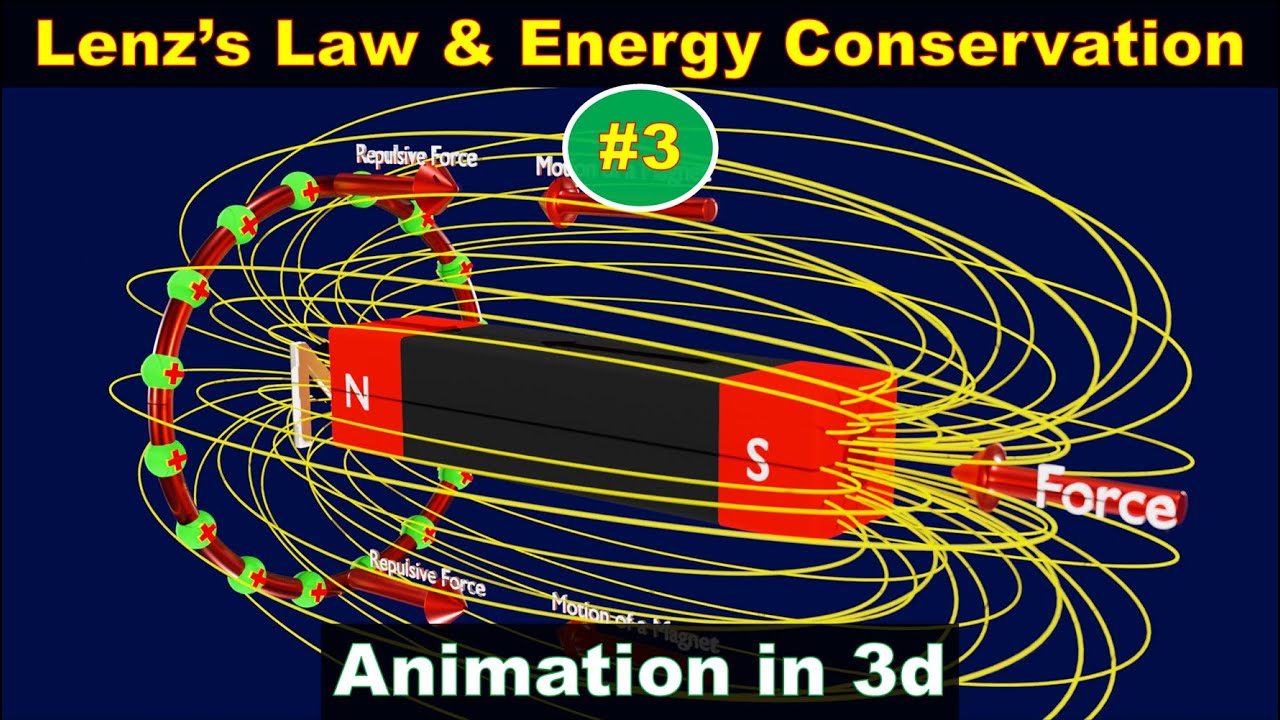

Lenz's law of electromagnetic induction | Lenz law and conservation of energy | class 12 | #3
Lenz's law of electromagnetic induction | Lenz law and conservation of energy | class 12 | #3
Lenz’s Law and Conservation of Energy - Electromagnetic Induction | Class 12 Physics Chapter 6 CBSE
Lenz’s Law and Conservation of Energy - Electromagnetic Induction | Class 12 Physics Chapter 6 CBSE

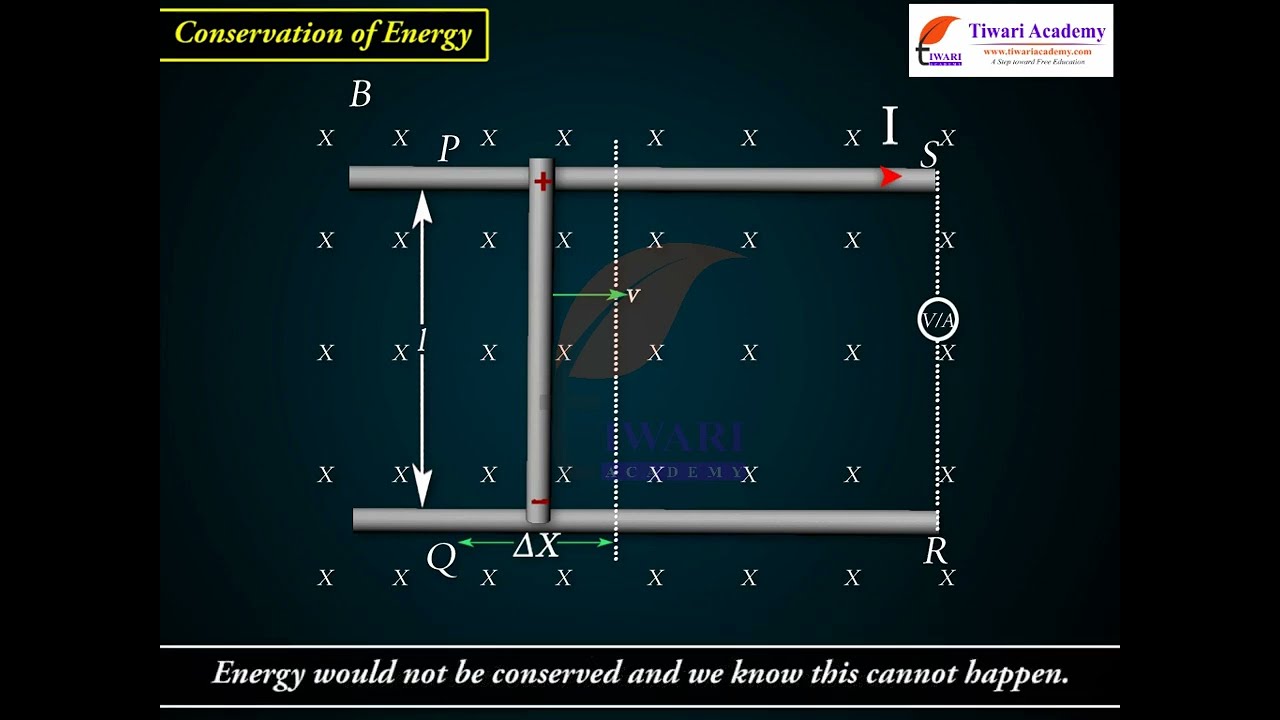

Class 12 Physics Chapter 6 Electromagnetic Induction - Lenz’s Law and Conservation of Energy
Class 12 Physics Chapter 6 Electromagnetic Induction - Lenz’s Law and Conservation of Energy
Lenz Law - Electromagnetic Induction | Class 12 Physics Chapter 6 (2023-24)
Lenz Law - Electromagnetic Induction | Class 12 Physics Chapter 6 (2023-24)
12 Chap 6 II ElectroMagnetic Induction 01 : Magnetic Flux II Faraday's Law & Lenz's Law JEE/NEET
12 Chap 6 II ElectroMagnetic Induction 01 : Magnetic Flux II Faraday's Law & Lenz's Law JEE/NEET
Faraday's Law #Shorts
Faraday's Law #Shorts

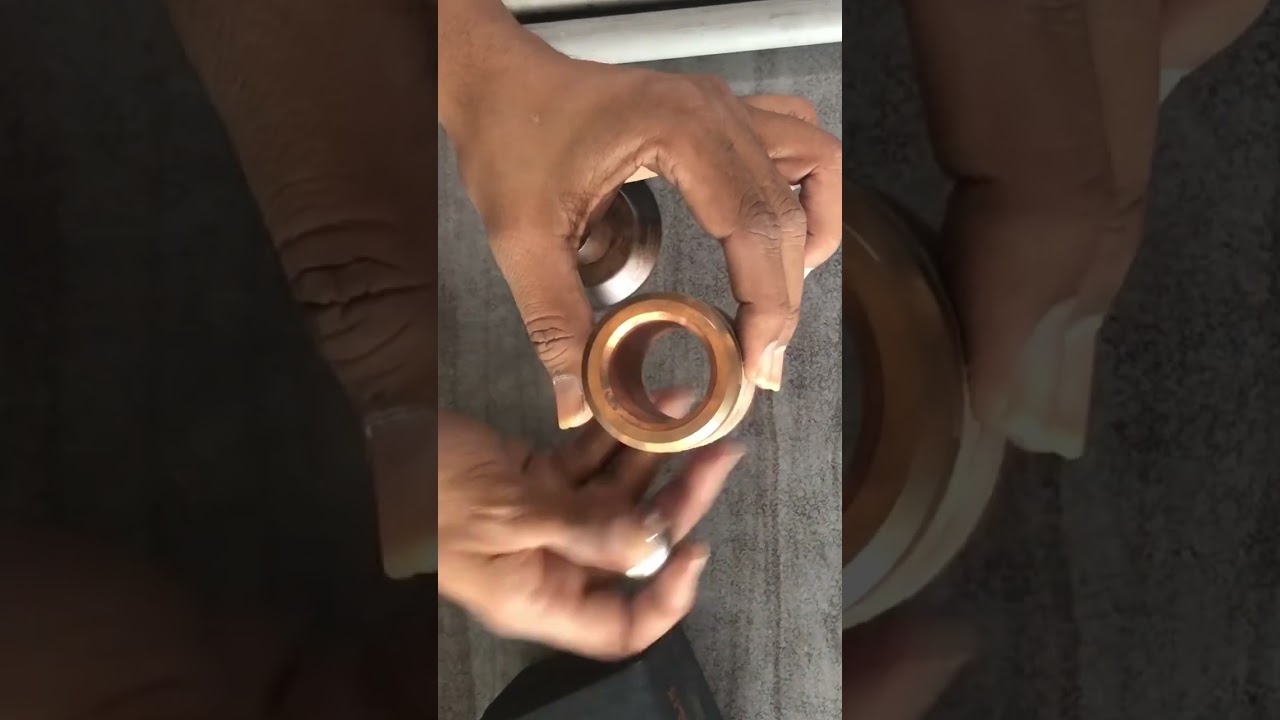

Demonstration of Lenz’s law at our Institute
Demonstration of Lenz’s law at our Institute

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Lenz's Law Defined

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In 1834, German physicist Heinrich Friedrich Lenz (1804-1865) deduced a rule, known as Lenz’s law which gives the polarity of the induced emf in a clear and concise fashion. The statement of the law is:
The polarity of induced emf is such that it tends to produce a current which opposes the change in magnetic flux that produced it.

Detailed Explanation

Lenz's law helps us understand how induced currents work in electromagnetic contexts. It states that when a change in magnetic flux occurs, the induced emf will create a current that opposes that change. This means that if the magnetic flux through a loop increases, the induced current will flow in a direction that attempts to decrease the flux, and vice versa. The negative sign in Faraday's equation supports this idea, indicating that the induced emf opposes the change in flux.

Examples & Analogies

Imagine you are holding a balloon and you suddenly blow air into it. The balloon expands (like an increase in magnetic flux), and your hand feels the pressure of the expanding air. To oppose this, you could squeeze the balloon, trying to keep it from expanding too much, much like how induced currents work to counteract changes in flux.

Practical Implications of Lenz's Law

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The negative sign shown in Eq. (6.3) represents this effect. We can understand Lenz’s law by examining Experiment 6.1 in Section 6.2.1. In Fig. 6.1, we see that the North-pole of a bar magnet is being pushed towards the closed coil. As the North-pole of the bar magnet moves towards the coil, the magnetic flux through the coil increases. Hence current is induced in the coil in such a direction that it opposes the increase in flux.

Detailed Explanation

In the context of Lenz's law, when a magnet approaches a coil, the magnetic flux through that coil increases. According to Lenz's Law, the direction of the induced current must be such that it produces a magnetic field opposing the approaching magnet. If the North pole of the magnet approaches the coil, then the induced current flows in a way that creates a North pole facing the incoming magnet, thus repelling it. This is an important principle in electric motors and generators, as it helps to maintain energy conservation.

Examples & Analogies

Think of Lenz's Law like a protective dog guarding a house. If someone approaches (change in flux), the dog (induced current) will bark and make noise to scare them away (oppose change). Just like the dog protects its territory, the induced current protects the original magnetic flux by opposing any changes.

Induced Current with Open Circuits

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

What will happen if an open circuit is used in place of the closed loop in the above example? In this case too, an emf is induced across the open ends of the circuit. The direction of the induced emf can be found using Lenz’s law.

Detailed Explanation

Even when a circuit is open, Lenz's law still applies. An emf will still appear at the ends of the open circuit due to the changing magnetic field in the vicinity. While no current can flow in an open circuit, the presence of an induced emf indicates that energy is still being transferred in a way that maintains conservation of energy principles. This demonstrates that energy in electromagnetic contexts isn't limited to just closed circuits.

Examples & Analogies

Imagine a water fountain with a pipe that is supposed to spray water. If you turn off the water, some water remains in the pipe and will flow out once it's re-opened (like how emf exists in an open circuit). The energy (or water) is still present, waiting to be used when conditions allow (like a current flowing when the circuit is closed).

The Energy Conservation Principle

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

A little reflection on this matter should convince us on the correctness of Lenz’s law. Suppose that the induced current was in the direction opposite to the one depicted in Fig. 6.6(a). In that case, the South-pole due to the induced current will face the approaching North-pole of the magnet. The bar magnet will then be attracted towards the coil at an ever increasing acceleration. A gentle push on the magnet will initiate the process and its velocity and kinetic energy will continuously increase without expending any energy.

Detailed Explanation

Reflecting on Lenz's law reveals it is inherently linked to the conservation of energy. If induced current were to assist in the motion of the magnet (i.e., not oppose it), this would allow perpetual motion due to a machine gaining energy without an input, effectively violating energy conservation. Therefore, Lenz's law ensures that energy balance and conservation are maintained by ensuring that any change in flux is countered by an opposing force.

Examples & Analogies

Think of it as riding a bike downhill. If you simply coast down (induced current assisting), you could eventually speed up without pedaling. However, to keep the bike from rolling out of control (conserving energy), you must use the brakes (Lenz's law opposing motion) to maintain a steady speed. Just like riding a bike requires controlling energy inputs and outputs, understanding electromagnetic induction requires respecting energy conservation principles.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Lenz's Law: Induced currents oppose the changes in magnetic flux.

  • Induced Current: Currents generated from changing magnetic fields.

  • Magnetic Flux: The product of the magnetic field and the area perpendicular to the field.

  • Conservation of Energy: Energy cannot be created or destroyed.

  • Perpetual Motion: Theoretical machines that defy conservation laws.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • A magnet moving towards a coil induces a current that creates a magnetic field opposing the magnet.

  • A coil moving away from a magnet causes induced current that opposes the decrease in magnetic flux.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When flux is high or flux is low, induced current will always show—against the change, it’ll always go!

📖 Fascinating Stories

  • Imagine a pushy friend who always counters your every move. If you try to get too close, they push back—the same goes for induced currents and changing magnetic fields.

🧠 Other Memory Gems

  • Remember Lenz: 'C.O.U.N.T.' - 'Current Opposes Unwanted New Trends' to grasp induced current behavior.

🎯 Super Acronyms

For conservation of energy with Lenz's Law, use 'C.O.E.' – 'Conservation Of Energy' to highlight that no energy disappears.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Lenz's Law

    Definition:

    A rule stating that the direction of induced current is such that it opposes the change in magnetic flux that produced it.

  • Term: Induced Current

    Definition:

    An electric current generated in a conductor by a changing magnetic field.

  • Term: Magnetic Flux

    Definition:

    The measure of the quantity of magnetism, taking into account the strength and the extent of a magnetic field.

  • Term: Conservation of Energy

    Definition:

    A principle stating that energy cannot be created or destroyed, only transformed from one form to another.

  • Term: Perpetual Motion Machine

    Definition:

    A hypothetical machine that can operate indefinitely without an external energy source, violating the laws of thermodynamics.
