6.2 - THE EXPERIMENTS OF FARADAY AND HENRY

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Faraday's First Experiment

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we'll dive into the experiments conducted by Faraday and Henry, starting with Faraday's first experiment. Who can tell me what happens when a moving magnet approaches a coil of wire?

Student 1
Student 1

I think the galvanometer shows a current when the magnet is moving.

Teacher
Teacher

Exactly! Faraday discovered that when the north pole of a bar magnet is pushed toward the coil, the galvanometer deflects, indicating an induced current. Remember, this is all about relative motion. Can anyone tell me what happens when the magnet is held still?

Student 2
Student 2

There is no deflection in the galvanometer, right?

Teacher
Teacher

Correct! The current only appears when there is motion. This is foundational to understanding electromagnetic induction. Let's remember the acronym 'MAL' for Moving Anything induces a current in a Loop. Any questions about this experiment?

Faraday's Secondary Experiment

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Moving on to Faraday's second experiment. This time, instead of a magnet, he used another coil connected to a battery. What do you think the effects would be?

Student 3
Student 3

The same thing might happen, where the galvanometer shows a current when one coil moves toward the other!

Teacher
Teacher

Exactly right! When coil C2 is moved toward or away from coil C1, the galvanometer shows deflections similarly to the first experiment. This supports our understanding that it’s the motion—whether of magnets or coils—that induces electricity. To help remember this, think of 'Coils and Curls induce currents too'. Can anyone explain why this is significant?

Student 4
Student 4

It's significant because it shows that both magnets and currents can induce electric currents, leading to technologies like transformers!

Teacher
Teacher

Great insight!

Key Insights from Faraday's Experiments

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let's summarize what we’ve learned. Faraday's experiments led to the conclusion that electromagnetic induction is about changing magnetic environments. Why is understanding this principle crucial for modern technology?

Student 1
Student 1

Because it's the basis for generators and transformers, which are crucial for electricity supply!

Teacher
Teacher

Exactly! Each time we generate or transform electricity, we rely on these principles. Remember the concept of 'Flux Change'—it’s key. Can we think of the future applications of these findings?

Student 2
Student 2

Like how we can use these principles in electric cars or renewable energy systems?

Teacher
Teacher

Yes! Those are perfect examples. Keep exploring how these experiments shape our technological landscape.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses the groundbreaking experiments of Michael Faraday and Joseph Henry that demonstrated how changing magnetic fields can induce electric currents.

Standard

The experiments conducted by Faraday and Henry revealed the relationship between electric currents and magnetic fields, leading to the foundational understanding of electromagnetic induction. The section describes key experiments that show how motion between magnets and conductive coils generates electric currents, illustrating the practical applications of these discoveries.

Detailed

Detailed Summary

In this section, we explore the experiments carried out by Michael Faraday and Joseph Henry in the early 1830s, which laid the foundations for the concept of electromagnetic induction. These experiments demonstrated that electric currents could be induced by changing magnetic fields, thereby establishing a critical link between electricity and magnetism.

Key Points:

  • Experiment 6.1: Faraday used a bar magnet and a coil connected to a galvanometer to show that moving the magnet towards the coil produced a current in the coil, indicated by the deflection of the galvanometer’s pointer. The current ceased when the magnet was stationary but reversed direction when the magnet was pulled away.
  • Experiment 6.2: In a similar setup, a second coil connected to a battery generated a constant magnetic field. Moving this coil towards or away from a static coil caused the galvanometer to show induced currents, confirming that it was the relative motion that induced electricity.
  • Experiment 6.3: This experiment revealed that even when both coils are stationary, a momentary current could still be induced by pressing or releasing a key in the current-carrying coil, demonstrating that changes in current and resulting flux also induce currents.

These findings collectively emphasize the principle of electromagnetic induction, which has vast implications for modern electrical systems including generators and transformers, playing a pivotal role in the advancement of technology and society.

Youtube Videos

Experiments of Faraday and Henry - Electromagnetic Induction | Class 12 Physics Chapter 6
Experiments of Faraday and Henry - Electromagnetic Induction | Class 12 Physics Chapter 6

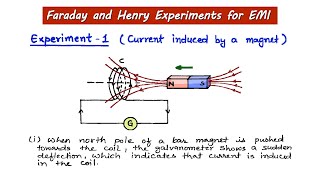

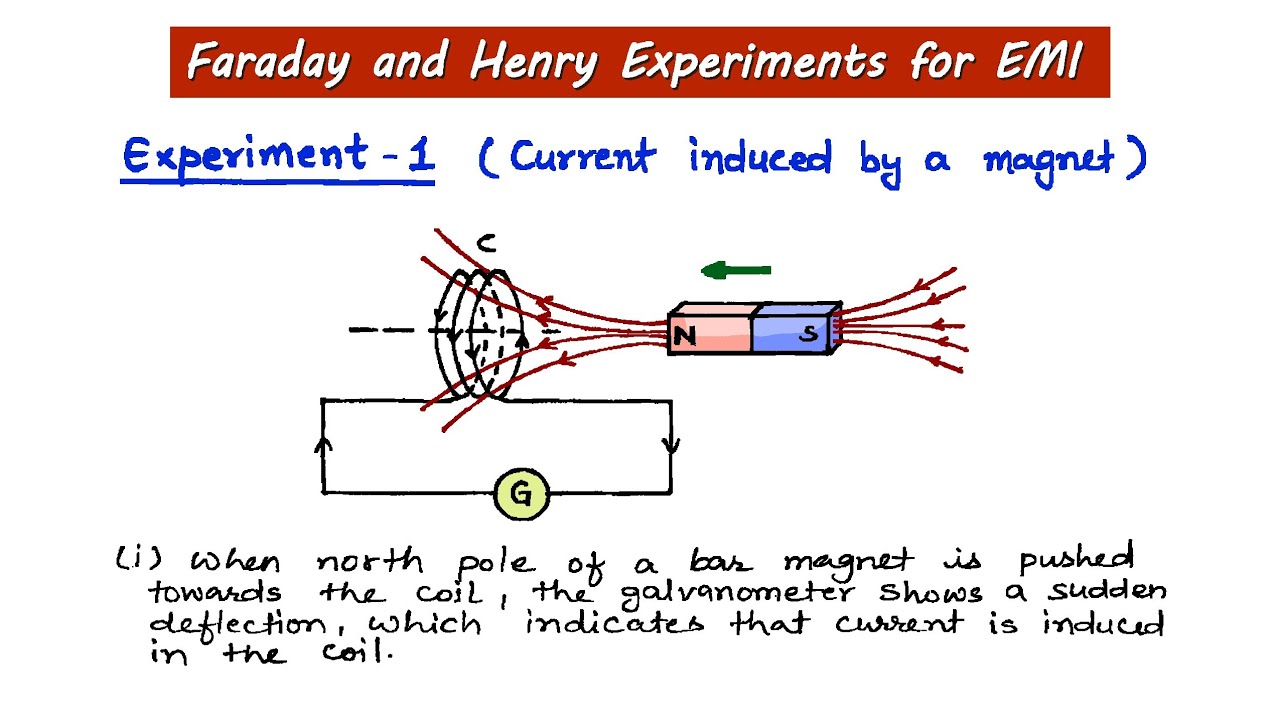

1. Faraday and Henry experiments of EMI | 12th | Physics handwritten notes #cbse
1. Faraday and Henry experiments of EMI | 12th | Physics handwritten notes #cbse
The Experiments of Faraday and Henry - Electromagnetic Induction | Class 12 Physics Chapter 6 | CBSE
The Experiments of Faraday and Henry - Electromagnetic Induction | Class 12 Physics Chapter 6 | CBSE

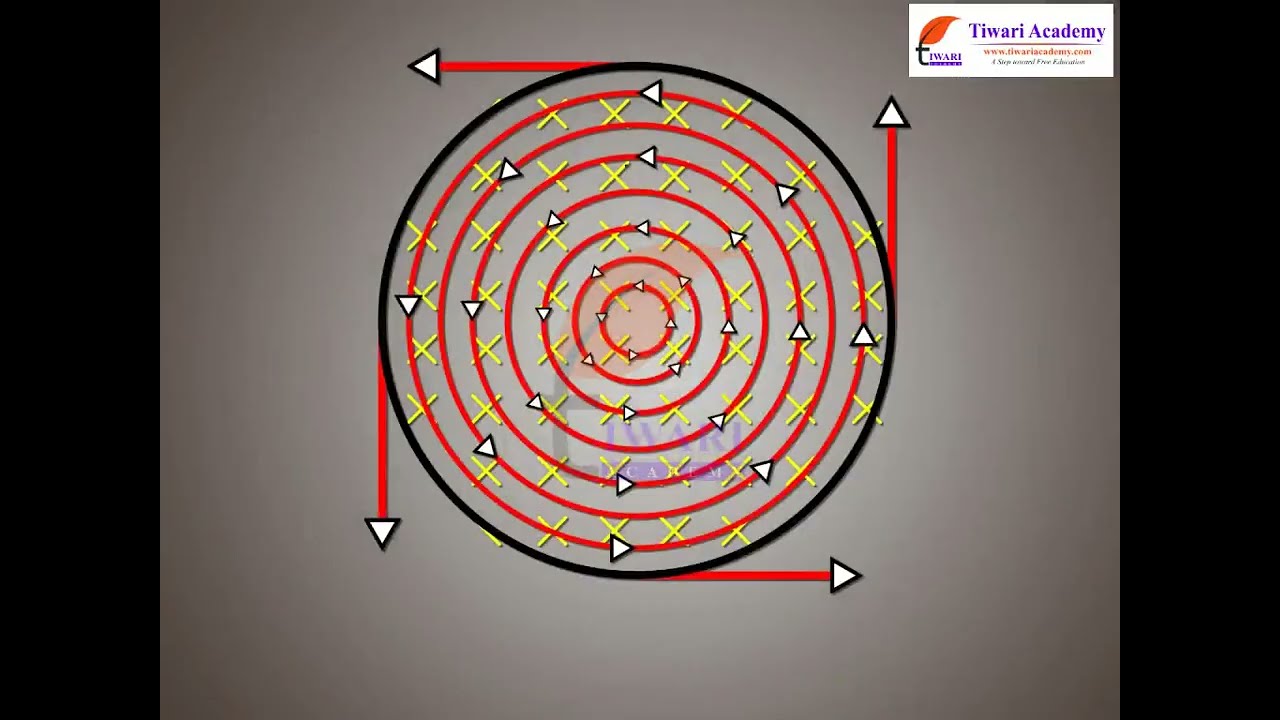

Class 12 Physics Chapter 6 Electromagnetic Induction - The Experiments of Faraday and Henry
Class 12 Physics Chapter 6 Electromagnetic Induction - The Experiments of Faraday and Henry
Faraday & Henry Experiments of Electromagnetic induction | 12th Physics handwritten notes
Faraday & Henry Experiments of Electromagnetic induction | 12th Physics handwritten notes

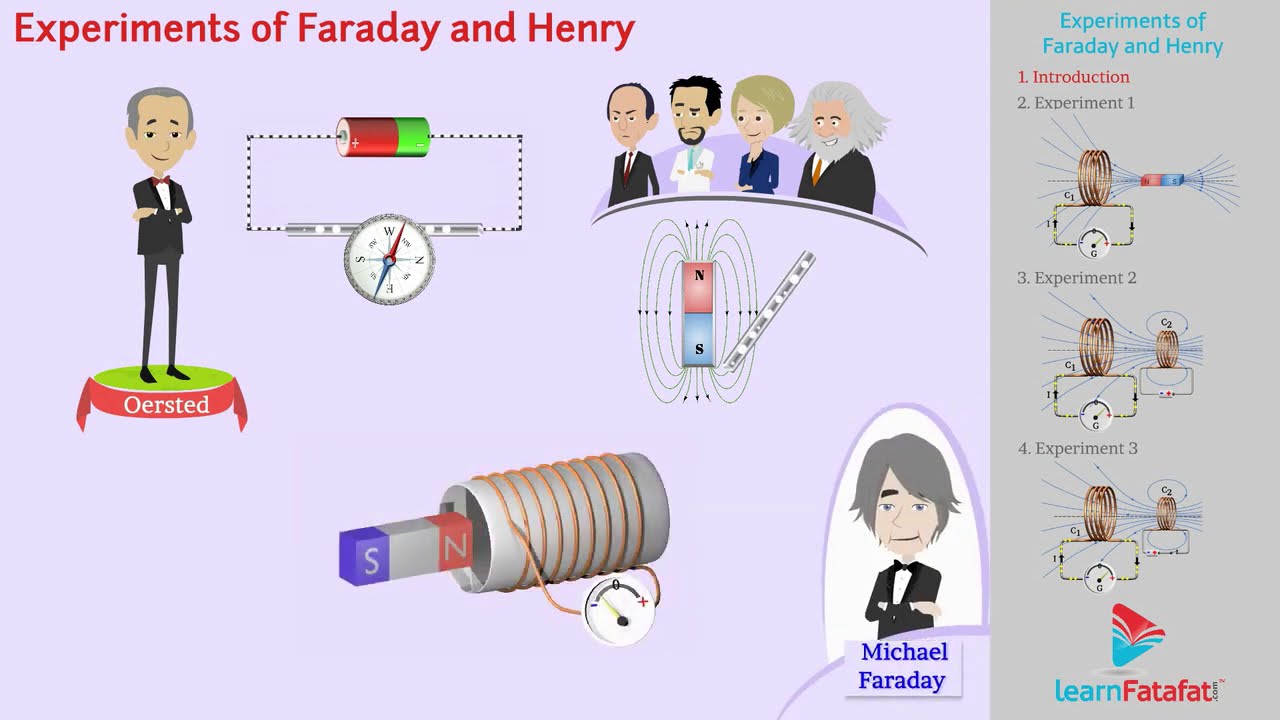

Electromagnetic Induction Class 12 Physics - Experiments of Faraday and Henry
Electromagnetic Induction Class 12 Physics - Experiments of Faraday and Henry
Faraday and henry experiment of Electromagnetic induction | 12th Physics #cbse
Faraday and henry experiment of Electromagnetic induction | 12th Physics #cbse
Chapter 6 | #1 | Electromagnetic Induction - Introduction and Experiments of Faraday and Henry.
Chapter 6 | #1 | Electromagnetic Induction - Introduction and Experiments of Faraday and Henry.
Electromagnetic Induction Class 12 Physics | NCERT Chapter 6 | CBSE NEET JEE | One Shot
Electromagnetic Induction Class 12 Physics | NCERT Chapter 6 | CBSE NEET JEE | One Shot
Faraday's Laws of Electromagnetic Induction Electromagnetic Induction Class 12 Physics Ch 6
Faraday's Laws of Electromagnetic Induction Electromagnetic Induction Class 12 Physics Ch 6

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Faraday's First Experiment

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Figure 6.1 shows a coil C * connected to a galvanometer G. When the North-pole of a bar magnet is pushed towards the coil, the pointer in the galvanometer deflects, indicating the presence of electric current in the coil. The deflection lasts as long as the bar magnet is in motion.

Detailed Explanation

In this experiment, Faraday demonstrated that moving a magnet towards a coil induces an electric current. The galvanometer detects this current by showing a deflection in its pointer. This indicates that electricity is being generated, which is a fundamental principle of electromagnetic induction. If the magnet is stationary, the galvanometer does not show any deflection, highlighting the importance of motion in inducing electricity.

Examples & Analogies

Imagine you are riding a bicycle (the magnet) and pushing against the wind (the coil). When you accelerate forward, you feel the wind pushing against you harder; similarly, when the magnet moves towards the coil, it 'pushes' energy into the coil, generating electric current.

Current Reversal and Different Poles

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

When the magnet is pulled away from the coil, the galvanometer shows deflection in the opposite direction, indicating reversal of the current’s direction. Furthermore, when the South-pole of the bar magnet is moved towards or away from the coil, the deflections in the galvanometer are opposite to those observed with the North-pole for similar movements.

Detailed Explanation

This part of the experiment illustrates two key points. First, when the magnet is withdrawn, the induced current reverses its direction, evidenced by a shift in the galvanometer's reading. Second, moving the South-pole of the magnet produces currents opposite to those generated by moving the North-pole, emphasizing that the type of magnet affects the direction of the induced current. This observation leads to the conclusion that the magnetic field direction determines the current flow in the circuit.

Examples & Analogies

Think of it like pushing a swing. When you push one way, the swing goes up, and when you pull back, it goes the opposite way. The type of push (whether you pull towards or away) determines how the swing moves, just like how the North or South pole of the magnet affects the current direction.

Impact of Speed on Induction

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The deflection (and hence current) is found to be larger when the magnet is pushed towards or pulled away from the coil faster. Instead, when the bar magnet is held fixed and the coil C is moved towards or away from the magnet, the same effects are observed.

Detailed Explanation

Here, Faraday observed that the rate of change of motion, either of the magnet or the coil, directly affects the magnitude of the induced current. Faster movements generate stronger electric currents. This reflects the core principle of electromagnetic induction: the quicker the change in magnetic flux through a coil, the greater the induced voltage and, subsequently, the current. This crucial relationship is mathematically expressed in Faraday's Law of Induction.

Examples & Analogies

Consider how quickly you can fill a bathtub by turning on the faucet. If you turn it on full blast, the tub fills much faster than if you barely let it drip. Similarly, in electromagnetic induction, moving the magnet or the coil faster increases 'flow'—or the electrical current generated.

Faraday's Second Experiment

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In Fig. 6.2 the bar magnet is replaced by a second coil C connected to a battery. The steady current in the coil C produces a steady magnetic field. As coil C1 is moved towards the coil C2, the galvanometer shows a deflection. This indicates that electric current is induced in coil C2. When C1 is moved away, the galvanometer shows a deflection again, but this time in the opposite direction.

Detailed Explanation

This experiment shifts the focus from magnetic motion to electric motion. A steady current in one coil creates a magnetic field, which then induces current in a nearby coil when the first coil is moved. The interaction between stationary and moving electric fields shows that even without a magnet, electric currents can still generate magnetic effects. This extended understanding of electromagnetic induction paves the way for many applications, like transformers.

Examples & Analogies

Imagine you are in a crowded room and you ask a friend (the first coil) a question. If they turn towards you while speaking, you can hear their voice clearly (induction occurs). However, if they turn away, you may not hear them well (no induction). The position and movement of your friend influence how effectively you receive their message, just like how positions of coils influence induced currents.

Faraday's Third Experiment

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Through another experiment, Faraday showed that this relative motion is not an absolute requirement. Figure 6.3 shows two coils C1 and C2 held stationary. Coil C1 is connected to galvanometer G while the second coil C2 is connected to a battery through a tapping key K. It is observed that the galvanometer shows a momentary deflection when the tapping key K is pressed.

Detailed Explanation

In this experiment, Faraday reveals that even stationary coils can generate current, provided that the current within them changes, such as when the switch is pressed and the circuit is completed. This demonstrates that it's not only relative motion that induces electric currents; the dynamics within circuits can also create changing magnetic fields, which in turn induces currents. This concept expands on the previous findings and reinforces the understanding of how changing currents and magnetic fields are interrelated.

Examples & Analogies

Consider the act of turning a light switch on and off. When you flip the switch, it changes the current in the circuit, creating a 'buzz' of electric energy (like the galvanometer's deflection). Even if the wire is sitting still, the change in what happens inside the circuit creates movement (current), showing that activity within the circuit affects the flow of electricity.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Electromagnetic Induction: The generation of electric current from changing magnetic fields.

  • Magnetic Flux: The measure of the quantity of magnetism, taking into account the strength and extent of the magnetic field.

  • Galvanometer: A device used to detect and measure small amounts of electric current.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • In Experiment 6.1, when a bar magnet is pushed towards a coil, the galvanometer deflects, showing an induced current.

  • In Experiment 6.3, pressing a key in a current-carrying coil introduces a momentary change in magnetic flux, inducing a current in an adjacent coil.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When a magnet moves close to a loop, the current will jump, like a tightly wound hoop!

📖 Fascinating Stories

  • Once upon a time, in a land of wires and magnets, a curious scientist moved a magnet towards a coil, and watched as sparks of current flew, teaching him that movement was the key to generating electricity.

🧠 Other Memory Gems

  • To remember Faraday's experiments, think 'MICE': Motion Induces Current Electromagnetically.

🎯 Super Acronyms

FLIC

  • Faraday's Laws Induce Currents - a reminder of the foundational concept.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Electromagnetic Induction

    Definition:

    The process by which a changing magnetic field creates an electric current in a conductor.

  • Term: Galvanometer

    Definition:

    An instrument for detecting and measuring electric current.

  • Term: Flux

    Definition:

    The flow of a property (like electricity or magnetism) through a surface.

  • Term: SelfInduction

    Definition:

    The induction of an electromotive force in a coil by the current flowing through it.
