6.7.1 - Mutual Inductance

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Mutual Inductance

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we'll be discussing mutual inductance, which is a fundamental concept in electromagnetism. Can anyone tell me what they believe mutual inductance refers to?

Student 1
Student 1

Is it when two coils affect each other’s magnetic fields?

Teacher
Teacher

Exactly! When a current flows through one coil, it creates a magnetic field that can induce an electromotive force, or emf, in a second coil nearby. This is the essence of mutual inductance. An easy way to remember this is think 'mutual – one influences the other.'

Student 2
Student 2

How can we measure or quantify mutual inductance?

Teacher
Teacher

Great question! We quantify mutual inductance with the symbol M, and it's given by the equation \( N \Phi = M I \) where \( N \Phi \) is the total flux linkage and I is the current in the first coil. Keep this equation in mind—it’s the cornerstone of mutual inductance.

Student 3
Student 3

What does it mean when you say that mutual inductance is reciprocal?

Teacher
Teacher

It means that the mutual inductance between coil S₁ with respect to S₂ is the same as between S₂ with respect to S₁, symbolized as \( M_{12} = M_{21} \). This symmetry is important because it shows how interconnected electric and magnetic truths can be!

Teacher
Teacher

In summary, mutual inductance describes how the current through one coil can induce a voltage in another. Each coil affects the other through their magnetic fields.

Mathematical Representation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

We’ve established what mutual inductance is, now let’s look at how we can express it mathematically. When a current flows through one coil, the resulting magnetic field can be expressed with the formula \( B = \mu nI \). Can you identify the terms here?

Student 4
Student 4

‘\( \mu \)’ could be the permeability, right?

Teacher
Teacher

That’s correct! The permeability \( \mu \) represents how well a material can support the magnetic field lines. And 'n' represents the number of turns per unit length of the coil.

Student 1
Student 1

Does the length of the coils matter?

Teacher
Teacher

Yes! The length, cross-sectional area, and the number of coils are all directly related to calculating the mutual inductance. The formula for mutual inductance can look complex, but it’s manageable with practice.

Student 2
Student 2

Can we see the practical applications of mutual inductance?

Teacher
Teacher

Absolutely! It’s essential in devices like transformers where they transfer electrical energy between circuits through mutual inductance. Each time you supply power to transformers, you're utilizing its principle!

Teacher
Teacher

In summary, understanding the mathematical representation helps not only in grasping mutual inductance but also in its practical applications.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses the concept of mutual inductance, explaining how a current in one coil can induce an electromotive force (emf) in a nearby coil.

Standard

Mutual inductance is a key principle in the study of electromagnetism, specifically how the current flowing through one coil can produce a magnetic field that induces an emf in another coil. It is quantified by the mutual inductance coefficient and plays a crucial role in various electrical applications such as transformers and inductors.

Detailed

Detailed Summary

In this section, we explore the phenomenon of mutual inductance between two coils, denoted as solenoids in particular configurations. When a current, I, flows through one solenoid (S₂), it generates a magnetic field that induces a magnetic flux through another nearby solenoid (S₁). This induced magnetic flux is related to the current in the first solenoid via the mutual inductance, M, as described by the equation:

  • Flux Linkage Formula:
    \[ N \Phi = M I \]

Where \( N \Phi \) is the total flux linkage with solenoid S₁ due to the current in S₂. The mutual inductance M can be calculated based on the specific dimensions and properties of the coils.

Notably, mutual inductance is a reciprocal relationship; the mutual inductance of S₁ with respect to S₂ is equal to the mutual inductance of S₂ with respect to S₁, represented mathematically as \( M_{12} = M_{21} \). This symmetry holds true regardless of the configurations, illustrating the inherent connection between electric currents and magnetic fields.

Mutual inductance is crucial in understanding how coils can transfer energy and influence each other without direct electrical connection, which has vast applications in electrical engineering, including transformers and other inductive devices.

Youtube Videos

Mutual induction & inductance | Electromagnetic induction | Physics | Khan Academy
Mutual induction & inductance | Electromagnetic induction | Physics | Khan Academy
56. Mutual Induction | Electromagnetic Induction | CBSE | NCERT | Physics Baba 2.0
56. Mutual Induction | Electromagnetic Induction | CBSE | NCERT | Physics Baba 2.0
Inductors|3d animation #shorts
Inductors|3d animation #shorts
Mutual Induction and Transformer | Electromagnetic induction Lecture 5 | class 12 Physics Chapter 6
Mutual Induction and Transformer | Electromagnetic induction Lecture 5 | class 12 Physics Chapter 6
Mutual Induction - Electromagnetic Induction | Class 12 Physics Chapter 6 (2023-24)
Mutual Induction - Electromagnetic Induction | Class 12 Physics Chapter 6 (2023-24)

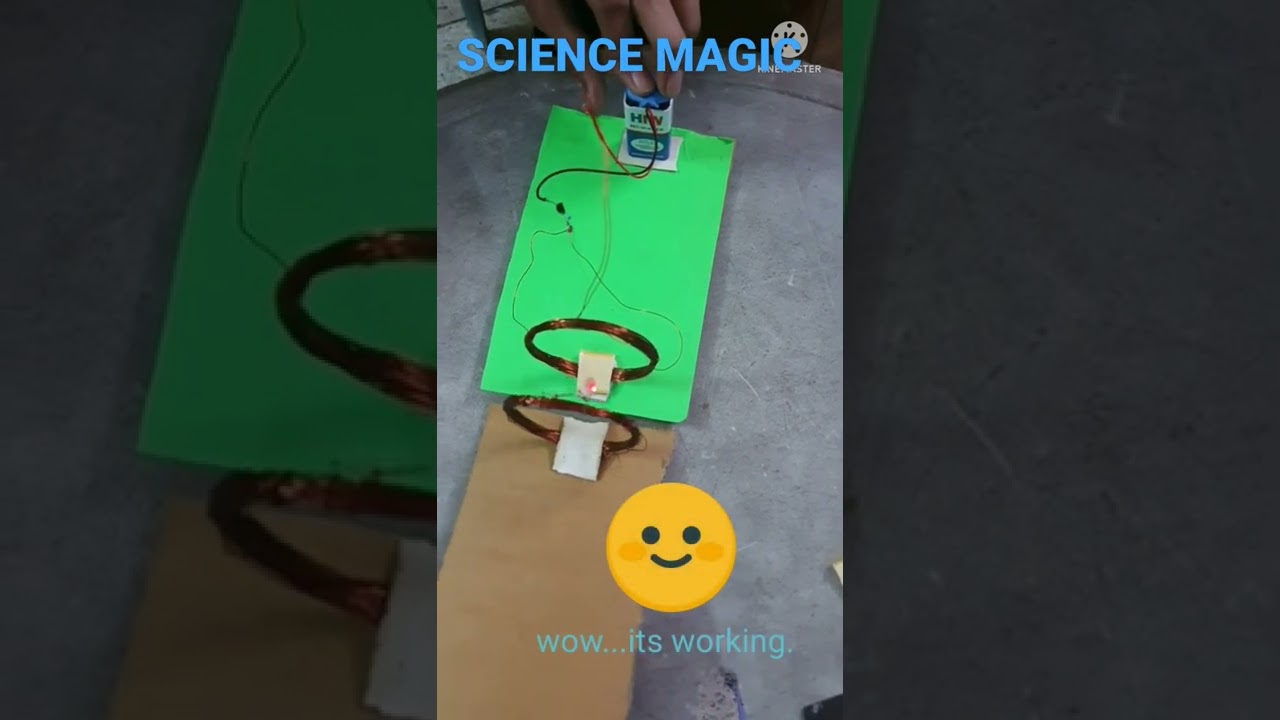

Electromagnetic Induction Project
Electromagnetic Induction Project
Inductance|Mutual Inductance|Concepts|NCERT|CBSE|Physics 12|Tamil|Muruga MP#murugamp#tamil
Inductance|Mutual Inductance|Concepts|NCERT|CBSE|Physics 12|Tamil|Muruga MP#murugamp#tamil
12th class physics chapter 6 EMI electromagnetic induction in 10 minutes one shot revision PW ....
12th class physics chapter 6 EMI electromagnetic induction in 10 minutes one shot revision PW ....
self induction and mutual induction| electromagnetic induction #shorts #jee #neet #viral@GyanFreedom
self induction and mutual induction| electromagnetic induction #shorts #jee #neet #viral@GyanFreedom
Coils and electromagnetic induction | 3d animation #shorts
Coils and electromagnetic induction | 3d animation #shorts

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Mutual Inductance

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Consider Fig. 6.12 which shows two long co-axial solenoids each of length l. We denote the radius of the inner solenoid S by r and the number of turns per unit length by n₁. The corresponding quantities for the outer solenoid S₂ are r₂ and n₂, respectively. Let N₁ and N₂ be the total number of turns of coils S₁ and S₂, respectively.

Detailed Explanation

Mutual inductance involves two solenoids (coils) that influence each other’s current. Solenoid S₁ is wrapped tightly around solenoid S₂. The inner solenoid has a certain number of turns per unit length, and the outer solenoid has its own parameters. When a current flows through one solenoid, it creates a magnetic field that can induce a voltage in the other solenoid due to this magnetic field.

Examples & Analogies

Think of it as two friends holding hands (the coils). When one friend (solenoid S₁) raises their arm (creates a current), they influence the position of the other friend (solenoid S₂), even though they’re not physically grabbing them. This influence is through an unseen connection, just like magnetic fields connect the coils.

Calculating Mutual Inductance

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

When a current I is set up through S₂, it in turn sets up a magnetic flux through S₁. Let us denote it by Φ₁. The corresponding flux linkage with solenoid S₁ is N₁Φ₁ = M₁₂I₁, where M₁₂ is called the mutual inductance of solenoid S₁ with respect to solenoid S₂.

Detailed Explanation

When current flows through the outer solenoid (S₂), it generates a magnetic field, which causes a magnetic flux in the inner solenoid (S₁). The term 'flux linkage' refers to how much any magnetic flux lines through S₁ are influenced by the flow of current through S₂. We can express this relationship mathematically using the mutual inductance factor M₁₂, which quantifies the effectiveness of this interaction.

Examples & Analogies

Imagine pulling a magnet slowly through a loop of wire. As the magnet moves, it affects the wire loop, causing a current to flow in it. Similarly, when S₂ has a current, it 'pulls' at the magnetic lines of force through S₁, inducing a corresponding electrical effect.

Formulas for Mutual Inductance

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

For these simple co-axial solenoids, it is possible to calculate M. The magnetic field due to the current I in S₂ is given by B = μn₂I₂. Thus, the resulting flux linkage with coil S₁ is: N₁Φ₁ = (n₁l)(πr₁²)(μn₂I₁) and M₁₂ = μn₁n₂πr₁²l.

Detailed Explanation

This mathematical expression allows for the calculation of mutual inductance based on physical parameters such as the number of turns of wire, the dimensions of the coils, and the magnetic permeability of the medium. It shows the relationship among these factors and reflects how mutual inductance can be viewed as a property of the spatial arrangement of the coils and the material they are interacting through.

Examples & Analogies

Think of mutual inductance like teamwork in sports. The better each player (coil) understands their positions (dimensions, turns), the better they can anticipate and respond to each other's actions on the field (the magnetic interactions). Just as good team dynamics lead to greater success, optimized coil configurations lead to better mutual inductance.

Reversing the Roles of Solenoids

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

We now consider the reverse case. A current I is passed through the solenoid S₁ and the flux linkage with coil S₂ is, N₂Φ₂ = M₂I₁ where M₂ is the mutual inductance of solenoid S₂ with respect to solenoid S₁.

Detailed Explanation

In this reversed scenario, we are looking at how a current in S₁ can now induce a voltage in S₂. The math remains the same; just the roles of S₁ and S₂ switch. It emphasizes that mutual inductance is a two-way street: the effect induced is the same regardless of which solenoid is the source of current.

Examples & Analogies

Consider two communicators using walkie-talkies. Regardless of who starts the conversation, messages are received and transmitted both ways. In mutual inductance, both solenoids act as transmitters and receivers at different times based on the flow of current.

Summary of Mutual Inductance Properties

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

We have demonstrated this equality for long co-axial solenoids. However, the relation is far more general. Note that if the inner solenoid was much shorter than (and placed well inside) the outer solenoid, then we could still have calculated the flux linkage N₁Φ because the inner solenoid is effectively immersed in a uniform magnetic field due to the outer solenoid.

Detailed Explanation

This section summarizes that mutual inductance holds true for various geometries, not just the ideal coaxial ones. Even when the conditions vary (e.g., coil lengths), the mathematical framework still applies. It's crucial in electrical engineering for designing systems where coils interact.

Examples & Analogies

This is similar to how we can consistently receive signals from a radio tower, even if we're not directly in the optimal broadcasting zone. The principle of mutual inductance allows effective communication under varying scenarios, leveraging the fields generated by nearby coils.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Mutual Inductance: The process by which a current flowing in one coil induces a current in a nearby coil.

  • Flux Linkage: The relation between magnetic flux and the number of wire turns in a coil.

  • Electromotive Force: The induced voltage that occurs due to changing magnetic fields.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example of mutual inductance is seen in transformers, where one coil induces a current in another nearby coil.

  • The operation of inductors in circuits relies on mutual inductance to function effectively when currents change.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Two coils together, oh what a dance, inducing voltage with every chance.

📖 Fascinating Stories

  • Imagine a magnetic river flowing from one coil to another; as the current changes in the first coil, it sends waves across to induce voltage in the second, like a careful dance partner.

🧠 Other Memory Gems

  • MICE - Mutual Inductance Creates Electricity.

🎯 Super Acronyms

M.I.E - Mutual induces Electromotive.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Mutual Inductance

    Definition:

    A phenomenon where a change in current in one coil induces an electromotive force in a nearby coil.

  • Term: Flux Linkage

    Definition:

    The product of the magnetic flux through a coil and the number of turns in that coil.

  • Term: Electromotive Force (emf)

    Definition:

    The potential difference that causes a current to flow in a circuit, often induced by changing magnetic fields.

  • Term: Reciprocal Relationship

    Definition:

    A mutual relationship where one phenomenon corresponds proportionally to another, implying symmetry.
