6.7 - INDUCTANCE

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding Inductance

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we’re diving into the concept of inductance! Can anyone tell me what inductance means in your own words?

Student 1
Student 1

Is it about how a coil can create a current?

Teacher
Teacher

Great start! Inductance refers to a coil's ability to induce an electromotive force (emf) due to changes in current. Remember the formula L = NΦ/I. Can anyone explain what each symbol represents?

Student 2
Student 2

L is inductance, N is the number of turns, Φ is the magnetic flux, and I is the current.

Teacher
Teacher

Correct! The values of these quantities and their relationships will help us understand many electromagnetic systems.

Student 3
Student 3

Why is it important to know about inductance?

Teacher
Teacher

Inductance allows us to predict how coils behave in circuits, especially when dealing with alternating currents. It’s fundamental in the design of many electrical devices.

Mutual Inductance

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s discuss mutual inductance now. Can someone explain what it means?

Student 4
Student 4

It's when the current in one coil affects the other coil?

Teacher
Teacher

Exactly! When the current in one coil changes, it induces an emf in a neighboring coil. The effectiveness of this induction is quantified by mutual inductance, denoted as M. Can anyone provide me with an example of where we might see mutual inductance?

Student 1
Student 1

Transformers!

Teacher
Teacher

Right again! Transformers are prime applications of mutual inductance. We can calculate the value of mutual inductance for coaxial solenoids. The relationship between them can be expressed through M = μ₀n₁n₂πr²l. Does anyone remember what each of these symbols mean?

Student 2
Student 2

μ₀ is magnetic permeability, and n₁ and n₂ are the turn densities.

Teacher
Teacher

Great job! Understanding how to calculate mutual inductance helps us in designing efficient circuits.

Self-Inductance

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s move to self-inductance! What does that term mean?

Student 3
Student 3

It’s how a coil can create an emf by changing its own current?

Teacher
Teacher

Exactly! When the current in the coil changes, it induces an emf that opposes that change. The formula here is L = NΦ/I, where L is the self-inductance, similar to mutual inductance but focused on a single coil. Why do you think the back emf is called 'back'?

Student 4
Student 4

Because it resists the change in current?

Teacher
Teacher

That's spot on! This behavior of self-inductance is crucial in many applications like motors and inductive switches.

Energy Storage in Inductance

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

A significant aspect we haven't touched on yet is the energy stored in inductance. Can anyone tell me how we calculate that?

Student 1
Student 1

Isn’t it the work done to establish the current?

Teacher
Teacher

Yes, exactly! The energy stored in an inductor is given by U = LI². How does this relate to mechanical kinetic energy?

Student 2
Student 2

It's similar to the formula for kinetic energy, right? Like mv².

Teacher
Teacher

Precisely! Just like mass measures inertia in physical systems, inductance measures inertia in electrical systems. This duality is what makes inductance a powerful concept in electronics.

Applications of Inductance

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Finally, let’s consider real-world applications of inductance. Can anyone name a device that uses self or mutual inductance?

Student 3
Student 3

AC generators!

Teacher
Teacher

Very good! AC generators convert mechanical energy into electrical energy through electromagnetic induction. They rely heavily on both self and mutual inductance. Can anyone foresee how these concepts we’ve learned tie together in a modern device?

Student 4
Student 4

Like how transformers use mutual inductance to step up or step down voltages?

Teacher
Teacher

Exactly! Understanding inductance is necessary for understanding not only generators and transformers but also inductors used in various circuits. They demonstrate how critical inductance is to our daily technology.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Inductance describes the ability of a coil to induce an emf in itself or in another nearby coil due to changes in current.

Standard

This section explains the concepts of inductance, including both mutual inductance and self-inductance. It highlights the relationship between magnetic flux, current, and the geometry of coils and emphasizes the importance of inductance in electromagnetic systems.

Detailed

Inductance

Inductance is a fundamental property of electrical coils that describes their ability to induce electromotive force (emf) based on variations in current. This section delves into two types of inductance: mutual inductance and self-inductance. Mutual inductance occurs when a change in current in one coil induces an emf in another coil, while self-inductance refers to the emf induced in a coil due to changes in its own current.

Key Points

  • Magnetic Flux Relation: The magnetic flux through a coil is proportional to the current passing through it, expressed mathematically as Φ ∝ I.
  • Inductance Definition: Inductance (L) is defined as the ratio of the flux linkage to the current (L = NΦ/I). It depends only on the coil's geometry and the properties of the material in which it is located.
  • Units and Dimension: The SI unit of inductance is the henry (H), with dimensions of [M L² T⁻² A⁻²].
  • Mutual Inductance: Described through the interaction between two coils, mutual inductance can be calculated for coaxial solenoids, which simplifies determining induced emf in one coil caused by the changing current in another.
  • Self-Inductance: This measures how a coil reacts to changes in its own current, resulting in a back emf that opposes the change. In a long solenoid with n turns per unit length and a cross-sectional area A, the self-inductance is given as L = μ₀n²Al.
  • Energy Storage: The work done to establish the current against self-induced emfs is stored as magnetic potential energy, which can be quantified.

Youtube Videos

Class 12 Physics Chapter 6 Electromagnetic Induction - Inductance
Class 12 Physics Chapter 6 Electromagnetic Induction - Inductance
Electromagnetic Induction Class 12 Physics | NCERT Chapter 6 | CBSE NEET JEE | One Shot
Electromagnetic Induction Class 12 Physics | NCERT Chapter 6 | CBSE NEET JEE | One Shot
Class 12th Physics | Inductance | Example 6.8 & 6.9 | Chapter 6: Electromagnetic Induction | NCERT
Class 12th Physics | Inductance | Example 6.8 & 6.9 | Chapter 6: Electromagnetic Induction | NCERT
Electromagnetic Induction Class 12 Physics Chapter 6 One Shot | New NCERT CBSE
Electromagnetic Induction Class 12 Physics Chapter 6 One Shot | New NCERT CBSE
Inductance & Self Inductance - Electromagnetic Induction | Class 12 Physics Chapter 6 | CBSE 2024-25
Inductance & Self Inductance - Electromagnetic Induction | Class 12 Physics Chapter 6 | CBSE 2024-25
12th class physics chapter 6 EMI electromagnetic induction in 10 minutes one shot revision PW ....
12th class physics chapter 6 EMI electromagnetic induction in 10 minutes one shot revision PW ....

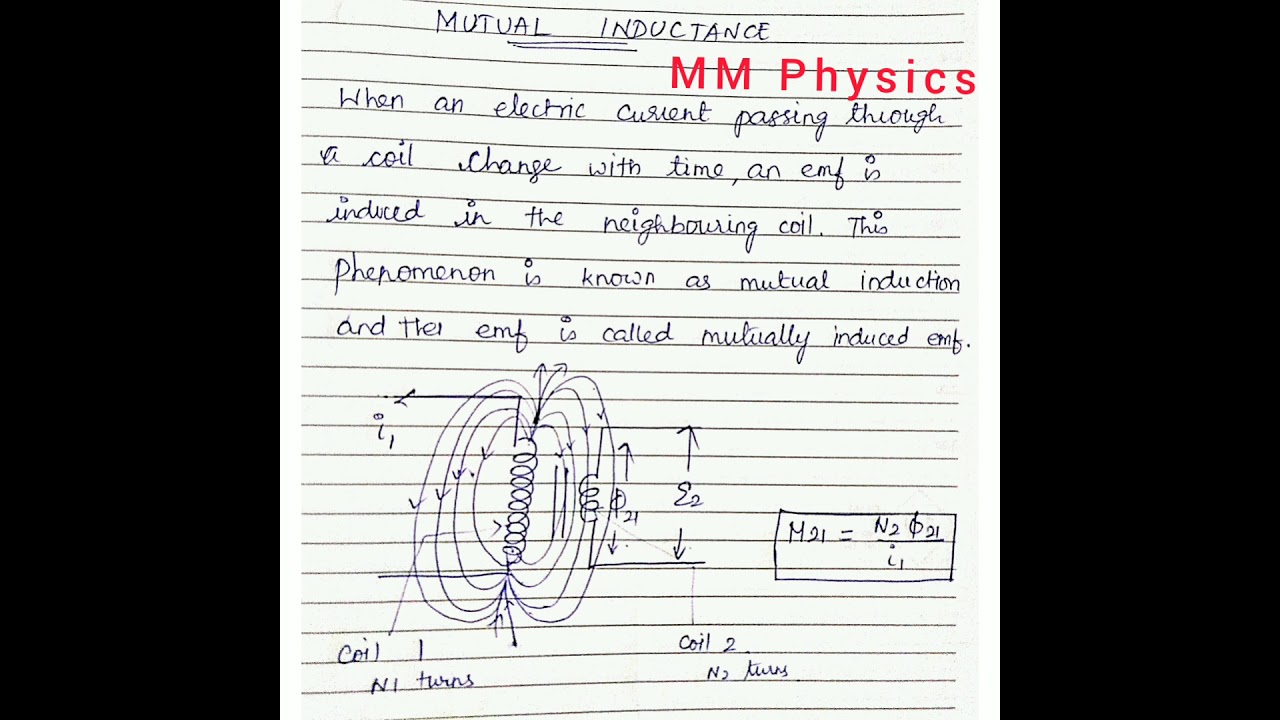

Define Mutual Inductance - Class 12 Physics
Define Mutual Inductance - Class 12 Physics

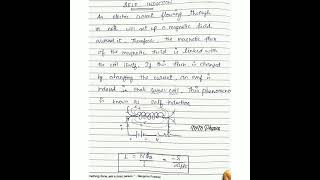

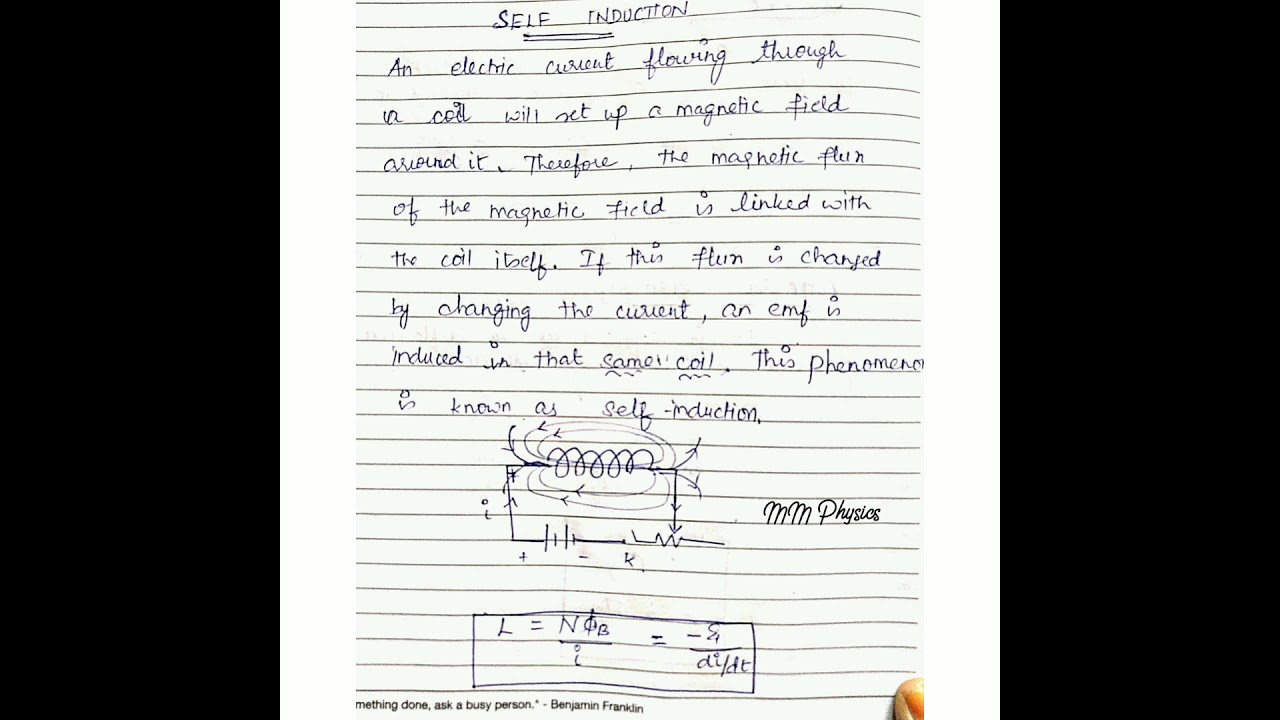

Define - Self induction - Class 12 Physics
