Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Bar Graphs
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we'll explore bar graphs, a very effective graphical representation of data. Who can tell me what a bar graph is?
A bar graph uses bars to show data visually.
Correct! In a bar graph, the height of the bars represents the value of whatever you're measuring. For example, if we chart the months of birth for a group of students, we can see which month has the most births.
Can the bars be of different widths?
Great question! In a bar graph, we typically keep the bars of uniform width for clarity. Remember, 'Width is not important; what's critical is the height to reflect values properly.'
So, how do we construct one?
We represent categories on one axis—like 'months of birth' on the x-axis—and values on the other—such as 'number of students' on the y-axis. Let's visualize that with our students' example!
To summarize, bar graphs visually represent discrete data, allowing for easy comparison across categories.
Histograms
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's discuss histograms. How do they differ from bar graphs?
Histograms are for continuous data, right?
Exactly! In a histogram, we represent intervals on the x-axis. For example, if we're plotting students' weights, we'll show weight ranges instead of distinct categories.
Does that mean there's no gap between bars?
Exactly right! The bars in a histogram touch because they represent continuous data. Let’s draw one to show how important it is to keep the areas proportional to the frequencies.
What about bars of different widths?
Good point! If widths differ, we have to adjust the heights to ensure the area of each rectangle remains proportional to the data. Let’s practice this conversion with some sample data.
To summarize, histograms are for continuous data and show frequencies as areas without gaps.
Frequency Polygons
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Lastly, we’ll cover frequency polygons. Who can explain how they relate to histograms?
They connect the midpoints of the histogram bars?
Correct! This gives us a visual representation of how frequencies change across intervals. It’s particularly useful for comparing datasets.
Do we always need a histogram first?
Not necessarily! You can create a frequency polygon directly as well, using class midpoints and frequencies. Let’s see how to derive that from our earlier example.
Are there any advantages to using polygons?
Absolutely! They make comparisons across datasets clearer and more insightful. Always good to keep in mind different ways of visualizing data!
To sum up, frequency polygons visualize frequency distribution effectively and can stand alone or accompany histograms.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section discusses three key graphical representations—bar graphs, histograms, and frequency polygons—providing detailed instructions on how to create and interpret these graphs effectively through examples and structured steps.
Detailed
Detailed Summary
In this section, we delve into various methods of visually representing data to improve understanding and comparative analysis. We highlight three primary types of graphical representations: bar graphs, histograms, and frequency polygons.
- Bar Graphs: These provide a pictorial representation of data using rectangular bars. The height or length of each bar reflects the value of the data it represents. The section explains how to construct and interpret a bar graph using examples of students' birth months and expenses in a family's budget.
- Histograms: These are similar to bar graphs but are used for continuous data. The section discusses how to properly construct a histogram, especially with varying widths of class intervals. An example involving weights of students illustrates the importance of ensuring that areas of rectangles remain proportional to their frequencies.
- Frequency Polygons: Lastly, we explore frequency polygons, which are created by connecting midpoints of the top of histogram bars. The section explains how to form this polygon and its significance in comparative data analysis.
This comprehensive approach ensures a solid understanding of how graphical representations enhance data interpretation.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to the Frequency Polygon
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

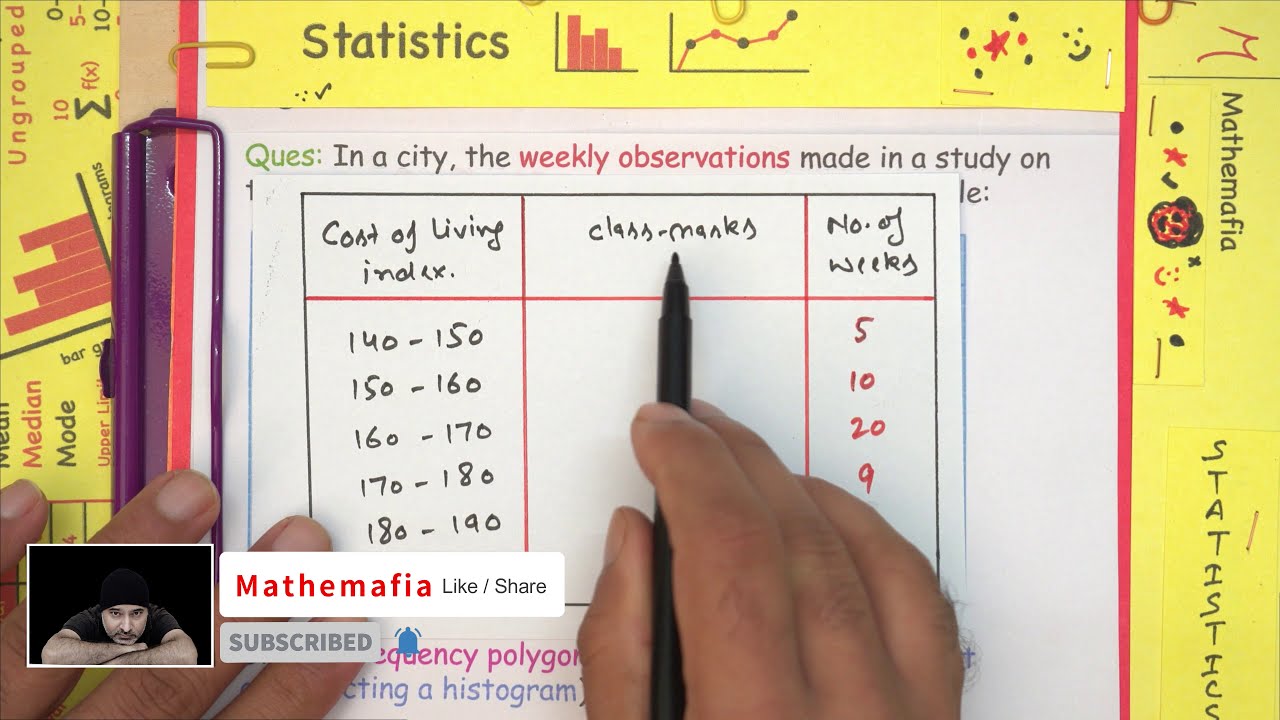

In a city, the weekly observations made in a study on the cost of living index are given in the following table:
Table 12.6
Cost of living index | Number of weeks
--- | ---
140 - 150 | 5
150 - 160 | 10
160 - 170 | 20
170 - 180 | 9
180 - 190 | 6
190 - 200 | 2
Total | 52
Detailed Explanation
This chunk introduces a scenario where a study on the cost of living index tracks how many weeks fall into certain ranges. The data is structured in a table format with class intervals on the left and the corresponding frequencies, or the number of weeks, on the right.
Examples & Analogies
Imagine you're keeping track of how many weeks each month you notice an increase in grocery prices. You could think of each month as contributing to this table, just like the table reflects the city's cost of living index.
Finding Class Marks
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
To draw a frequency polygon, we need to find the class-marks of the classes given above, that is of 140 - 150, 150 - 160,....
For 140 - 150, the upper limit = 150, and the lower limit = 140
So, the class-mark = (150 + 140) / 2 = 145.
Continuing in the same manner, we find the class-marks of the other classes as well.
Detailed Explanation
Class marks are calculated as the average of the upper and lower limits of each class interval. For example, for the interval 140-150, we add the lower limit (140) and the upper limit (150) and divide by 2 to get the class mark of 145. This process continues for all intervals.
Examples & Analogies
Think of class marks like finding the average temperature over the week; if Monday was 80°F and Tuesday was 70°F, the average for those two days gives you a sense of the general temperature trend, similar to how class marks give us a central point for each range.
Completing the New Table for the Frequency Polygon
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
So, the new table obtained is as shown in the following table:
Table 12.7
Classes | Class-marks | Frequency
--- | --- | ---
140 - 150 | 145 | 5
150 - 160 | 155 | 10
160 - 170 | 165 | 20
170 - 180 | 175 | 9
180 - 190 | 185 | 6
190 - 200 | 195 | 2
Total | 52
Detailed Explanation
This new table organizes our information clearly, listing class intervals, their calculated class marks, and the frequency of each class mark. This setup prepares us for the next step in visualizing data with a frequency polygon.
Examples & Analogies
It's like creating a scorecard for a game. You have the players (class intervals), their average score (class marks), and how many times they played well (frequency). This helps you see overall performance at a glance.
Drawing the Frequency Polygon
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Now, we can draw a frequency polygon by plotting the class-marks along the horizontal axis, the frequencies along the vertical-axis, and then plotting and joining the points B(145, 5), C(155, 10), D(165, 20), E(175, 9), F(185, 6) and G(195, 2) by line segments. We should not forget to plot the point corresponding to the class-mark of the class 130 - 140 (just before the lowest class 140 - 150) with zero frequency, that is, A(135, 0), and the point H(205, 0) occurs immediately after G(195, 2). So, the resultant frequency polygon will be ABCDEFGH.
Detailed Explanation
To create the frequency polygon, plot the class marks on the x-axis and their corresponding frequencies on the y-axis. Connect these points with straight lines to form the polygon. Adding points with zero frequency at the end helps show the trends of the data more clearly.
Examples & Analogies
Think of it like connecting the dots in a painting. Each dot represents a point (class-mark and frequency), and drawing lines between them gives shape and clarity to your visualization, just as connecting the dots reveals the picture.
Conclusion on Frequency Polygons
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Frequency polygons are used when the data is continuous and very large. They are very useful for comparing two different sets of data of the same nature, for example, comparing the performance of two different sections of the same class.
Detailed Explanation
Frequency polygons provide a visual way to represent large sets of continuous data. They allow for easy comparison between different data sets by overlaying the polygons, thereby helping us identify trends and patterns quickly.
Examples & Analogies
Consider two athletes competing over several weeks. By using a frequency polygon for each athlete's performance across those weeks, you can easily compare their progress and performance trends, similar to analyzing student test scores over time.
Key Concepts
-
Bar Graph: Uses rectangular bars to represent data visually.
-
Histogram: A special form of bar graph for continuous data without gaps.
-
Frequency Polygon: Connects midpoints of bars in a histogram for frequency analysis.
Examples & Applications
A bar graph showing birth months of students where each bar represents the number of students born in that month.
A histogram illustrating the distribution of students' weights, demonstrating continuous ranges of weight categories.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Graphs of bars and histograms, help us see what data means, collecting frequencies in heights, helps us understand our scenes.
Stories
Imagine a classroom where students recount their birth months. A wise teacher tallies the tales, crafting bar graphs that grow into histograms, visually depicting the buzz of birthdays.
Memory Tools
BHG - Bar graphs for discrete, Histograms for continuous, Generation of Frequency Polygons for trend analysis.
Acronyms
BHF - Bar Histograms Frequency
Bar graphs are for distinct categories
Histograms for ranges
and Frequency Polygons for smooth trends.
Flash Cards
Glossary
- Bar Graph
A graphical representation using bars to show the frequency of categories.
- Histogram
A graphical representation of frequency distribution for continuous data without gaps.
