4.6.2. Data Hazards
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Today, we will explore data hazards, which occur when one instruction depends on the result of another. Can anyone tell me why this is a problem in a pipelined system?
It slows down the processor because it has to wait for the previous instruction to finish.
Exactly! This waiting can lead to reduced performance. Just remember the acronym RAW: 'Read-After-Write', which points to one of the most common data hazards.
What about other types of data hazards?
Great question! There are two other types: Write-After-Read and Write-After-Write, often referred by the initials WAR and WAW. Let's explore these further.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
We have our three types of data hazards. Let's start with RAW. Can someone explain RAW hazards?
Isn't RAW where an instruction needs a value that hasn't been written yet?
That's correct! Now, what about WAR hazards?
WAR happens when a later instruction tries to write before an earlier one reads the data.
Excellent! And finally, can anyone describe WAW hazards?
WAW is when two instructions write to the same register, right? The last one must execute after the first writes.
Perfect! Each type presents different challenges in managing the pipeline effectively.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountNow that we understand the types of data hazards, why do you think managing them is important in pipelined systems?
Because they can cause stalls, right? Which slows down everything.
Exactly! If we do not handle them properly, we can lose the advantage of pipelining, which is to execute multiple instructions simultaneously.
What techniques can we use to handle these hazards?
Good point! Techniques such as forwarding or stalling can be employed, along with compiler optimizations. Remember, effective management directly impacts performance.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountLet's dive into how we can manage these data hazards. What do you think forwarding means?
Isn't that when the output of one instruction feeds into another without waiting for it to be written back?
Yes! Forwarding is a crucial technique to help minimize stalls. Can anyone discuss another method?
Stalling, where we just pause the pipeline until the needed data is ready?
Correct! Both techniques aim to mitigate the performance loss associated with data hazards.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountIn real-world CPU architectures, how do you think data hazards influence overall efficiency?
They can make processors slower and less efficient, especially if not handled well.
Absolutely! For example, modern processors have sophisticated techniques to mitigate these issues, enhancing their performance. Finally, remember to think of data hazards as roadblocks on a fast track!
Overview
Short Summary
Data hazards arise when instructions depend on the results of previous instructions not yet completed in a pipelined processor.
Medium Summary
Data hazards are a significant challenge in pipelined architectures. They occur when an instruction needs data from a previous instruction that has not yet completed execution. There are three main types of data hazards: Read-After-Write (RAW), Write-After-Read (WAR), and Write-After-Write (WAW), each presenting unique challenges to pipeline execution and requiring different strategies for resolution.
Detailed Summary
Data Hazards
Data hazards are critical challenges in pipelined architectures that impede the smooth execution of instructions. They occur when the outcome of one instruction is dependent on another instruction that has yet to complete execution. There are three primary types of data hazards:
- Read-After-Write (RAW): A subsequent instruction requires data that has not yet been written back to the register from an earlier instruction. This can lead to incorrect execution if not managed properly.
- Write-After-Read (WAR): A subsequent instruction attempts to write to a register that a prior instruction is yet to read, which may cause data inconsistencies if the writing occurs prematurely.
- Write-After-Write (WAW): Two instructions write to the same register; the order of these writes must be strictly controlled to ensure correctness, as the later-write may overwrite the earlier-write result.
Managing these hazards is vital in pipelined processors, as they can greatly hamper performance by introducing delays. Their effective resolution allows for increased instruction throughput and overall performance gains.

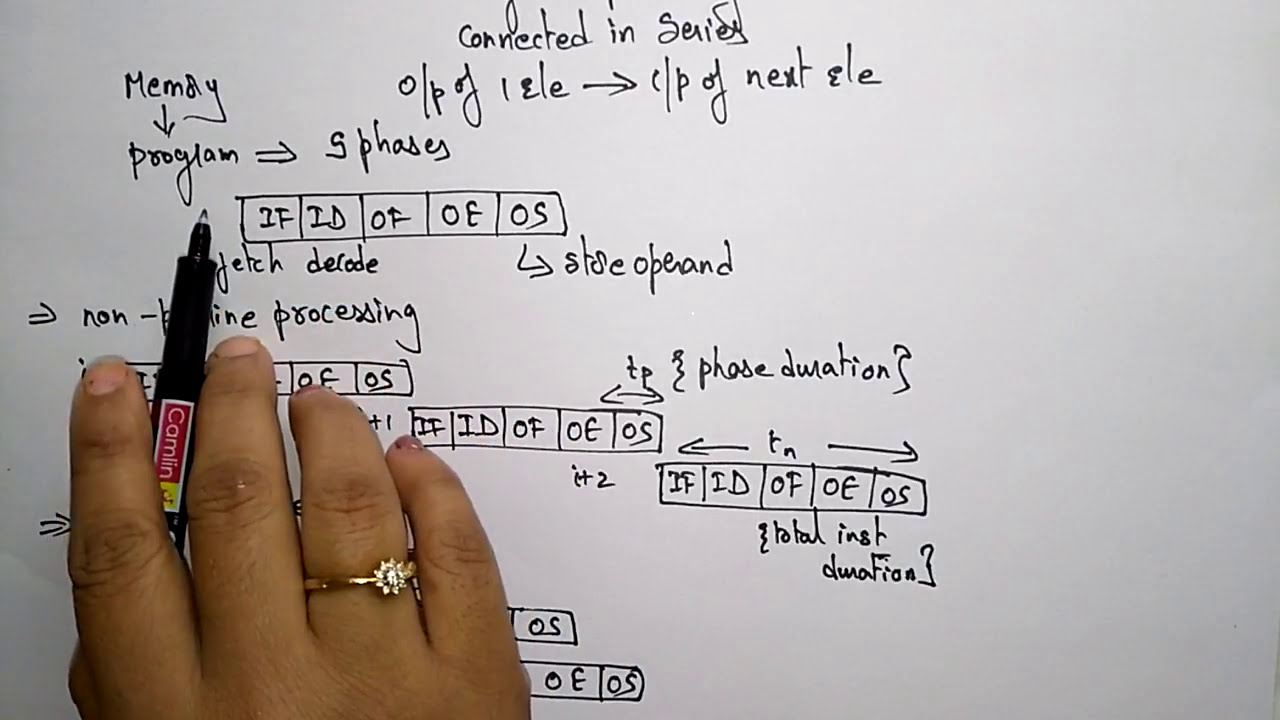

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountWhen an instruction depends on the result of a previous instruction that has not yet completed, data hazards can occur. These hazards are particularly challenging in pipelined systems.
Detailed Explanation
Data hazards occur in a pipelined architecture when one instruction relies on the result of another instruction that hasn’t completed its execution yet. Since multiple instructions can be processed simultaneously in a pipeline, the timing of when results are available becomes crucial. If a later instruction needs data from an earlier one that has yet to finish, it leads to conflicts and can stall the pipeline.
Examples & Analogies
Imagine a factory assembly line where each worker is responsible for different parts of a product. If one worker (the first instruction) is still working on a crucial component and another worker (the second instruction) needs that component to continue, the second worker has to wait. This waiting disrupts the flow of the entire assembly line, just like a data hazard disrupts the instruction flow in a pipeline.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThere are three main types of data hazards: RAW (Read-After-Write), WAR (Write-After-Read), and WAW (Write-After-Write) Hazards.
Detailed Explanation
Data hazards can be categorized into three types:
- RAW (Read-After-Write) Hazards: This occurs when a later instruction needs to read a value that an earlier instruction has yet to write. This is the most common type of data hazard.
- WAR (Write-After-Read) Hazards: This happens when a later instruction writes to a location before an earlier instruction reads from it.
- WAW (Write-After-Write) Hazards: This occurs when two instructions are trying to write to the same location, and the order of writes must be correctly managed to ensure data integrity. Each type of hazard poses different challenges and may require unique solutions in pipelining.
Examples & Analogies
Consider a library where one person is reading a book (the first instruction) while another person wants to check that book out and make notes in it (the second instruction). If the second person tries to write notes before the first person has finished reading, it’ll create confusion (the WAR hazard). Similarly, if two people want to update the same book (the WAW hazard), the order in which they make notes is important to maintain clarity.
--
Key Concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
Data Hazards: Conditions that occur in pipelined architectures when an instruction relies on another's incomplete execution.
RAW: A hazard type where a later instruction requires data not yet written back.
WAR: A hazard type occurring when a subsequent instruction writes before an earlier one reads.
WAW: A hazard type where two writes to the same register must be carefully managed.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
In an instruction sequence where Instruction A writes to register R1 and Instruction B tries to read R1 immediately after, a RAW hazard occurs if A is still executing.
During a sequence where Instruction A writes to register R1 and Instruction B also attempts to write to R1, a WAW hazard arises if B executes before A.
Memory Aids
Interactive tools to help you remember key concepts
Stories
Memory Tools
Flash Cards
Glossary
Data Hazards
Conditions in pipelined processors that occur when an instruction depends on the result of another instruction that has not yet completed.
RAW
Read-After-Write hazard where a later instruction needs data that hasn't been written back yet.
WAR
Write-After-Read hazard where a later instruction writes to a register before an earlier instruction reads it.
WAW
Write-After-Write hazard where two instructions write to the same register, affecting the order of execution.
