Introduction to Sampling in the Frequency Domain
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, weβll discuss how sampling in the time domain affects our representation of signals in the frequency domain. Can anyone tell me what happens when we sample a signal, particularly regarding its frequencies?
I think when we sample, we only take certain points of the signal, which might leave out important information?
That's a crucial observation! When we sample a continuous-time signal, it can result in periodic replication of its frequency components in the frequency domain if we aren't careful.
What does periodic replication mean?
Periodic replication means that if we do not sample at a high enough rate, the higher frequency components overlap with lower frequencies, causing distortionβthis is known as aliasing. Remember, sampling too slowly can hide some signal information!
So, how do we avoid that?
Excellent question! By applying the Nyquist-Shannon theorem, which tells us that the sampling frequency must be at least twice the maximum frequency of the signal to avoid aliasing. Letβs remember: 'Nyquist is twice the max!'
That's a good mnemonic!
Letβs summarize: Sampling creates a frequency spectrum that can fold if done incorrectly, which leads to aliasing. Always keep the Nyquist frequency in mind.
Aliasing Explained
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, letβs discuss aliasing in more detail. Aliasing occurs when high-frequency components overlap with lower frequencies due to insufficient sampling. Can anyone give me an example of what that might look like?
Maybe like when two different sounds or frequencies blend together and sound like one?
Exactly! When we sample a signal, if it includes frequencies higher than the Nyquist frequency, those components can become indistinguishable from lower ones. This distorts the reconstructed signal.
How can we visualize this effect?
Great question! Picture the frequency spectrum of our continuous signal being repeated at intervals of the sampling frequency. If the original signal has high frequencies, they will fold over into the lower-frequency regions of the spectrum, resulting in confusion and distortion.
So, we're seeing things that arenβt really there?
Precisely! It's essential to set our sampling rates carefully to avoid this misleading perception. To summarize, aliasing can cause misinterpretation of the signal content. Keep your samples aligned with Nyquist guidelines!
Understanding Nyquist Frequency
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Letβs talk about the Nyquist frequency now. Who can remind us of what Nyquist frequency is?
It's half the sampling rate, right?
Correct! Itβs crucial for ensuring we don't lose information when sampling a signal. Can someone explain why this is important for us?
If we sample below the Nyquist rate, we could overlap high and low frequencies, resulting in distortion?
Exactly! The principle is simple: if we want to accurately capture the original signal, we must consider the maximum frequency present and set our sampling rate accordingly. 'No higher than Nyquist, no tricks with aliasing!' is another good mnemonic to keep in mind.
What happens if we follow this rule?
If we adhere to the Nyquist theorem, we can reconstruct our original signal accurately, free from the complications of aliasing. Remember, proper sampling is key!
Visualizing Aliasing
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now that we've grasped aliasing and Nyquist frequency, let's visualize it. Suppose we have a sound wave with frequencies of 800 Hz and 3000 Hz. If we sample at 1000 Hz, what happens?
The 3000 Hz component would appear as something else, right?
Exactly right! The 3000 Hz frequency will alias back into the 1000 Hz range, distorting the sound we captured. This is the core essence of aliasing.
And how could we avoid that?
By ensuring we sample at a rate higher than twice the highest frequency we want to captureβin this case, at least 6000 Hz. Let's remember: 'Always go higher than twice the frequency for clarity!'
Thatβs a helpful guide!
To conclude, recognizing the implications of aliasing helps us realize the importance of adhering to the sampling theorem when working with signals. Proper sampling practices will prevent confusion in our frequency interpretation.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Sampling in the frequency domain illustrates the impact of the Nyquist-Shannon theorem, emphasizing the importance of maintaining an adequate sampling rate to prevent aliasing. Highlights include the role of the Nyquist frequency and the effects of insufficient sampling discussed through the phenomenon of aliasing.
Detailed
In this section, we examine the concept of sampling in the frequency domain, which relates to how sampling a continuous-time signal results in the repetition of its frequency spectrum. The Nyquist-Schannon theorem is central to understanding this relationship, establishing that to accurately capture a signal's frequency components, the sampling rate must be at least twice the highest frequency present in the signal, known as the Nyquist frequency\. If the sampling rate is insufficient, high-frequency content can overlap with lower frequencies, leading to aliasingβthat is, misrepresented data in reconstructed signals. Through mathematical formulations, we visualize the periodic nature of the frequency spectrum under insufficient sampling conditions and illustrate the necessity of adhering to the Nyquist rate to avoid distortions during signal reconstruction.

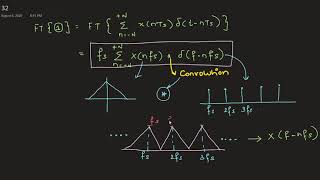

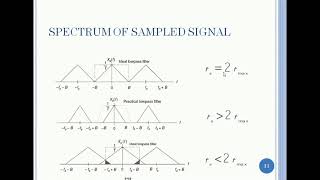

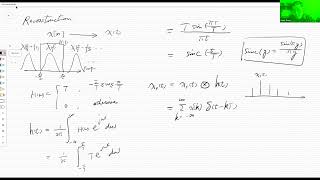

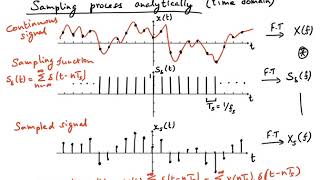

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Sampling in the Frequency Domain
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Sampling in the time domain corresponds to periodic replication of the signalβs frequency spectrum in the frequency domain. This process is governed by the sampling theorem (Nyquist-Shannon theorem), which ensures that the frequency components of a continuous signal are preserved when sampled, provided the sampling rate is high enough.
Detailed Explanation
This chunk introduces the fundamental concept of how sampling in the time domain directly affects the frequency domain. When a continuous signal is sampled, the frequencies in that signal are repeated periodically in the frequency domain. The sampling theorem, also known as the Nyquist-Shannon theorem, is crucial because it provides the guidelines necessary to avoid losing information when converting continuous signals to discrete ones. Specifically, the theorem states that if you sample a signal at twice the highest frequency component (the Nyquist rate), you can accurately reconstruct the original signal.
Examples & Analogies
Imagine trying to capture a wave as it rolls in towards the shore. If you only take pictures of the wave at certain intervals, you might miss the highest peaks of the wave if the intervals are too long. Sampling in the frequency domain is like ensuring that your camera takes enough pictures at the right moments so that you can accurately recreate the wave's shape when you look at all the photos together.
Aliasing in the Frequency Domain
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Aliasing occurs when the sampling rate is too low to capture the signal's high-frequency components. In the frequency domain, aliasing is manifested as the overlapping of frequency components due to insufficient sampling.
β If a signal contains frequency components higher than half the sampling rate (the Nyquist frequency), these components will overlap with lower frequencies when sampled.
β This overlap leads to aliasing, where the high-frequency components are indistinguishable from lower-frequency components, causing distortion in the reconstructed signal.
Detailed Explanation
This chunk explains the phenomenon of aliasing, which is a critical issue in signal processing. When the sampling rate is inadequate, especially if it's lower than twice the highest frequency contained in the signal (the Nyquist frequency), then higher frequency components can end up being misrepresented as lower frequencies. This creates a situation where the original signal canβt be accurately reconstructed. For example, when you sample a sound wave that has high frequencies at a low rate, those higher frequencies may appear as lower frequencies in the sampled signal, resulting in audible distortions.
Examples & Analogies
Think of listening to music on an old record player that can't reproduce high notes well. If you play a song with high-frequency notes, those notes may sound like a lower note instead. This is similar to how aliasing works; the high frequencies can't be captured properly and end up 'folding' into lower frequencies, creating a distorted version of the original sound.
The Role of the Nyquist Frequency
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The Nyquist frequency is half of the sampling rate, i.e., fN=fs2f_N = \frac{f_s}{2}. To avoid aliasing, the signal must not contain frequency components higher than fNf_N. If the maximum frequency in the signal is fmaxf_{max}, the sampling rate must satisfy:
fsβ₯2fmaxf_s \geq 2 f_{max}.
If the sampling rate is higher than the Nyquist rate, the signal can be reconstructed without aliasing. However, if the sampling rate is insufficient, aliasing occurs, and the original signal cannot be accurately reconstructed.
Detailed Explanation
This chunk focuses on the concept of the Nyquist frequency, which is a fundamental aspect in preventing aliasing. It states that the Nyquist frequency is half of the sampling rate, and for accurate signal representation, sampling must occur at a rate that accommodates the highest frequency present in the signal. The mathematical conditions ensure that if you double the maximum frequency of the signal, you achieve a sampling rate that can avoid aliasing. If the sampling frequency is below this threshold, the original signal becomes challenging to recover accurately due to overlaps in the frequency spectrum.
Examples & Analogies
Imagine you are trying to create a zoomed-in version of a photograph. If you try to capture details that are too fine (like tiny text) but only have a low-resolution camera (the same as a low sampling rate), the details will appear blurry or misshaped. Just like requiring a higher resolution camera to capture fine details, a higher sampling rate is necessary to accurately capture all the frequencies present in the signal without any loss of detail.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Sampling creates periodic replication of signals in the frequency domain.
-
Nyquist frequency must be twice the maximum frequency in the signal.
-
Aliasing results in distortion of signals if not properly sampled.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Sampling a sine wave at 1000 Hz can lead to missing high-frequency content.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
To capture frequency bits, twice the high limit fits!
π Fascinating Stories
-
Imagine a photographer trying to photograph a fast-moving car. If they take pictures too slowly, the car might blur out, just like a signal could lose its essence if not sampled correctly!
π― Super Acronyms
Remember 'N' is for Nyquist, and N is twice the Max frequency!
SYNth - Sampling Yields Nothing if Too High (sampling above Nyquist leads to aliasing)!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Aliasing
Definition:
The phenomenon where high-frequency components of a signal are indistinguishable from lower frequencies due to insufficient sampling.
-
Term: Nyquist Frequency
Definition:
Half of the sampling rate; the highest frequency that can be accurately captured without aliasing.
-
Term: Nyquist Sampling Theorem
Definition:
A principle stating that a continuous signal can be accurately reconstructed if it is sampled at least twice the highest frequency present in the signal.
