Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Degrees of Freedom
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we’ll compare SDOF and MDOF systems. To start, let's recap what degrees of freedom are. Can anyone tell me what a degree of freedom means in this context?
Is it the number of independent movements a structure can make?
Exactly! In an SDOF system, we focus on one degree of freedom, while MDOF systems can have multiple. Why do you think that is important?
Because taller buildings would need to account for more movements!
Correct! More degrees of freedom allow for a better representation of how vibrations can propagate through complex structures.
Analysis Complexity
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss analysis complexity. Why might MDOF systems be considered more computationally intensive?
Because they have to account for more variables?
Absolutely! MDOF systems involve multiple degrees of freedom and more intricate equations. Can anyone think of an example where MDOF might be necessary?
Maybe in a skyscraper or something with multiple floors?
Great example! Complex structures need MDOF systems to accurately reflect their dynamic behavior.
Modal Participation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
We talk about modal participation in these systems. Can anyone summarize how it's different for SDOF versus MDOF systems?
SDOF is dominated by the first mode, but MDOF considers multiple modes.
Perfect! Can anyone think of how this affects the buildings’ design during an earthquake?
SDOF models might miss how taller buildings react to different modes!
Exactly! The first mode might not capture all the dynamics in a tall structure during seismic events.
Application in Structural Design
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s apply what we've learned! Why would a regular low-rise building probably use an SDOF model?
Because it’s simpler and probably reflects its behavior accurately?
Exactly! Now, how about a tall, irregular building? What would we use there?
That would need an MDOF approach since it has more complexities!
Well said! Understanding which system to use directly impacts safety during seismic events.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The comparison highlights key differences between SDOF and MDOF systems in aspects such as the number of degrees of freedom, analysis complexity, and torsional effects. While SDOF systems are simpler and primarily suited for regular, low-rise structures, MDOF systems can accommodate the complexities associated with tall, irregular buildings.
Detailed
In seismic analysis, understanding the differences between Single Degree of Freedom (SDOF) and Multi Degree of Freedom (MDOF) systems is crucial. SDOF systems have a single degree of freedom, making them simple to analyze but often approximate. MDOF systems incorporate multiple degrees of freedom—often one for each floor—allowing for more accurate modeling of complex, irregular structures. This detailed comparison categorically addresses various aspects: SDOF systems are computationally less intensive, dominated by the first vibration mode, and do not factor in torsional effects. MDOF systems, conversely, consider multiple modes of vibration and can explicitly model torsional responses, resulting in higher accuracy in predicting structural behavior during seismic events. This comparative analysis serves as a vital tool for engineers in selecting appropriate models for different building types and conditions.

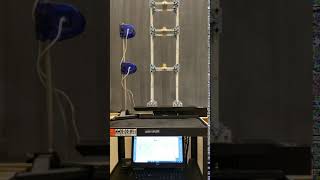

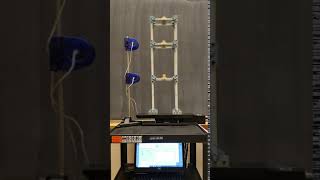

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Degrees of Freedom
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Degrees of Freedom
- SDOF System: 1
- MDOF System: >1 (typically one per floor)
Detailed Explanation
Degrees of freedom (DOF) refer to the number of independent movements a system can have. In a Single Degree of Freedom (SDOF) system, there is only one independent movement, such as lateral displacement. In contrast, a Multi-Degree of Freedom (MDOF) system allows for movements across multiple degrees; typically, there will be one DOF for each floor in a building, which means tall structures with many floors will have many degrees of freedom.
Examples & Analogies
Think of a marionette puppet with a single string (SDOF) versus a puppet with multiple strings controlling each limb (MDOF). The single string allows for simple upward or downward movement, while the multiple strings enable complex and varied movements across the entire body.
Analysis Complexity
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Analysis Complexity
- SDOF System: Simple
- MDOF System: Computationally intensive
Detailed Explanation
Analyzing SDOF systems is straightforward because it involves one-dimensional motion which can be understood with basic equations of motion. In contrast, MDOF systems are much more complex due to the interaction between various elements, requiring advanced computational methods and numerical techniques to analyze the behavior under loads, particularly during dynamic events like earthquakes.
Examples & Analogies
Imagine a simple pendulum (SDOF) swinging back and forth, which you can predict easily. Now picture a large amusement park ride with multiple moving parts (MDOF). Predicting the movements of the ride involves much more intricate calculations due to the interaction of all parts.
Modal Participation
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Modal Participation
- SDOF System: Dominated by first mode
- MDOF System: Includes multiple modes
Detailed Explanation
In an SDOF system, the response to an external force—like an earthquake—is primarily governed by the first mode of vibration, which is the simplest and most significant mode. However, in an MDOF system, multiple modes contribute to the overall dynamic behavior, meaning that understanding the interplay of these modes is crucial for accurate analysis and design.
Examples & Analogies
Consider a guitar string (SDOF) that vibrates predominantly at its fundamental frequency when plucked. If you take a piano (MDOF), the sound produced depends on the complex interplay of many strings vibrating at different frequencies, resulting in a fuller and richer sound.
Suitability for Structure Types
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Suitable for Structure Types
- SDOF System: Regular, low-rise buildings
- MDOF System: Tall, irregular, or complex structures
Detailed Explanation
SDOF systems are ideal for simple structures where motion can be approximated as a single response mode, like most low-rise buildings constructed symmetrically. On the other hand, MDOF systems are required to accurately model tall buildings or complex structures, where the interactions and differences in deformation patterns between floors cannot be ignored.
Examples & Analogies
Think of a simple house (SDOF), where the entire structure sways like a single unit during a strong wind. Now consider a skyscraper (MDOF), where each floor may move differently, creating a complex pattern of movement that would need more detailed analysis to understand how it will react in strong winds or earthquakes.
Torsional Effects
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Torsional Effects
- SDOF System: Not considered
- MDOF System: Can be modeled explicitly
Detailed Explanation
SDOF systems do not account for torsional effects, which are twists or rotations about the vertical axis, often overlooked in basic models. However, MDOF systems can explicitly consider these effects, making them essential for accurately modeling buildings that may not be symmetrical or have uneven mass distribution. Ignoring these torsional effects can lead to significant inaccuracies in predicting structural behavior under seismic loads.
Examples & Analogies
Imagine a rigid toy car (SDOF) that can only move straight; it ignores any twisting forces acting on it. In contrast, consider a remote-controlled helicopter (MDOF) that can rotate and move in multiple dimensions. The helicopter must take into account both its movement and the effects of wind on its balance to fly effectively.
Accuracy
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Accuracy
- SDOF System: Approximate
- MDOF System: More accurate and realistic
Detailed Explanation
The SDOF system provides a simplified approach, which is useful for getting a base understanding of a structure's response but may not capture all the intricacies of real-world behavior, especially for complex structures. MDOF systems, while more complicated, provide a more precise and realistic representation of how structures will behave under various loads, including seismic forces.
Examples & Analogies
Think of using a map to navigate (SDOF); it gives you a general idea of where you are but might leave out important details like closed streets or construction. In contrast, using a GPS (MDOF) gives you real-time updates and details about your route, which can significantly enhance your travel experience and help avoid potential issues.
Key Concepts
-
SDOF Systems: Simple models with one degree of freedom suited for regular structures.
-
MDOF Systems: Complex models accounting for multiple degrees of freedom, ideal for irregular structures.
-
Modal Participation: Important in differentiating between SDOF and MDOF behavior during seismic events.
-
Torsional Effects: Significant in MDOF systems, especially in irregular structures.
Examples & Applications
A simple cantilever beam could be modeled as an SDOF system, while a skyscraper would be modeled as an MDOF system to account for various modes of vibration.
In design, an SDOF model might estimate forces on a low-rise building, whereas an MDOF model would provide a more accurate estimate for a complex, multi-story structure.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
For buildings that sway, SDOF gives the way, but MDOF leads to sway-a-lot in a complex ballet.
Stories
Imagine a tall tower dancing in the wind; the SDOF tower sways in one direction, while the MDOF tower twirls gracefully, capturing every gust.
Memory Tools
SDOF – Simple and Direct, MDOF – Many Directions and Options to Factor.
Acronyms
SDOF
Single Degree of Freedom
MDOF
Flash Cards
Glossary
- Single Degree of Freedom (SDOF)
A simplified dynamic model where the motion of the system is defined using a single coordinate.
- Multi Degree of Freedom (MDOF)
A dynamic model that considers multiple degrees of freedom, allowing for more accurate structural analysis.
- Modal Participation
The contribution of different vibration modes in the response of a structural system.
- Complexity
The degree to which a system's analysis is intricate, often increasing with the number of degrees of freedom.
- Torsional Effects
The responses of a structure to twisting forces, which can be significant in MDOF systems.
