Understanding Laplace Transforms
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's begin by discussing what a Laplace transform is. It converts a function of time, f(t), into a function of a complex variable, s, denoted as F(s). This transformation simplifies the process of solving differential equations in systems analysis.
Can you explain why we use Laplace transforms instead of other methods?
Great question! Laplace transforms allow us to turn differential equations into algebraic equations, which are much easier to manipulate. They are particularly useful for linear time-invariant systems.
What kind of problems can we solve using Laplace transforms?
We can solve initial value problems, particularly where we have known initial conditions. Remember, this is crucial for systems like ours in structural engineering.
What happens if we don't know the initial conditions?
If initial conditions are complex or not known, it can make analysis tougher. But Laplace transforms still provide a systematic way to approach the problem.
In summary, the Laplace transform is a powerful tool for converting complex time-domain problems into simpler algebraic ones in the Laplace domain. Keep this in mind as we dive deeper into convolution.
Convolution Theorem
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s explore the convolution theorem. The theorem states that the convolution of two functions in the time domain corresponds to multiplication in the Laplace domain. This is a crucial property that aids us significantly!
Can you give an example of what that looks like?
"Certainly! If we have displacement x(t) represented as the convolution of h(t) and F(t), we can say:
Applications of Convolution in Structural Dynamics
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's connect our understanding to real-world applications, particularly in earthquake engineering. How do we analyze dynamic responses in such situations?
I think we would use the Duhamel integral, right?
Correct! And by utilizing the convolution theorem in the Laplace domain, we can effectively handle dynamic forces like those experienced during earthquakes.
How do we know the impulse response function in these situations?
That's an excellent question! The impulse response function can often be empirically determined or calculated based on the system's characteristics. This allows us to compute responses under various loading conditions.
What are some challenges we might face in these calculations?
Challenges include ensuring linearity and dealing with varying conditions. Despite these, the convolution approach remains fundamental.
In summary, using convolution in the Laplace domain significantly enhances our analysis capabilities in structural dynamics, especially under dynamic loads.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section elaborates on applying the convolution theorem using Laplace transforms, which transforms the time domain convolution integral into a multiplication operation in the Laplace domain. This approach is particularly effective for solving systems with known Laplace pairs and is advantageous for addressing complex initial conditions.
Detailed
Alternative Representation using Convolution Theorem (Laplace Domain)
In this section, we explore how the convolution theorem can be utilized in the context of Laplace transforms to simplify the analysis of linear time-invariant systems. The fundamental principle is that the convolution integral in the time domain, which expresses the system's response to an arbitrary input, can be equivalently represented as a straightforward multiplication in the Laplace domain.
Key Concepts:
- Laplace Transforms: Used to convert differential equations into algebraic ones, making it easier to solve systems' responses.
- Convolution Integral: Represents the response of the system as a function of the input and the system's impulse response. In mathematical terms, if:
- X(s) is the Laplace Transform of displacement x(t),
- H(s) is the Laplace Transform of the impulse response h(t),
- F(s) is the Laplace Transform of the input force F(t),
then the relationship can be summarized as:
X(s) = H(s) ⋅ F(s)
From this relationship, the inverse Laplace transform provides the time-domain displacement response, x(t). This method finds extensive application in solving initial value problems, particularly where initial conditions are complicated and known Laplace pairs exist, streamlining the solution process.
This section underscores the efficiency of using the Laplace domain representation when analyzing dynamic systems, particularly in structural engineering.

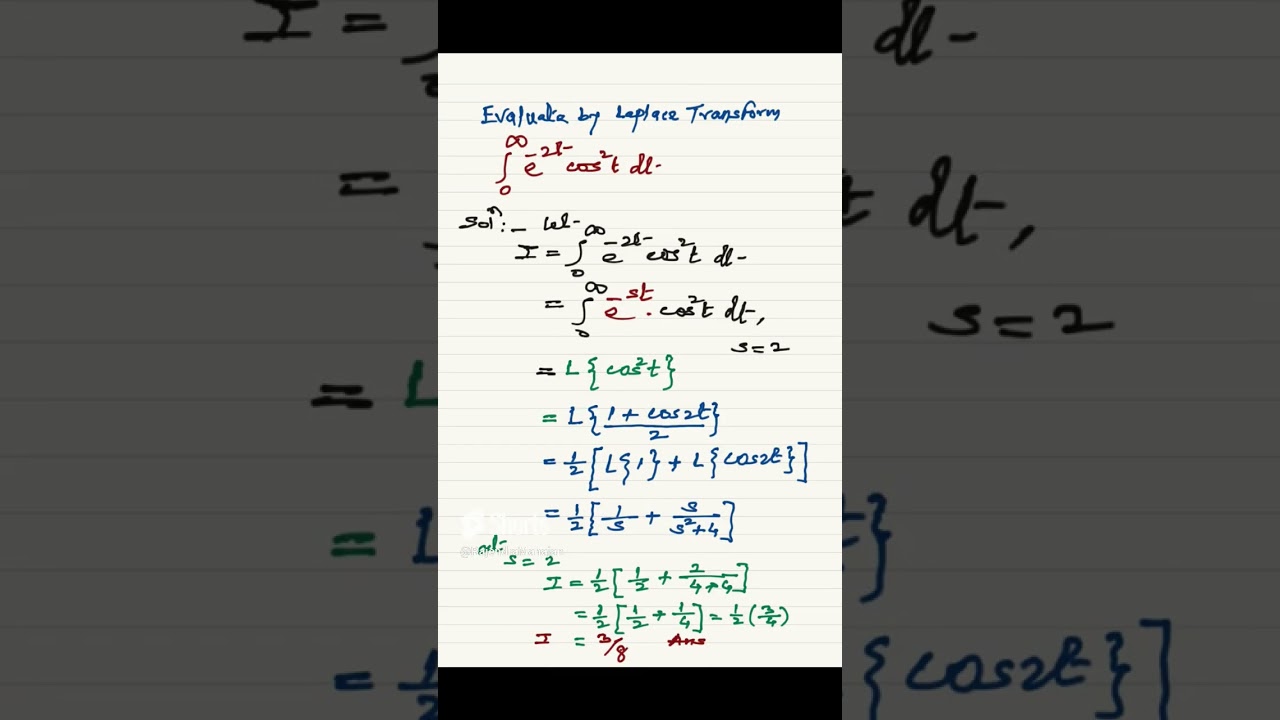

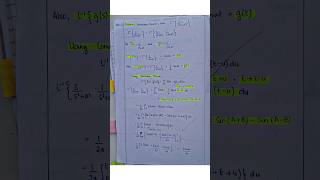

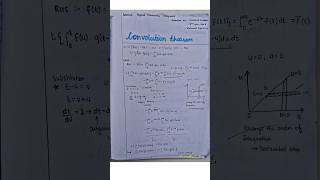

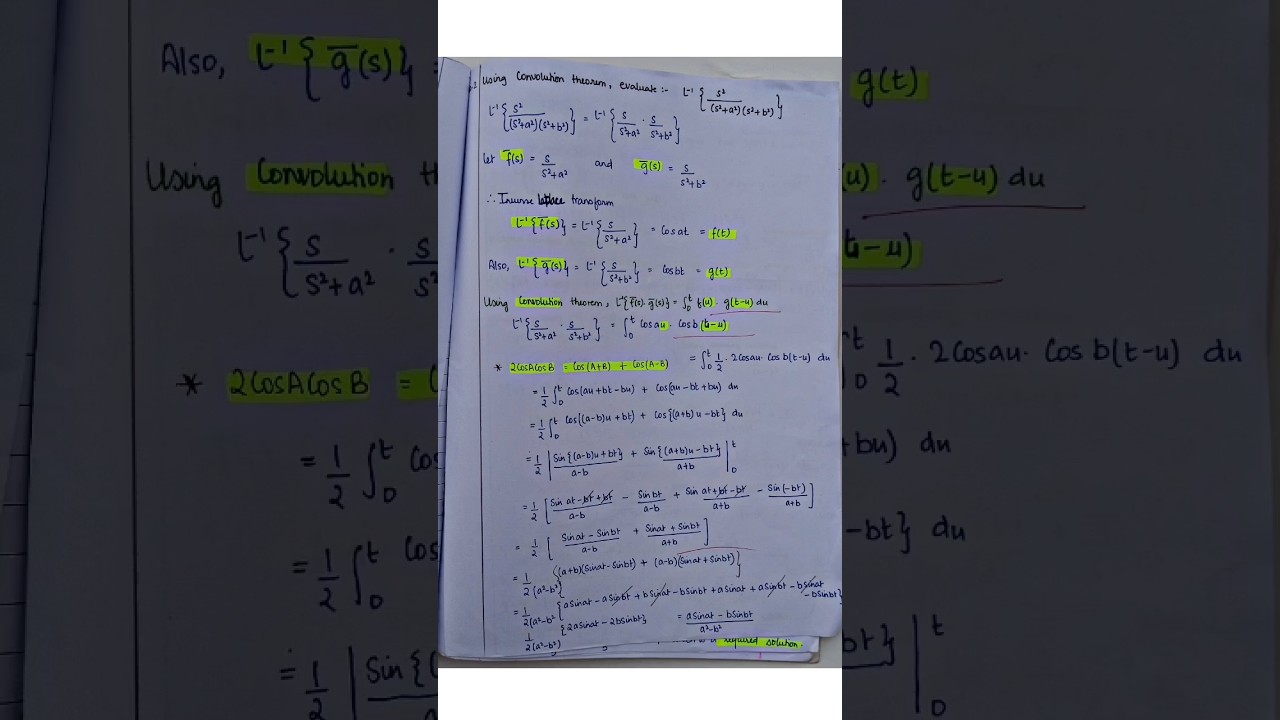

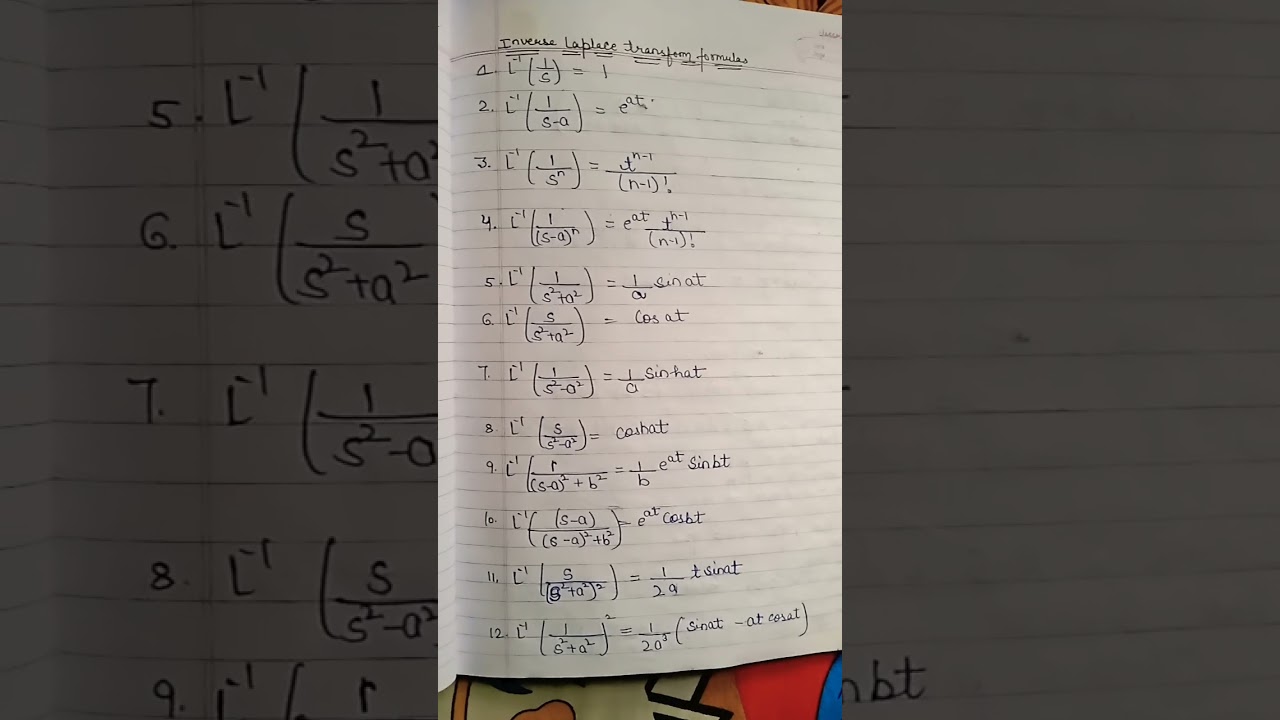

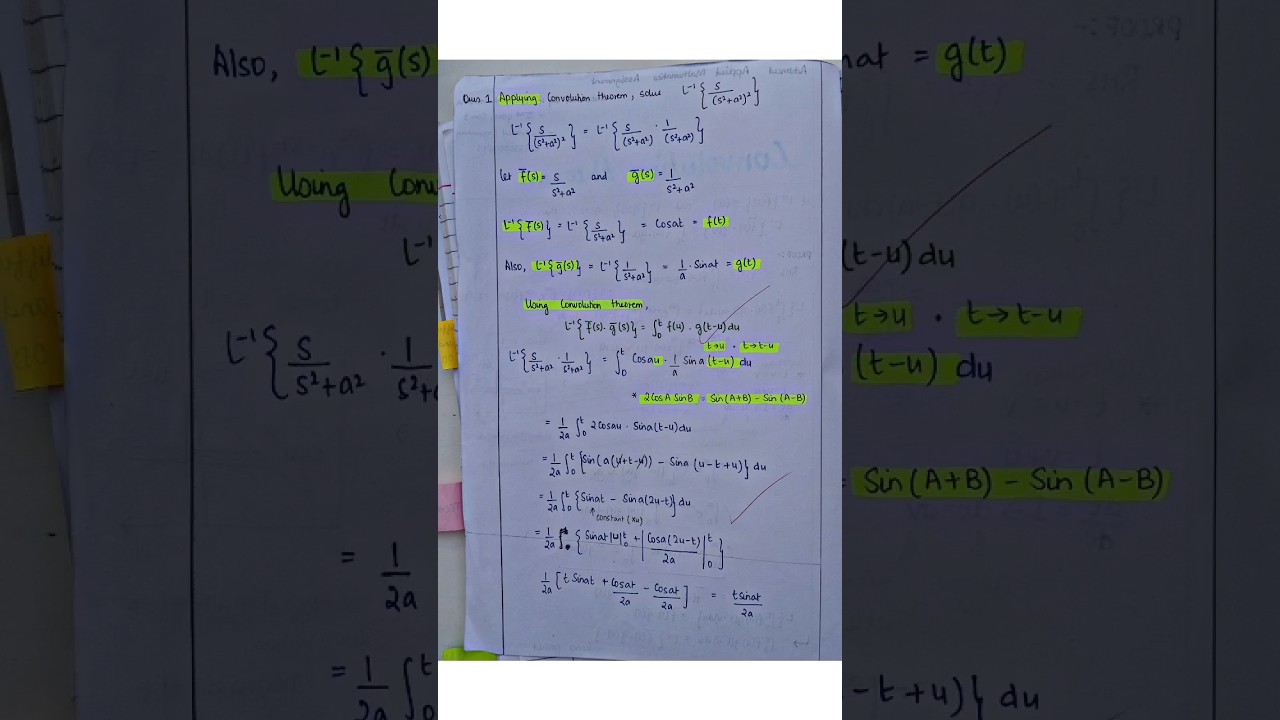

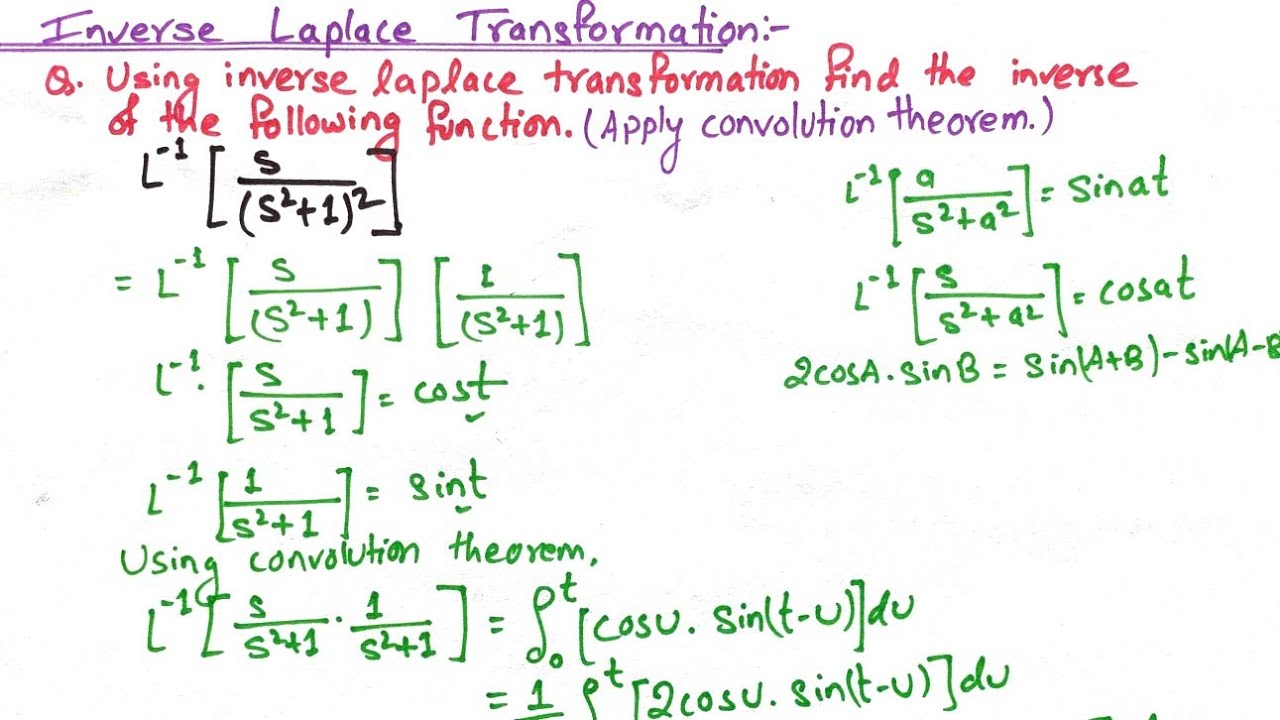

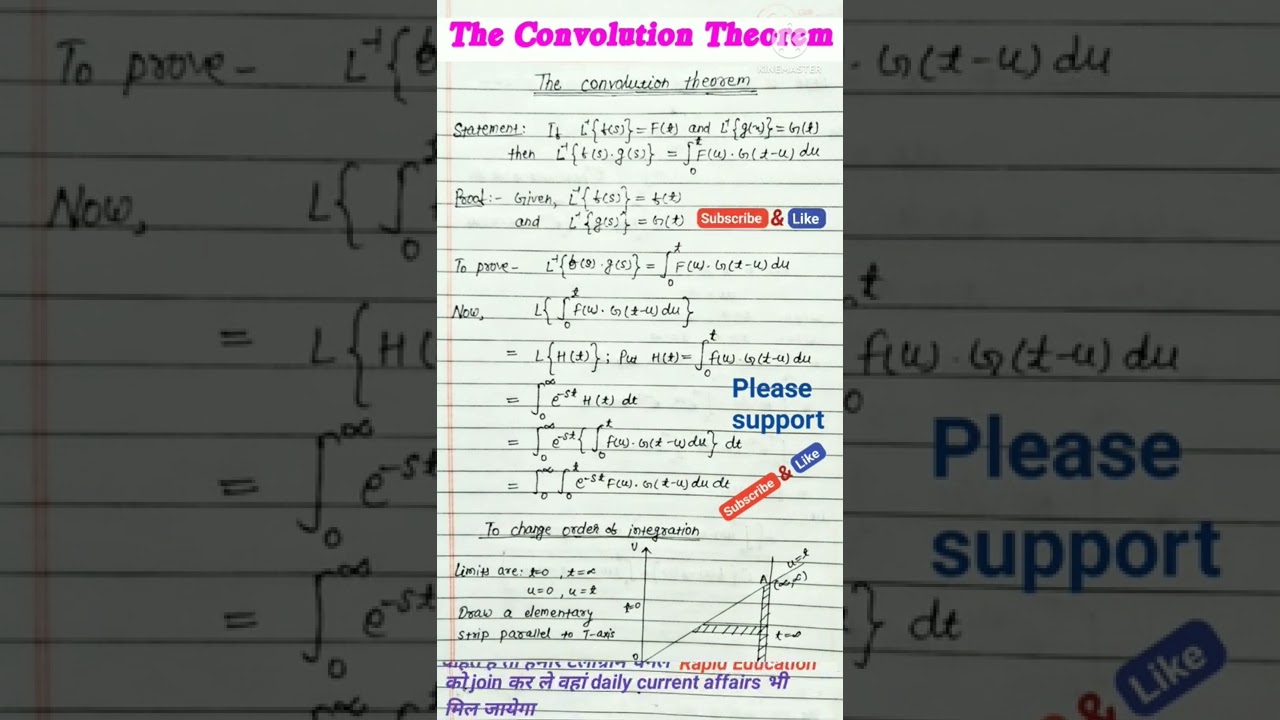

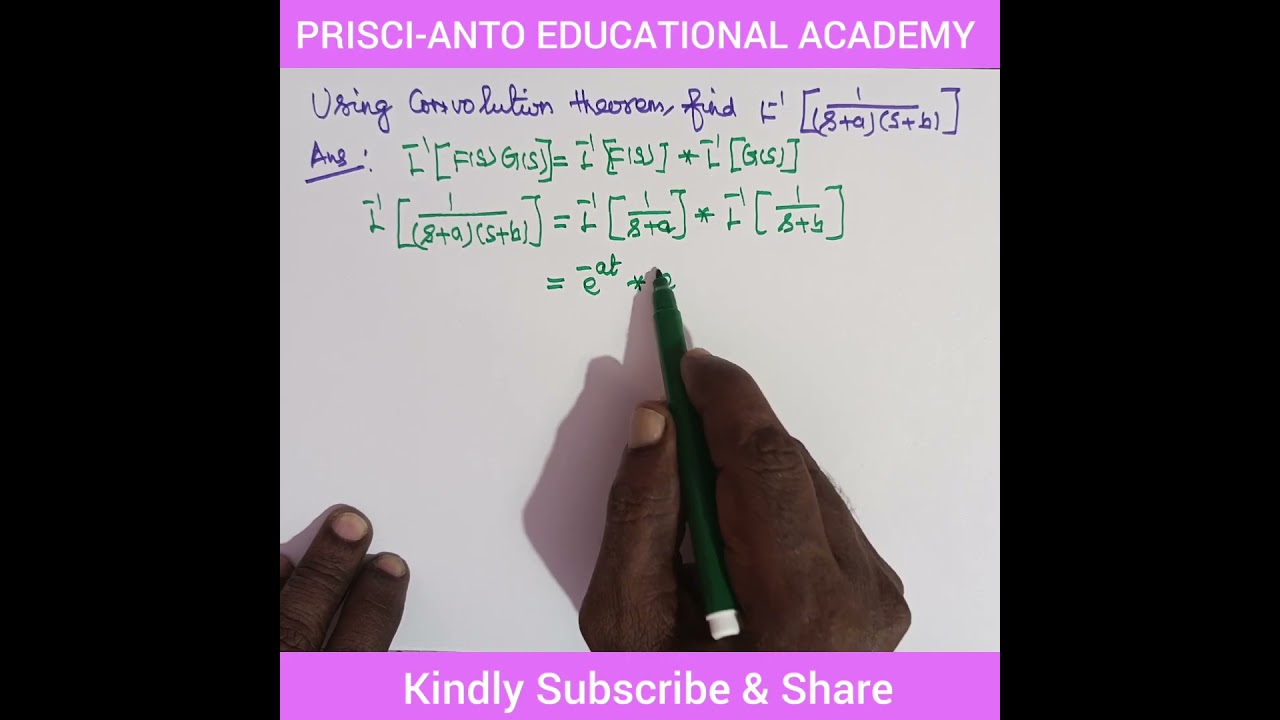

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Laplace Transform Basics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Using Laplace Transforms, the convolution in time domain corresponds to multiplication in the Laplace domain:
Detailed Explanation
In the context of system response analysis, the Laplace Transform is a powerful tool that converts time-domain functions (like displacement, force, etc.) into a frequency domain representation. This conversion allows for easier manipulation and solution of complex differential equations. Essentially, where convolution in the time domain requires integration of functions over time, the result in the Laplace domain simplifies to multiplication. This relationship makes calculations more straightforward, especially for systems with known Laplace pairs.
Examples & Analogies
Imagine you are trying to combine the results of various physical experiments one after the other (this is similar to convolution in time). It's complex and might involve long calculations step by step. Now, if you could summarize the results of several experiments into a single equation or formula (this is like multiplication in the Laplace domain), it would be much easier to work with. The Laplace Transform allows us to 'summarize' complex time behaviors into simpler terms.
Transforming Variables
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Let:
- X(s) = Laplace Transform of displacement x(t)
- H(s) = Laplace Transform of impulse response h(t)
- F(s) = Laplace Transform of input force F(t)
Detailed Explanation
Here, we define three critical components in the context of the Laplace Transform:
- X(s) represents the transformed function of the displacement in the system.
- H(s) is the transformed function of the impulse response, which characterizes how the system responds to an input force over time.
- F(s) stands for the transformed function of the input force applied to the system. By establishing these relationships, the analysis of system behavior is paired with the respective transforms, making it easier to analyze how each component influences the overall system response.
Examples & Analogies
Think of these transforms like the different ingredients in a recipe. X(s), H(s), and F(s) are similar to your main ingredient, spices, and the cooking method. Each ingredient interacts with others (like how the input force and impulse response interact) to determine the final dish (the displacement response). Knowing how each element transforms allows you to manipulate the recipe to achieve your desired results more efficiently.
Convolution in Laplace Domain
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Then:
X(s)=H(s)⋅F(s)
Detailed Explanation
This equation represents a core outcome of using the convolution theorem in the context of the Laplace Transform. It states that the Laplace Transform of the system's output (X(s)), which is the displacement response, equals the product of the Laplace Transform of the system's impulse response (H(s)) and the Laplace Transform of the input force (F(s)). This multiplication gives a direct and much simpler way to find out how the system will respond to various inputs, as opposed to solving complex differential equations.
Examples & Analogies
Consider this like a factory assembly line where different components come together to make a final product. Instead of having to build each item from scratch every time (which is complex and time-consuming), you can mix parts based on a straightforward rule. Here, H(s) and F(s) are the parts needed to create X(s). Using the multiplication rule, you can quickly create many products (responses) efficiently based on their respective transformations.
Inverse Laplace Transform
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Taking the inverse Laplace transform gives x(t), the time-domain response.
Detailed Explanation
Once you have calculated X(s) from the product of H(s) and F(s), the next step is to revert back to the time domain to find x(t), the response of the system over time. The inverse Laplace Transform is the process used to convert X(s) back into the original function that describes how displacement changes with time. This step is crucial because it allows us to relate abstract frequency-domain results to physical time-domain responses, which engineers and scientists need for practical applications.
Examples & Analogies
Think of this process like translating a foreign language back to your native tongue. If someone speaks in another language (frequency domain), you wouldn't understand it unless it's translated (inverse transform) back to your language (time domain). In engineering, converting back means we can apply the results of our analysis directly to understand how structures respond during events like earthquakes.
Benefits of Laplace Transform Approach
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This method is especially useful for solving problems with known Laplace pairs and handling complicated initial conditions.
Detailed Explanation
Utilizing the Laplace Transform simplifies the handling of initial conditions in dynamic systems, which could otherwise complicate problem-solving. Since it converts differential equations into algebraic ones, which are easier to manage, this approach also allows the incorporation of initial conditions directly into the transformed equations. The ability to work with known Laplace pairs makes it even more efficient for engineers to calculate responses for standard systems without excessive calculations.
Examples & Analogies
Imagine you have a toolbox filled with specialized tools (this represents known Laplace pairs). Instead of improvising with common tools for every project (which can be time-consuming and messy), having the appropriate tools at your disposal lets you tackle tasks efficiently and effectively without starting from scratch. In structural engineering, this efficiency is vital, especially in emergency scenarios like earthquake response.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Laplace Transforms: Used to convert differential equations into algebraic ones, making it easier to solve systems' responses.
-
Convolution Integral: Represents the response of the system as a function of the input and the system's impulse response. In mathematical terms, if:
-
X(s) is the Laplace Transform of displacement x(t),
-
H(s) is the Laplace Transform of the impulse response h(t),
-
F(s) is the Laplace Transform of the input force F(t),
-
then the relationship can be summarized as:
-
X(s) = H(s) ⋅ F(s)
-
From this relationship, the inverse Laplace transform provides the time-domain displacement response, x(t). This method finds extensive application in solving initial value problems, particularly where initial conditions are complicated and known Laplace pairs exist, streamlining the solution process.
-
This section underscores the efficiency of using the Laplace domain representation when analyzing dynamic systems, particularly in structural engineering.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In cases of earthquake engineering, instead of directly integrating complex dynamic forces over time, we can use Laplace transforms to quickly compute the system's response by multiplying the Laplace equivalents.
-
When dealing with predetermined force inputs, the response function can often be expressed as a product of the system's impulse response and the input's Laplace transform.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When the time gets too tough, and the math is rough, transform it with Laplace, then it's not so tough!
📖 Fascinating Stories
-
Imagine a wizard who transforms difficult math into easier sums with a magic spell - that's the Laplace transform in action!
🧠 Other Memory Gems
-
For convolution, think 'H to F makes X' (H(s) * F(s) = X(s)). It's a chain that connects system input to output!
🎯 Super Acronyms
LCT
- Laplace Convolution Theorem - 'Linear Connections of Time'
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Laplace Transform
Definition:
A mathematical operation that transforms a function of time into a function of a complex variable, simplifying the analysis of linear systems.
-
Term: Convolution
Definition:
A mathematical operation that expresses the output of a linear time-invariant system in terms of the input and the system's impulse response.
-
Term: Impulse Response Function
Definition:
The output of a system when a unit impulse function is applied at the input.
