Introduction to Duhamel's Integral
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we are diving into Duhamel's Integral, an essential concept for analyzing the dynamic response of structures. Can anyone tell me why it's important in evaluating earthquake effects?
It's important because it helps calculate how buildings respond to ground motions during an earthquake.
Exactly! The Duhamel Integral allows us to express the system's response using the impulse response function. Can anyone define impulse response for me?
It’s the response of a system to a unit impulse force, right?
Correct! Well done, Student_2. This sets the foundation for understanding how we derive the total response from arbitrary forces.
Let’s also remember this: the displacement at time t is calculated using past influences and the impulse response—this is what makes Duhamel's Integral so powerful.
Principle of Superposition and Convolution
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Moving on, how does the principle of superposition aid in the derivation of the Duhamel Integral?
It allows us to treat the overall response as a sum of responses to individual impulses.
Right! Each impulse, no matter how small, contributes to the overall system behavior. Hence, we can represent arbitrarily complex forces using simpler unit impulses.
How do we mathematically express this with the integral?
"Good question, Student_4! We use the convolution integral. It sums up the weighted contributions of past inputs to find the current response:
Physical Interpretation of Duhamel’s Integral
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Can someone explain the physical significance of Duhamel’s Integral in terms of how the system remembers past loads?
Each small impulse causes a delayed response that continues to affect the system until the current time.
Exactly! The total response at any moment is like a memory of all past impulses integrated over time. This accumulation is what makes the system's behavior so dynamic!
So in earthquake engineering, we can see how the ground motion influences the response over time?
Yes, that’s the crux! We express ground motion as a time-varying input, and Duhamel’s Integral gives a powerful method to evaluate how structures respond dynamically.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section elaborates on the derivation of Duhamel's Integral, explaining how the displacement response of an arbitrary force can be expressed through a convolution integral involving the system's impulse response function. It highlights the significance of this integral in understanding the response of structures to dynamic loads, such as those experienced during an earthquake.
Detailed
Derivation of Duhamel’s Integral
In this section, we focus on deriving Duhamel’s Integral, a vital tool in structural dynamics for calculating the response of linear time-invariant systems when subjected to arbitrary dynamic loading. The principle of superposition allows us to break down any external force, F(t), into a sum of infinitesimally small impulses. By utilizing the impulse response function, h(t), the total displacement response, x(t), can be obtained as a convolution integral:
$$
x(t) = \int_{0}^{t} h(t - \tau) F(\tau) d\tau
$$
This integral sums the contributions of each infinitesimal force applied at earlier times, leading to a cumulative effect at the current time, t. Duhamel’s Integral thus transforms complex differential equations into an accessible form, particularly for structural engineers analyzing the impacts of dynamic loads like earthquakes. This derivation also connects theory to practical applications where knowing the system's dynamic behavior is crucial for design and safety.
Youtube Videos
![[1/8] The Duhamel Integral | Crowd Vibration Project | DegreeTutors.com](https://img.youtube.com/vi/yOef1uu7Ask/mqdefault.jpg)

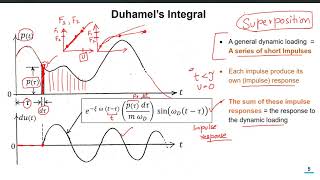

![22 - Response of SDF Systems to General Dynamic Loading - Duhamel's Integral [Urdu Language]](https://img.youtube.com/vi/6bdzwNJ-_kA/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Response to General Force Using Superposition
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

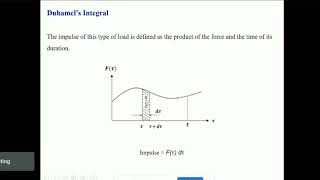

The system's response to a general force F(t) can be obtained using the principle of superposition and convolution. The idea is that any arbitrary force can be broken down into infinitesimally small impulses over time.
Detailed Explanation
In this chunk, we introduce the basic concept of how we can analyze a system's response to general forces. The principle of superposition allows us to consider the effects of smaller forces that add up to a larger one. Imagine a string of dominos: if you push one over, it causes a sequence of events (dominos falling). Similarly, every small force (impulse) applied at different times contributes to the total response of the system. This response can be computed by breaking the force F(t) into tiny pieces that act at each instant.
Examples & Analogies
Think about a crowd at a concert. If one person starts cheering (an impulse), it can cause a chain reaction where others begin to cheer. The total cheer response of the crowd is like the total displacement in our system, composed of many small cheers added together.
Duhamel Integral Expression
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Using the superposition of the effects of these impulses, the total response is given by:
t
x(t)=∫h(t−τ)F(τ)dτ
0
This is the Duhamel Integral, where:
- x(t) is the displacement response at time t
- h(t−τ) is the impulse response function
- F(τ) is the force at time τ
- τ is a dummy time variable
Detailed Explanation
Here, we present the actual mathematical representation of Duhamel's Integral. This equation states that the response at any time t (x(t)) can be found by integrating (adding up) the weighted contributions of the impulse response (h(t-τ)) and the forces applied at different past times (F(τ)). The 'dummy variable' τ serves to keep track of these past forces and allows the integral to compute their cumulative effect on the system's response at the present time t.
Examples & Analogies
Imagine you are listening to music while also observing the ripples in a pond. Each pebble you throw into the pond creates ripples that combine and affect the surface. In this analogy, the ripples are like the impulse responses, and the pebbles represent the forces (F(τ)). The Duhamel Integral helps us understand the total effect of all the pebbles (past forces) on the water's surface at a given moment.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Duhamel Integral: A method for analyzing structural response to dynamic loads.
-
Impulse Response Function: Integral to evaluating how structures behave to loads.
-
Superposition Principle: Fundamental concept enabling the overall response to be represented as a sum of individual responses.
-
Convolution Integral: Mathematical representation for calculating overall system response.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using Duhamel's Integral to calculate the response of buildings during earthquakes by inputting recorded ground motion data.
-
Analyzing the effects of varying dynamic loads on simple SDOF systems through impulse response functions.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For every force that shakes the ground, Duhamel’s Integral can be found.
📖 Fascinating Stories
-
Imagine a building slowly remembers every shake it felt during an earthquake, adding each experience to understand how it will react next time. That’s Duhamel’s magic, capturing memories of forces!
🧠 Other Memory Gems
-
D I S C: Duhamel Integral Summation Convolution—remember, it’s about summing responses using convolution!
🎯 Super Acronyms
PERSIST where P stands for Past impacts, E for Every impulse, R for Response, and S for Sum to get Total—the key to the integral.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Duhamel Integral
Definition:
A mathematical tool used to calculate the response of linear time-invariant systems to arbitrary dynamic loading by using the impulse response function.
-
Term: Impulse Response Function
Definition:
The response of a system to a unit impulse force; critical for deriving system behavior over time.
-
Term: Superposition Principle
Definition:
A principle stating that the total response of a linear system is the sum of the responses to individual inputs.
-
Term: Convolution Integral
Definition:
A mathematical operation that expresses the relationship between an input function and an output function through a weighted accumulation of past values.
