Ambient Vibration Testing
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're going to talk about ambient vibration testing. This method measures a structure's response to minor environmental vibrations, like wind or traffic. Can anyone tell me what devices we might use to measure these vibrations?
Accelerometers can be used, right?
Exactly! Accelerometers pick up minute vibrations. We then analyze the data using Fast Fourier Transform, or FFT. Does anyone know why we prefer FFT for this analysis?
I think it helps in identifying dominant frequencies easily.
Correct! It's efficient for breaking down complex signals into their frequency components. Now, who can summarize the pros and cons of this method?
Well, it's non-intrusive, which is a plus, but it might not be as accurate as forced vibration tests.
Great job! In summary, while ambient vibration testing is useful and non-invasive, it does have limitations in accuracy.
Forced Vibration Testing
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Just to clarify, how does the applied force help us determine natural frequency?
It helps us see how the structure responds to that force, right? We can measure the vibrations accurately.
Exactly! This provides a direct relationship between the force applied and the vibrations that occur. Can anyone think of a drawback to this method?
It’s intrusive and might alter the structure temporarily during testing.
Correct again! While we gain accurate results, the method's intrusion means we have to manage testing conditions carefully. So, what are the key takeaways from forced vibration testing?
It's a reliable way to get accurate measurements, but it requires careful planning.
Absolutely! Accurate yet demanding on resources.
Free Vibration Method
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
For our last method, free vibration testing, we displace the structure and let it oscillate freely. What do you think is the major benefit of this method?
I guess it’s a more natural way to see how the structure behaves.
That’s right! This method shows us the natural frequency without external interference. How do we extract the frequency from the vibrations?
We look at the time-history response?
Exactly! By analyzing the time history of the vibrations, we can derive the frequency. Any potential downsides to this method that you can think of?
It might be harder to get precise measurements compared to forced tests.
Good point! While it's an organic way to observe frequency, precision can be a challenge based on setup. To summarize, each method has unique advantages and challenges, influencing their use in experimental determinations of natural frequency.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Experimental determination of natural frequency is crucial in structural engineering, particularly for seismic design. The section outlines three main methods: ambient vibration testing measures response to minor vibrations using instruments, forced vibration testing applies a known force and measures the structural response, and free vibration testing observes natural oscillations after initial displacement.
Detailed
Detailed Summary
In earthquake engineering, accurately determining the natural frequency of structures is essential for ensuring their resilience to seismic forces. This section explains three primary experimental methods:
1. Ambient Vibration Testing
This method measures the structure's response to minor vibrations caused by environmental factors such as wind or traffic. Accelerometers are used to capture data, and Fast Fourier Transform (FFT) techniques analyze this data to identify dominant frequencies. This technique is advantageous for its non-intrusiveness but may be less accurate compared to forced methods.
2. Forced Vibration Test
In this method, a known force is applied directly to the structure, and its response is measured. While more accurate, this method is intrusive, as it requires controlled conditions and setup to achieve reliable results. The relationship between the applied force and resulting vibrations helps accurately determine the natural frequency.
3. Free Vibration Method
This technique involves manually displacing a structure and allowing it to vibrate freely. The frequency of these vibrations is extracted from time-history data, providing insights into the structure's dynamic properties.
Each of these methods has its pros and cons, influencing their selection based on the specific structural requirements and testing conditions. Understanding natural frequency is critical for designing buildings and infrastructure that can withstand earthquakes.

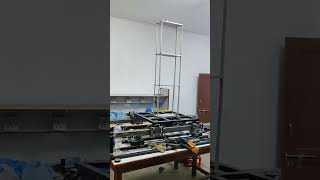

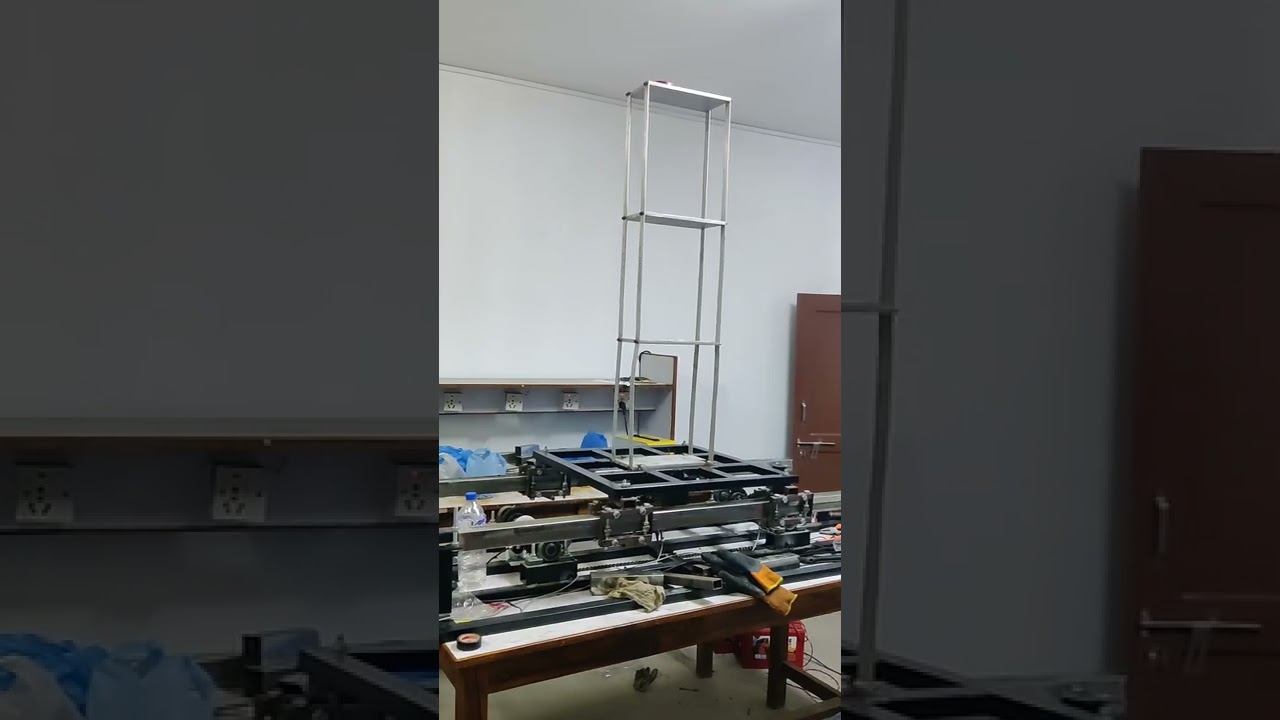

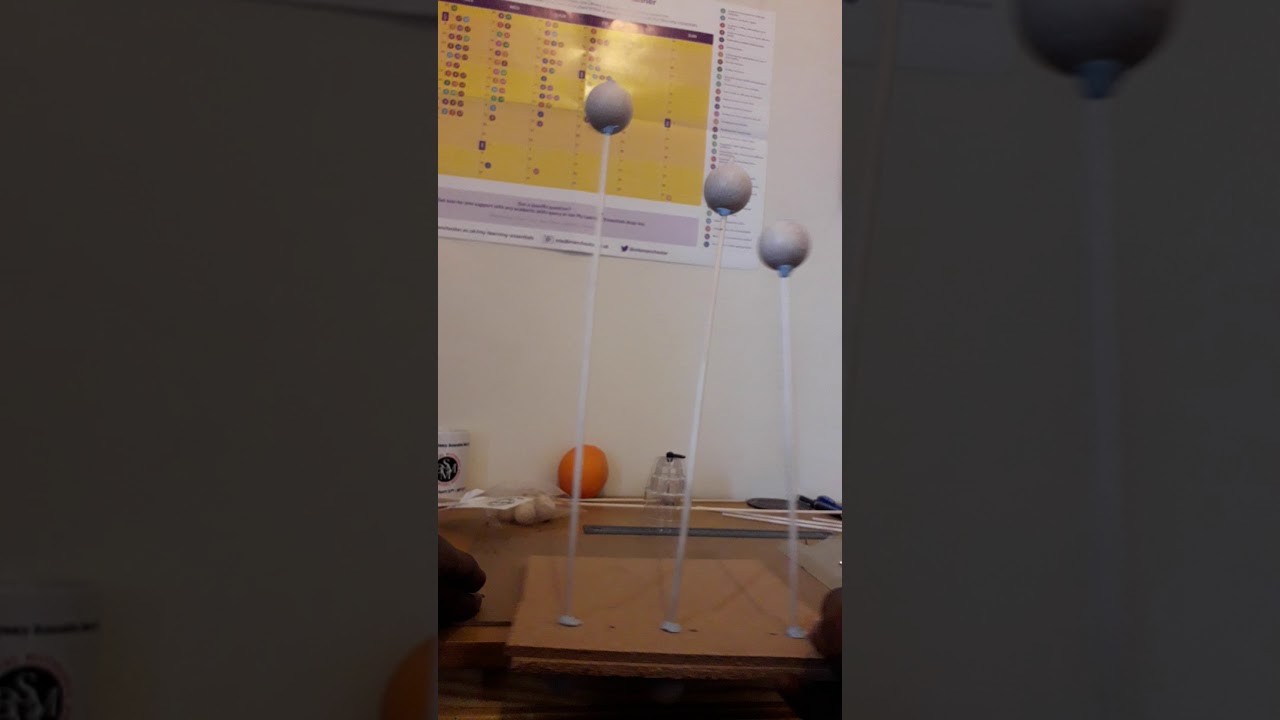

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Ambient Vibration Testing
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Ambient Vibration Testing
- Measures response due to wind, traffic, or other minor vibrations.
- Uses accelerometers and FFT (Fast Fourier Transform) to find dominant frequencies.
Detailed Explanation
Ambient Vibration Testing is a method used to measure how a structure responds to environmental vibrations, such as those caused by wind or traffic. This is done without applying any artificial forces to the structure. Sensors called accelerometers record the vibrations, which are then analyzed using a mathematical technique known as Fast Fourier Transform (FFT). FFT helps to identify the structure's natural frequencies by converting the time-domain signal (vibration over time) into the frequency domain, showing which frequencies are present in the vibration response.
Examples & Analogies
Think of ambient vibration testing like listening to a piano playing a note. If you gently tap a key, the sound produced is a representation of the piano's natural frequency. Just like how one can hear which notes are resonant and dominant when the piano is played, engineers can determine which vibrations are most significant when they analyze the data from the accelerometers.
Forced Vibration Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Forced Vibration Test
- A known force is applied to the structure and response is measured.
- More accurate than ambient methods but intrusive.
Detailed Explanation
In a Forced Vibration Test, engineers apply a known force to a structure to assess how it vibrates in response. This method is more controlled and can provide very accurate measurements of natural frequencies. While it gives precise data, it is considered intrusive because it requires significant equipment and can disrupt normal operations of the structure being tested.
Examples & Analogies
Imagine testing the strength of a bridge by applying a weight to it. As you add weight, you watch how much it bends and vibrates. This is similar to forced vibration testing, where the known force (like the added weight) helps engineers understand the bridge's response to dynamic forces.
Free Vibration Method
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Free Vibration Method
- Structure is displaced and allowed to vibrate freely.
- Frequency is extracted from time-history response.
Detailed Explanation
The Free Vibration Method involves displacing a structure (for example, by pushing it) and then allowing it to vibrate without any external forces acting on it. Engineers then measure how the structure vibrates over time, known as the time-history response. By analyzing this response, they can calculate the natural frequencies at which the structure tends to vibrate.
Examples & Analogies
Consider a swing at a playground. If you push it once and let it go, it will swing back and forth because of its natural frequency. By watching how long it takes to complete a swing, you gain insights into its natural vibration properties—just as engineers do with the free vibration method.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Ambient Vibration Testing: A non-intrusive method that measures the response from environmental forces.
-
Forced Vibration Test: An intrusive method where known forces are applied to find structural response.
-
Free Vibration Method: Observing natural oscillations after displacement to determine frequency.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In ambient vibration testing, a building is evaluated for its natural frequencies based on wind-induced movements.
-
A forced vibration test on a bridge may involve applying a known force via weights to measure its vibrational response.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In ambient air, vibrations flow, / A structure responds, frequencies grow.
📖 Fascinating Stories
-
A tiny engineer once nestled by a bridge, using environmental changes to find its frequency, discovering how wind affects its sways and bends.
🧠 Other Memory Gems
-
Remember 'AFF' for Ambient, Forced, and Free methods of testing constructs for frequencies!
🎯 Super Acronyms
Use 'VAE' for Vibrations - Ambient, Applied, and Experimental to remember methods of natural frequency determination.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Ambient Vibration Testing
Definition:
A method that measures a structure's response to environmental vibrations, typically using accelerometers.
-
Term: Forced Vibration Test
Definition:
A testing method where a known force is applied to a structure to measure its response and determine natural frequency.
-
Term: Free Vibration Method
Definition:
A method where a structure is displaced and then allowed to vibrate naturally, with frequency derived from its oscillations.
-
Term: Fast Fourier Transform (FFT)
Definition:
A mathematical technique used to analyze frequency components in signals.
