14.6 - Factors Affecting Natural Frequency
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Mass Distribution
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we'll explore the impact of mass distribution on natural frequency. Mass distribution is critical; when we add mass to a structure, what happens to its natural frequency?
It lowers the natural frequency, right?
Exactly! Lower frequency can lead to resonance during seismic events. What about uneven mass distribution?
That could create irregular responses in vibrations?
Yes, well done! This is why we need to carefully plan mass distribution in design. Remember the acronym M.A.R. for Mass, Amplification, and Response!
Stiffness Variation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let's talk about stiffness variation. Does anyone know how increasing stiffness affects natural frequency?
It raises the natural frequency!
Correct! But if there are weak stories, like in a soft storey effect, what happens?
It would reduce stiffness and make it more vulnerable?
Absolutely! If we think about stiffness, let's use the mnemonic 'S.T.E.E.R.'—Stiffness Thwarts Earthquake Effects Reduced—to recall its importance in design.
Boundary Conditions
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, how about boundary conditions? Who can tell me the significance of how structures are supported?
The type of support affects how stiff the structure is?
Exactly! Fixed supports will behave differently than pinned or free supports. What could this lead to?
Different vibrational responses?
Right! Remember the acronym F.P.F. for Fixed, Pinned, Free. This can help us recall how strong the conditions and impacts can be!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section discusses how natural frequencies are influenced by factors such as the distribution of mass within a structure, variations in stiffness, and the type of boundary conditions. These factors together play a crucial role in determining a structure’s response to dynamic forces, especially in earthquake engineering.
Detailed
Factors Affecting Natural Frequency
Natural frequency is a key concept in earthquake engineering, significantly impacting how structures respond to seismic forces. This section delves into three primary factors influencing natural frequency:
- Mass Distribution: Adding mass to a structure lowers its natural frequency, while uneven mass distribution can lead to irregular behavior during vibrations.
- Stiffness Variation: An increase in stiffness generally raises the natural frequency. Conversely, weak or flexible parts of a structure can reduce its stiffness, termed the "soft storey effect," which makes it more vulnerable during seismic events.
- Boundary Conditions: The way structures are supported—whether they are fixed, pinned, or free—greatly influences their stiffness characteristics and thus their natural frequencies. Different support conditions can lead to varied vibrational responses in structures.
Understanding these factors is essential for engineers to design earthquake-resistant structures, analyze their behavior, and mitigate risks associated with resonance.

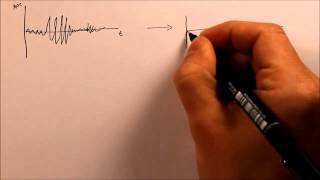

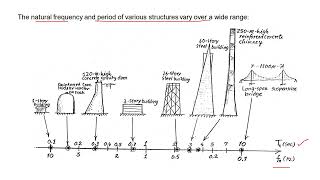

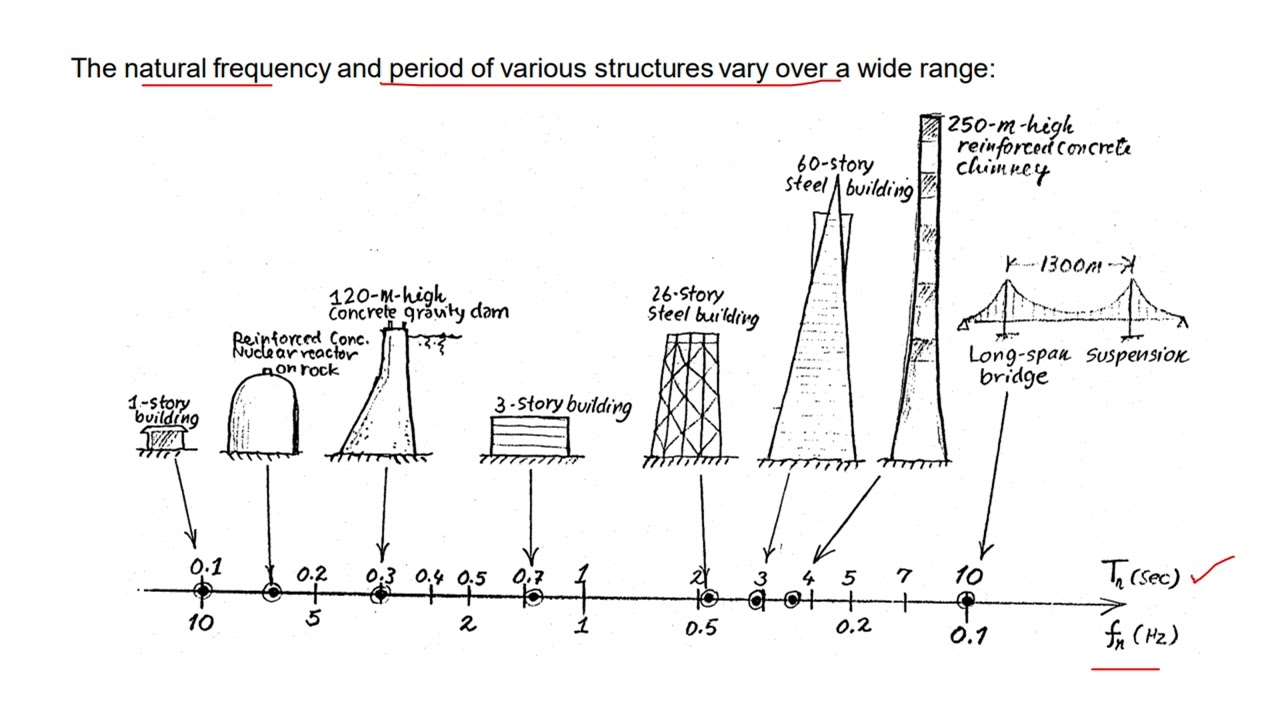

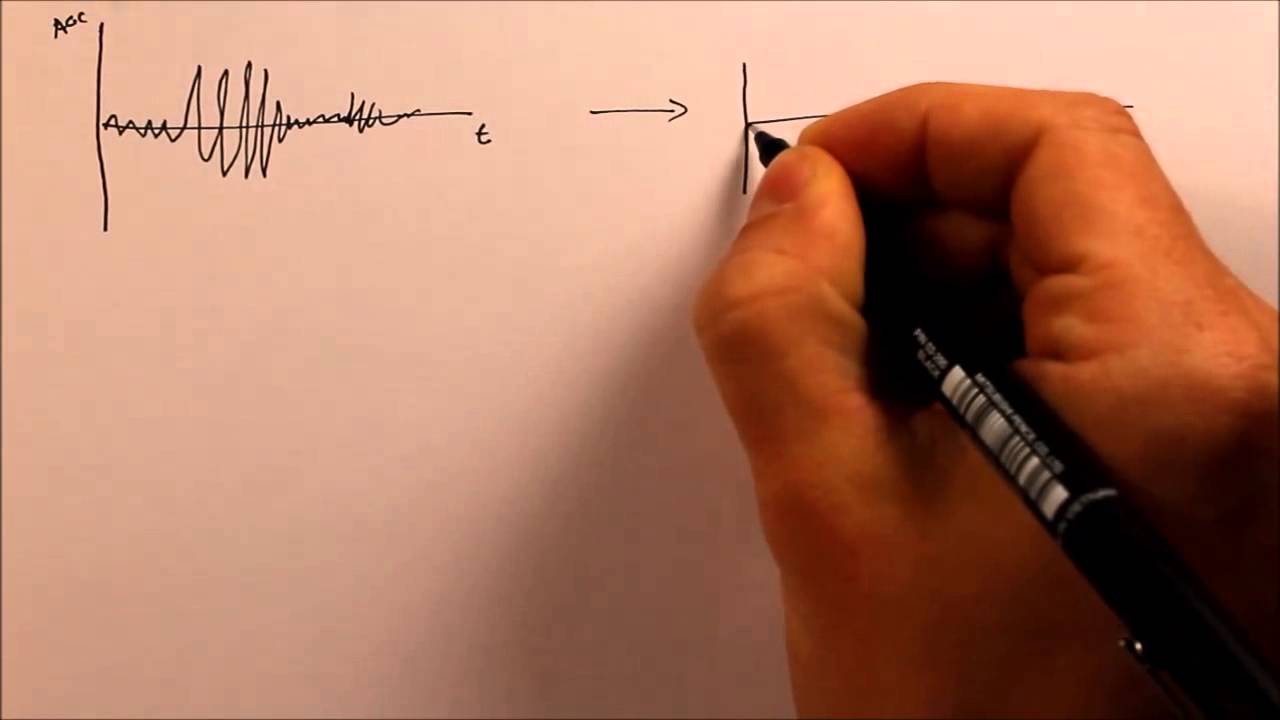

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Mass Distribution
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Adding mass lowers the natural frequency.
- Uneven mass distribution leads to irregular modal responses.
Detailed Explanation
The distribution of mass within a structure has a direct impact on its natural frequency. When additional mass is added to a structure, it typically results in a decrease in the natural frequency, meaning the structure will vibrate more slowly. This occurs because a heavier structure requires more energy to maintain its motion and thus 'responds' at a lower frequency. Furthermore, if the mass is distributed unevenly, it can cause bizarre or irregular vibrations during seismic activity. This is because different parts of the structure may resonate differently, leading to complex movements that may not be ideal for stability.
Examples & Analogies
Imagine a swing set. If one person sits on one end of the swing, the swing will move in a particular way. If you then add another person to the same swing, the entire set becomes heavier and will swing back and forth more slowly than before. If everyone jumps to one side, the swing can twist and behave unexpectedly. Similarly, in buildings, unevenly distributed weight can lead to complicating the building's response to vibrations.
Stiffness Variation
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Increased stiffness raises the natural frequency.
- Weak or flexible stories (soft storey effect) reduce stiffness and can cause vulnerability.
Detailed Explanation
Stiffness refers to how much a structure resists deformation when subjected to forces. When a structure has increased stiffness, it can resist bending and deformation better, which contributes to a higher natural frequency. This means the structure can oscillate more quickly. However, if certain parts of a structure are less stiff (like a story that is not as strong), this can create vulnerabilities. A common example of this is the 'soft storey' effect, where the base of a building is less rigid than upper floors, causing it to sway or move excessively during an earthquake, thus compromising stability.
Examples & Analogies
Think of a strong tree that can withstand high winds versus a flexible sapling. The tree stands firm and hardly moves in the wind (high stiffness), while the sapling bends and sways a lot (low stiffness). If a storm hits and pushes the tree at its base, it remains upright, but if the sapling has a bunch of leaves (weak stories) below, it may get uprooted easily and become vulnerable.
Boundary Conditions
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Natural frequency is affected significantly by how the structure is supported.
- Fixed vs. pinned vs. free conditions change stiffness characteristics.
Detailed Explanation
The way a structure is supported has a significant effect on its natural frequency. For example, a structure that is fixed at the base will have a different natural frequency compared to one that is simply pinned or freely supported. Fixed supports offer higher stiffness, resulting in a higher natural frequency, as they resist movement effectively. In contrast, pinned or free supports allow more movement, which can lower the natural frequency and increase the risk of resonance during seismic events.
Examples & Analogies
Imagine holding a pencil at one end (fixed condition): you can increase the pressure to make it harder to bend, similar to a fixed support in a building. Now, if you hold the pencil loosely at both ends (pinned condition), it can wobble freely and is easier to bend. The more flexible the connection, the more the pencil (or building) can respond or sway, which affects how it vibrates during a disturbance.
Key Concepts
-
Mass Distribution: Affects the natural frequency; adding mass lowers it.
-
Stiffness Variation: Increased stiffness raises the natural frequency.
-
Boundary Conditions: Influence the natural frequency based on how structures are supported.
Examples & Applications
A building with uneven mass distribution may sway unpredictably during an earthquake, leading to structural damage.
A fixed support condition in a structure would make it stiffer compared to a free support, affecting its natural frequency.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Mass makes frequency low, stiff floors help us grow.
Stories
Imagine a wizard weighing down his tower's roof, making it sway, while a sturdy foundation keeps it safe from quake mischief.
Memory Tools
For mass and stiffness, remember M.A.S.S. for 'More Adds Structural Stability'.
Acronyms
B.S.F. for Boundary Support Flexibility - understanding how supports can limit oscillation.
Flash Cards
Glossary
- Natural Frequency
The frequency at which a system naturally oscillates when not subjected to external forces.
- Mass Distribution
The arrangement of mass in a structure, which affects its dynamic properties.
- Stiffness
The rigidity of a structure, determined by how much it deforms under loading.
- Boundary Conditions
The constraints on a structure that dictate its support conditions and behavior.
- Soft Storey Effect
A phenomenon where a strong building has a weaker floor or storey, making it more susceptible to failure.
