Fourier Spectrum
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we'll discuss the **Fourier Spectrum** in earthquake engineering. This method allows us to break down earthquake ground motion into different frequency components. Can anyone tell me why it's important to analyze the frequency content?
It helps us understand how different structures will respond to those vibrations.
Exactly! By using Fourier Transform, we can identify dominant frequencies of ground motion. These frequencies are crucial because they can match a structure's natural frequency, leading to resonance. Can anyone recall what happens during resonance?
It can amplify vibrations and potentially damage the structure!
Right! Remember this: 'Resonance = Risk!' Now, let's move on to the next topic.
Power Spectral Density (PSD)
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Next, we will dive into **Power Spectral Density (PSD)**. This concept represents how power or energy is distributed over different frequencies during an earthquake. Why do you think knowing the PSD is significant?
It helps in understanding which frequencies we need to design for in a structure.
Exactly! The PSD is commonly utilized in stochastic earthquake response analysis, where structures are designed to endure random vibrations. Let's remember: 'PSD = Predict Structure Damage!' Can anyone explain what a narrow-band motion is?
It has high energy concentrated in a limited frequency range.
Great! Conversely, what is broad-band motion?
It spreads energy across many frequencies.
Exactly! Now you all understand the importance of frequency content in earthquake analysis.
Narrow-band vs Broad-band Motions
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s compare **narrow-band** and **broad-band motions**. Why do we need to differentiate between the two when analyzing seismic motions?
Because they affect structures differently based on how energy is distributed.
Exactly! Narrow-band ground motion can be particularly dangerous if it matches a structure’s natural frequency, leading to resonance. And broad-band motion?
It affects multiple modes because energy is spread out.
Right! It’s vital to analyze both types to ensure safety in design. Remember: 'Narrow-Band = Naughty!' and 'Broad-Band = Balanced!'
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the concept of frequency content in earthquake ground motion is explored. It highlights the importance of decomposing ground motion into its frequency components using Fourier Transform, understanding power spectral density, and distinguishing between narrow-band and broad-band motions in seismic analysis.
Detailed
In this section, we delve deeply into the Frequency Content of Ground Motion, a crucial aspect of earthquake engineering. The analysis begins with the Fourier Spectrum, which allows for the decomposition of seismic ground motion into its frequency components using Fourier Transform. This technique is essential for identifying the dominant frequencies that may impact specific structures.
Next, we explore the Power Spectral Density (PSD), a representation that indicates how power or energy is distributed over different frequencies, which is particularly useful in stochastic earthquake response analysis. The distinction between narrow-band and broad-band motions is emphasized; narrow-band motions have high energy concentrated in a limited frequency range, increasing the risk of resonance with structures. Conversely, broad-band motions spread energy across multiple frequencies, affecting several modes of vibration.
Both the Fourier Spectrum and PSD are invaluable tools for engineers to design structures capable of withstanding the complexities of seismic forces, thus enhancing building safety during earthquakes.
Youtube Videos

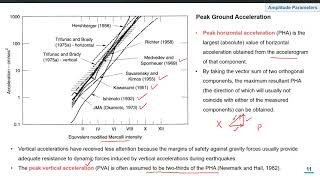

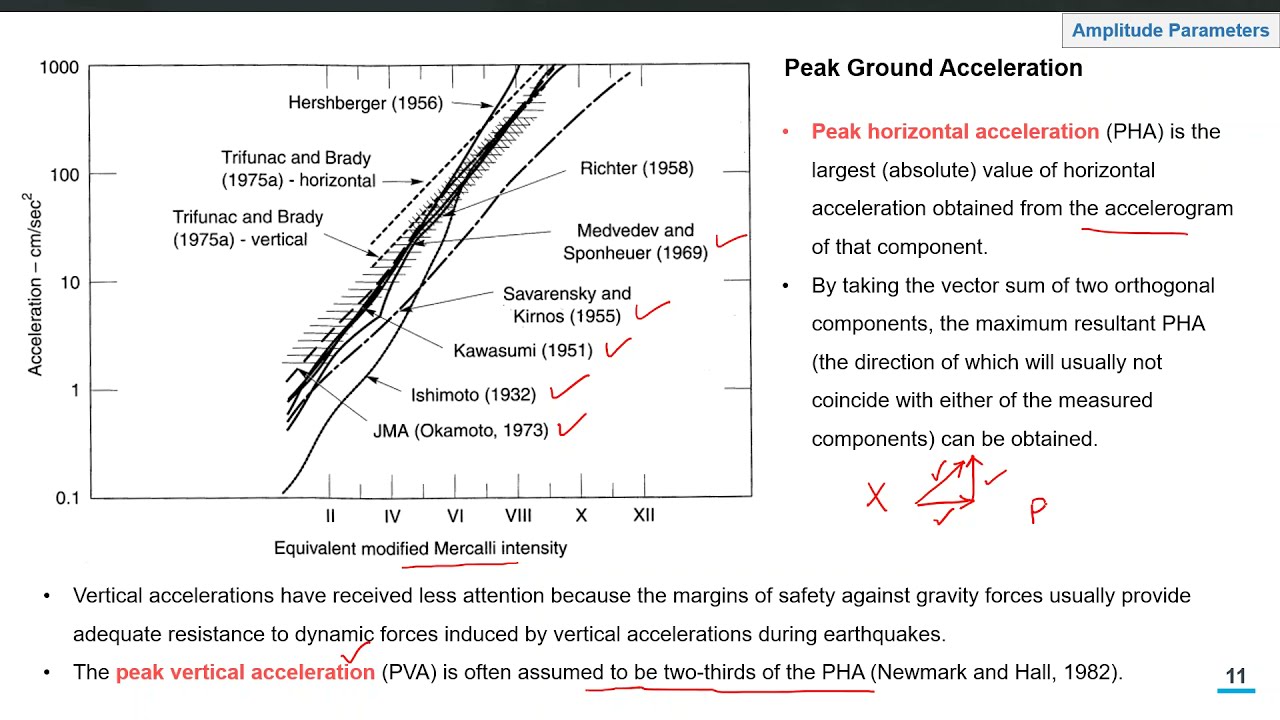

![5 - Ground Motion Parameters - Part 1 - [Amplitude Parameters & Frequency Content Parameters]](https://img.youtube.com/vi/1fPBxJB8gBA/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Fourier Spectrum
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Earthquake ground motion can be decomposed into frequency components using Fourier Transform.
• The Fourier amplitude spectrum shows how different frequencies contribute to the total motion.
• Helps in identifying dominant frequencies of ground motion that may affect specific structures.
Detailed Explanation
The Fourier spectrum is a mathematical technique that splits complex signals, like those generated during an earthquake, into simpler parts based on their frequency. Using the Fourier Transform, we can understand how much energy is contained in each frequency present in the ground motion during an earthquake. The Fourier amplitude spectrum visualizes this information, showing which frequencies contribute the most to the ground motion. This understanding is crucial for engineers as certain structures have specific frequencies that they respond to. By knowing these dominant frequencies, engineers can design buildings that are better equipped to withstand earthquakes.
Examples & Analogies
Imagine a choir singing different notes. Each note represents a different frequency. When the choir sings harmoniously, the sound carries more power. Similarly, during an earthquake, the ground motion has various 'notes' or frequencies. The Fourier spectrum helps engineers identify which 'notes' are the loudest, enabling them to design buildings that can either join in or stay quiet, thus preventing disasters.
Power Spectral Density (PSD)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• PSD represents how power (or energy) is distributed over frequency.
• Used in stochastic earthquake response analysis and for designing structures subjected to random vibrations.
Detailed Explanation
Power Spectral Density (PSD) is a statistical method used to express how the power of a signal or time series is distributed with frequency. In the context of earthquakes, it helps engineers analyze how much energy exists at each frequency of the ground motion. This is particularly useful when dealing with random vibrations, as it allows for more accurate predictions of how structures will react to these vibrations during an earthquake. By understanding the PSD, engineers can design structures to handle these varying energy levels across a range of frequencies.
Examples & Analogies
Think of driving a car over a bumpy road. The bumps come in different sizes (frequencies). If some bumps are bigger than others, they cause a bigger jolt (power) to the car. The PSD is like a map that tells you how big each bump is, helping you decide how to adjust your car's suspension (design) to make the ride smoother and safer over these bumps.
Bandwidth of Earthquake Motions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Narrow-band vs broad-band motions:
– Narrow-band ground motion: high energy in limited frequency range; dangerous if matches structural frequency.
– Broad-band motion: energy spread across many frequencies; affects multiple modes.
Detailed Explanation
Bandwidth describes the range of frequencies present in an earthquake motion. There are two main types: narrow-band and broad-band motions. Narrow-band motions concentrate energy within a very limited frequency range, which can be particularly dangerous for structures if this range coincides with the natural frequency of the building. On the other hand, broad-band motions distribute energy across a wider range of frequencies, impacting various structural modes. Recognizing the difference between these types helps engineers design structures that can survive different types of seismic activities.
Examples & Analogies
Consider listening to music. A narrow-band motion is like a song that focuses on a single note played repeatedly (high energy in a limited range), which can be overwhelming if it coincides with your hearing sensitivity (structural frequency). A broad-band motion, however, is like a symphony that plays many instruments at once, making it easier to handle because the sound is not overly concentrated on one note, illustrating how structures can better cope with different frequencies.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Fourier Spectrum: A method for decomposing seismic ground motion into frequency components.
-
Power Spectral Density (PSD): Indication of how power is distributed over frequency, crucial for analyzing seismic responses.
-
Narrow-band Motion: High energy concentrated in a limited frequency range, posing risks of resonance.
-
Broad-band Motion: Energy spread across multiple frequencies, impacting various structural modes.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of narrow-band motion: An earthquake where most energy is concentrated around 2 Hz, causing resonance in buildings with a similar natural frequency.
-
Example of broad-band motion: Ground shaking during an earthquake where energy is spread across a range of frequencies from 0.5 Hz to 10 Hz, affecting multi-story buildings.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In seismic land, there’s a need, Fourier’s the cure to understand speed.
📖 Fascinating Stories
-
Once in a city prone to quakes, a builder learned the tale of frequency stakes, too much vibration would lead to disaster, he learned to analyze to make buildings faster.
🧠 Other Memory Gems
-
Narrow-band = Nasty (for risky resonance), Broad-band = Balanced (for safe structures).
🎯 Super Acronyms
PSD = Power in Safe Distribution.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Fourier Transform
Definition:
A mathematical technique that transforms a function of time into a function of frequency, allowing for analysis of frequency components in signals such as ground motion.
-
Term: Power Spectral Density (PSD)
Definition:
A measure of how the power of a signal is distributed with frequency, indicating energy distribution in seismic analysis.
-
Term: Narrowband Motion
Definition:
Seismic motions that have high energy concentrated in a limited frequency range, increasing the risk of resonance.
-
Term: Broadband Motion
Definition:
Seismic motions that spread energy across multiple frequencies, potentially influencing several modes of vibration.
